Details:
Aluminum Alloy Made, lightweight.
Expander size: 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1-1/8".
New Type and easy to use.

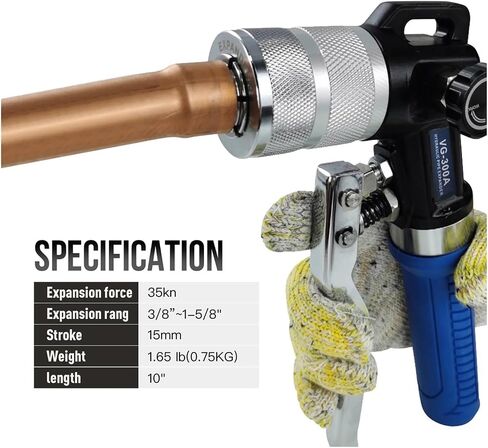

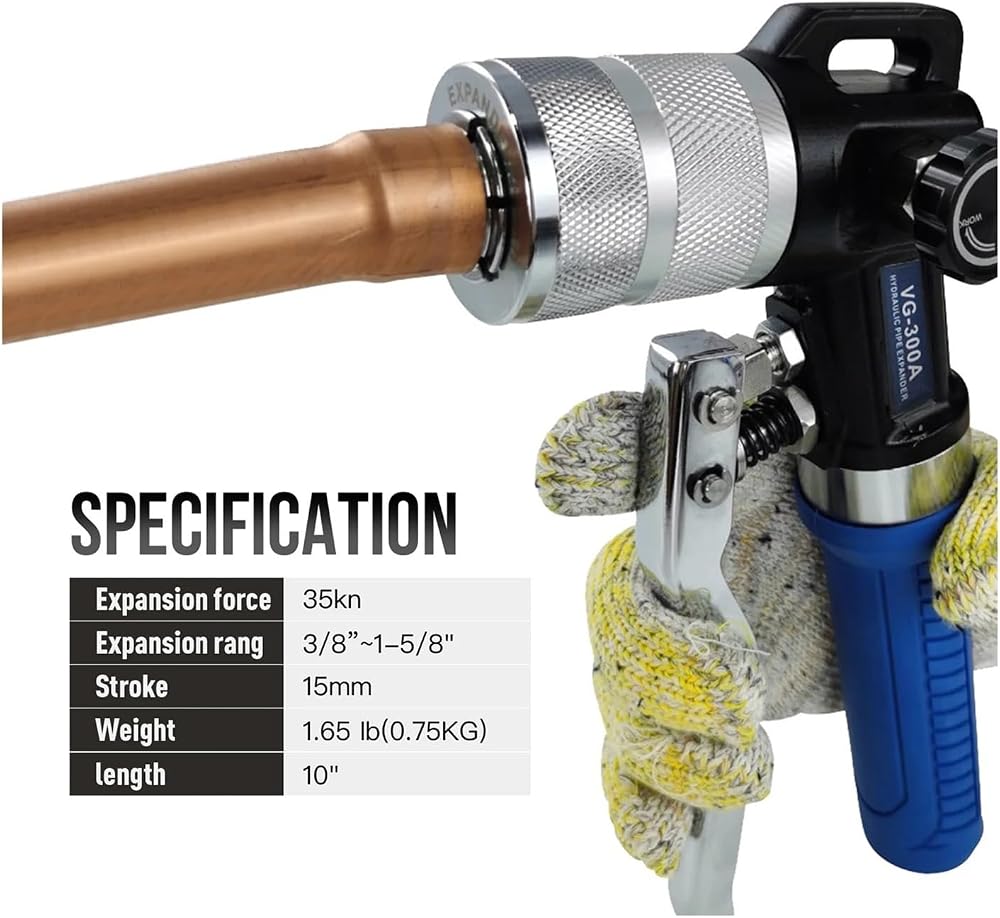

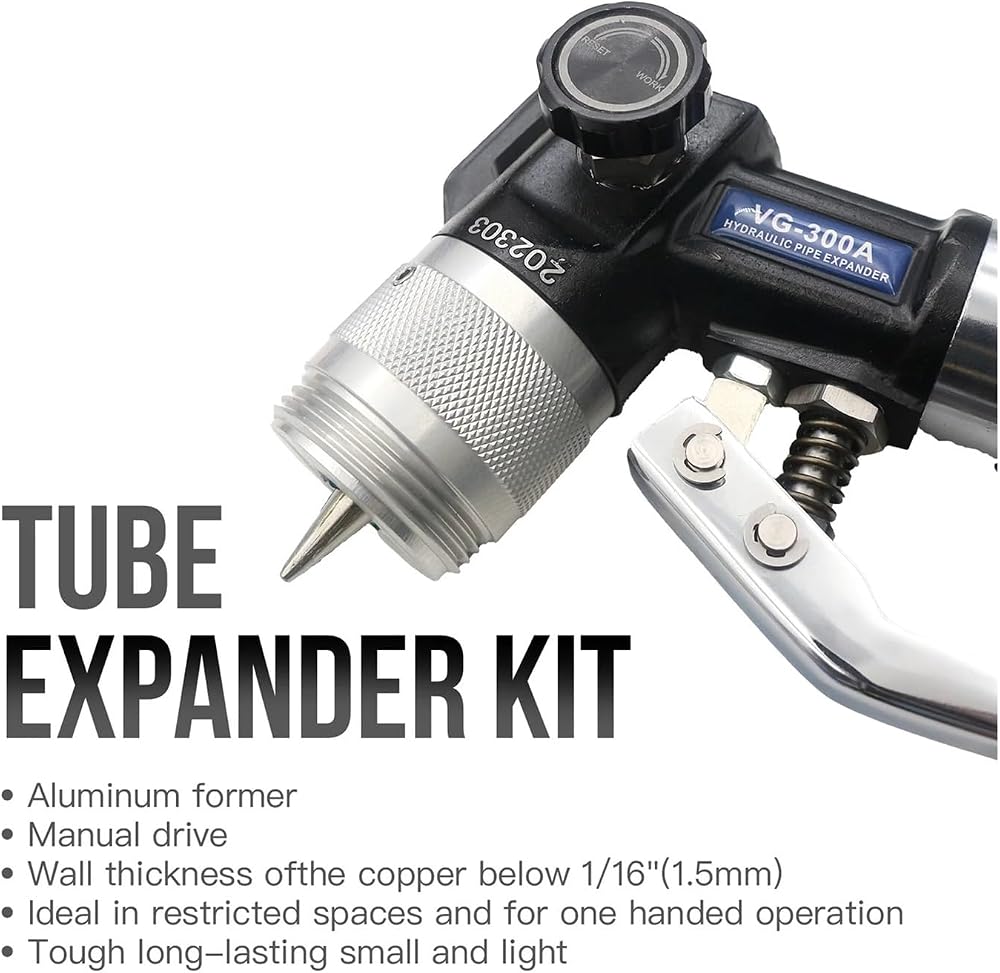

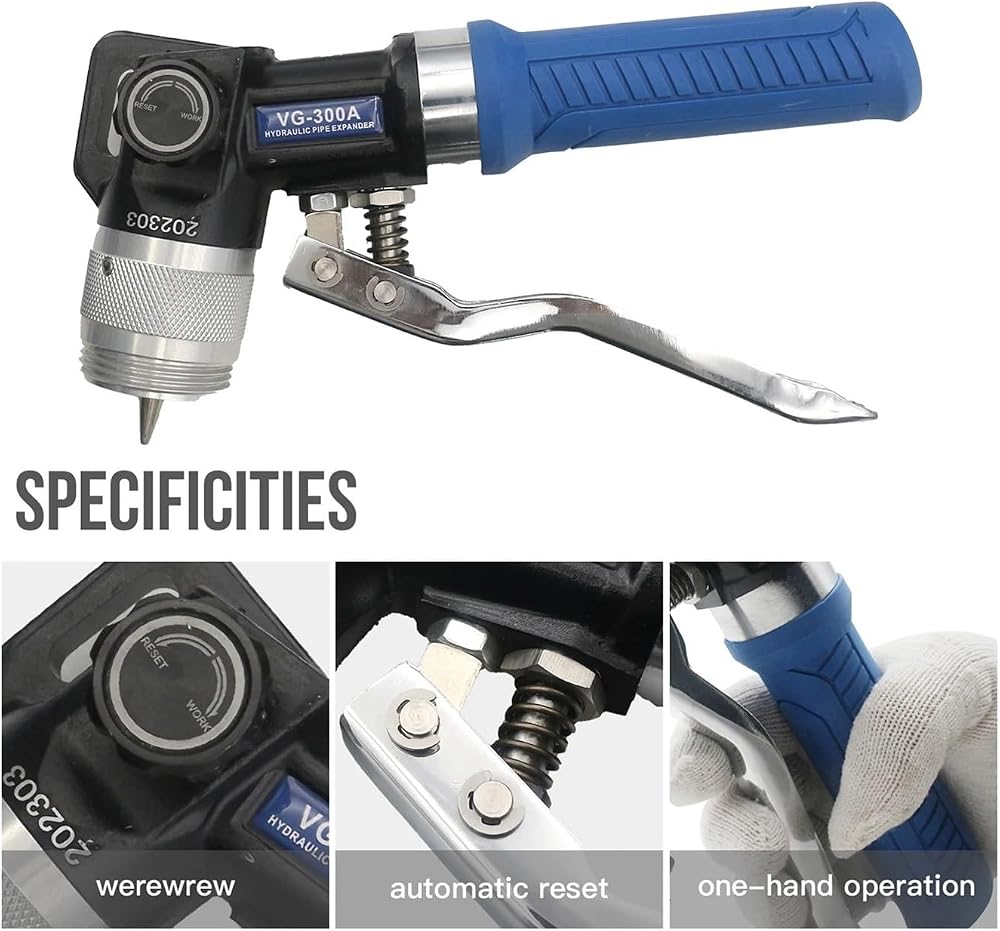

Hydraulic Tube Expander Tool
Free-floating and self-centering expander mechanism.
With a long handle grip pad comfortable operating lever.
Mechanism design reduce the force needed.
It can easily expand tubing from 10mm to 28mm in diameter.
Expander Size: 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1-1/8".

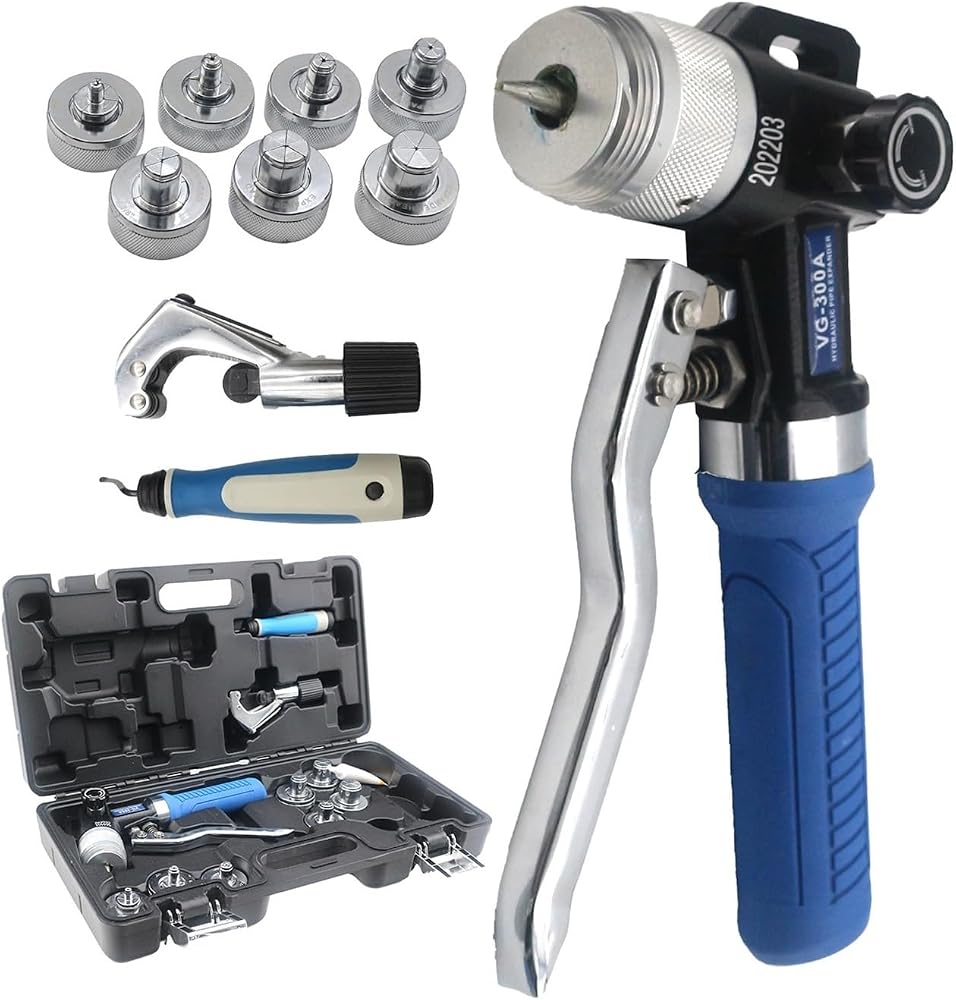

Package Content
1 x Hydraulic Tube Expander
1 x Tube Cutter
1 x Deburring tool

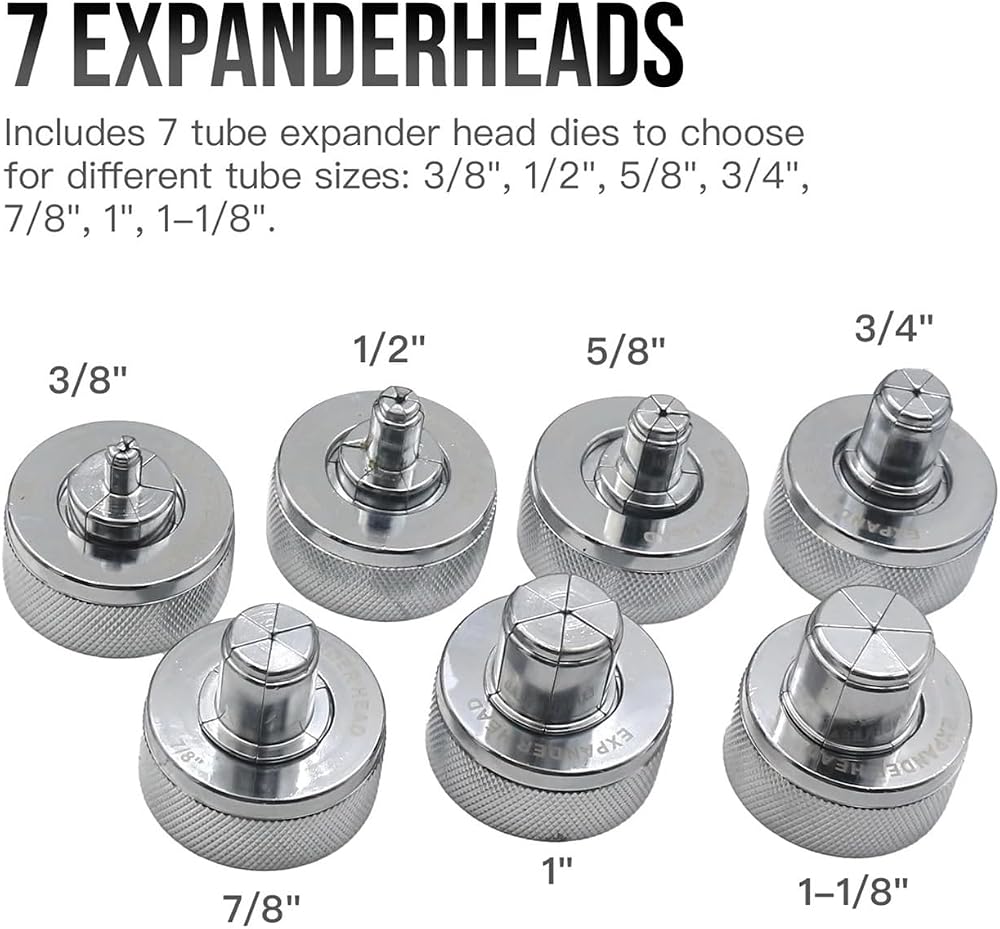

7 x Expander Heads
1 pair of gloves
1 x Carrying Box

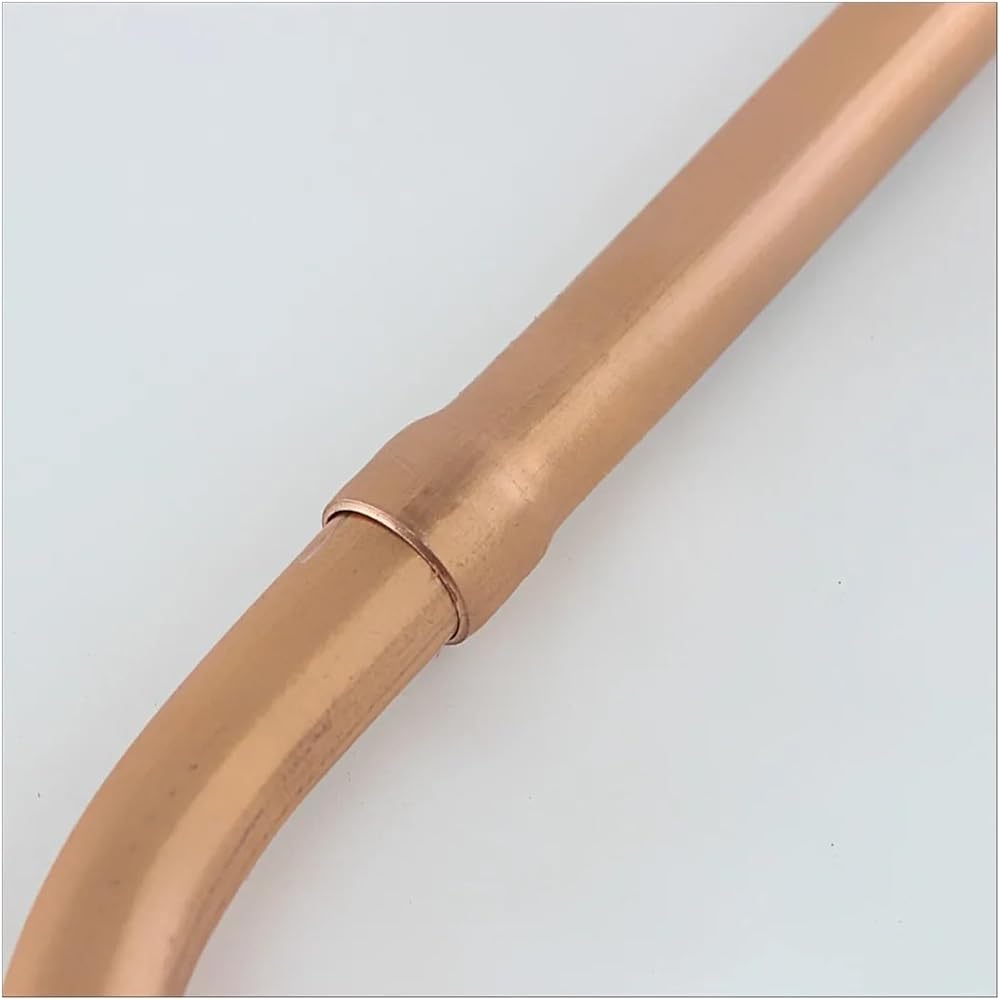

Expanding The Copper Pipe Step by Step
Step 1
Use soft copper tube or heat (anneal) the section of hard copper tubing to be expanded.
Step 2
De-burr the inner walls of the tubing completely and make sure the tube will fit easily over the expander head.
DO NOT FORCE THE TUBE OVER THE EXPANDER HEAD!
Step 3
Apply lubricant (preferably grease) to the cone before using.
Step 4
Screw the adapter onto the shaft of the pump all the way.
Step 5
Screw the selected expander head onto the adapter.
Step 6
Place the tubing onto the expander head. Make sure that the expander head travels into the tube FREELY.
WARNING!! Do not force or twist the tube while you are placing the tube on the expander head.
Step 7
Tighten the relief valve knob and pump handle until tubing is expanded and pump handle becomes firm.
Step 8
Loosen the relief valve knob to release the finished tubing. If the tube does not release from the die head because of tube configuration or burrs, unscrew the adapter and die head (together) from the pump body.
