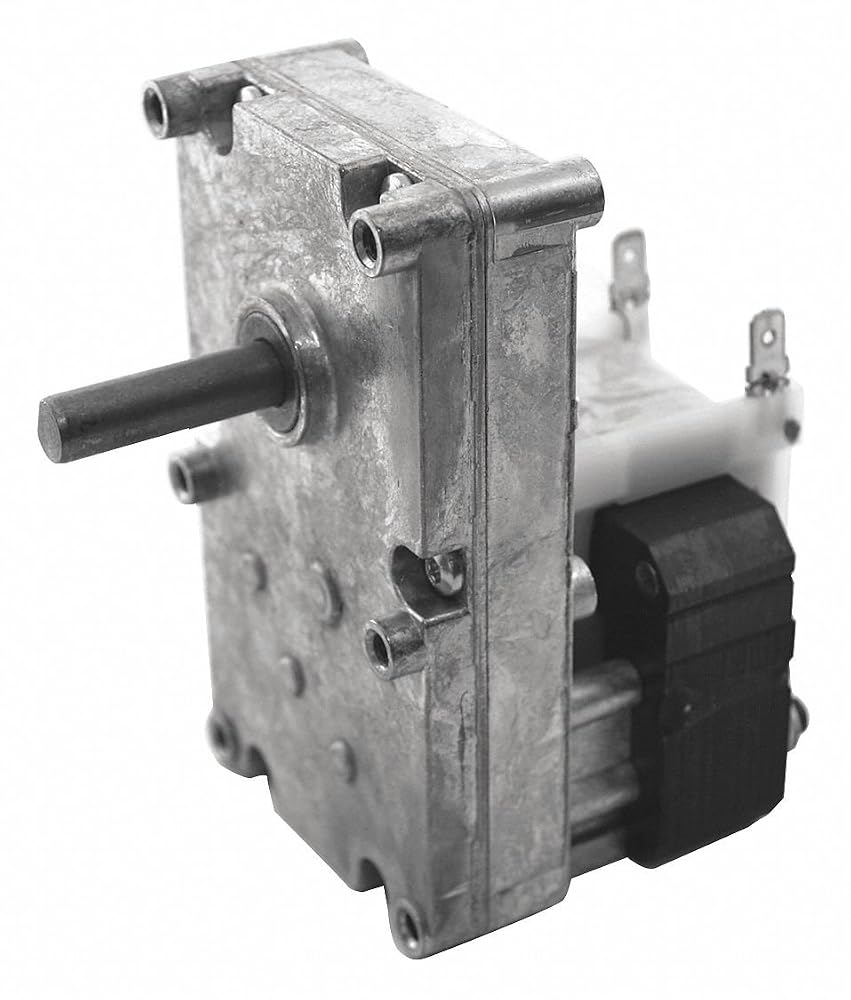

AC gear motor, voltage 115VAC, phase 1, Hz 60, shaft orientation parallel, shaft cover face, Nameplate RPM 2, no load RPM 2.3, max. Torque 135 in.-Lb., starting torque 225 in.-Lb., overhung load 50 lb., input HP 1/30, gear ratio 1408: 1, full load Amps 0.45, insulation Class b, enclosure open, thermal protection impedance or thermally protected, max. Ambient Temp. 40 Degrees C, rotation CW, mounting all position, motor Type shaded pole, motor frame Fc, Length less shaft 2.75", bearings Bronze sleeve or needle, lubrication grease filled, housing die cast zinc, gear case material die cast zinc, gears Delrin/steel, gear material Delrin/steel, application vending machines, carousel drives, pump drives and brewer motors, standards UL/CSA, RPM range 0 to 15
