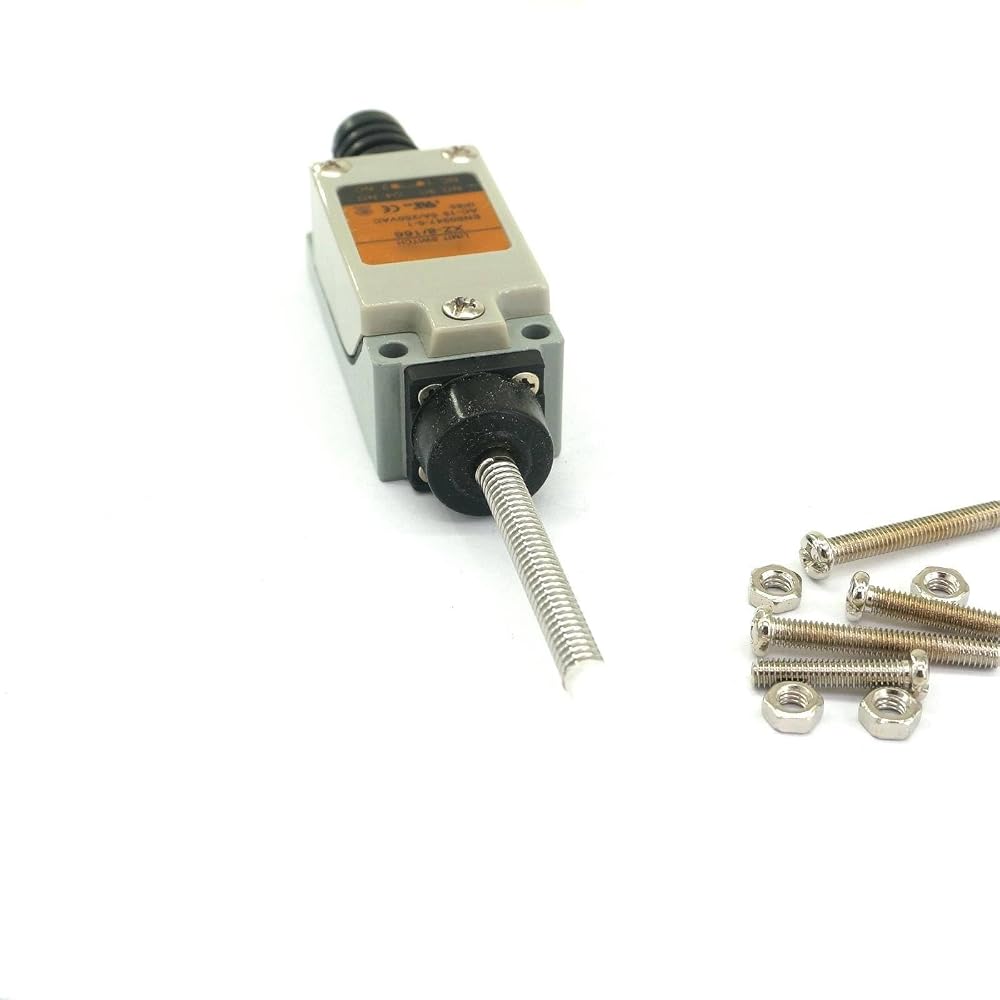

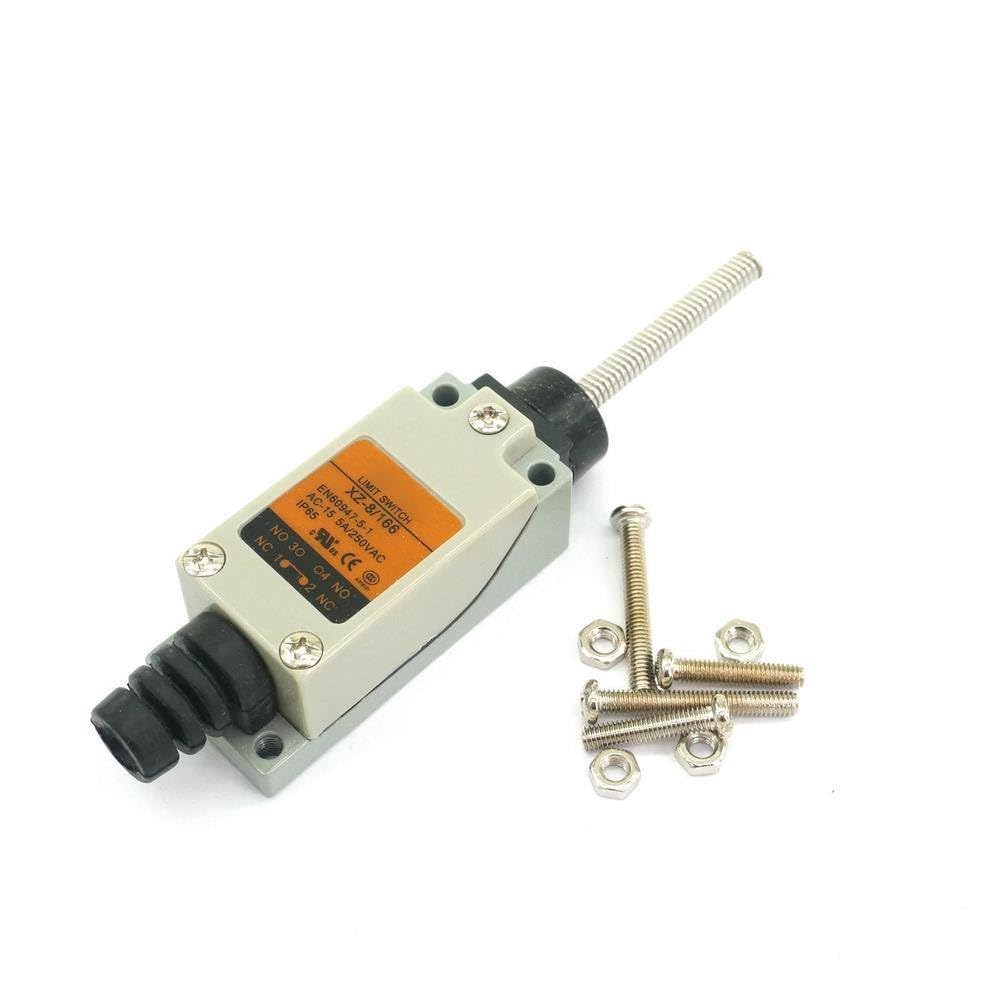

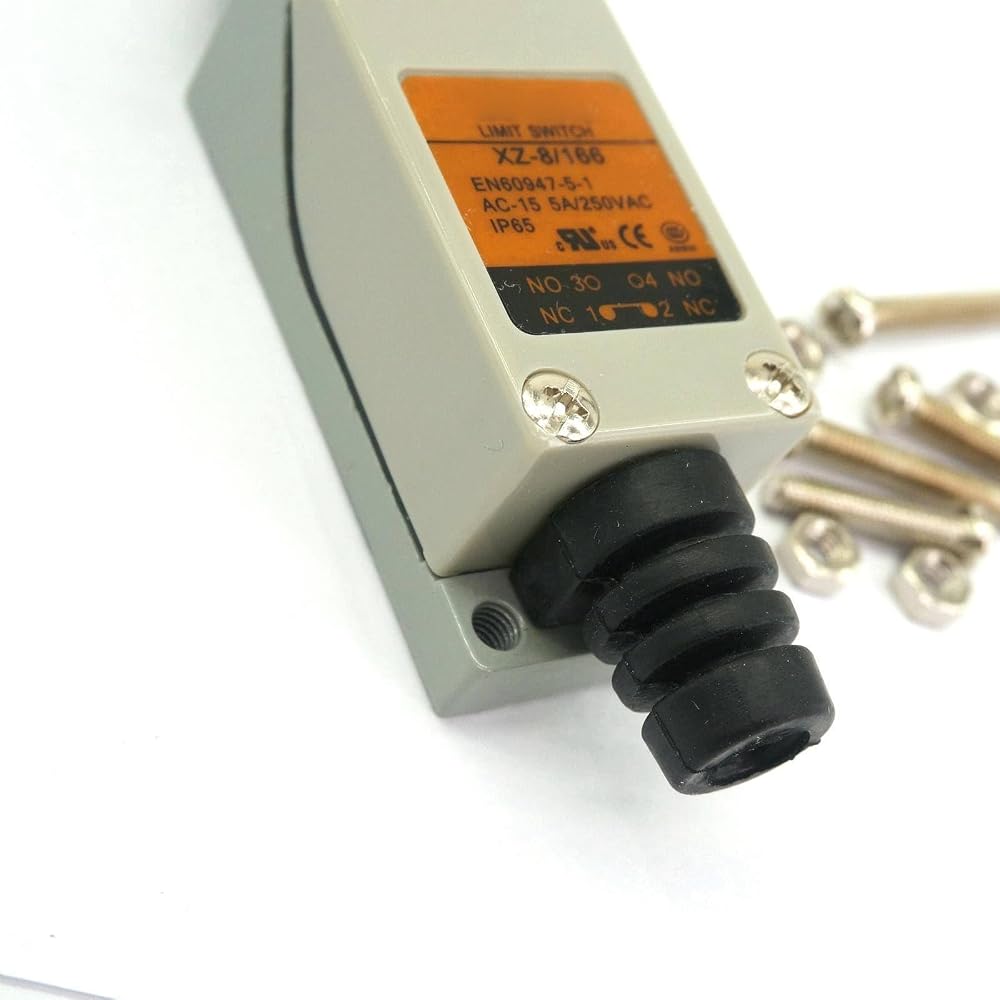

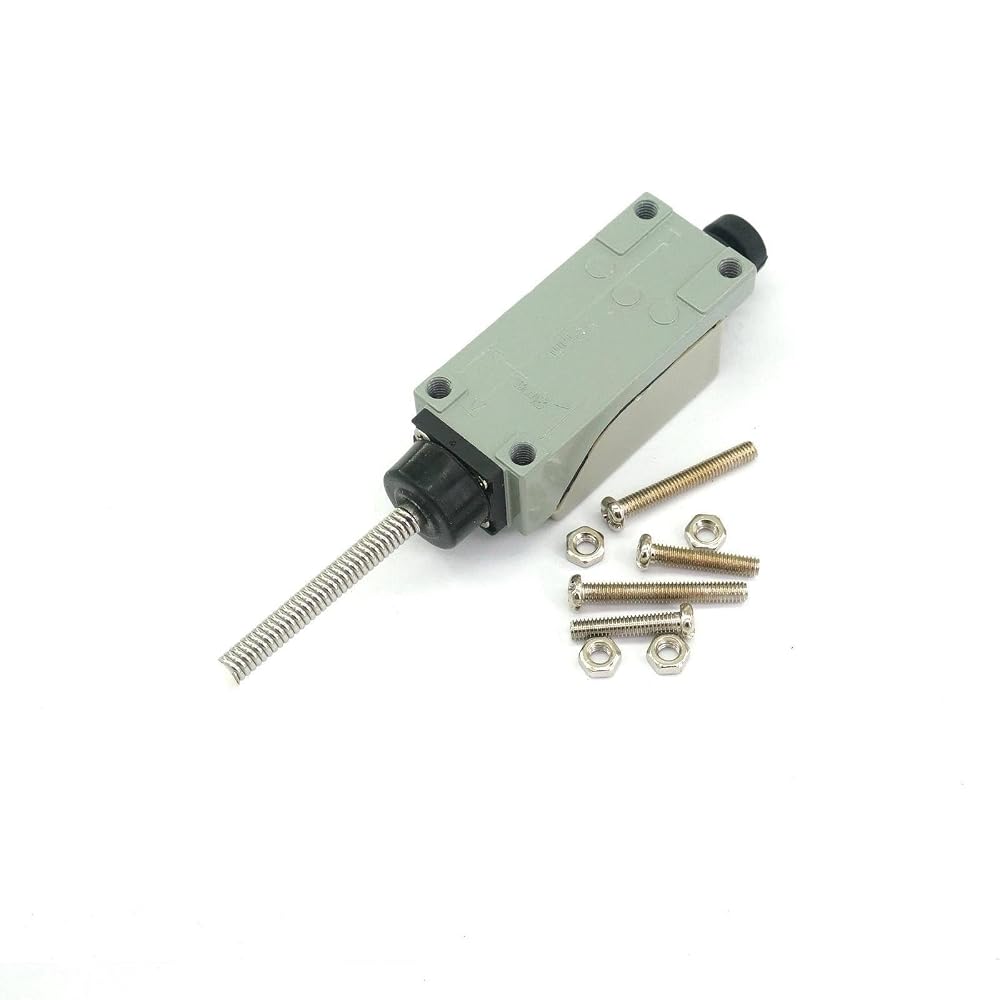

Product Item:XZ-8/166 NO+NC Micro Limit Switch SPDT Thermoplastic End Flexible Rod Type IP65
Material:Zinc Metal Alloy,Plastic
Diver Shaft Type:Thermoplastic End Flexible Rod Type
Specification:
1.Contact Form:SPDT NO+NC
2.Operating Speed:5mm-50cm/s
2.Mechanical Operating Frequency:120times/min
3.Electrical Operating Frequency:30times/min
4.Insulation Resistance:100MΩ(above)
5.Contact Resistance:25MΩ(initial value)
6.Withstand Voltage:
Non-connection wire:1000VAC
Every Terminal:1500VAC
7.MisVibration:10-55Hz Amplitude 1.5mm
8. Impact:1000m/s2,MisImpact:300m/s2
9.Electrical Life:100,000 above.Mechanical Life:1000,000 above
10.Protection Degree:IP65
11.Operating Temperature:-20~+60℃
12.Operating Humidity:＜85%
13.Rating:5A/250VAC

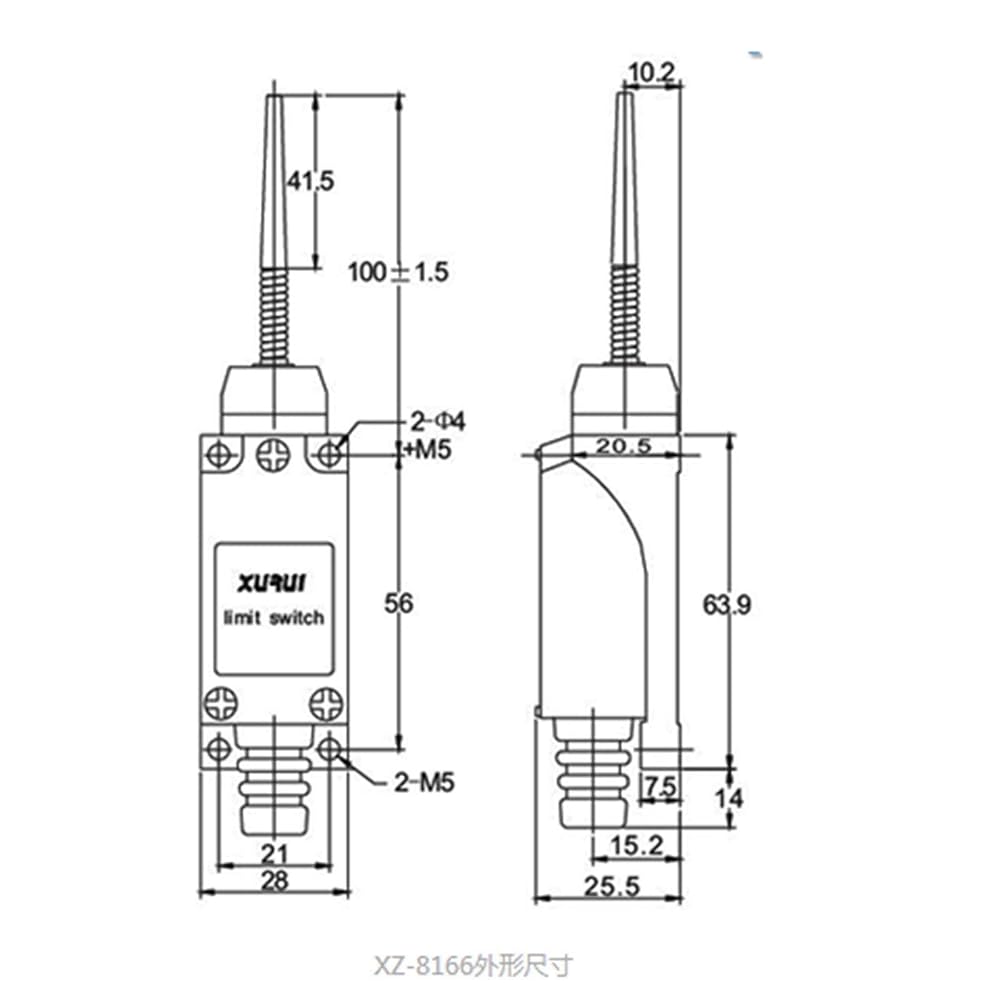

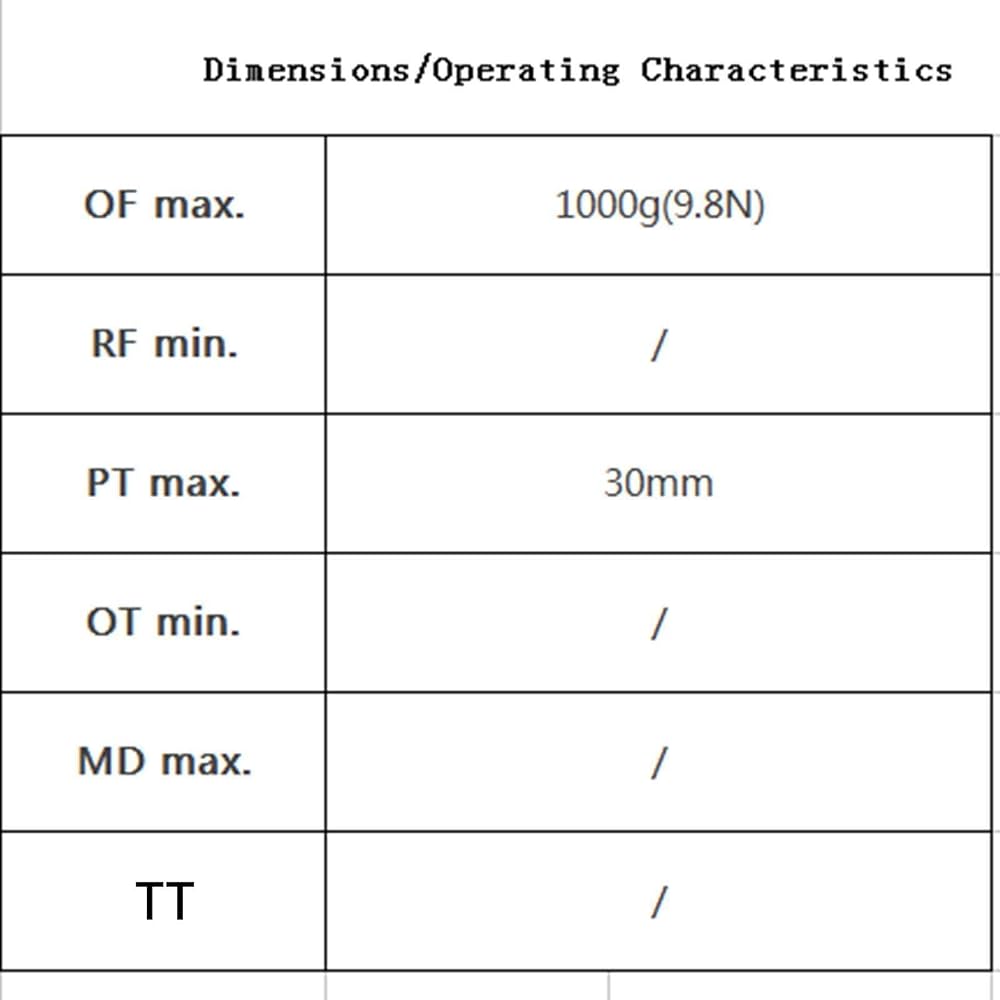

Attention:Dimensions/Operating Characteristics are in the pictures and check it for your reference!
Characteristic:
1.Strong Zinc cast outer shell,strong structure and high mechanical strength.
2.Preventing oil,water and pressure.
3.Double way switch,double spring inner switch.
4.Variety of levers.
5.Widely used in Mechanical equipment,automatic machine,and instrument,electro motion tool etc.
Each Bid for 1 Piece!
Notes:
any questions about it,feel free to contact us,thanks
