Feature:
1. MAIN PURPOSE: Capable of real time isolation measurement of AC current in the power grid or circuit, and converting it into 4-20mA DC output signal.
2. MULTIPLE USAGES: Can be connected with AD to form a digital acquisition system, or output to an automatic control system, or connected with analog or digital meter to display measuring value.
3. GOOD PERFORMANCE: This transmitter has the characteristics of strong overload capacity, Precision Machined, high security, low power consumption, and low interference.
4. WIDE APPLICATION: Used for current monitoring equipment such as substation, variable frequency speed control device, inverter, street light monitoring, power, coal mine, etc.
5. PC HOUSING: The current transformer housing is made of excellent PC material, with good toughness, wear resistance, and .
Specification:

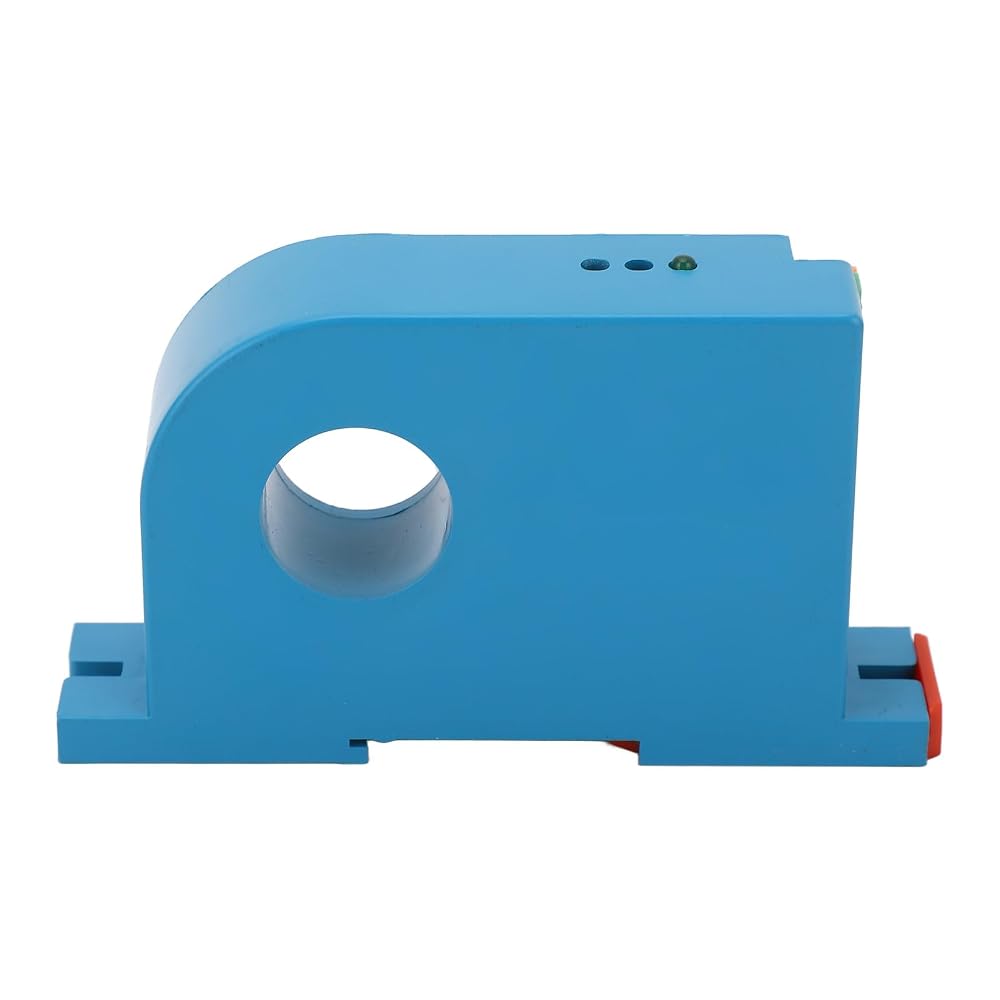

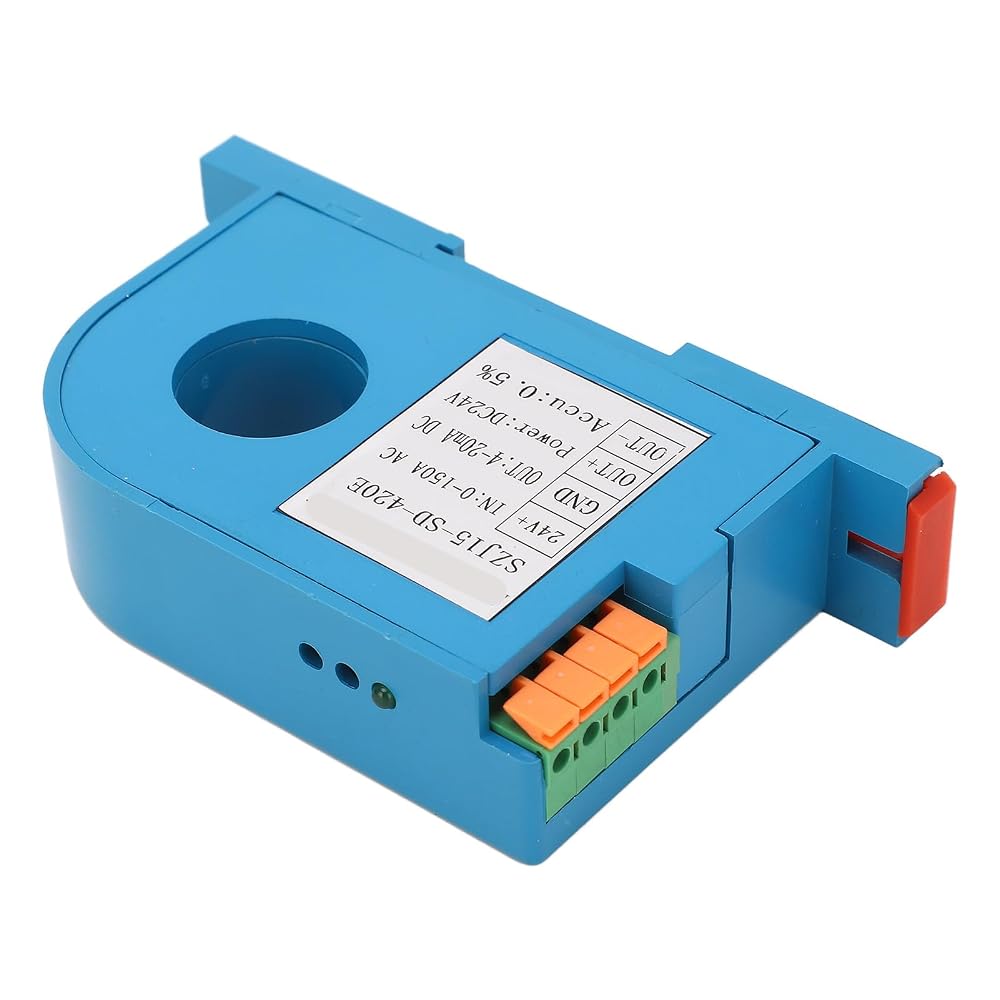

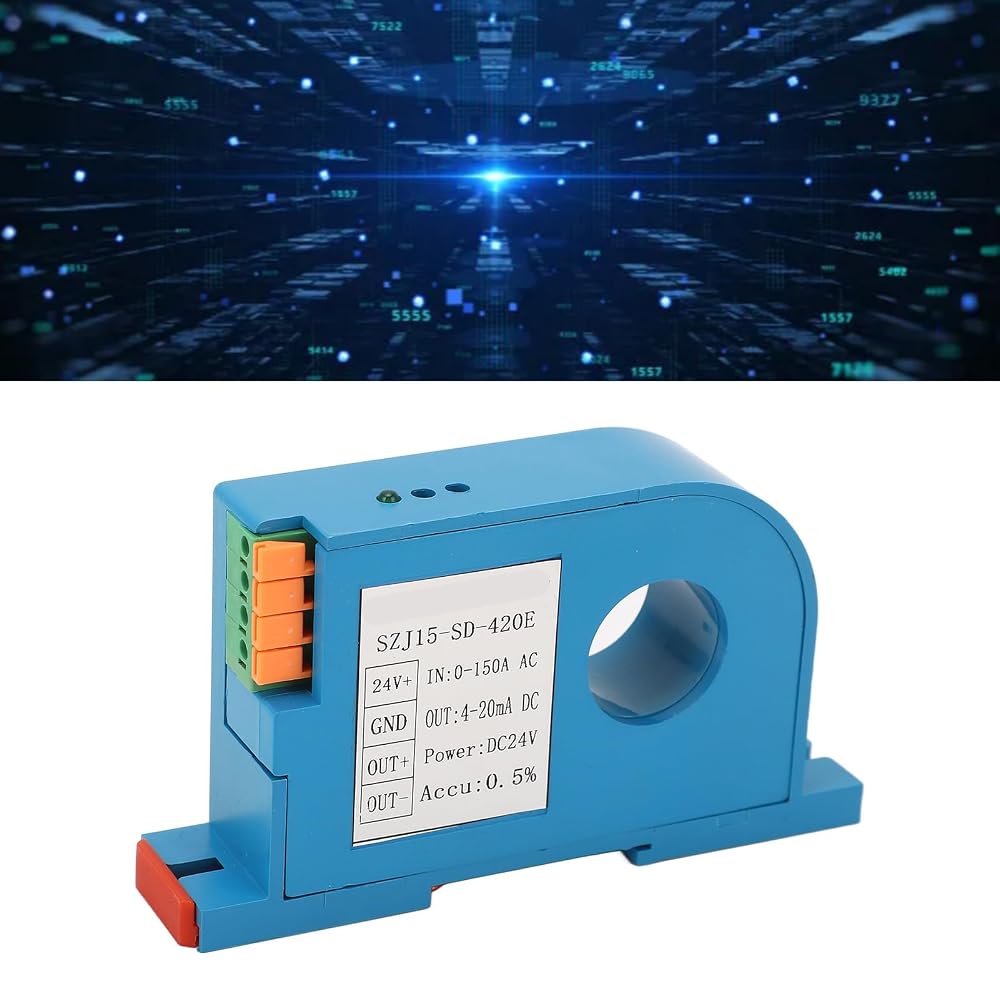

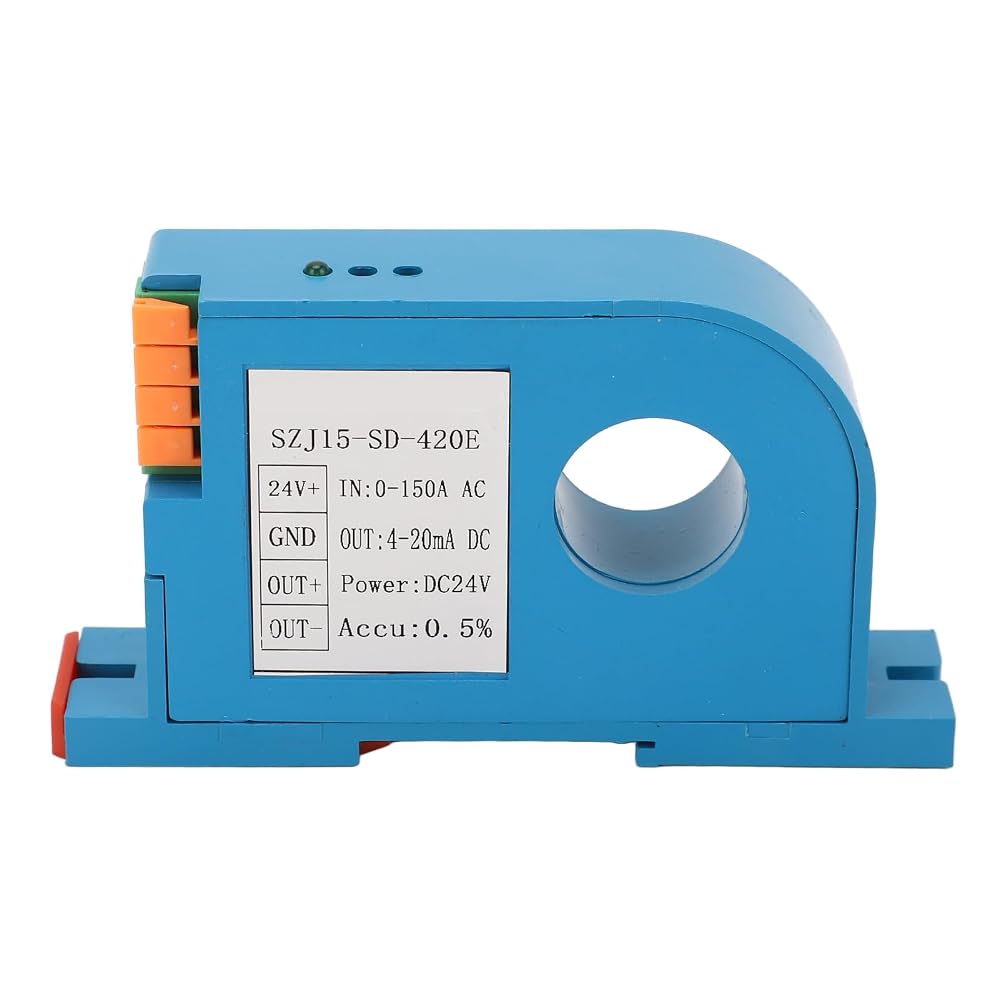

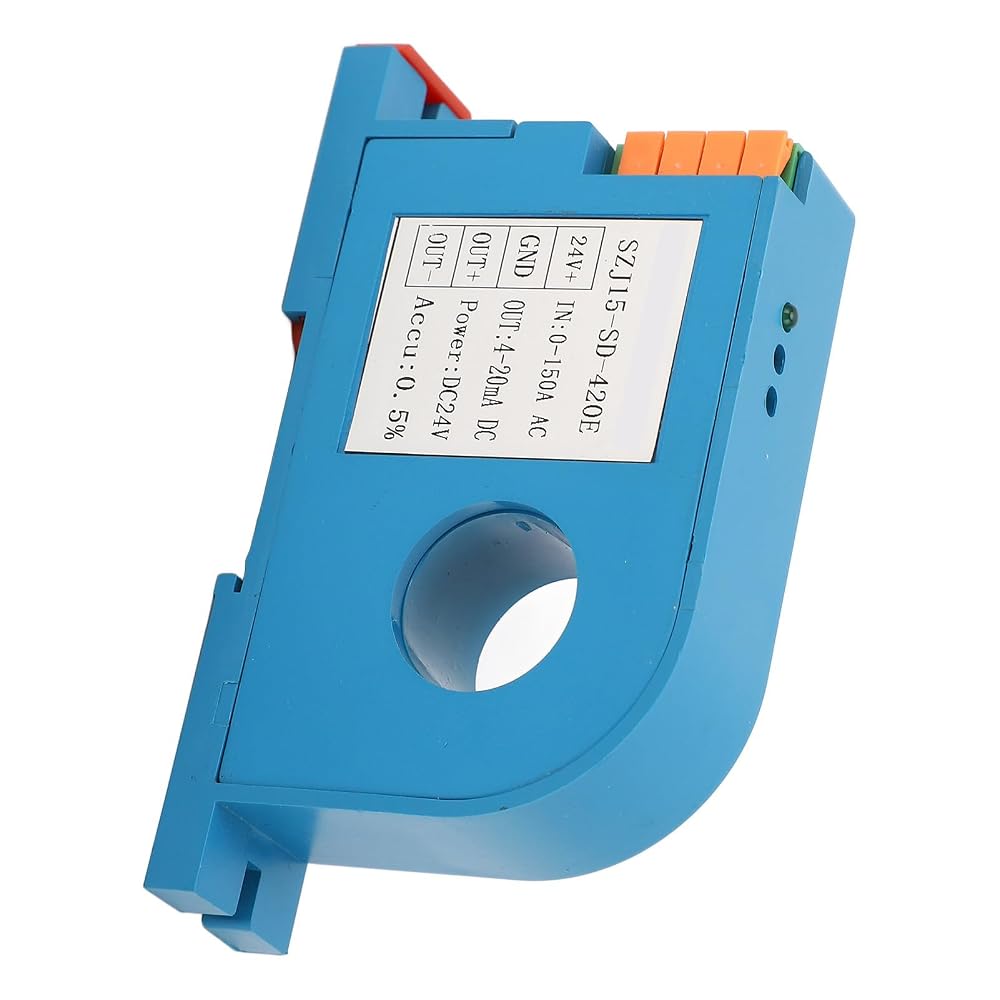

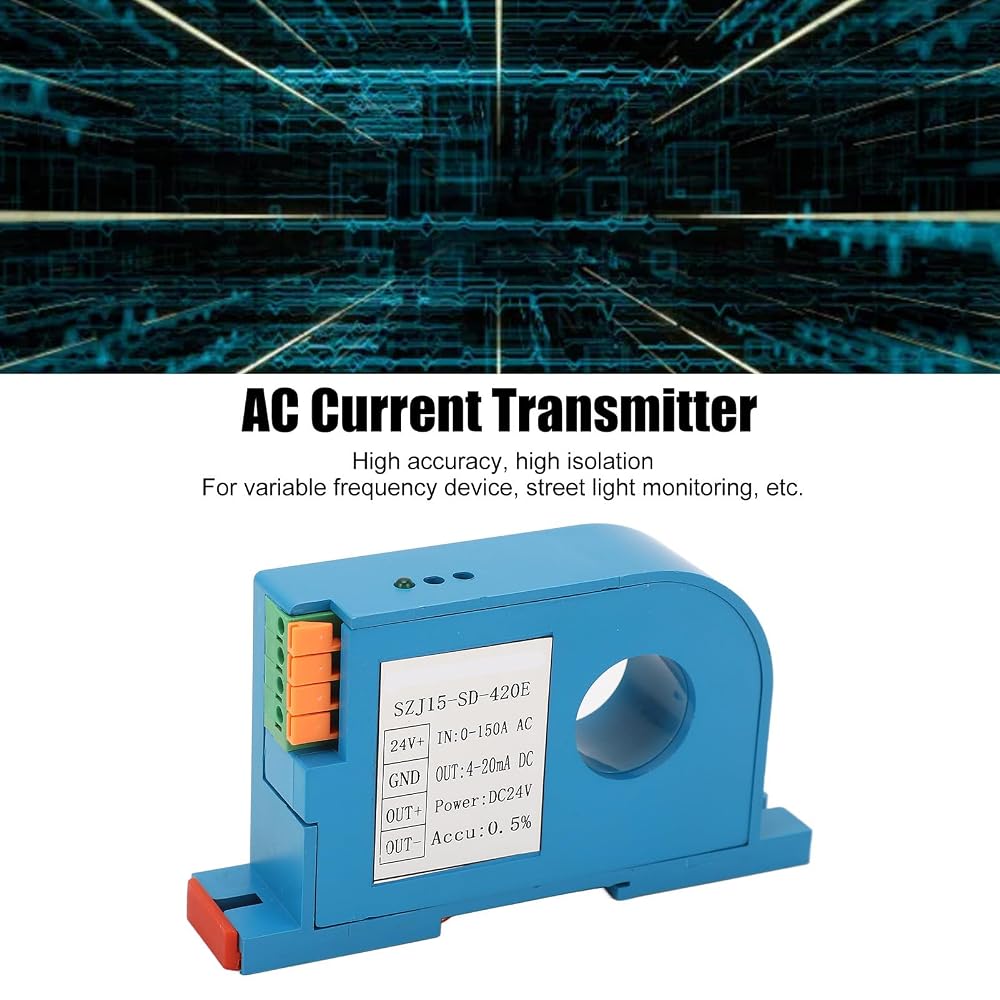

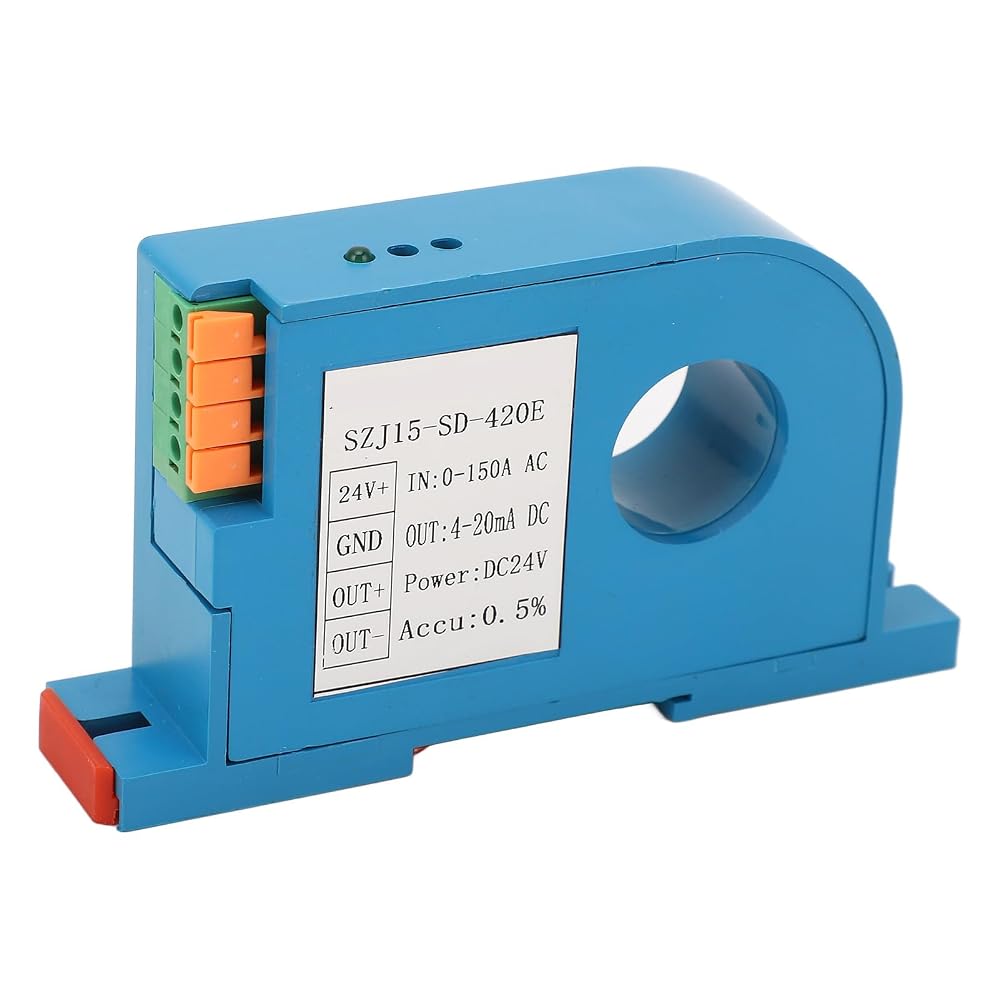

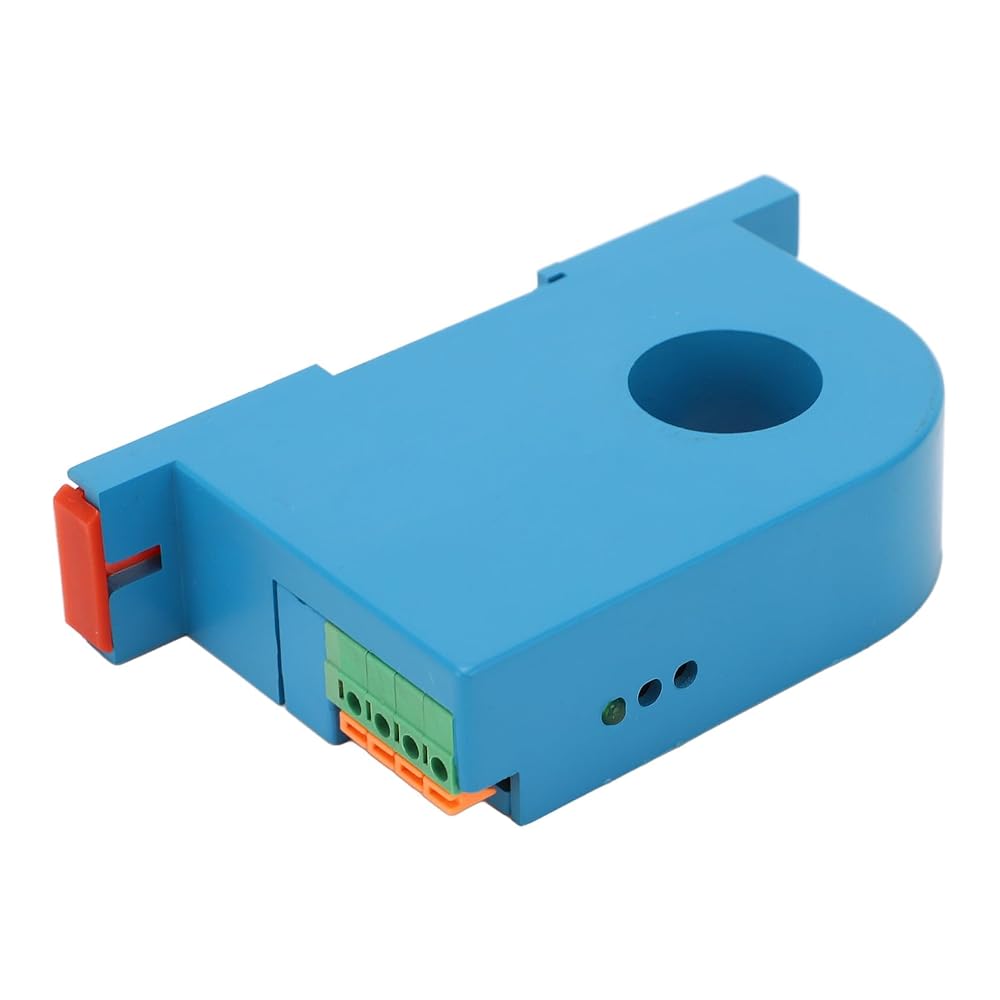

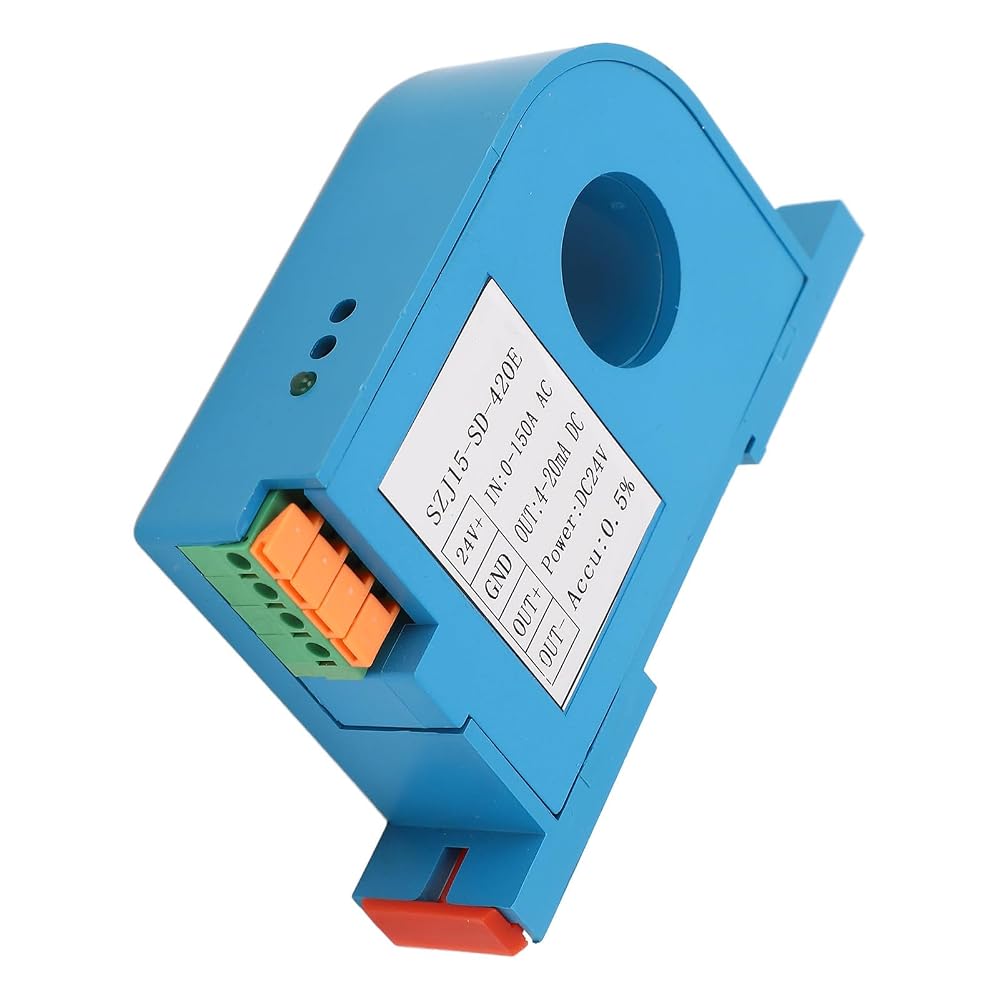

Item Type: AC Current Transmitter
Model: SD 420E
Material: PC
Input Range: 0-150A
Output: 4-20mA DC
Power Supply: DC 24V
Output Load Resistance: RL Feature: Input, output and power supply are isolated and do not interfere with each other
Accuracy: 0.50%
Corresponding Time: Isolation And Withstand Voltage: 3KV/50HZ, 1min
Frequency Range: 20-60Hz
Load Capacity: Voltage output 6V, current output 5MA
Working Temperature: -20-80℃
Temperature Drift: 0.02% FS/C (-20-55℃)
Insulation Strength: 2000VAC1MIN (between input, output, and power supply)
Insulation Resistance: >100MΩ.
Package List:
1 x Current Transmitter
