Attenuators
Features:
* and
* Made of - materials, sturdy and practical
* Built and tested to strict quality control standards.
* Stable performance and high reliability.

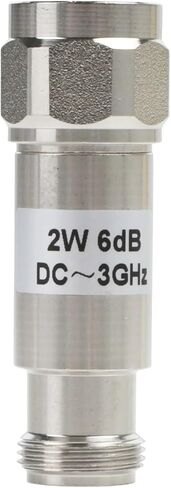

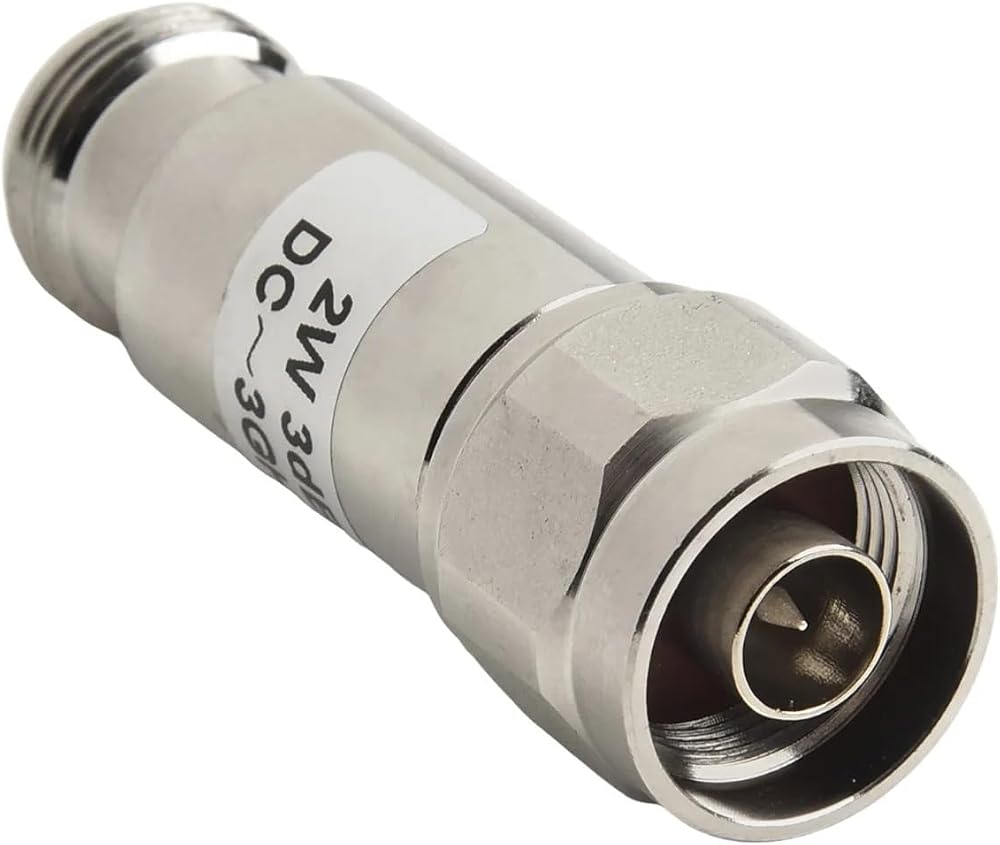

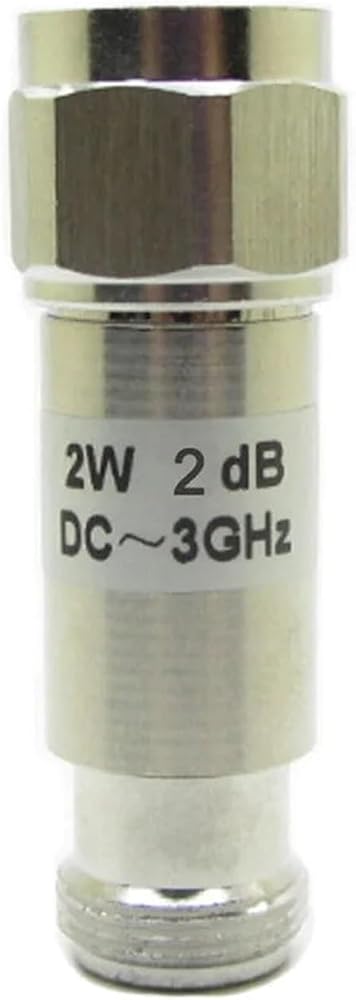

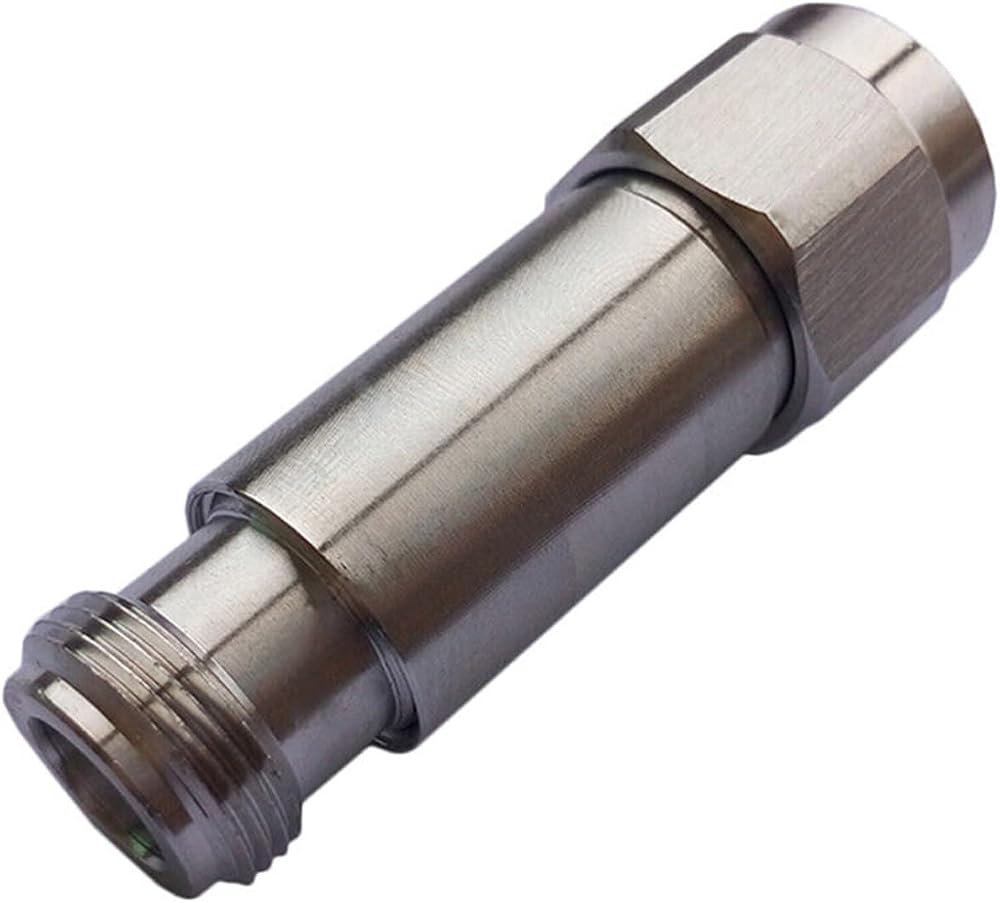

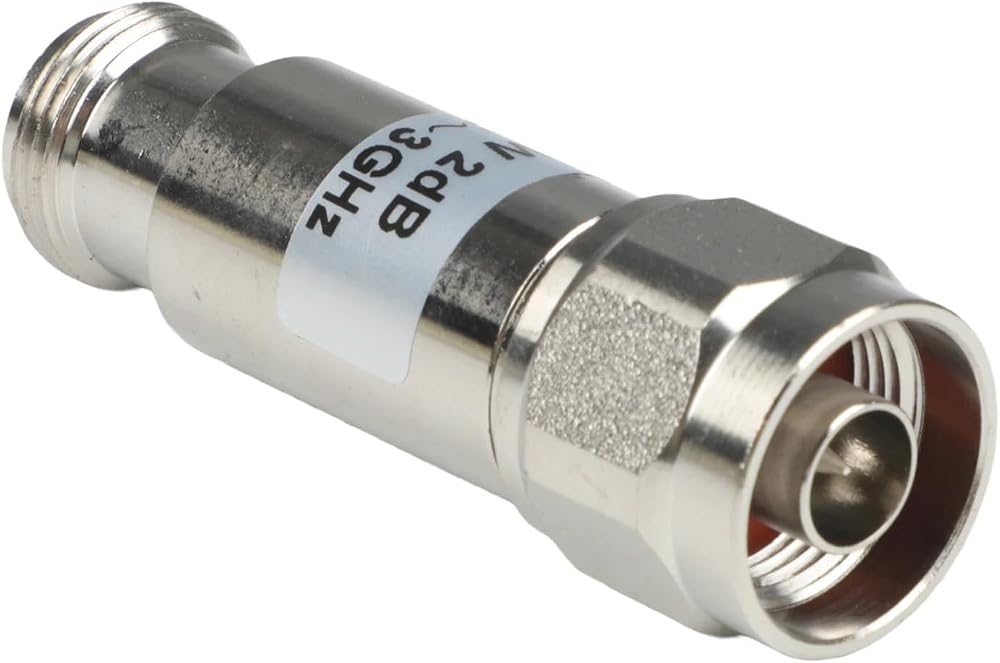

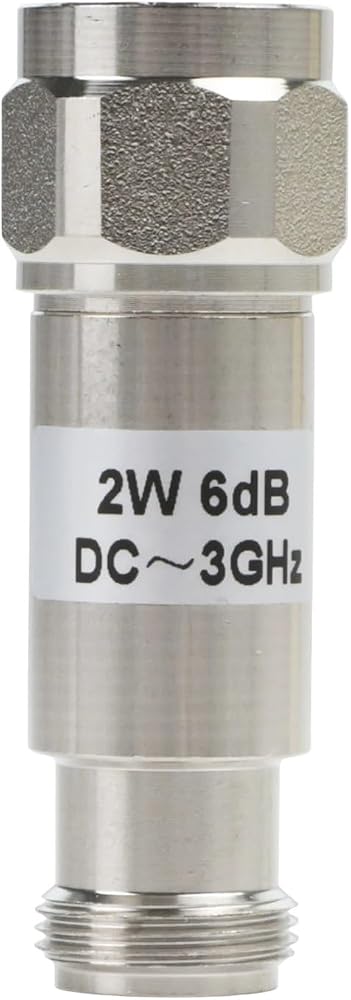

* DC-3GHz2W N-JK male-to-female copper-plated three-element 1-50dB coaxial low-power fixed attenuator
Specification:
Name: Attenuator

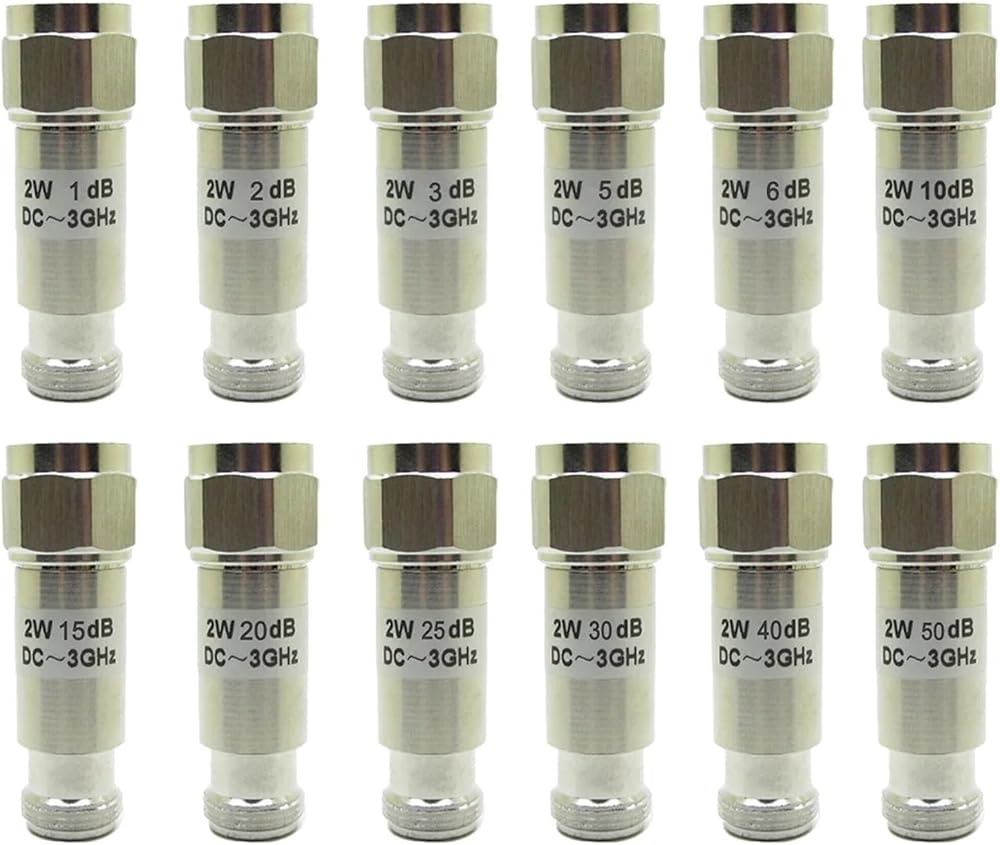

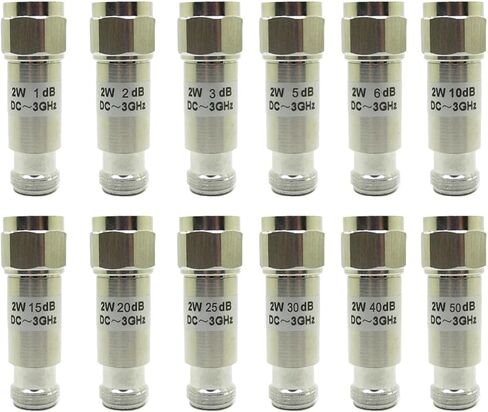

Model (optional): 1dB, 2dB, 3dB, 5dB, 6dB, 10dB, 15dB, 20dB, 25dB, 30dB, 40dB, 50dB
Color: silver
Material: copper plated ternary
Power: 2W
Frequency range: DC-3.0GHz (0-3GHz)
Standing wave ratio: less than 1.20
Impedance: 50 ohms
Connector: N type
Size: 58mm x 18.5mm
Operating temperature: -55 - +125 degrees Celsius
Tolerance: 1-10dB ±0.5dB, 15-30dB ±1dB
Direction: male to female
Male header (center pin): signal input
Female (center socket): signal output
Package Contents:
1 x attenuator
