Attenuators

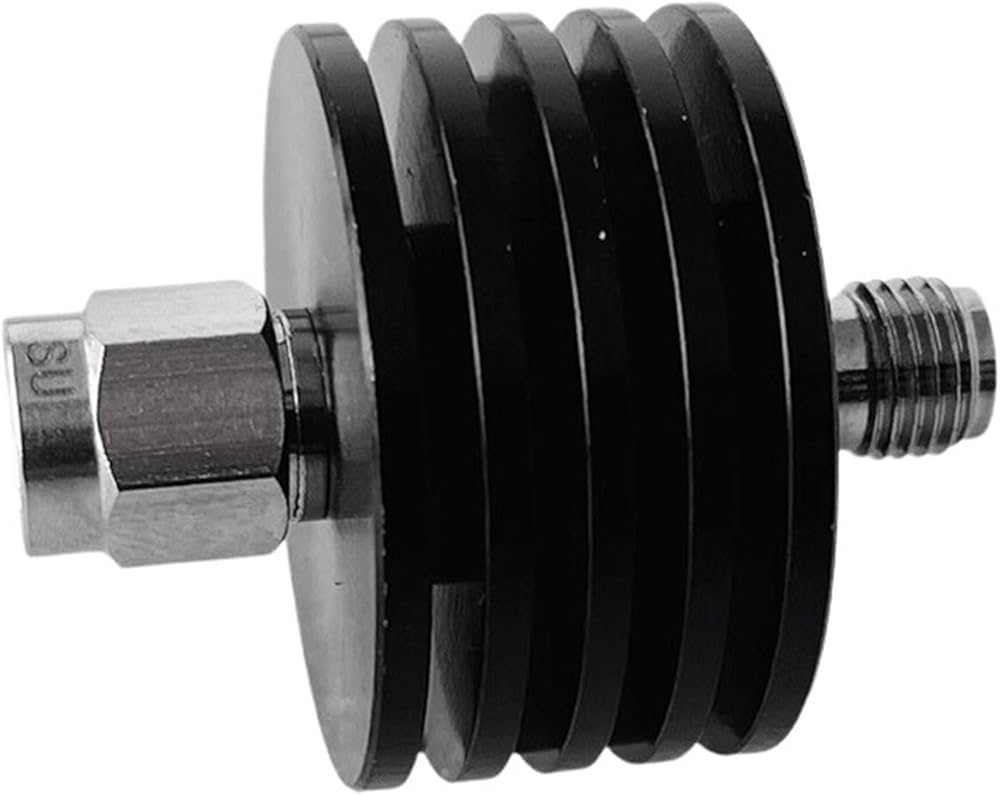

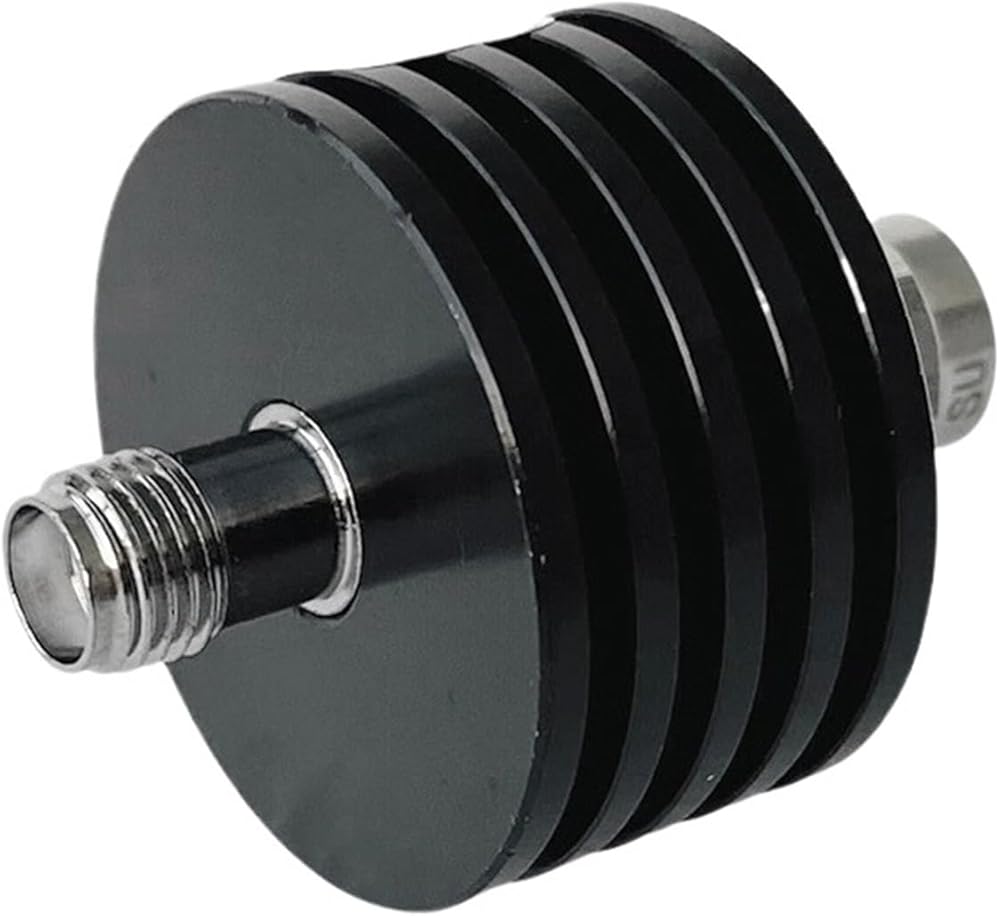

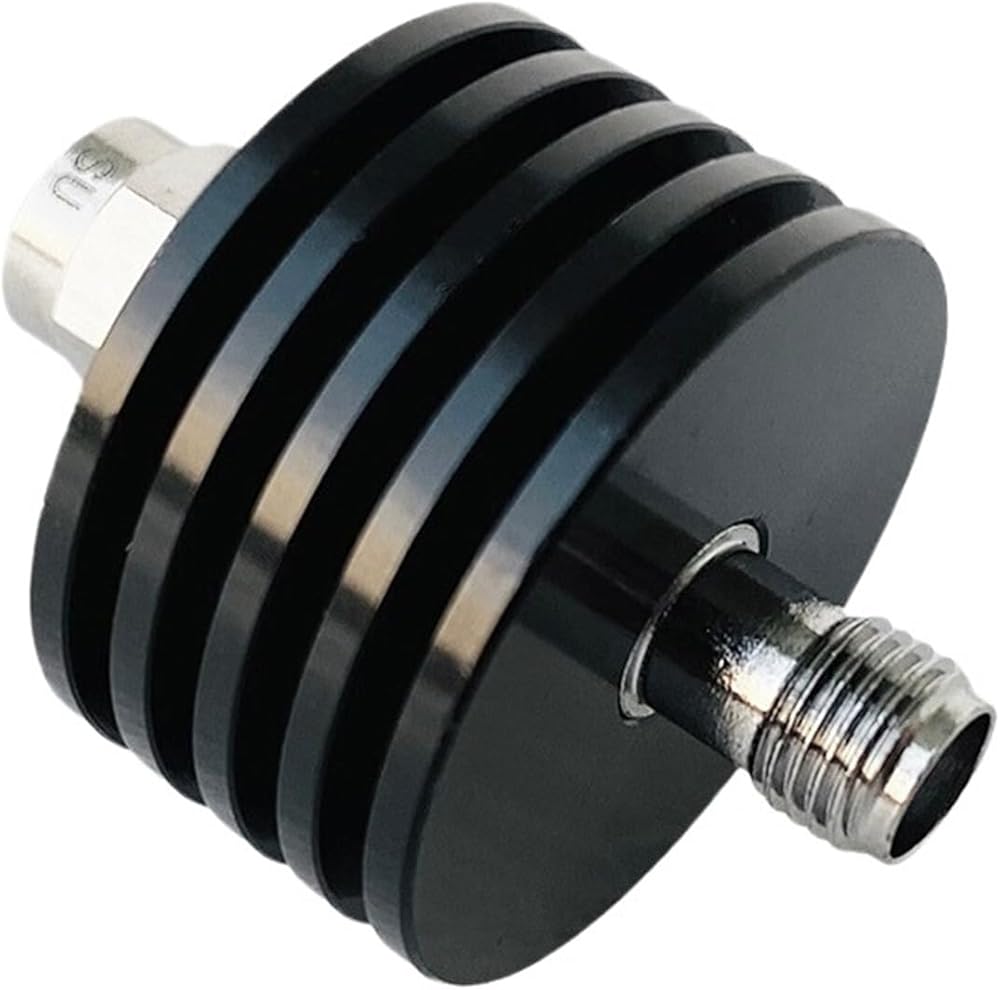

Full Power 5W SMA-JK Attenuator
Connector: SMA-JK
Frequency Range: DC-8GHz
Attenuation: 1-60dB available, and (1-40dB)+/-0.8dB; (50,60dB)+/-1.5dB
VSWR (MAX): 1.3:1
Impendance: 50
Temperature Range: -55°C to +125°C
Dimension: 25×32.1mm
Weight: 30g
10W SMA-JK RF 6GHZ Attenuator is widely used in below fileds:
==========
High-concerned chemical : None
Model Number : BC-AT10-02
Voltage : None
Origin : Mainland
Certification :
Power Rating : Full power 5w, Peak power 10w surface temp below 60degree
Connector : SMA-JK
Frequency Range : DC-8GHZ
Attenuation : 1-60dB available
VSWR (MAX) : 1.3:1
Impendance : 50
Temperature Range : -55°C to +125°C
