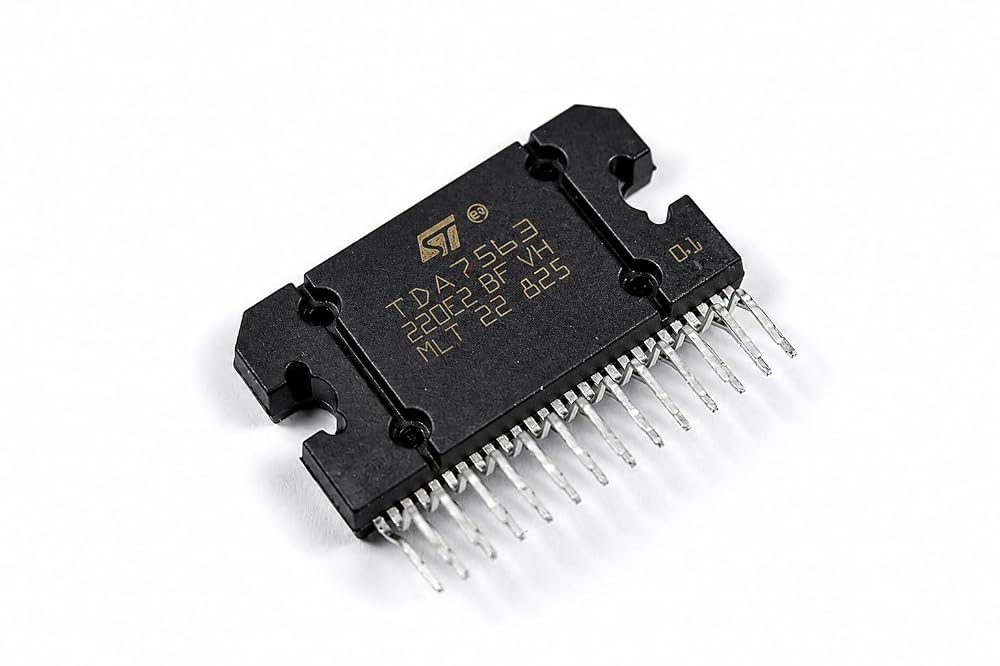

GENUINE STMICROELECTRONICS IC: The TDA7563 is an authentic STMicroelectronics 4-channel car audio amplifier integrated circuit, ensuring reliable performance and quality.
4-CHANNEL AMPLIFIER: Designed for car audio applications, this IC delivers power across four independent channels, making it ideal for full-range automotive sound systems.
FLEXIWATT-27 PACKAGE: Housed in a Flexiwatt-27 package, this IC features 27 pins for straightforward integration into car audio amplifier circuit designs.
CAR AUDIO APPLICATION: Specifically engineered for automotive audio use, the TDA7563 provides robust amplification suited for in-vehicle speaker configurations.
DIRECT REPLACEMENT COMPONENT: A reliable replacement or upgrade IC for car audio amplifier boards, compatible with designs that support the TDA7563 pinout and specifications.
وصف
Key Specifications Parameter Value Amplifier Type Quad BTL (Bridge-Tied Load) Technology DMOS Class AB with High-Efficiency Mode Supply Voltage 8V to 18V Operating Voltage (Typical) 14.4V automotive Output Power (4 Ω, 14.4V, 10% THD) 4 × 28 W Output Power (4 Ω, EIAJ) 4 × 40 W Max Output Power (2 Ω) 4 × 72 W Quiescent Current 170 mA typical Package Flexiwatt-27 Temperature Range -55°C to +150°C junction I²C Control Yes Diagnostics Yes Short-Circuit Protection Yes Thermal Protection Yes Mute / Standby Yes
