5W RF Fixed SMA Attenuator 1-50db 50Ohm DC-3GHz/4GHz Coaxial SMA Type Connectors(15db 4Ghz) in Kuwait 5W RF Fixed SMA Attenuator 1-50db 50Ohm DC-3GHz/4GHz Coaxial SMA Type Connectors(15db 4Ghz) in Kuwait 5W RF Fixed SMA Attenuator 1-50db 50Ohm DC-3GHz/4GHz Coaxial SMA Type Connectors(15db 4Ghz) in Kuwait 5W RF Fixed SMA Attenuator 1-50db 50Ohm DC-3GHz/4GHz Coaxial SMA Type Connectors(15db 4Ghz) in Kuwait 5W RF Fixed SMA Attenuator 1-50db 50Ohm DC-3GHz/4GHz Coaxial SMA Type Connectors(15db 4Ghz) in Kuwait

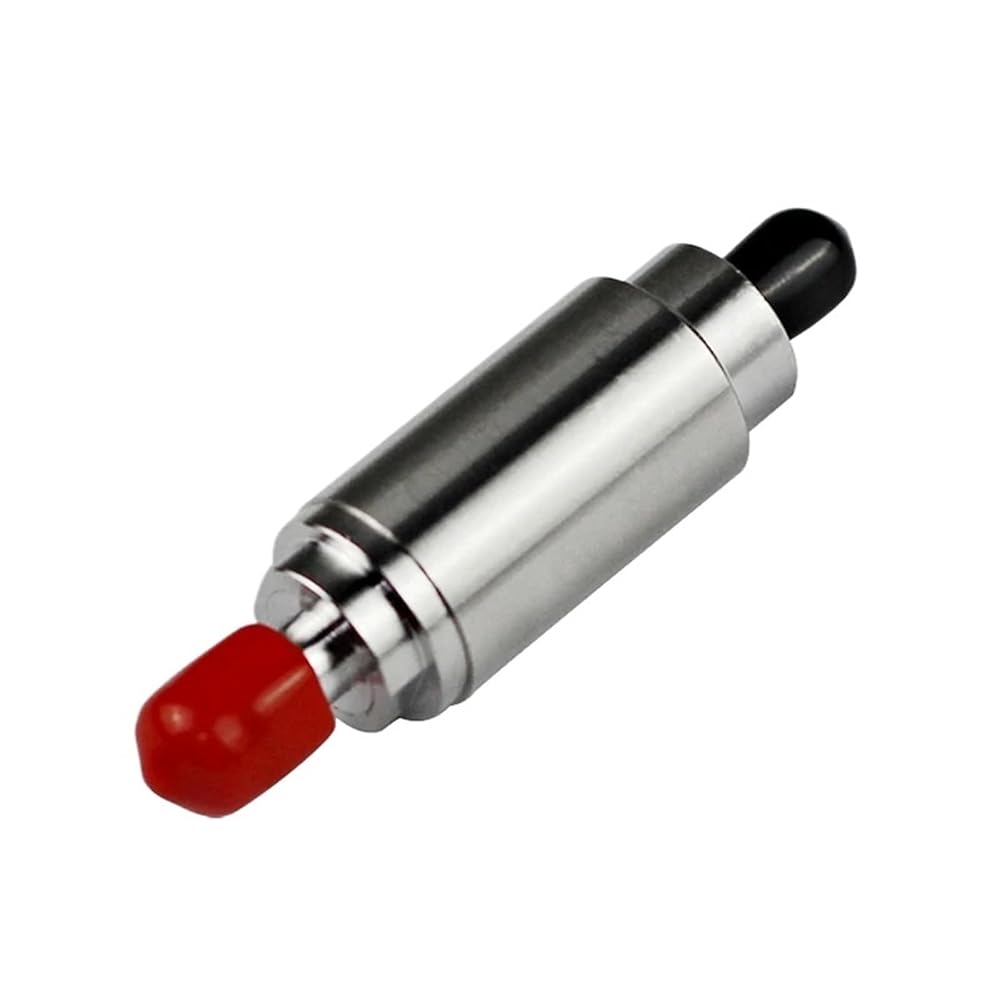

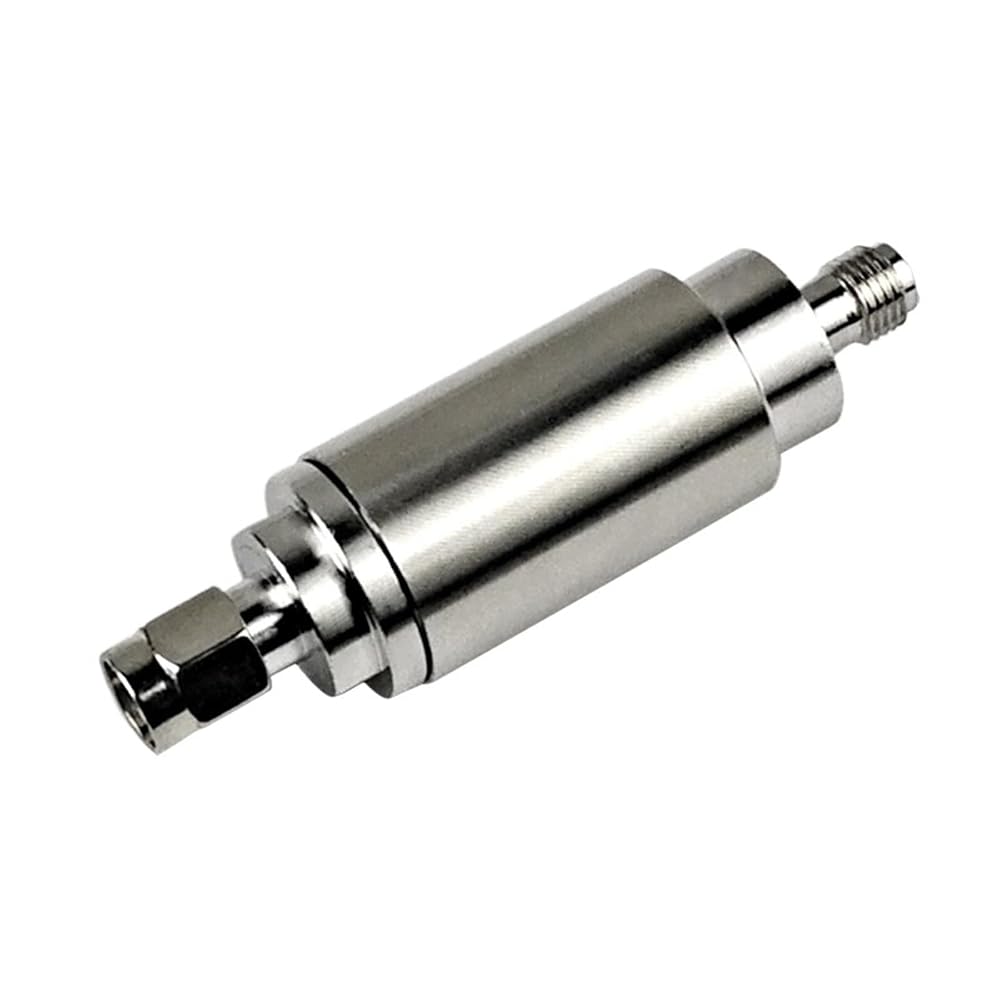

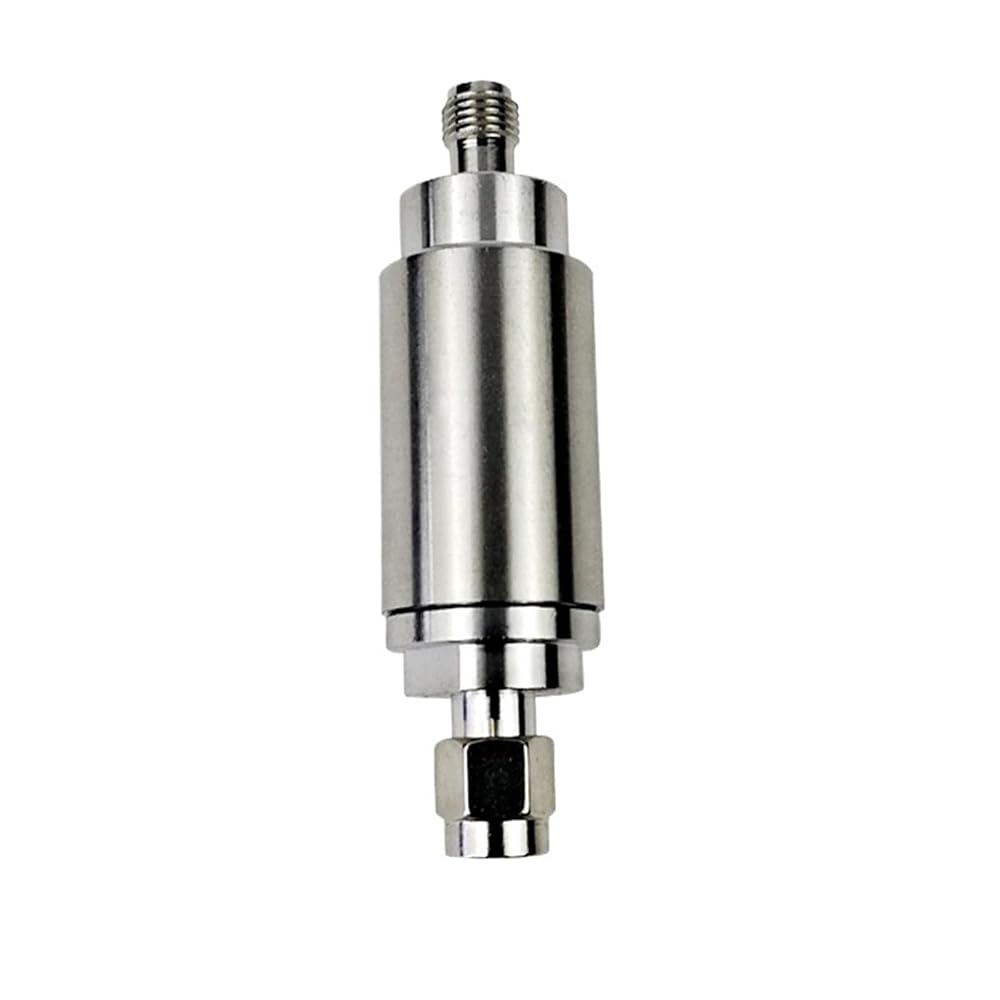

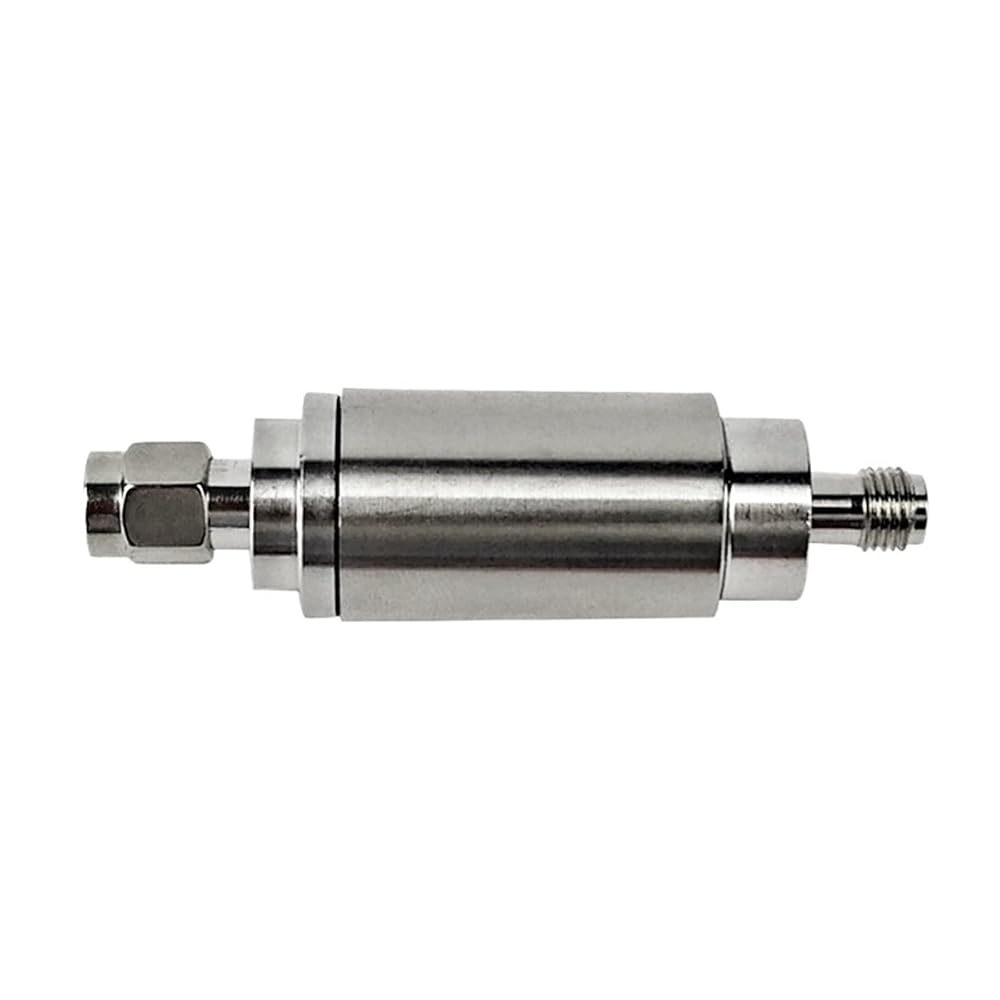

5W RF Fixed SMA Attenuator 1-50db 50Ohm DC-3GHz/4GHz Coaxial SMA Type Connectors(15db 4Ghz)

KWD 32
Brand
OYFUFFAER
Weight
50 g
– 1 +

Special Features

  • Attenuators
  • High VSWR Performance:Boasting a VSWR of 1.2 1, the SMA attenuator ensures minimal signal degradation.
  • Wide Attenuation Range:Available from 1-50dB, this SMA RF attenuator provides precise control for signal strength.
  • High Power Rating:With a 5W power rating, this RF attenuator is robust enough for demanding applications.
  • Extreme Temperature Resilience:Operating from -55°C to +125°C, this attenuator withstands harsh conditions.

Description

Attenuators
5W SMA-JK Attenuator
Power: 5W
Connector: SMA-JK
Frequency Range: DC-3GHZ/4GHZ
Attenuation: 1-50dB available, and 1-10dB.±0.5dB,15-50dB±1dB
VSWR (MAX): 1.2:1
Impendance: 50
Temperature Range: -55°C to +125°C
Dimension: 59*17mm
Weight: 46g
5W SMA-JK RF 3GHZ/4GHZ Attenuator is widely used in below fileds:
-----------------------------
==========
High-concerned chemical : None
Model Number : BC-AT05-03
Voltage : None
Origin : Mainland
Certification :
Power Rating : 5W
Connector : SMA-JK
Frequency Range : DC-3GHZ/4GHZ
Attenuation : 1-50dB available, and 1-10dB.±0.5dB,15-50dB±1dB
VSWR (MAX) : 1.2:1
Impendance : 50
Temperature Range : -55°C to +125°C
