Tips:
To ensure the lifetime of the power supply,pls don't use full load when you use it.
We recommend the use power should be 80% of the rated power.
For example: the label of the power supply is 500W,use power should be:500W*80%=400W

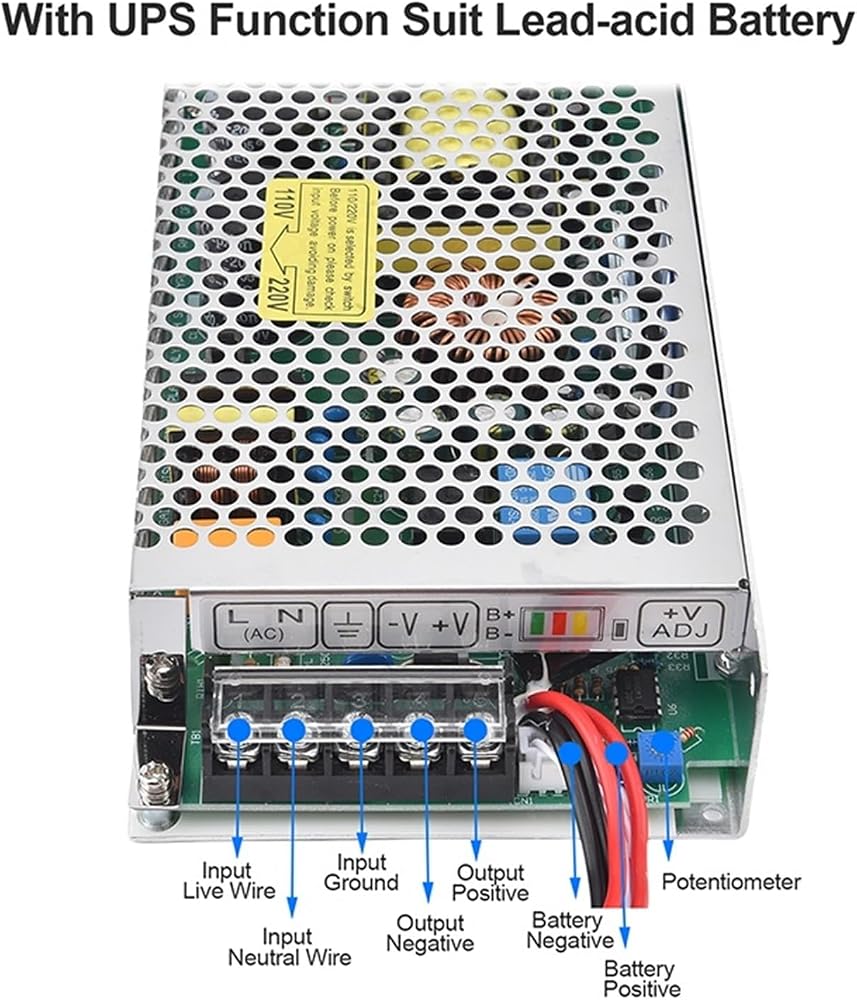

180W 12V/24V UPS Switching Mode Power Supply with LED Indicator Input 110/220v for Industrial Automation Field
Note
1.It is recommended not to adjust the load voltage, as the charging voltage will change accordingly.
2.PSC series and SC series are suitable for charging lead-acid batteries. Please check the parameters of load voltage and charging voltage before placing an order.
SC-180-12
CH1 output 12V 13.8A , for you load device.
CH2 Output 13.8V 1.5A, for battery charge.
SC-180-24
CH1 output 24VDC 6.5A , for you load device.
CH2 Output 27.6VDC 1a, for battery charge.
==========
Type : Power Supply
High-concerned chemical : None
Output Power : 101 - 200W
is_customized : No
Output Current : 0-10A
Model Number : SC-180
Output Frequency : 50/60HZ
Output Type : DUAL
Origin :

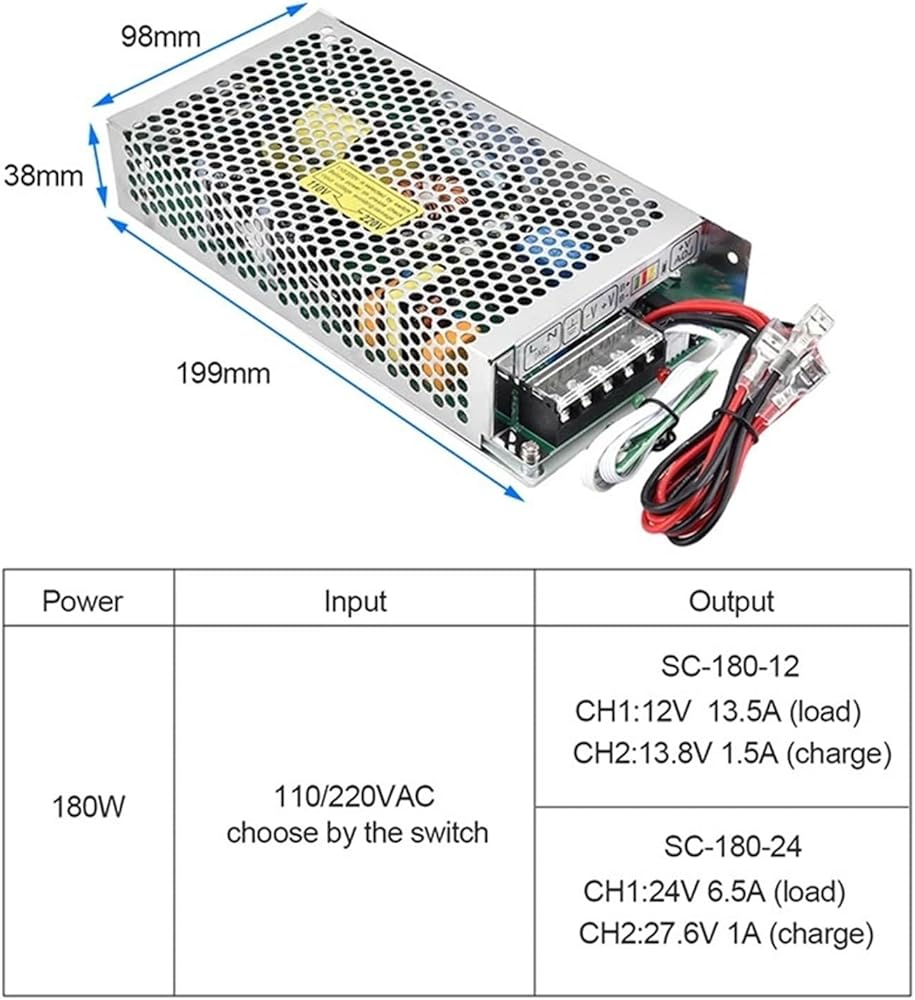

product size : 199*98*38mm(L*W*H)*
AC input voltage range : 90~264 VAC 47~63 Hz 127~370 VDC
Over load protection : 110~150% hiccup mode,auto-recovery
Withstand voltage : I/P-O/P:1.5KvAC 1min;I/P-FG:1.5KvAC 1min;O/P-FG:0.5KvAC 1min
Working temperature : -10°C~+60°C,20%~90%RH
Weight/packing : 0.6kg/45pcs/26kg
