Power Supplies
Tips:
To ensure the lifetime of the power supply,pls don't use full load when you use it.
We recommend the use power should be 80% of the rated power.
For example: the label of the power supply is 500W,use power should be:500W*80%=400W

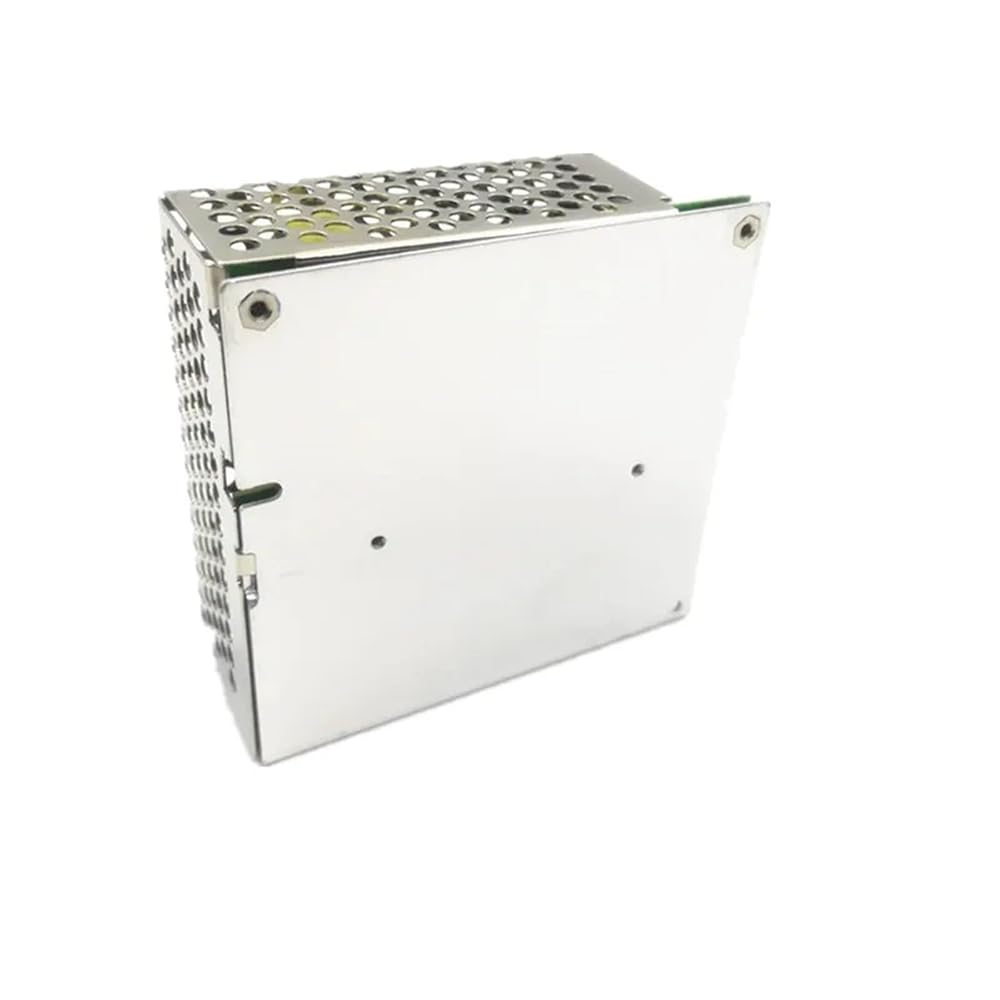

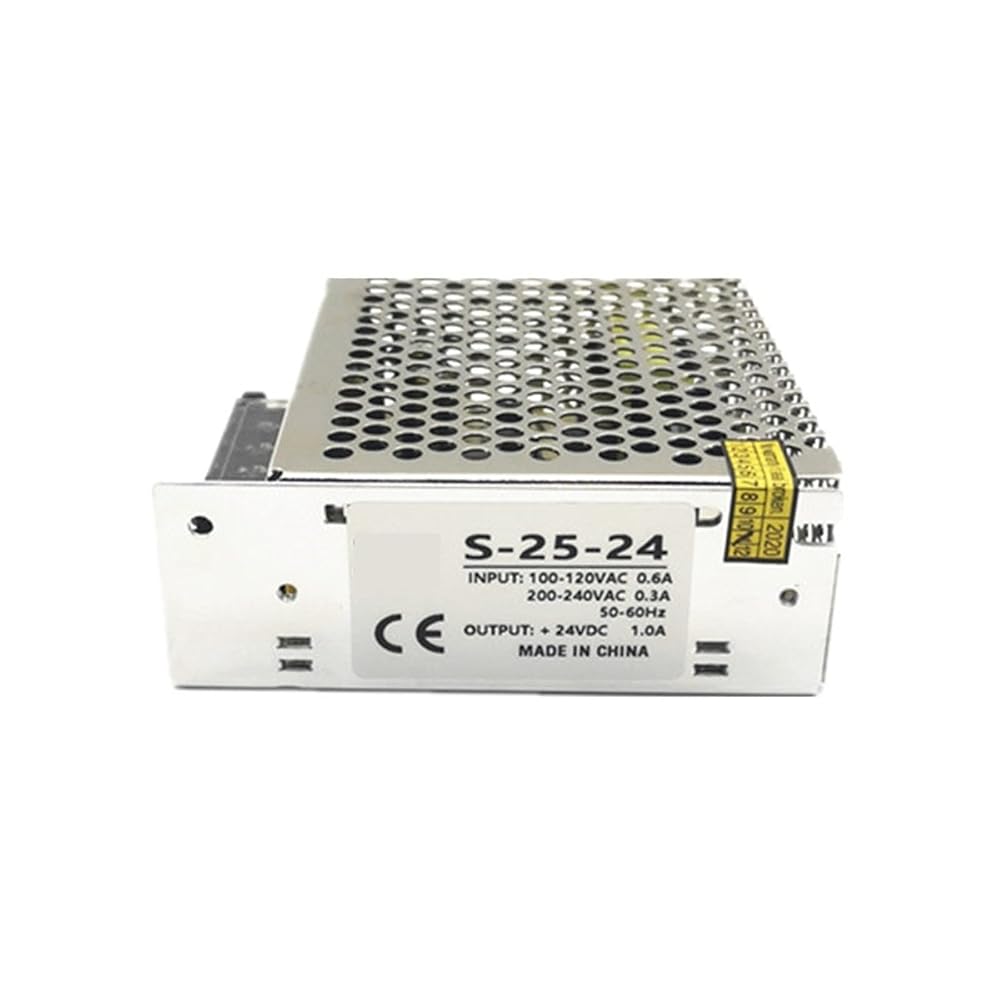

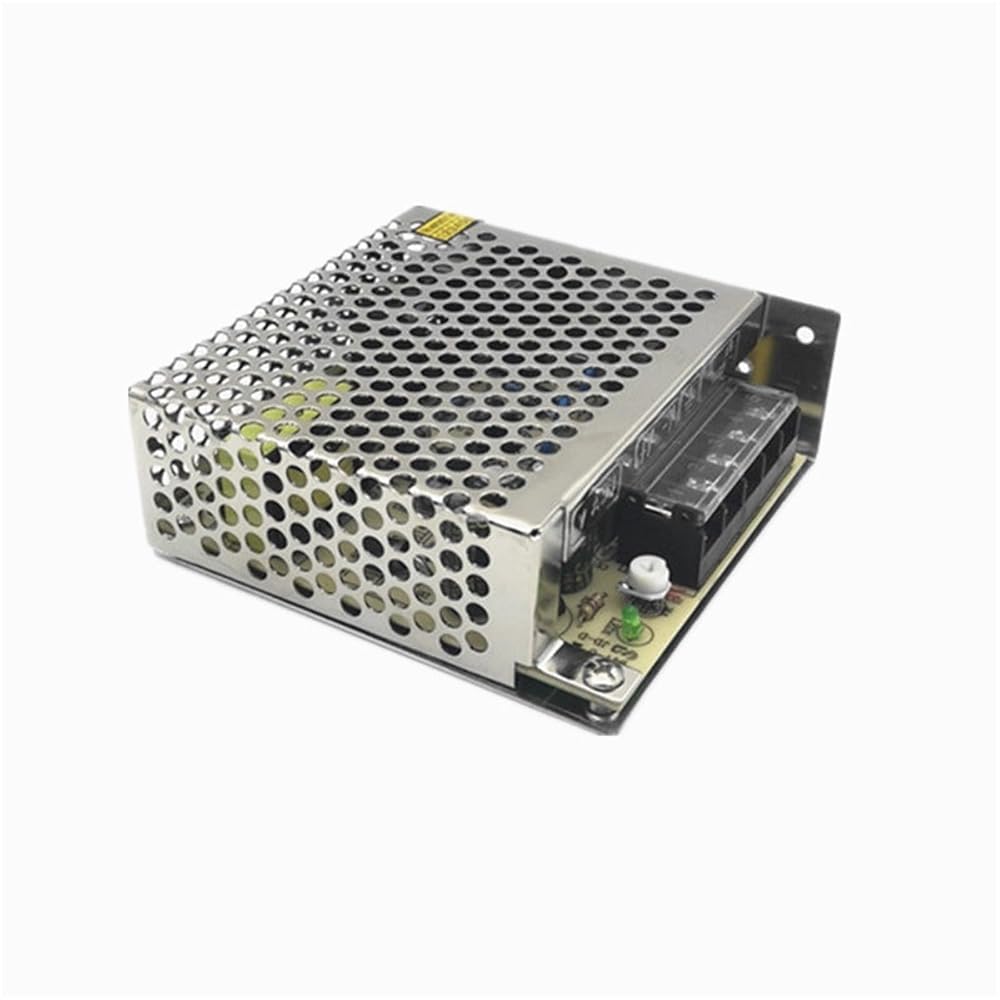

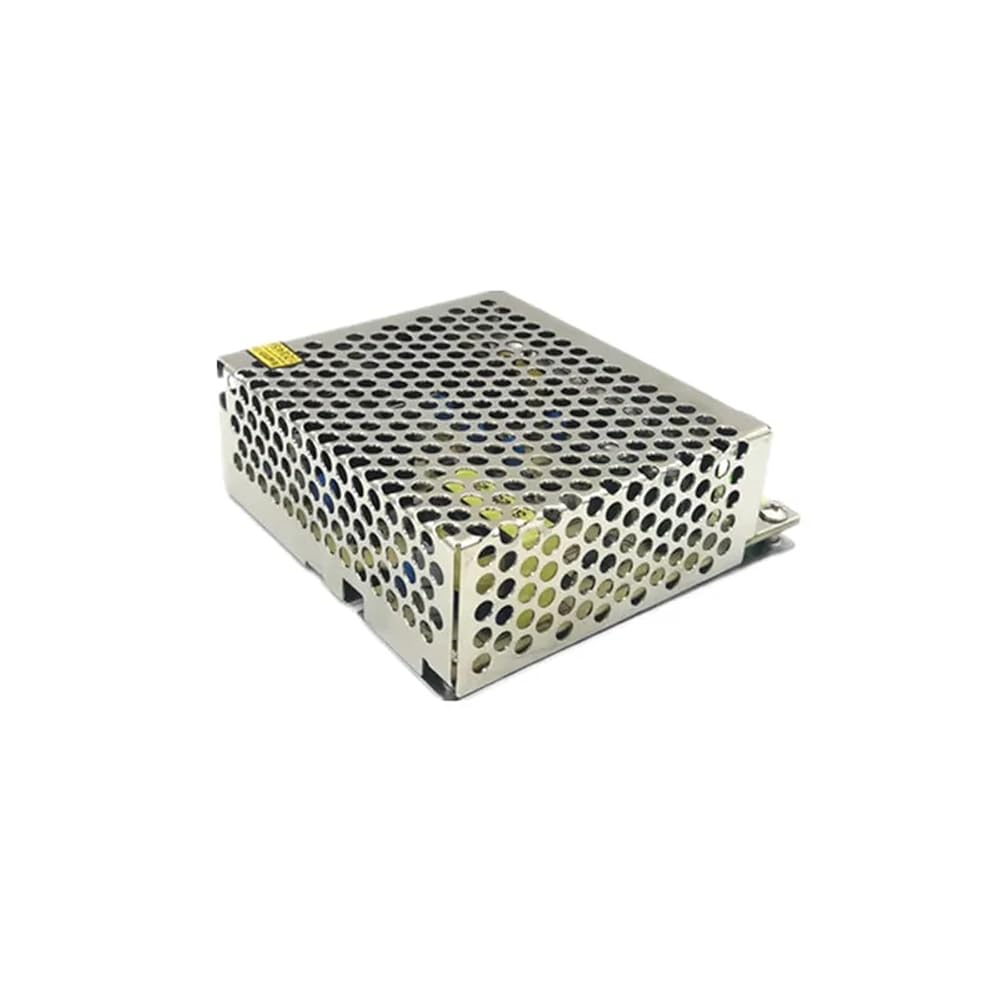

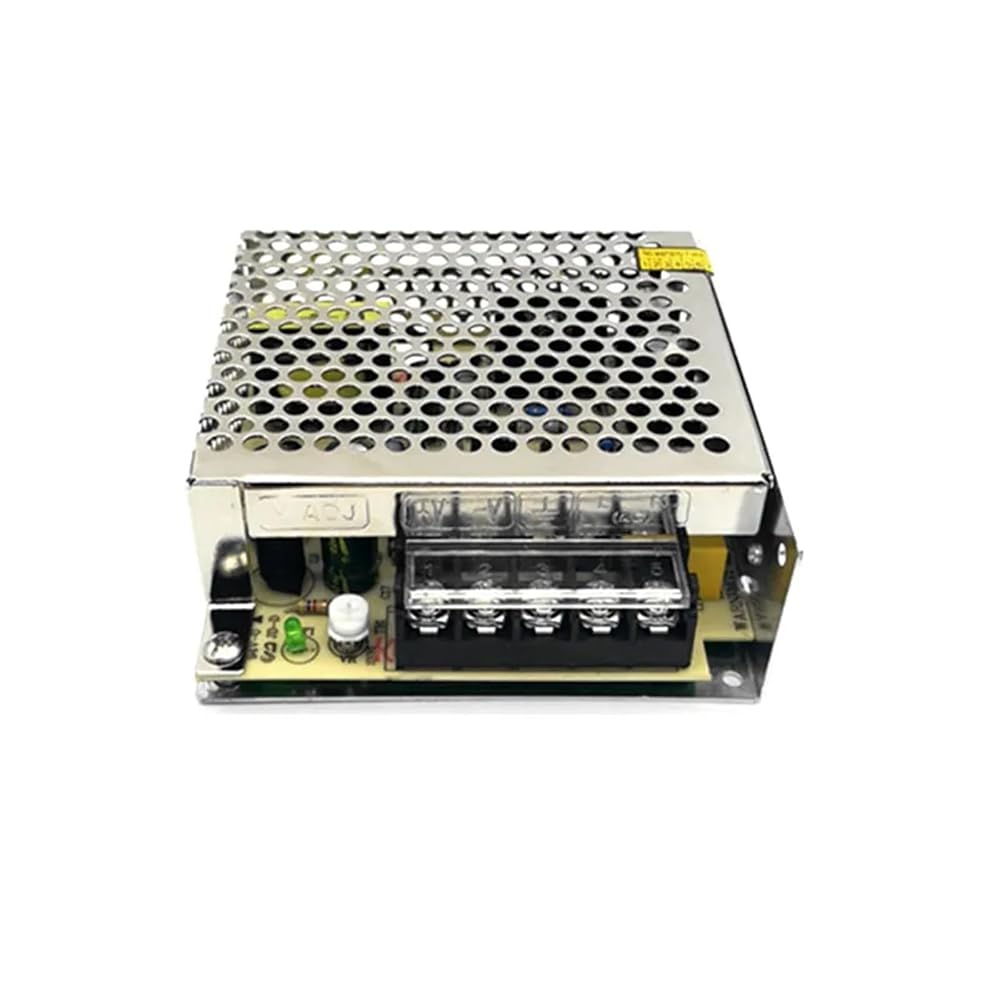

single output 25W switching power supply output 5v 5a, 15V 1.6A, 24V 1A power supply ac-dc led power supply 12v 2A,
switching power supply
output power: 25w
output voltage: 5v 12v 15v 24v
output current: 5A 2A 1.6a 1A
Specification:
AC input voltage range:85-132VAC,170-264VAC ,47-63Hz selectable by switch
AC inrush current:Cold start,30A at 115V,60A at 230VAC
adjustment range: ±10% rated output voltage
Over load protection:105-150% fold back current limiting, auto-recovery
Setup,rise,hold up time:200ms,80ms,20ms at full load and 230VAC
Withstand voltage:I/P-O/P: 1.5KVAC,I/P-FG:0.5KVAC,1 minute
Working temperature:-10°C+60°C, 20 % -90 %RH
Safety standards:Design refer to UI1012
EMC standards:Design refer to FCC part 15
Conneciton:7P/9.5mm pitch terminal block
Packing:0.62kg,30pcs/16.8kg/1.2CUFT
SIZE: 99*97*35mm
==========
Type : Power Supply
High-concerned chemical : None
is_customized : No

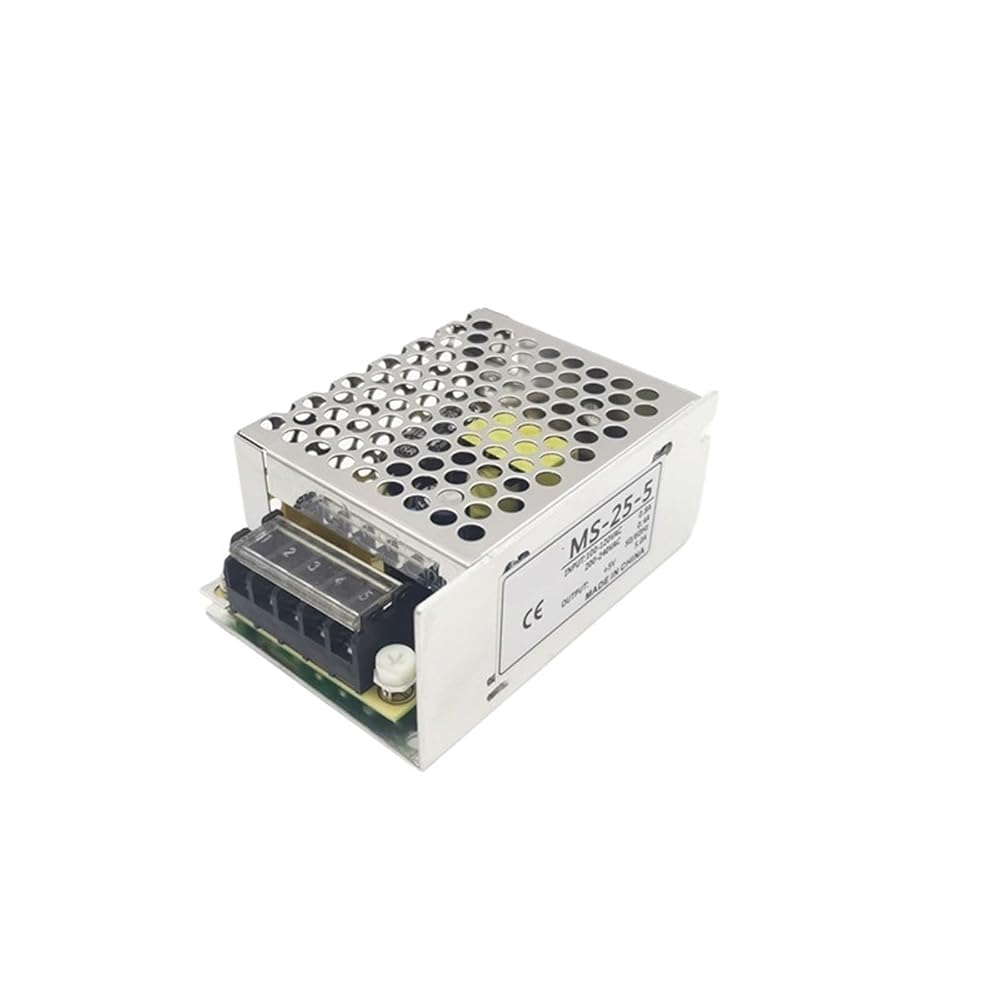

Model Number : MS-25
Output Frequency : 50/60HZ
Output Type : SINGLE
Origin :
AC input voltage range : 90~132VAC/180~264VAC 47~63 Hz 255~373VDC
Over load protection : 105~135% Fold back current limiting,auto-recovery
Withstand voltage : I/P-O/P:1.5KvAC 1min;I/P-FG:1.5KvAC 1min;O/P-FG:0.5KvAC 1min
Working temperature : -10°C~+60°C,20%~90%RH
product size : 99*97*35mm(L*W*H)
Weight/packing : 0.3kg/60pcs/19kg
