Tips:
To ensure the lifetime of the power supply,pls don't use full load when you use it.
We recommend the use power should be 80% of the rated power.
For example: the label of the power supply is 500W,use power should be:500W*80%=400W

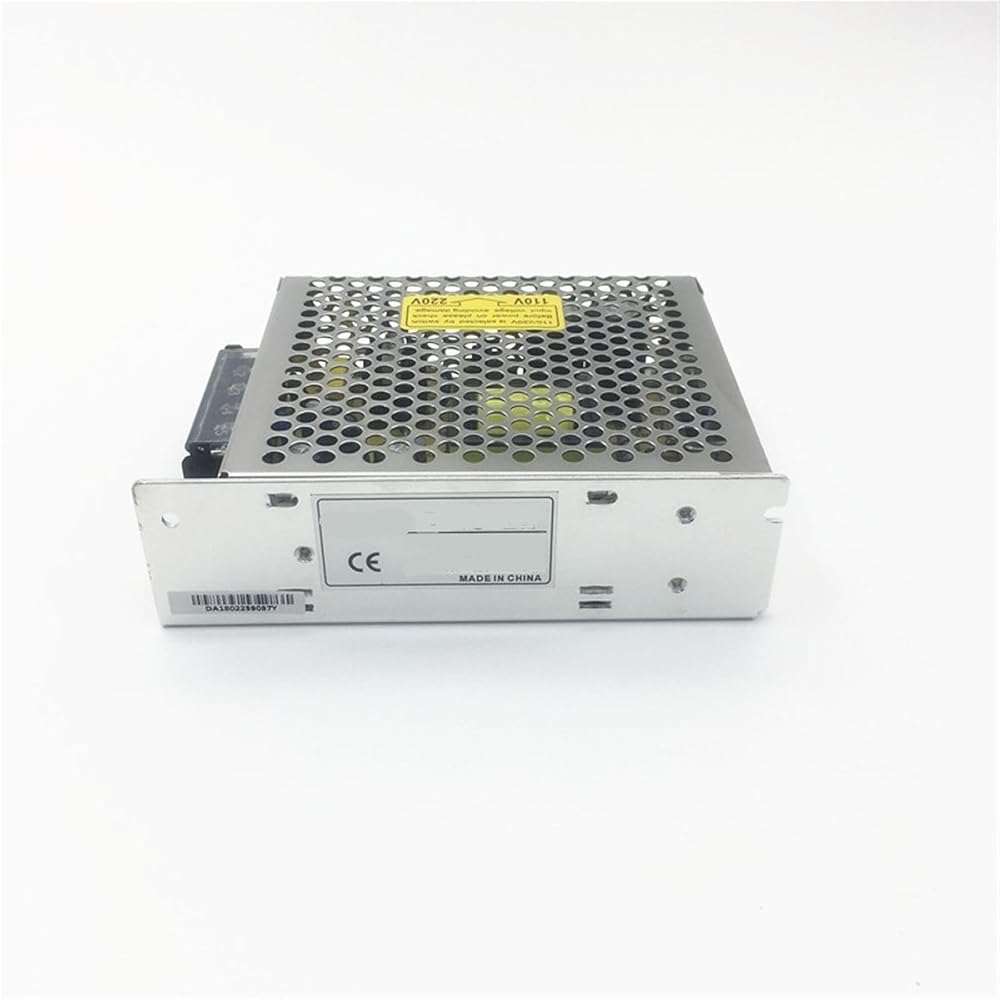

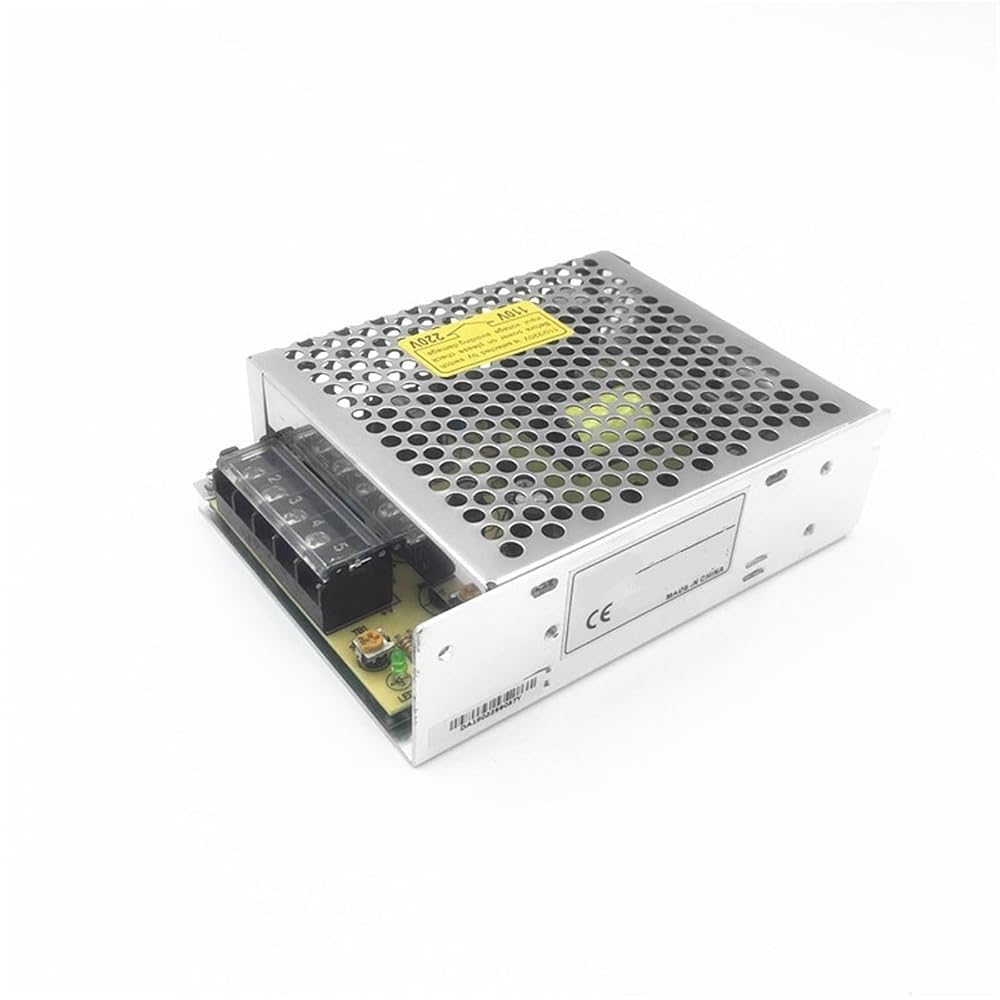

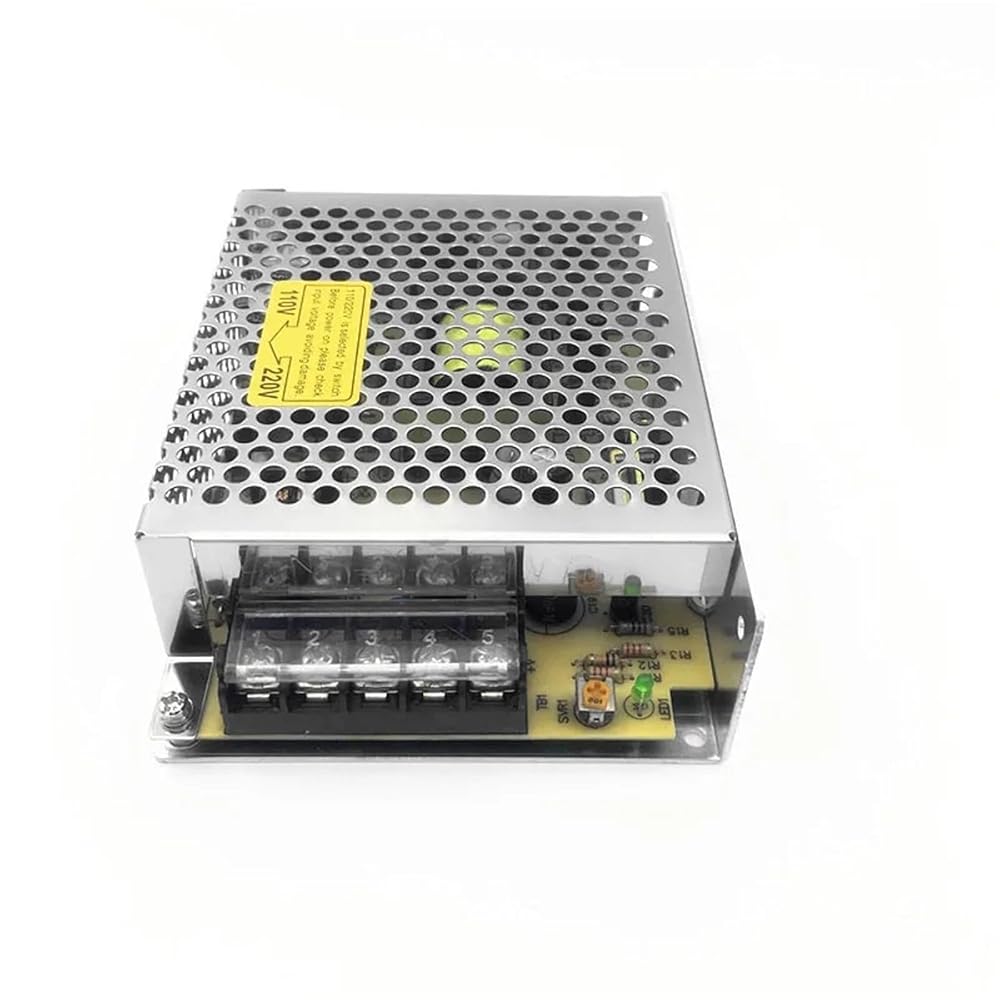

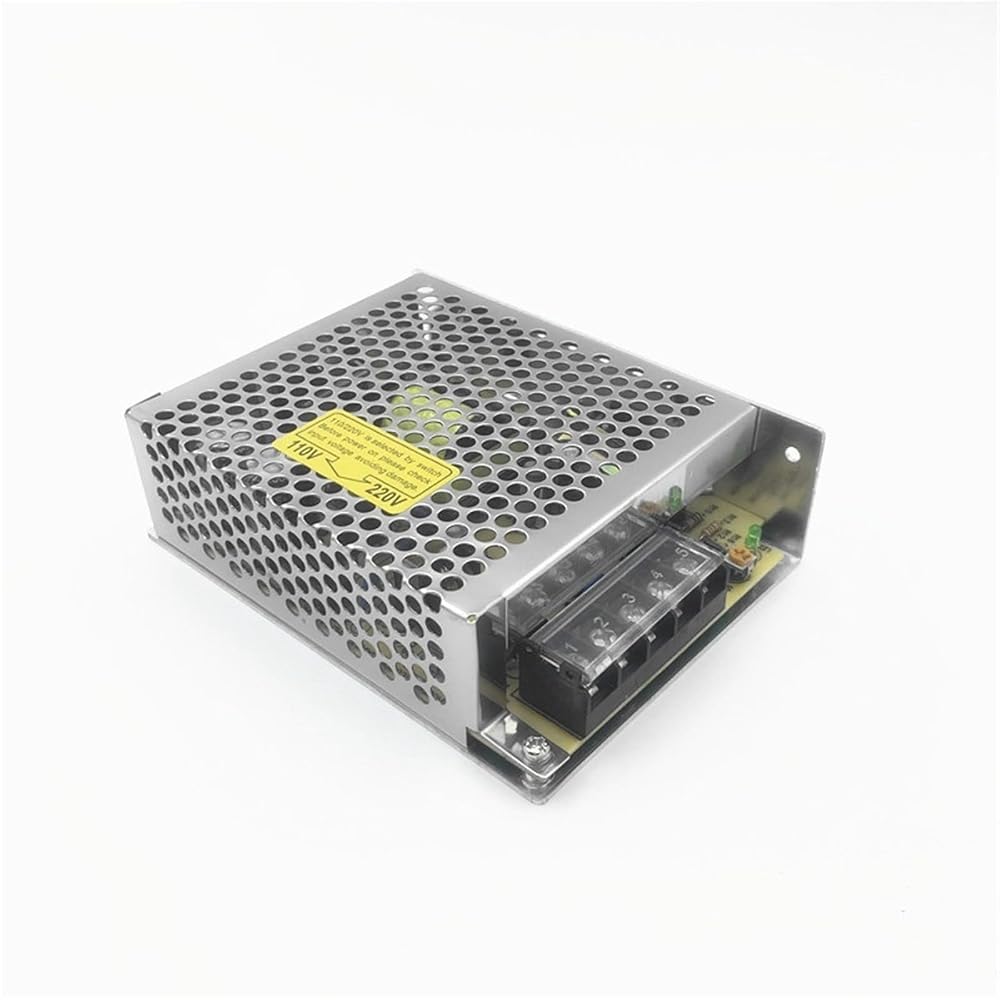

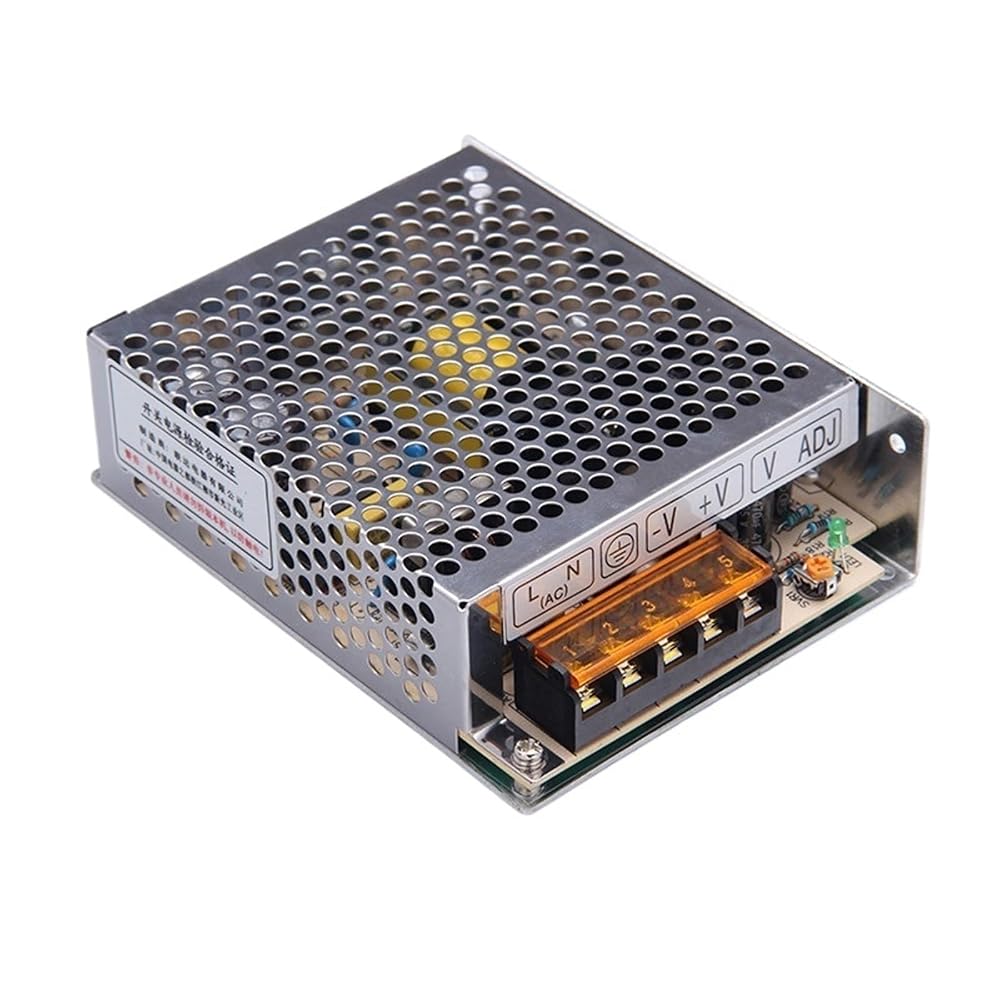

single output switching power supply 35w output 5v 7a, 15V 2.3A, 24V 1.45A power supply ac-dc led power supply 12v 2.9A,
switching power supply
output power: 35w
output voltage: 5v 12v 15v 24v
output current: 7A 2.9A 2.3a 1.45A
Specification:
AC input voltage range:85-132VAC,170-264VAC ,47-63Hz selectable by switch
AC inrush current:Cold start,30A at 115V,60A at 230VAC
adjustment range: ±10% rated output voltage
Over load protection:105-150% fold back current limiting, auto-recovery
Setup,rise,hold up time:200ms,80ms,20ms at full load and 230VAC
Withstand voltage:I/P-O/P: 1.5KVAC,I/P-FG:0.5KVAC,1 minute
Working temperature:-10°C+60°C, 20 % -90 %RH
Safety standards:Design refer to UI1012
EMC standards:Design refer to FCC part 15
Conneciton:7P/9.5mm pitch terminal block
Packing:0.62kg,30pcs/16.8kg/1.2CUFT
SIZE: 129*97*38mm
==========
Type : Power Supply
High-concerned chemical : None
Output Power : 1 - 50W
is_customized : No
Model Number : S-35
Output Frequency : 50/60HZ
Output Type : DUAL
Origin :
AC input voltage range : 90~132VAC/180~264VAC 47~63 Hz 255~373VDC
Over load protection : 115~150% Fold back current limiting,auto-recovery
Withstand voltage : I/P-O/P:1.5KvAC 1min;I/P-FG:1.5KvAC 1min;O/P-FG:0.5KvAC 1min
Working temperature : -10°C~+60°C,20%~90%RH
product size : 129*98*38mm(L*W*H)
Weight/packing : 0.36kg/45pcs/17kg
