4000W High Power Switching Power Supply with LED Displayer CCCV AC/DC 24V 36V 48V 72V 96V 110V 150V 220V ZX-4000
Description:

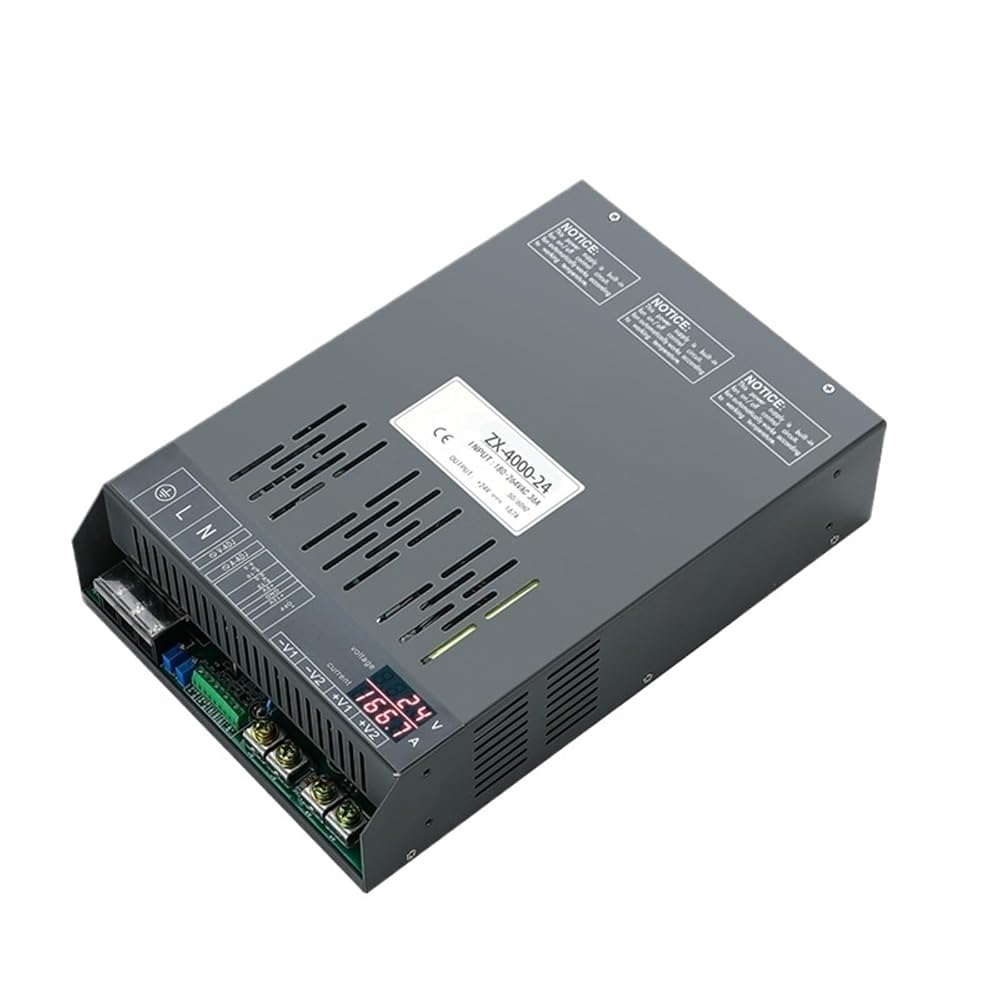

The ZX-4000 is a 4KW single output enclosure AC to DC/DC to power supply. The entire series has an input voltage range of 180 - 264VAC / 250 - 370VDC and provides a output that meets most industrial requirements. Each model can be cooled by an internal speed controlled fan and can operate at temperatures up to 60 degrees Celsius. Built-in features such as adjustable output voltage, adjustable current, remote on/off control, and auxiliary power supply provide design flexibility.
Features:
Voltage input range: 180-264VAC
Protection type: short circuit/over current/over temperature
Main circuit external switching control
Applications:
Industrial control or automation devices
Laser-related machines
UV curing equipment
Charging equipment
Test and measurement equipment
Aging equipment
==========
Type : Power Supply
High-concerned chemical : None
Output Power : >500W
is_customized : Yes
Output Current : 125A
Model Number : ZX-4000
Output Frequency : 50/60HZ
Output Type : SINGLE
Origin :
AC input voltage range : 180-264VAC
Output voltage range : +-10%
Size : 300*200*70mm
