OEM Replacement Brand: Heatcraft

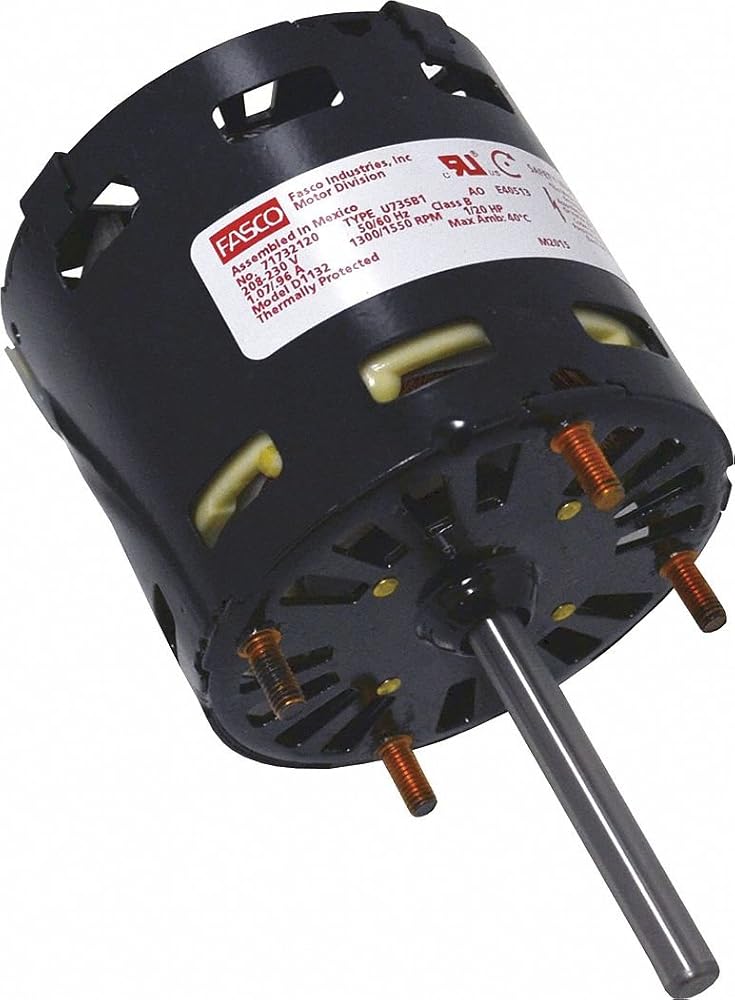

Item: Condenser Fan Motor
Motor Design: Shaded Pole
Phase: 1
HP: 1/20
RPM Range: 1501-1600
No. of Speeds: 1
Voltage: 208/230
Motor Shaft Rotation: CWSE
Frame: 3.3
Motor Enclosure Design: Open Air-Over
Motor Mounting Type: Stud
Shaft Dia.: 5/16"
Shaft Length: 2-1/2"
Number of Shafts: 1
Motor Thermal Protection: Auto
Nameplate RPM: 1300/1550
Full Load Amps: 1.07/0.96
Hz: 50/60
Ins. Class: B
Max. Ambient Temp.: 40 Degrees C
Motor Service Factor: 1.00
Motor Bearings: Sleeve
Motor Shaft Design: Flat
Body Dia.: 3-19/64"
Length Less Shaft: 3"
Overall Length: 5-3/4"
Bolt Circle Dia.: 2-13/16"
Mounting Stud Pattern: 2" x 2"
Stud Size: 8-32 x 1/2"
Capacitor Required: No
Replacement For: Heatcraft Mfr. No. 25300201, Fasco Mfr. No. 71639383
Application: Fan
Manufacturers Warranty Length: 1 yr.
Standards: UL (E40513), CSA (LR6319)
