Couplings
After you choose the body length and outside diamesion, pls must leave us message the inner hole size,it is very important!!!

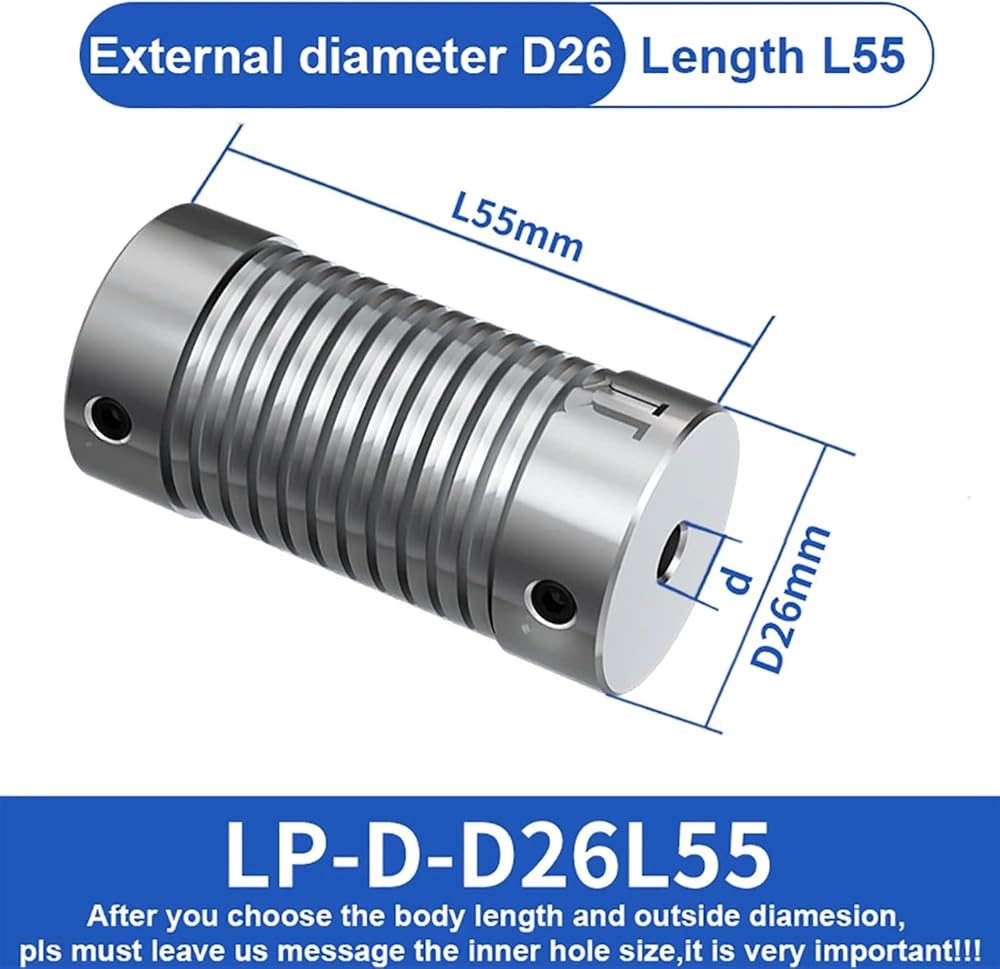

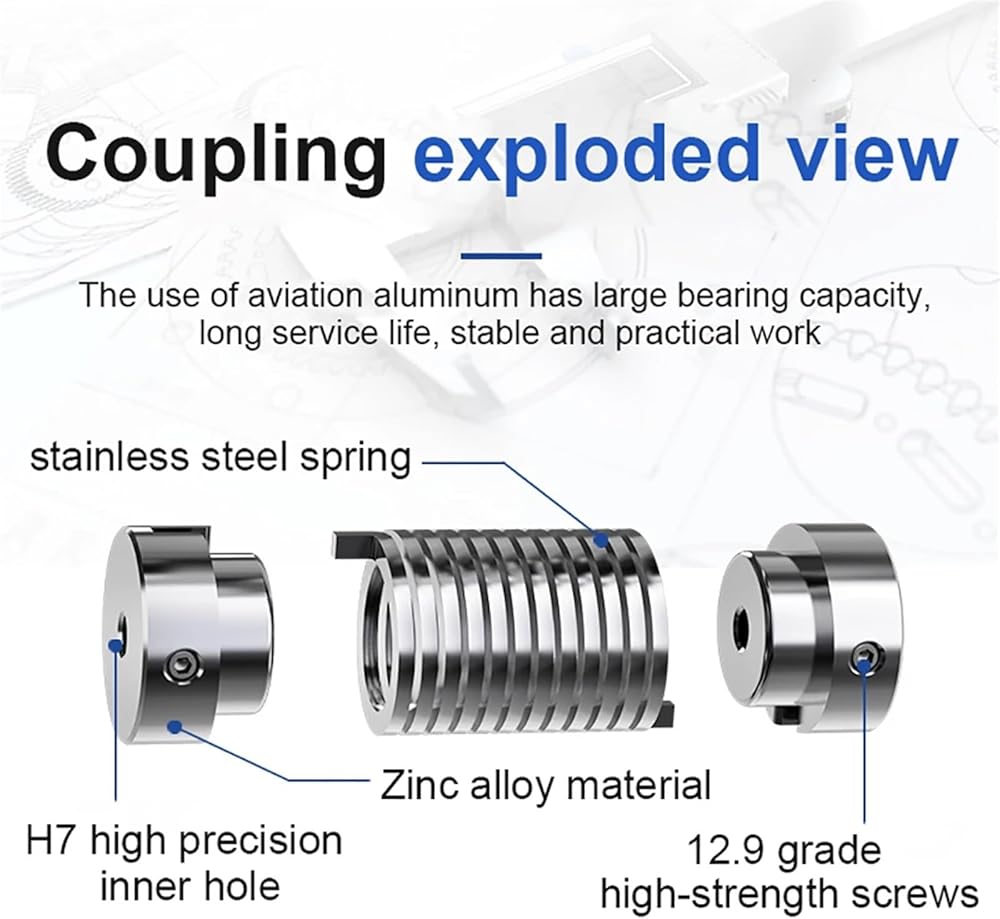

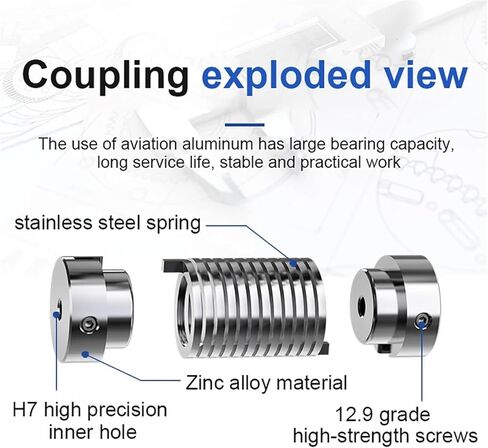

LP-D-D26L55
Spring Tube

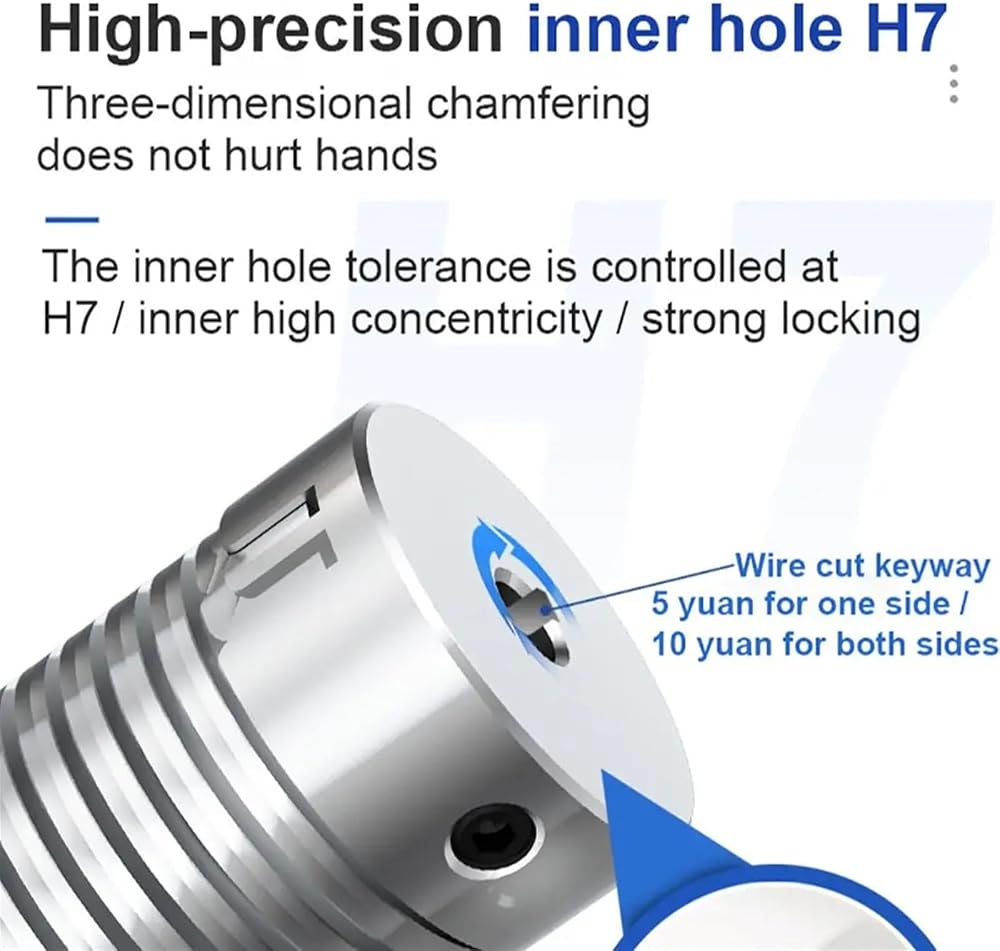

ONE SIDE HOLE SIZE CAN MESSAGE(D1):
5/6/7/8//9/10/11/12/13/14/15/16MM
THE OTHER SIDE HOLE SIZE CAN MESSAGE(D2):
5/6/7/8//9/10/11/12/13/14/15/16MM
For example: LP-D-D26L55 D1:5 D2:10
Model
D(mm)
L(mm)
D1-D2
(mm)
M L1
(mm)
L2
(mm)
Screw fasten

(n.m)
LP-D-D16L25
16
25
4-10
M4
4 13
4.9
LP-D-D16L35
16
35
4-10
M4
4 13
4.9
LP-D-D26L38
26
38
5-16
M5
6 18
10
LP-D-D26L55
26
55
5-16
M5
6 18
10
Model
Rated
(n.m)
Maximum
(n.m)
Maximum speed
(rpm)
Moment of
inertia
(kg.m2)
Permissible
parallel
misallgnment
(mm)
Permissible
angular
misallgnment
(degree)
Weight
(g)
LP-D-D16L25
0.3
0.6
3000
2.5*10-7
1 5 24
LP-D-D16L35
0.25
0.5
3000
5.8*10-7
2 6 29
LP-D-D26L38
0.6
1.2
3000
1.8*10-6
1.5
6 64
LP-D-D26L55
0.45
0.9
3000
4.7*10-6
2.5
10
89
