Linear Sensors
Theory : Resistance Sensor
Material : Metal
Type : Magnetic Sensor
Output : Analog Sensor
Use : Pressure Sensor

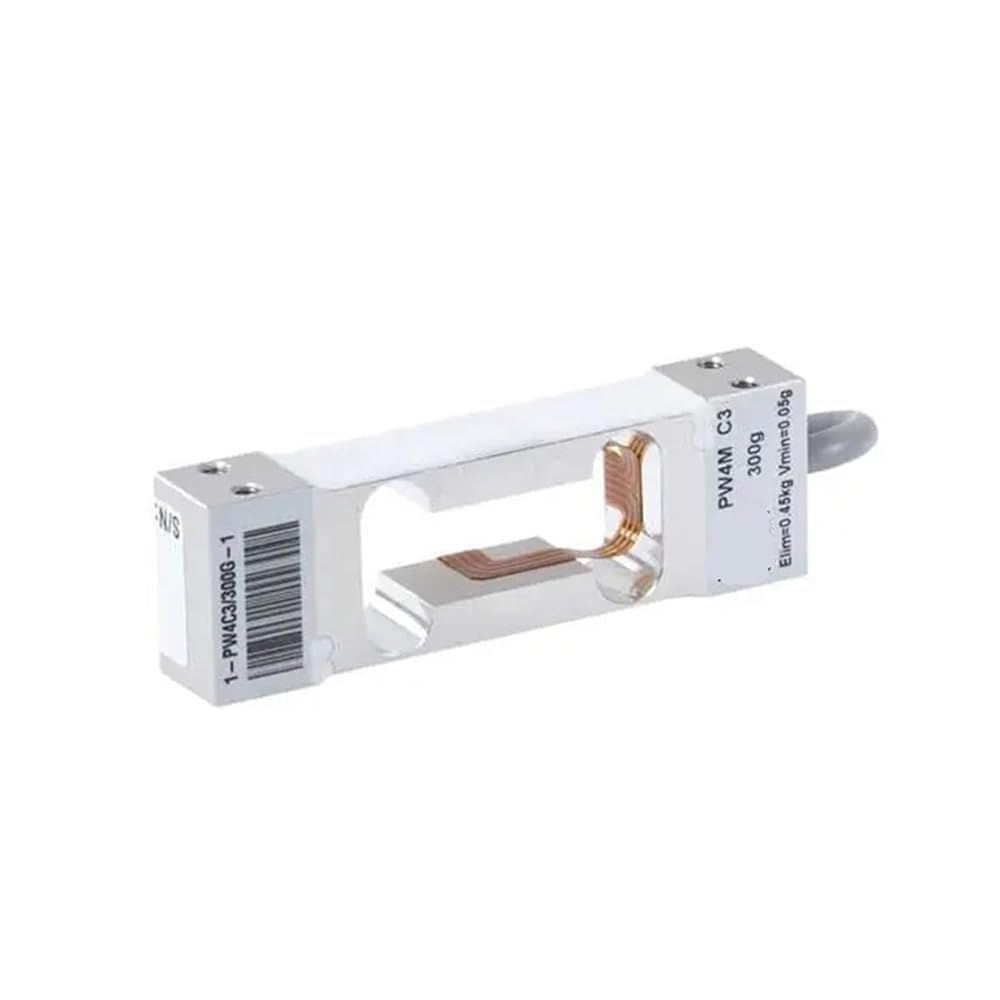

Type : Load Cell/Force Sensor
Maximum number of load cell verification intervals : 3000nLC
Maximum capacity : 0.3-3KG
Minimum load cell verification interval : 0.05-0.5g
Temperature effect on zero balance : 0.0233,0.0280,0.014,0.0233
Ratio of minimum verification interval : 6,000,5000,10000,6000
Maximum platform size : 200 x 200
Sensitivity : 1.0±0.1 (300g-500g),2.0±0.2 (2kg-3kg)
Zero signal : 0±0.1
"Temperature coefficient of the sensitivity per 10K ) in the temperature range +20 ... +40 °C [68 - 104 °F] -10 ... +20 °°C [14 - 68 °F]" : ±0.0175,±0.0117
Hysteresis error : ±0.015
Non linearity : ±0.015
Minimum dead load output return : ±0.0166
Off-center load error : ±0.0233
Input resistance : 300 - 500
Output resistance : 300 - 500
Reference excitation voltage : 5
Nominal range of excitation voltage : 1-8
Maximum excitation voltage : 10
Insulation resistance at 100 VDC : >2
Nominal temperature range : -10 - +40 [+14 - +104°F]
Operating temperature range : -10 - +50 [+14 - +122°F]
Storage temperature range : -25 - +70 [+13 - +158°F]
Limit load at max. eccentricity : 150,100
Lateral load limit, static : 200
Breaking load : >300
