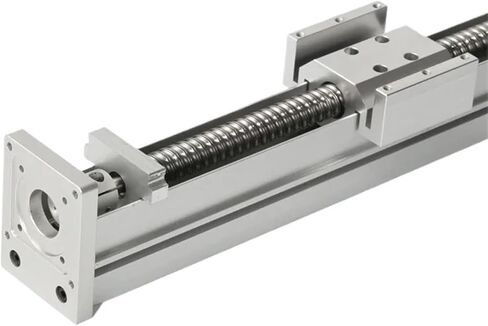

Ball Screw Linear Guide Shaft Actuator Module Position Slide Table Rail Motion with 57 Stepper Motor(Complete Kit,400mm Stroke)

KWD 0
– 1 +

Special Features

  • Linear Motion Guides
  • Ball Screw Linear Guide Shaft Actuator Module Position Slide Table Rail Motion With 57 Stepper Motor

Description

Linear Motion Guides

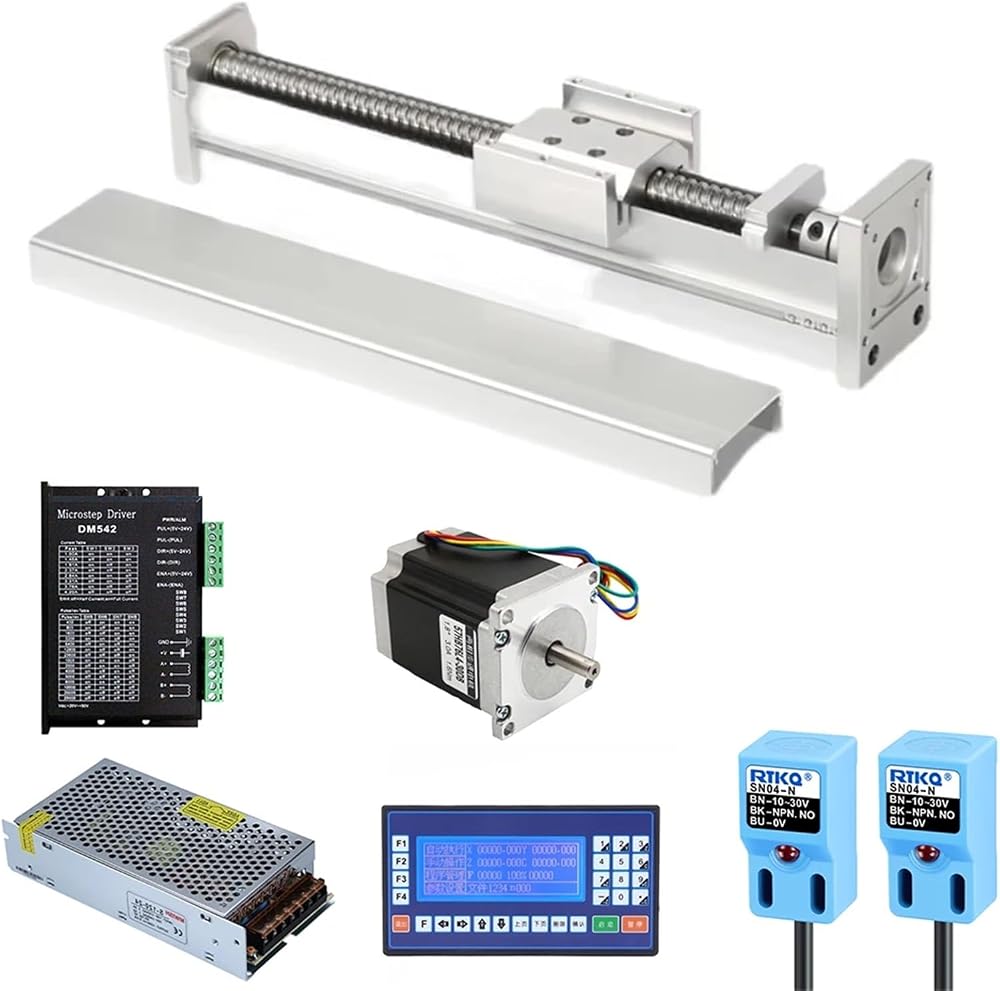

Package include:
Complete Kit:
Actuator * 1
57 Stepper Motor(Nema23 1.2N) * 1
DM860 Driver * 1
Power Supply * 1
Controller * 1
Limit Switch * 2
Actuator only:
Actuator * 1
Specification
Stroke:50-1500MM
Horizontal load: 30KG
Vertical load: 20KG
Repeat positioning accuracy: 0.03mm
Maximum speed: 300mm/s
Screw Precision:C7
Screw Model:SFU1605/SFU1610 (Tips:SFU1605 means:Screw Diameter 16mm, Pitch 5mm,The screw rod rotates once and the panel moves 5mm)
==========
High-concerned chemical :
Model Number : GF40
Guide Width or Diameter : 40mm
Ball screw accuracy : C7
Repeat positioning accuracy : ±0.03mm
Horizontal load : 30kg
Vertical load : 20kg
