STANDARD

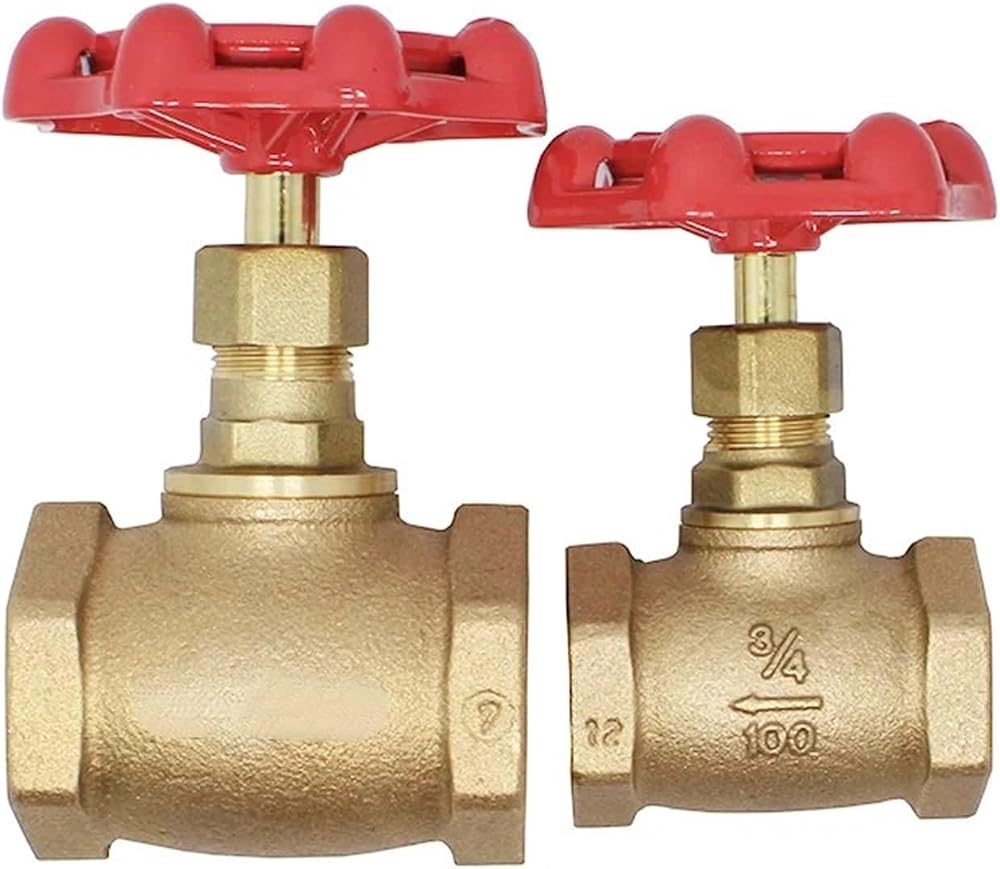

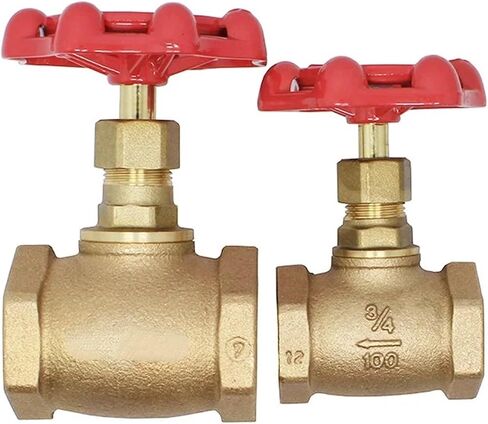

Screwed Bonnet, Rising Stem
Threaded ends to BS21 (JIS B0203)
W.O.G. non-shock 1.03 MPa (150 psi), Saturated steam pressure 0.7 MPa (100 psi)
*Size 4 only = Bonnet:Bronze.
This valve is not designed to handle toxic gases. Use specially designed or certified valves for flammable gas service.
Test Pressure(MPa)Inspection Standard: St'd-1
Water
Air
Shell
1.47*(1/4-4inch,8-100mm)
0.6(1/4-4inch,8-100mm)

- 0.6(1/4-4inch,8-100mm)
Back
- -
Size Range
inch
1/4
3/8
1/2
3/4
1 11/4
11/2
2 21/2
3 4
mm
8 10
15
20
25
32
40
50
65
80
100
L 40
42
48
53
63
73
81
94
115
131
171
H 66
67
69
80
94
104
127
147
179
200
250
D 50
50
55
60
70
80
90
100
115
135
180
==========
NC or NO : Normally Closed
Structure : Shutoff
Port Size : DN15-DN50
Media : Water
Material : Brass
Temperature of Media : Normal Temperature
Power : Manual
Standard or Nonstandard : Standard
Pressure : Medium Pressure
Model Number : A
