مميزات خاصة

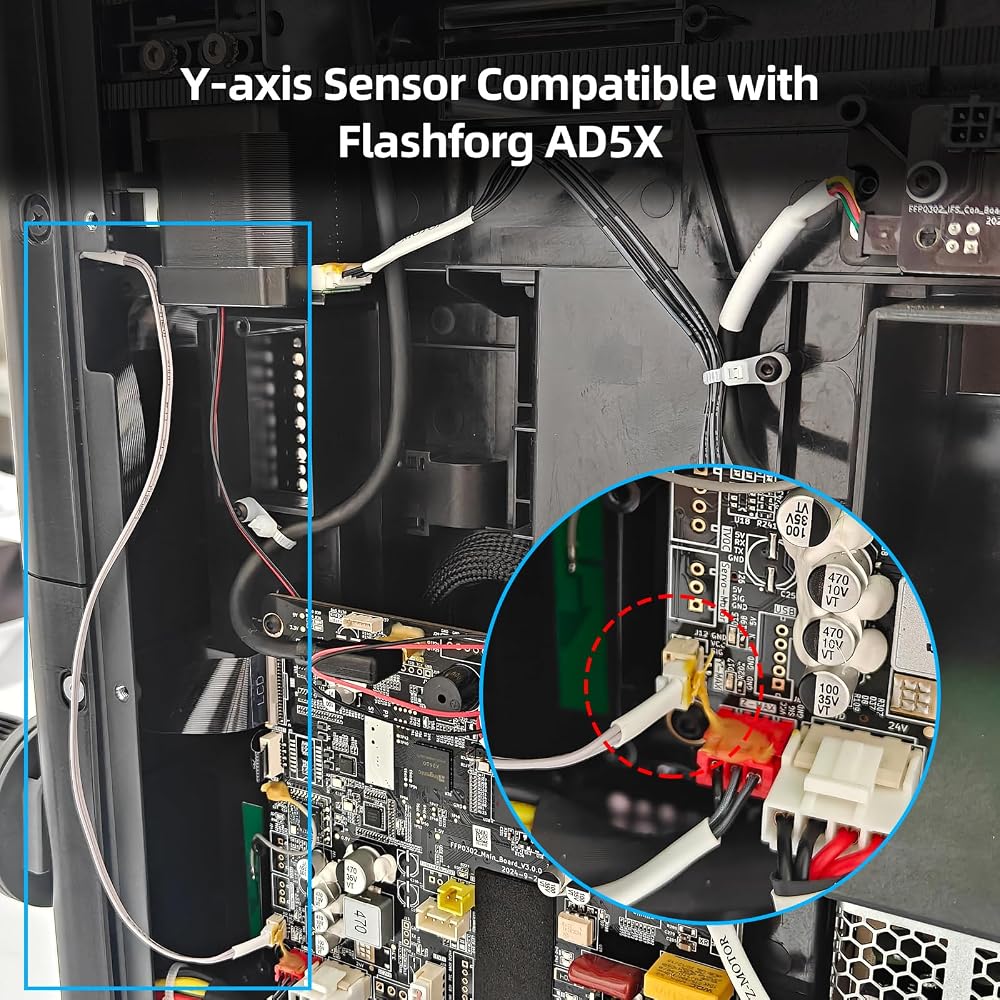

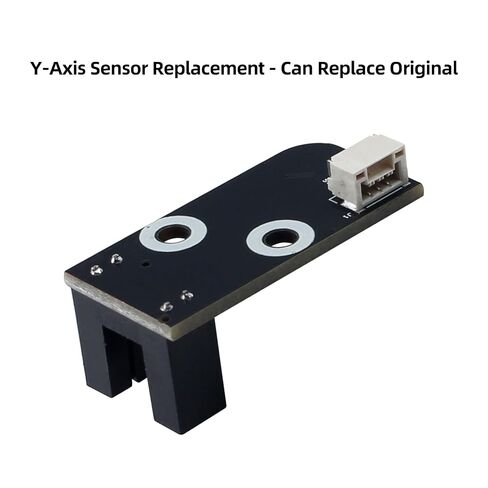

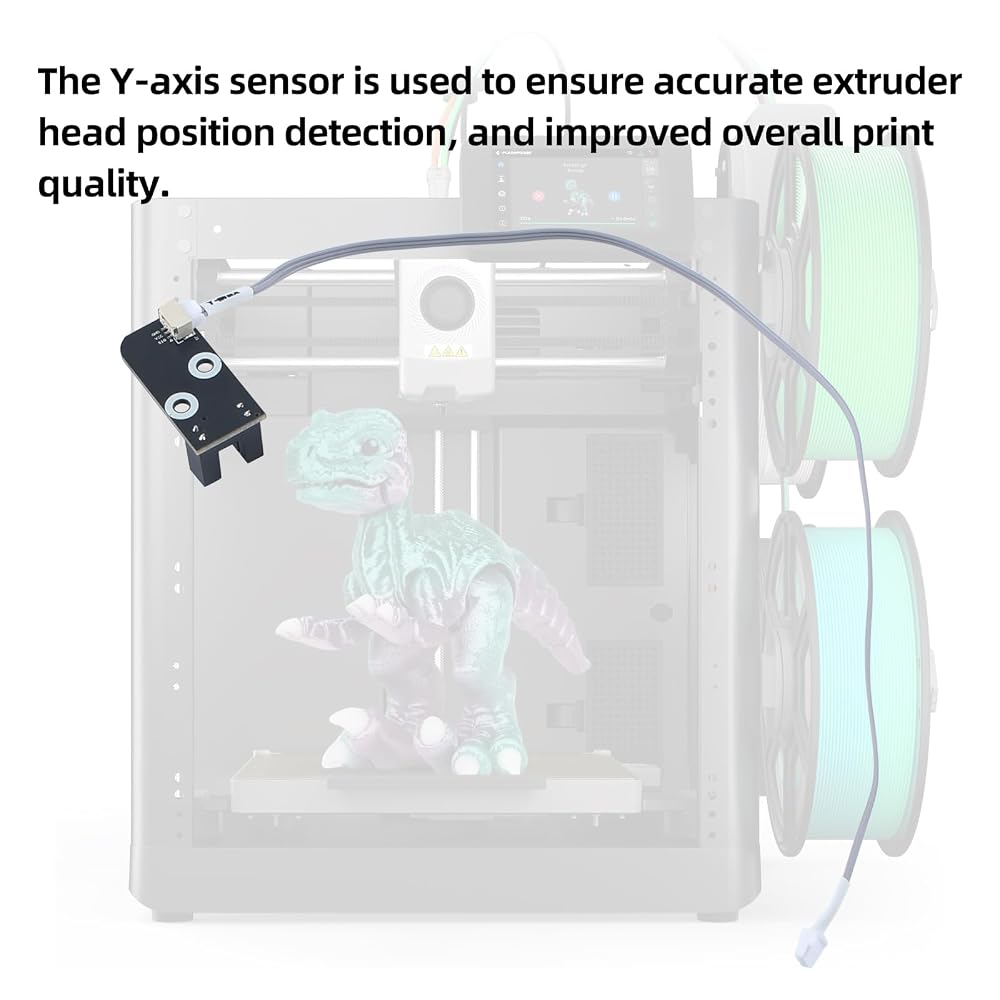

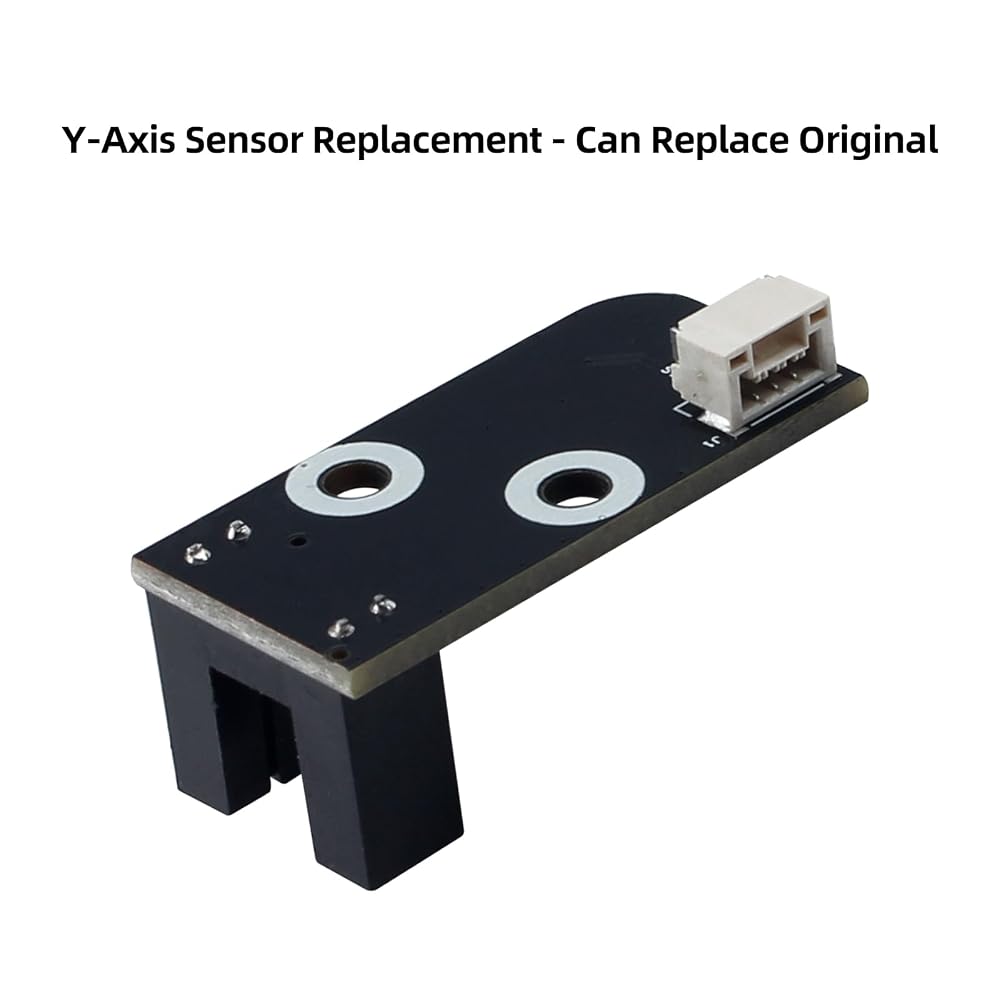

A spare accessory for fixing your y-axis homing issue when your stock one is broken: the adapter is printer's' height ruler 'and' collision warning system, accurately and automatically determine the mechanical origin position of the Y-axis
Auto control: can detect the positions of multiple points on the platform surface. The control board constructs a "topographic map" of the platform based on these data, and dynamically adjusts the Y-axis motor during the printing process to keep the nozzle at a constant distance from the bed throughout the entire printing plane. Even if the heated bed is slightly tilted or uneven, it can compensate
Y-axis sensor failure can result in the following protection mechanisms: Return to zero failure alarm: When the sensor harness is loose, detached, or damaged, the nozzle cannot trigger the sensor properly, and the system will report an error and stop moving. Foreign object detection: If the sensor is obstructed by a foreign object, the system can identify the abnormal direction of movement and sound an alarm. When the sensor is damaged, please replace it promptly
Prevent hardware collision damage: when the printer is started or zeroed, the print head will move along the Y-axis to "zero". The sensor can trigger a signal before coming into contact with the heatbed, notifying the motherboard to immediately stop the motor, thereby avoiding damage to the nozzle or hot bed due to hard collision
If you need other upgraded or clone backup or original for your FDM machine, like flexible textured pei 256 257 320 370 260 270 300 310 315 254 190 MK52 nema 17 x y e axis wire extension heatsink heating block pad silicone sock mat cleaner clog tool deburring smoothing pen soldering tip m3 insert nut filament hub runout storage dryer bag holder roller bracket wall ptfe 1.75mm strain gauge - drive timing belt 6mm 2mm LCD screen control ucan, please welcome

وصف

If the Y-axis sensor malfunctions or is set improperly, it can cause the following printing problems:
The first layer cannot stick: the sensor position is too high, causing the nozzle to be too far away from the platform, and the plastic cannot be pressed properly.
Nozzle scraping platform: the sensor position is too low, causing the nozzle to be too close or even scratching the surface of the platform.
The printing size is inaccurate on the Y-axis: the sensor triggering position is not repeated or the calibration is incorrect

مرحبًا،

بحث

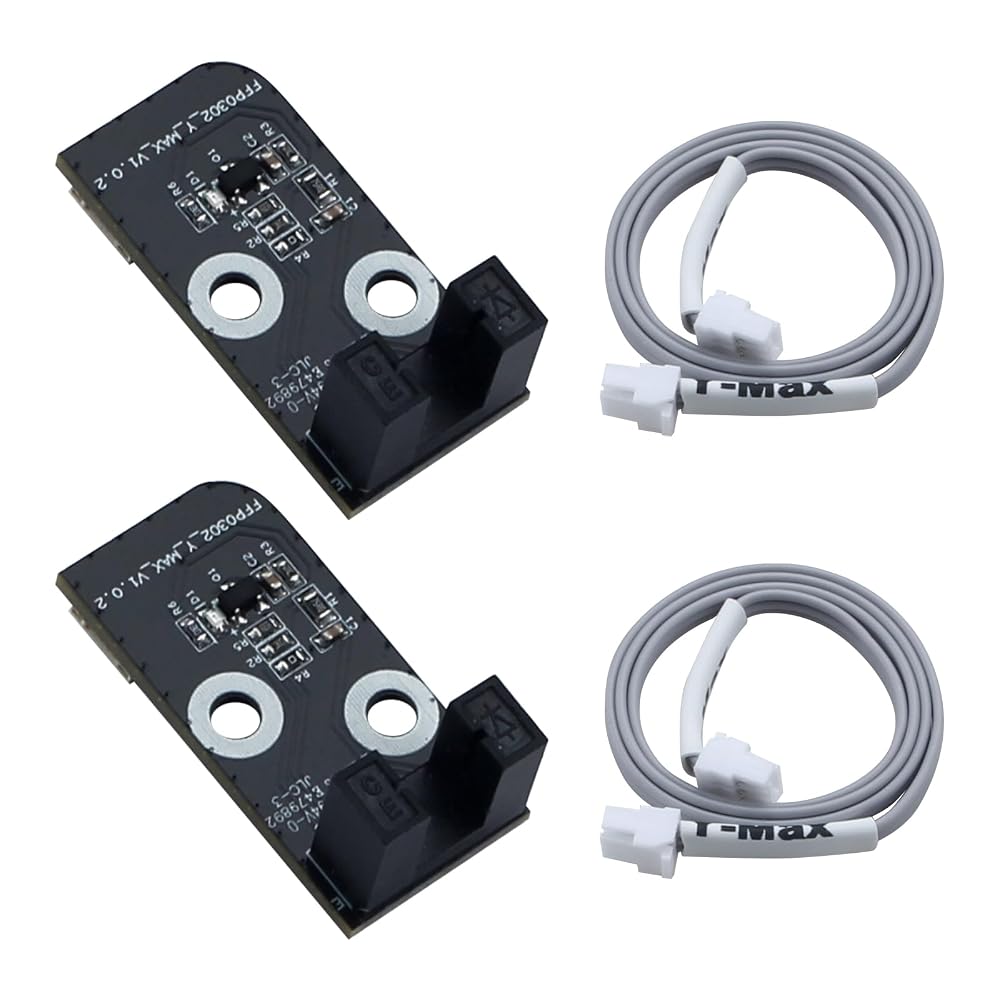

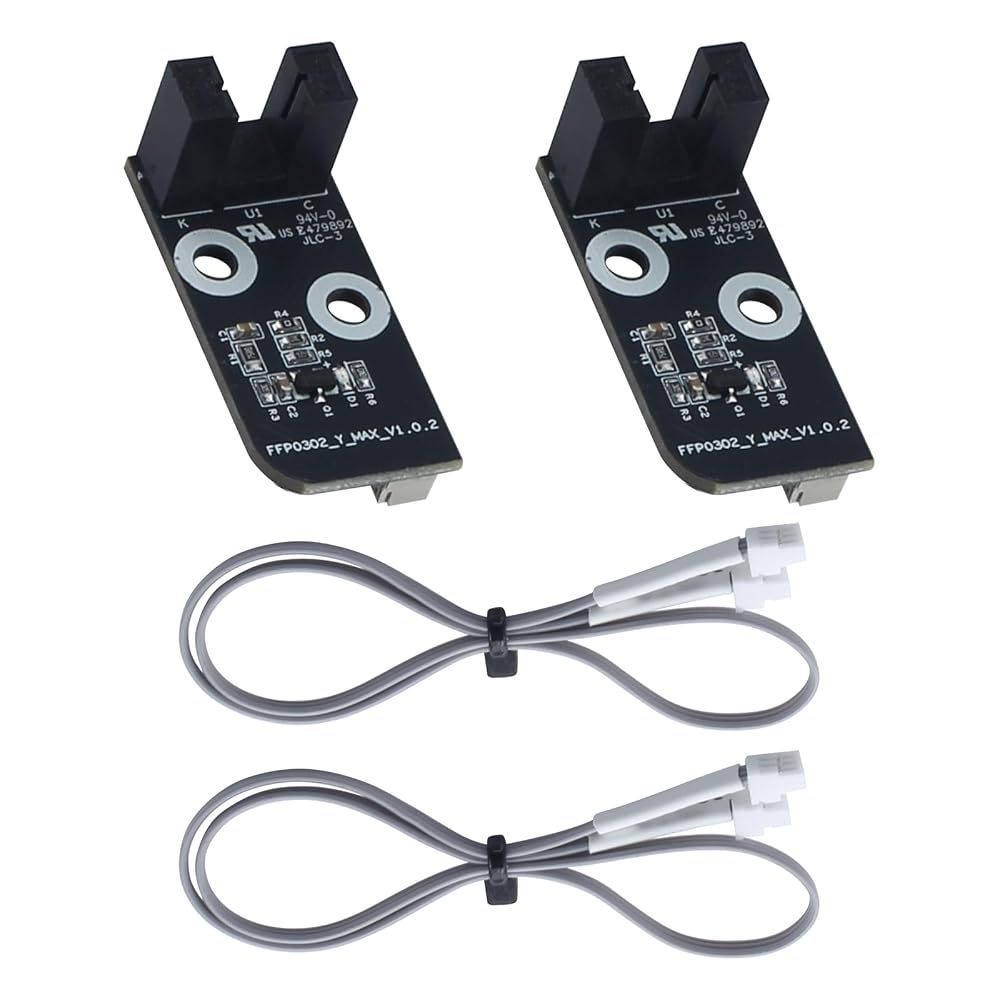

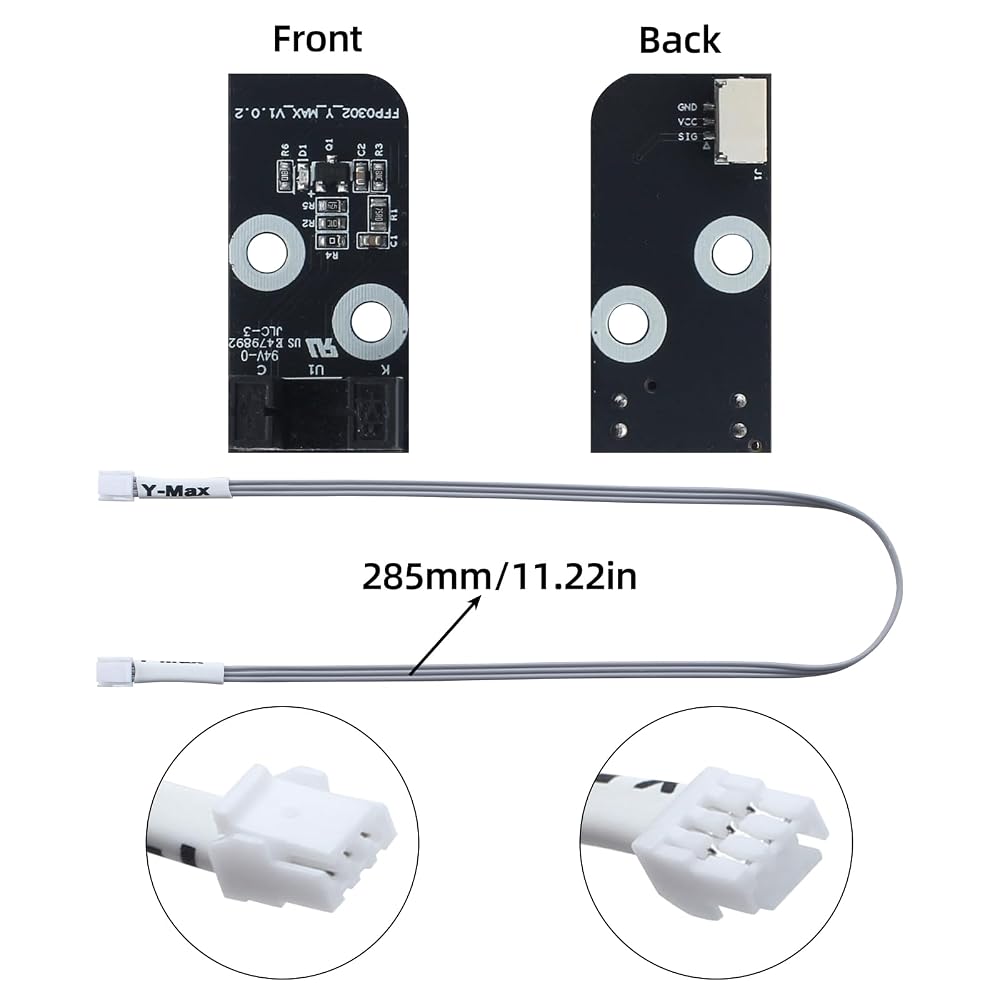

قطع غيار FYSETC للمغامرة AD5X: 2 قطعة وحدة استشعار تسوية السرير التلقائي للمحور Y مع كابل توصيل لمشروع الطباعة Flashforge 5X ثلاثي الأبعاد

مميزات خاصة

وصف
