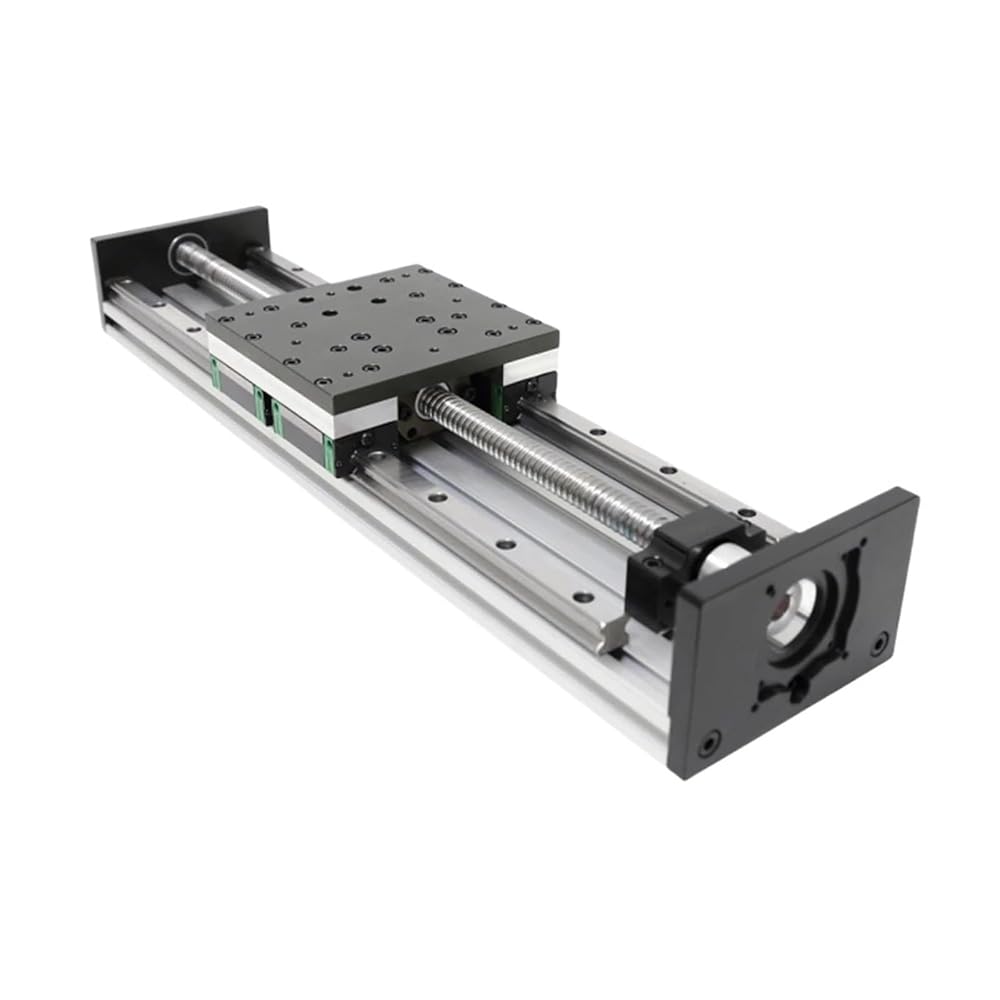

Linear Motion Guides
SPECIFICAITON:

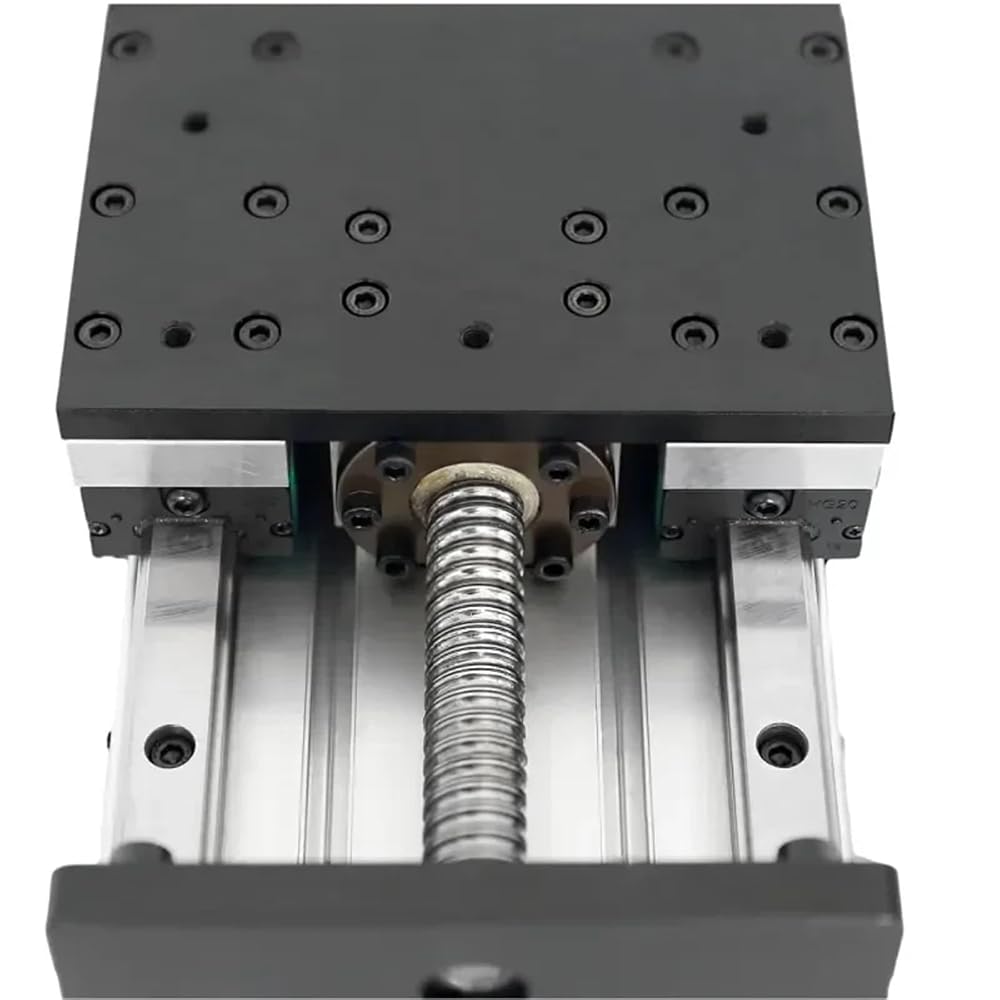

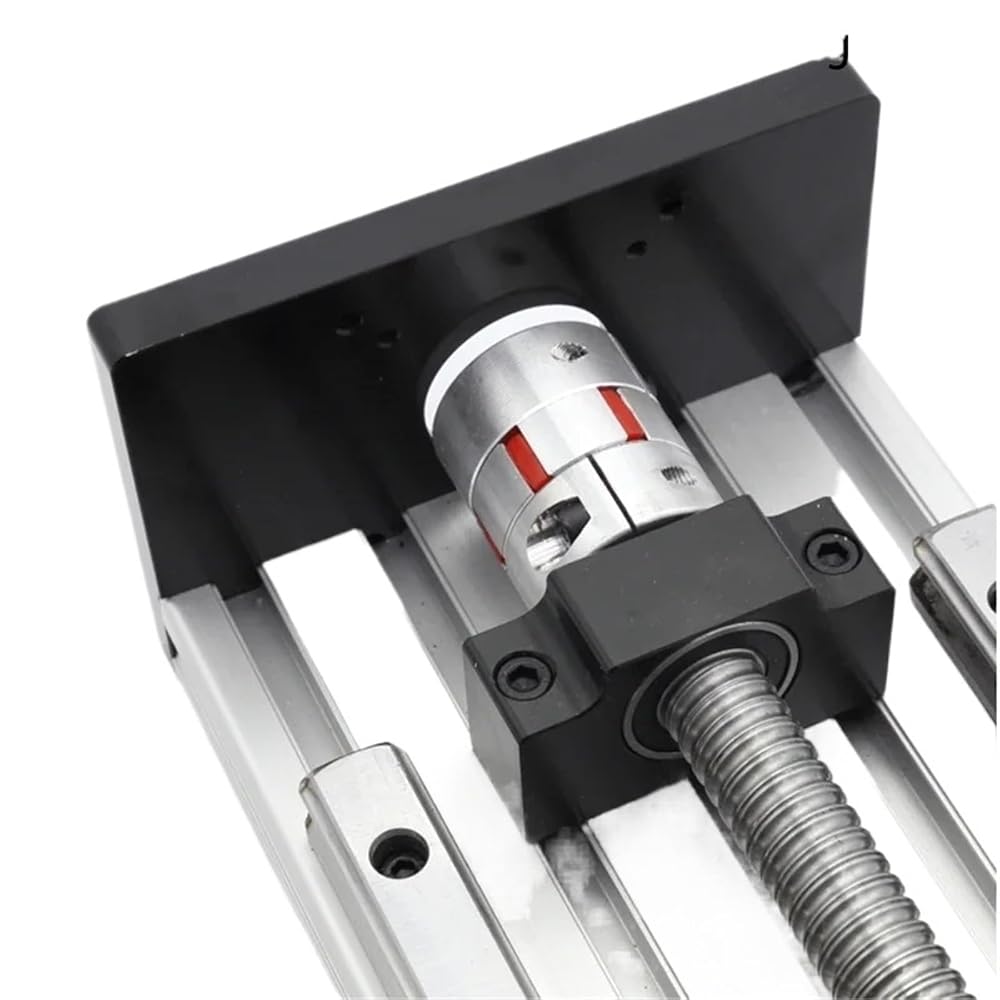

Ball Screw Model
SFU2005

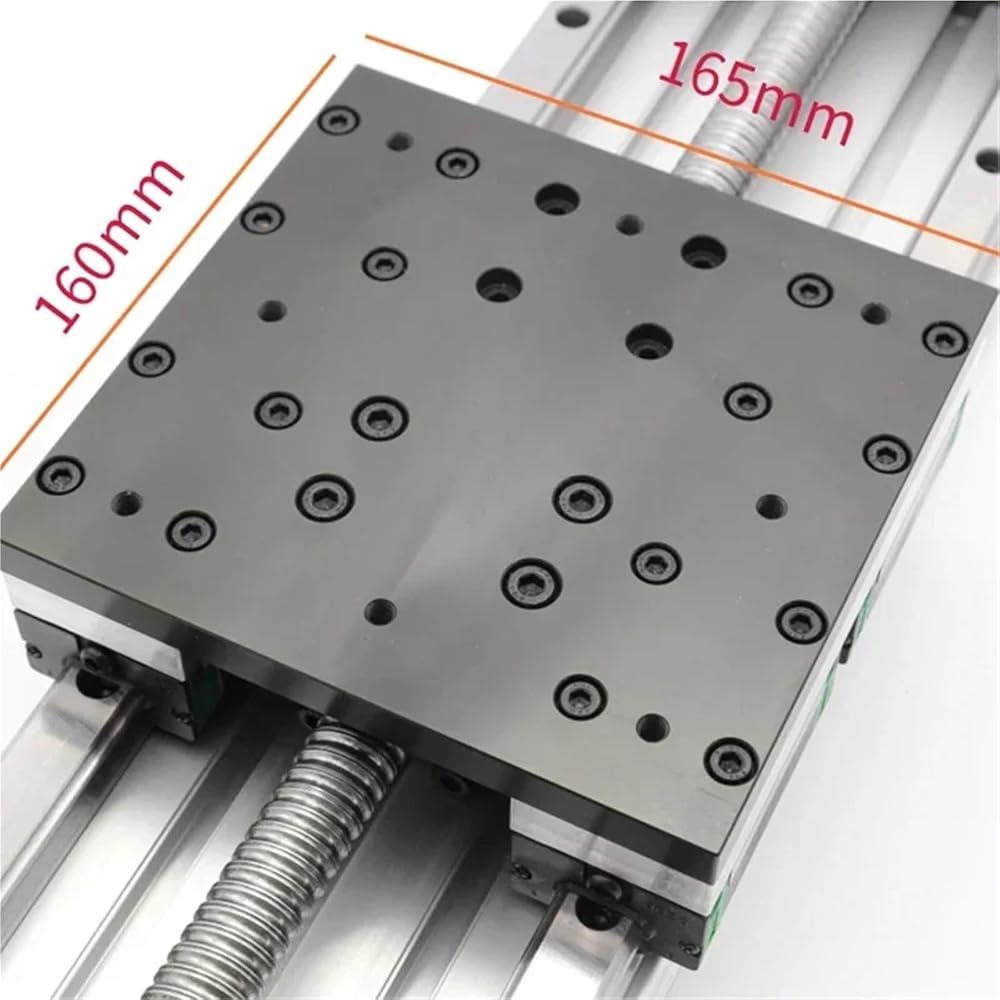

Width(mm)
150
Height(mm)
96
Screw Diameter(mm)
20
Screw Lead(mm)
5

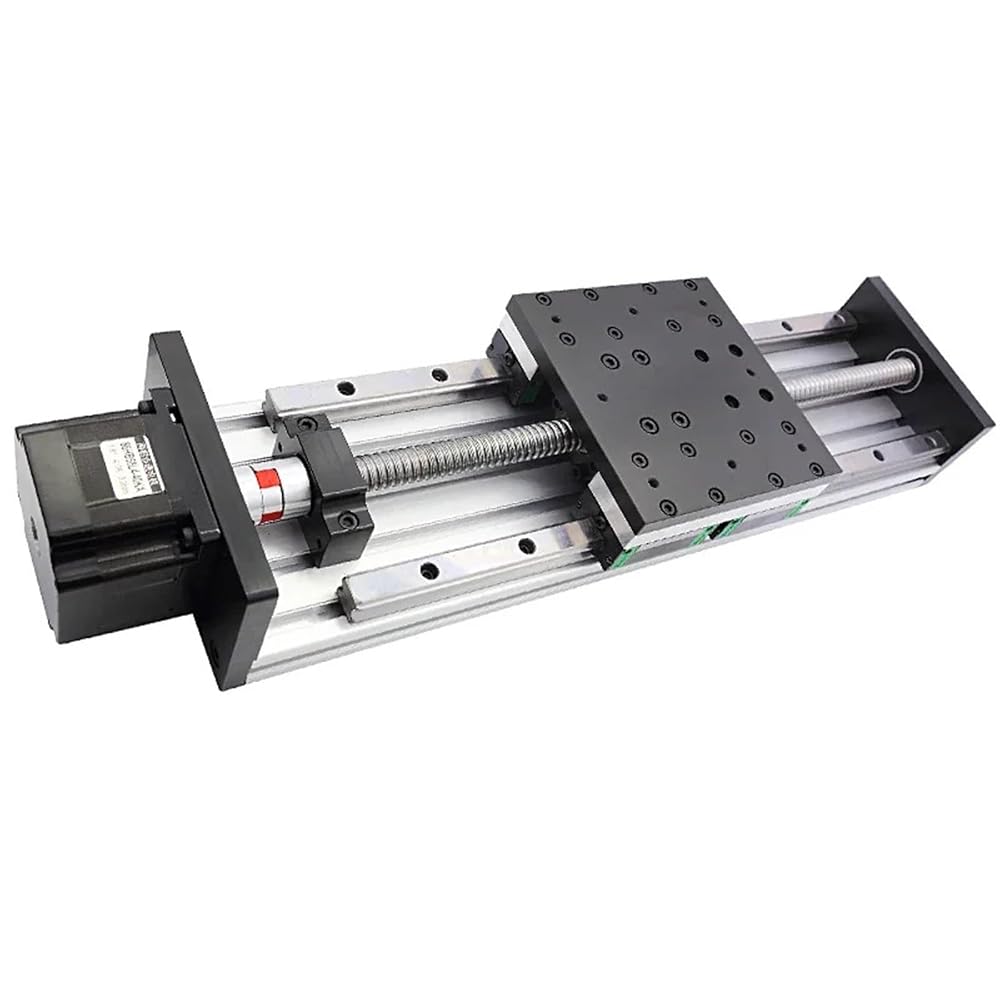

Motor Type
Nema34 Stepper Motor
Effective Travel LengthL(mm)
100-2500
Total Length
L+265
Horizontal Load Capacity(kgs)
300
Vertical Load Capacity(kgs)
150
Load Speed(mm/s)
0-300(up to motor)
Positioning Accuracy(mm)
0.03
Weight(g)
6020g+(890g/100mm)
Nosie(dB)
80
Controller:
Stepper Motor:
Model No
Step angle
Motor flange size
Motor length
Holding torque
Current
Resistance
Inductance
Rotor Inertia
Lead wire
(°)
(mm)
(mm)
( N.m)
(A)
( )
( mH)
(kg.cm²)
(No.)
86HB155L4-60KA
1.8
86
155
12
6.0
0.75
8.3
2.5
4
Motor Driver:
Power Supply:
Limit Switch:
Package include:
Package include:
Complete Kit:
Actuator * 1
86 Stepper Motor(Nema34 12N) * 1
DM860 Driver * 1
Power Supply * 2
Controller * 1
Limit Switch * 2
With motor only:
Actuator * 1
86 Stepper Motor(Nema34 12N) * 1
==========
High-concerned chemical :
Model Number : H150BD
Guide Width or Diameter : 150mm
