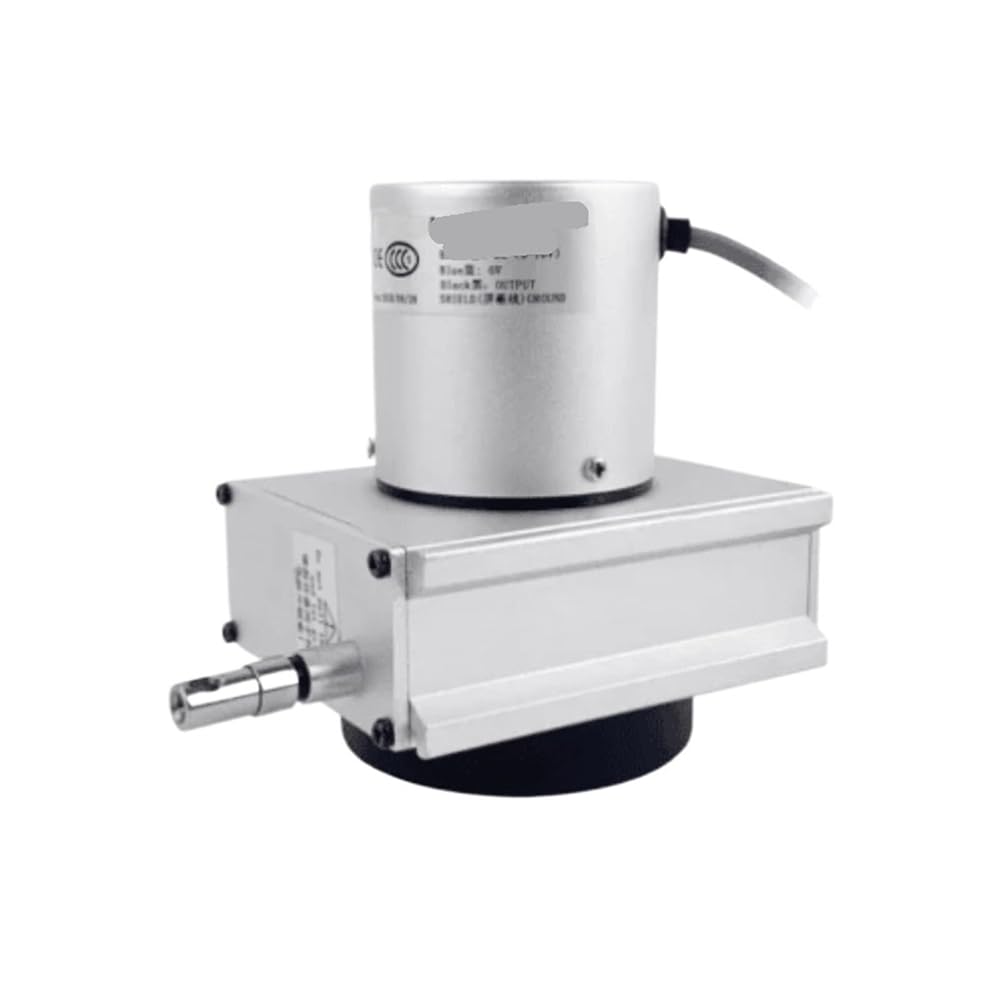

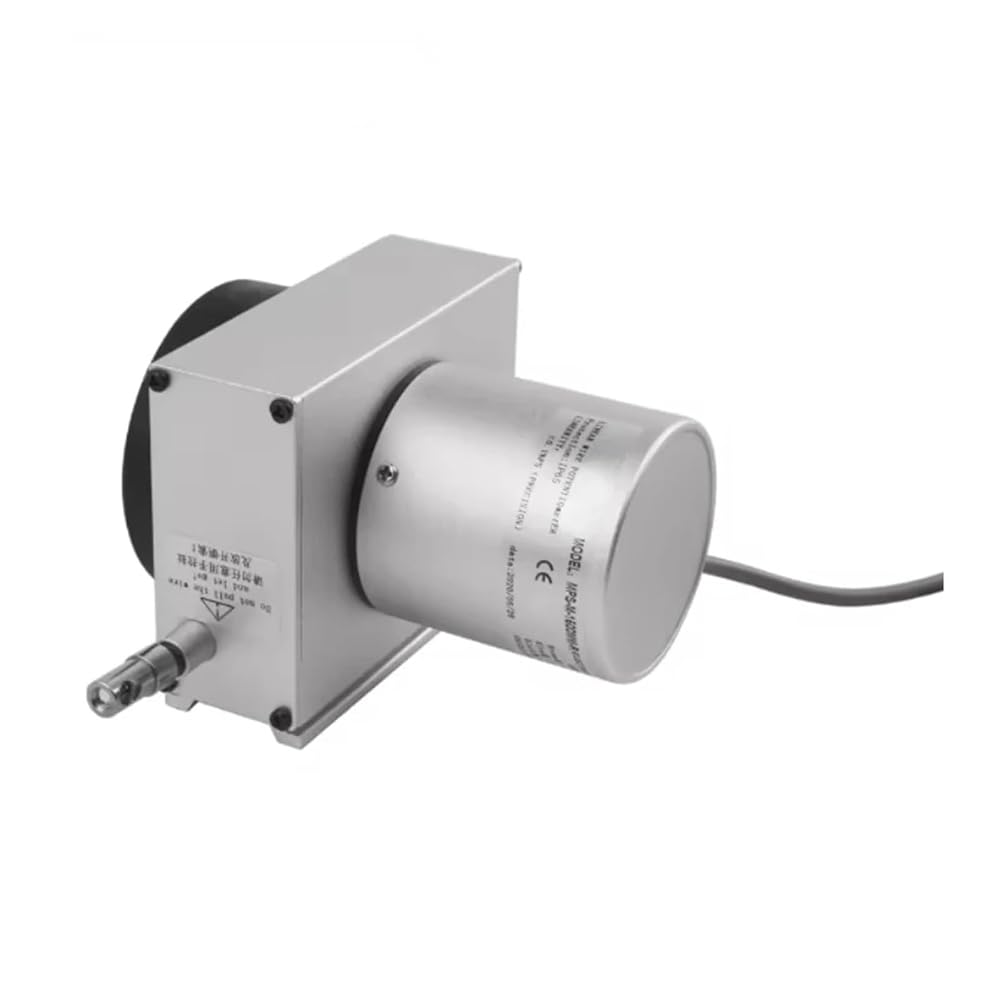

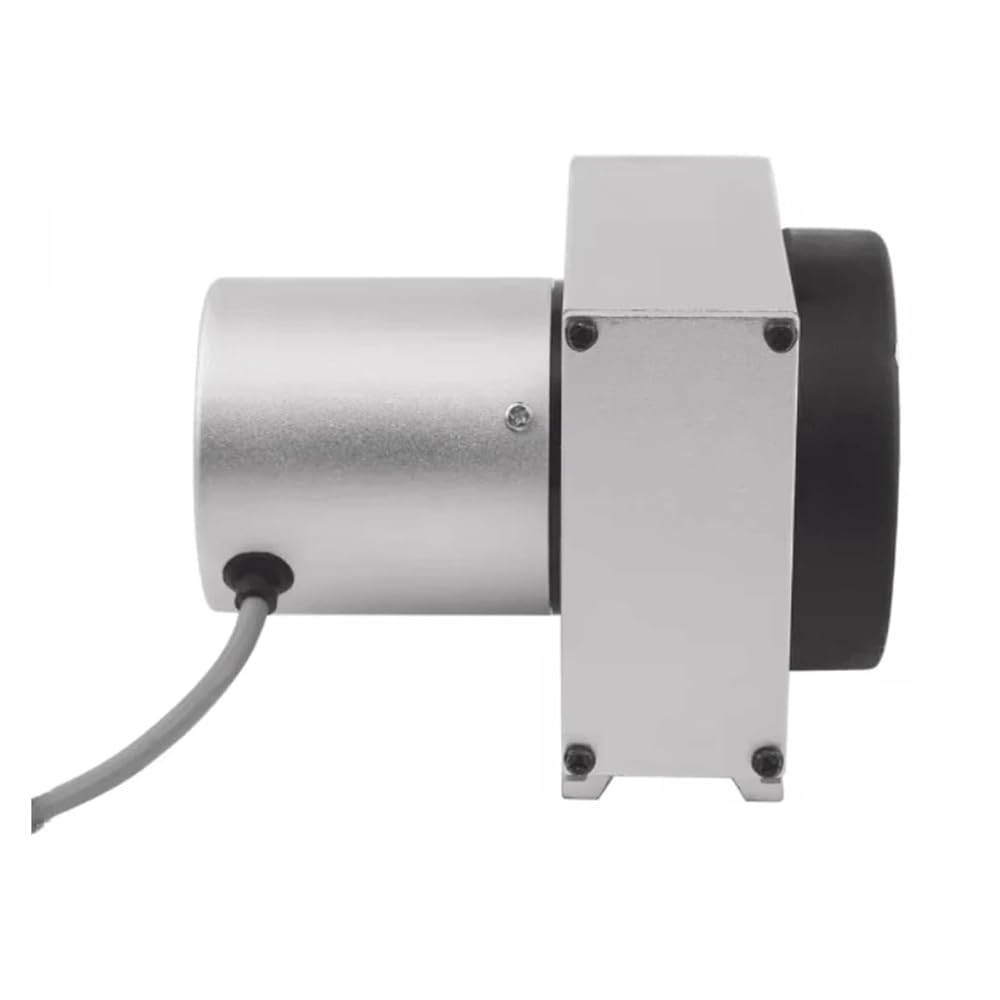

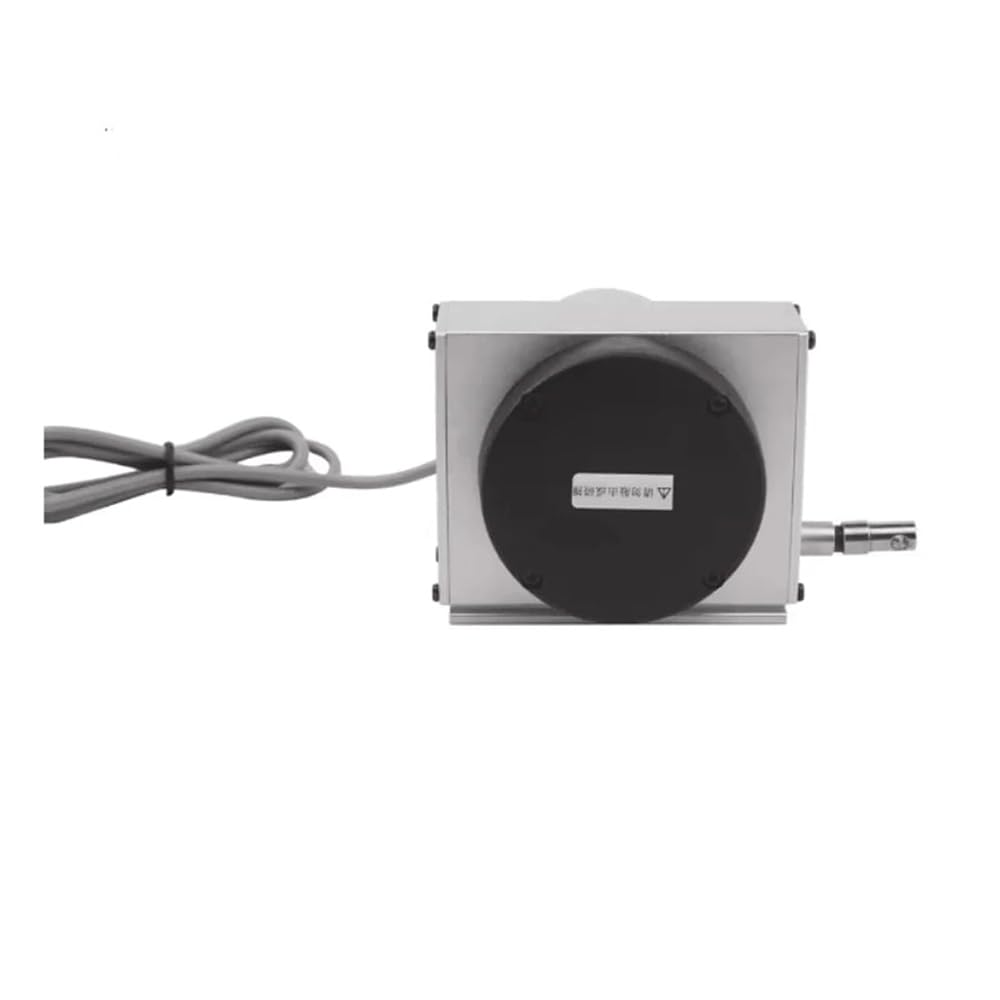

HPS-M-R 1500-4000mm Wire Rope Draw Wire Displacement Sensor
Water and oil resistance,low temperature resistance, with protection class IP65 can work under harsh environment.
Aluminum shell,anti-corrosion and anti-rust,Japan steel wire rope,long service life up to 50 million cycles.
Imported potentiometer chip signal stability and anti-interference,high stability,high precision.
Output type: Resistance:0-5K/10K, Voltage:0-5V/10V, Current:4-20mA,Pulse:ABZ phase digital.
Resistance output type
Product sellpoints
Easy to install.
High stability, high accuracy, service life up to Five million cycles.
Product parameter

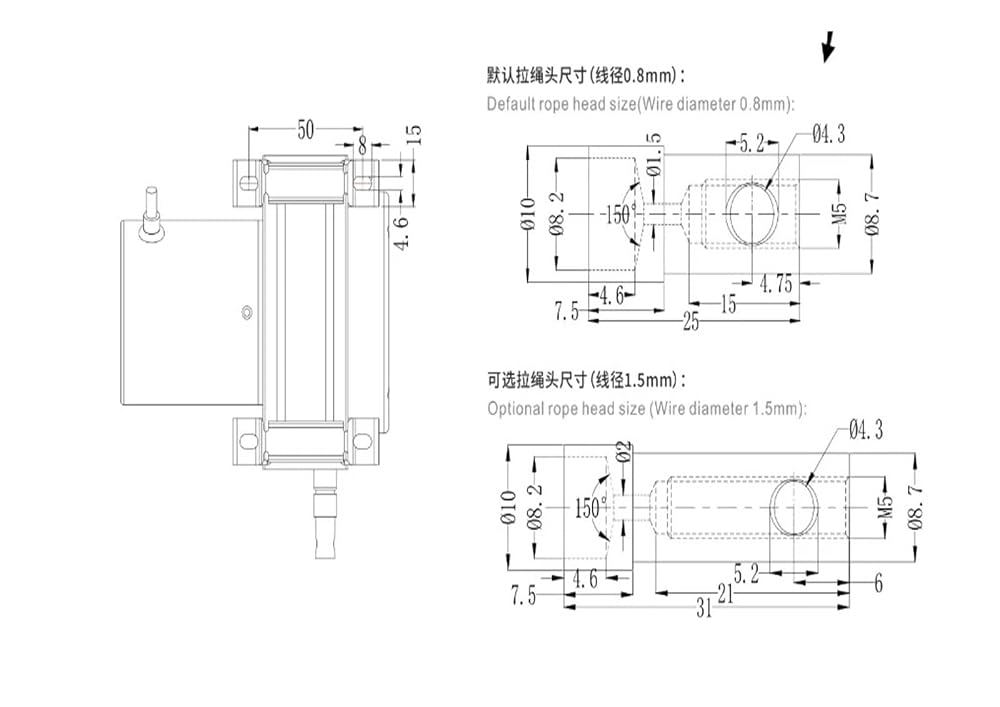

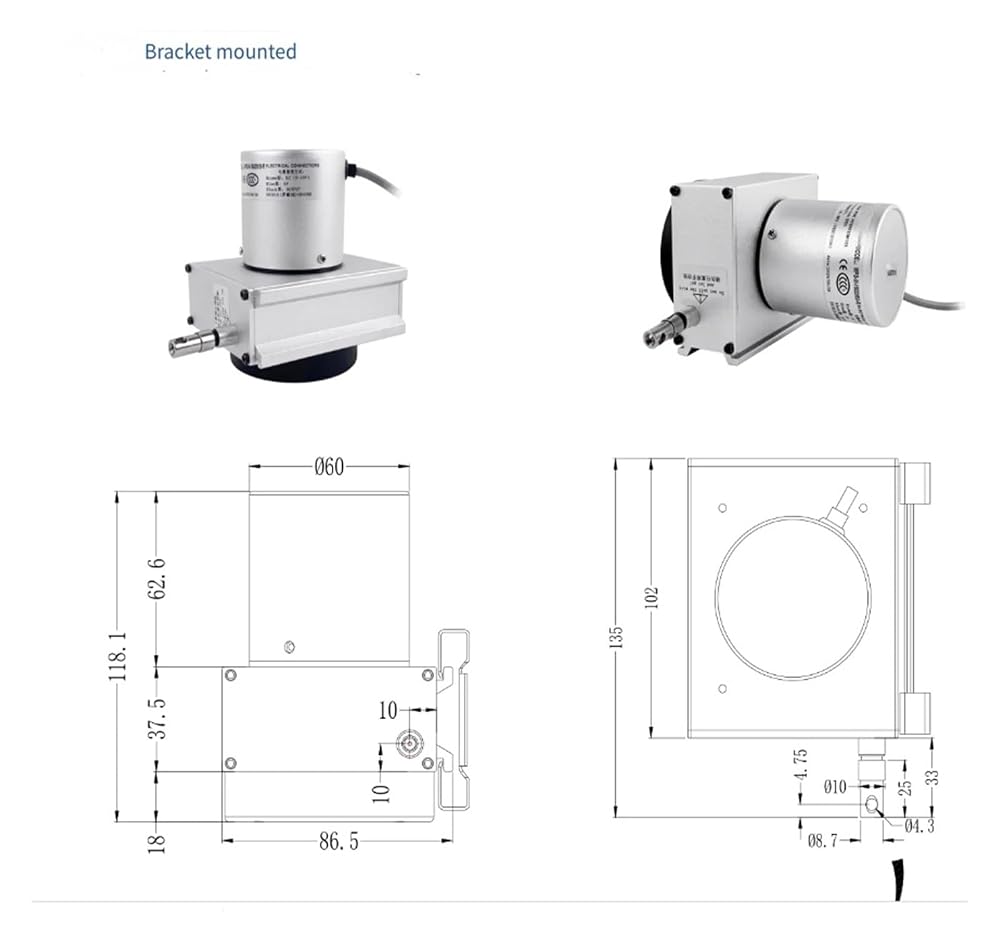

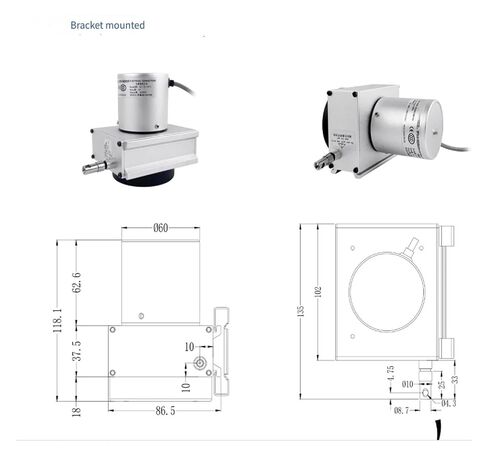

Installation Size (mm)
Small mounting size,compact structure,very easy to install.
The rope displacement sensor is used for positioning, dam protection in reservoirs, gate opening control, pressure machinery, papermaking machinery, textile machinery, metal sheet machinery, packaging machinery, printing machinery, level controllers, construction machinery, industrial robots, injection molding machines, woodworking machinery, elevators, air compressors/oil presses, height machines,
X-Y axes, and other length displacements, as well as liquid level measurements and related dimensional control.
Model Number : HPS-M
Origin : Mainland China
is_customized : Yes
Output : Analog Sensor
Material : Metal
Effective Stroke Length : 1500mm-4000mm
Output Signal : Resistance
Protection rating : IP65
Power Supply : 12-24VDC
Operating temperature : -35/+80
Wire dia : 0.8mm Fluorinated Wire Rope
Wire rope materia : 316 Stainless Steel
Cable Length : 1 meter
Usage : Position Sensor
Pull force : Less than 750g
