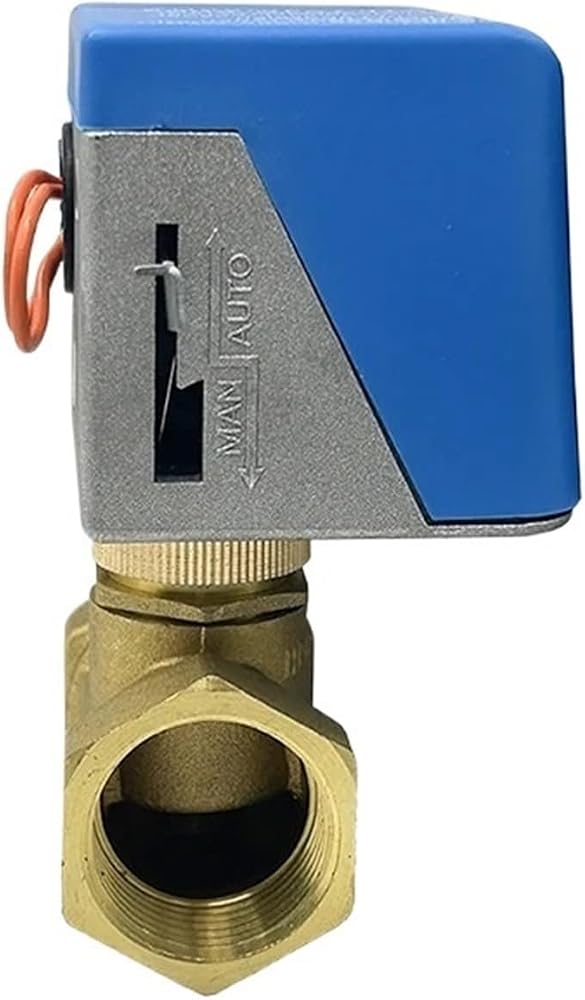

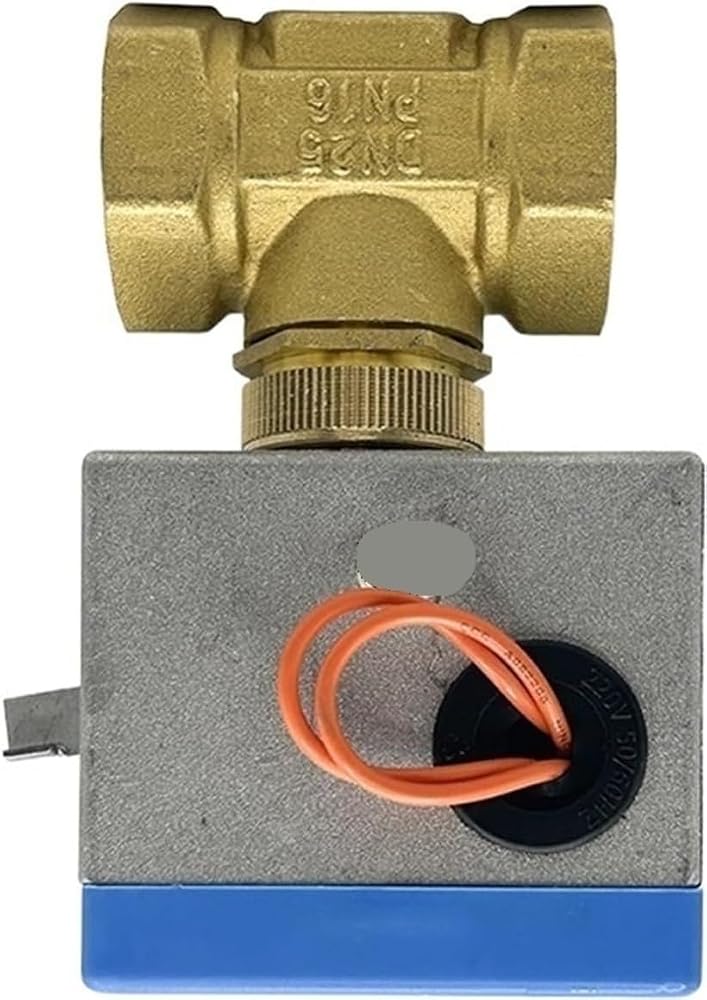

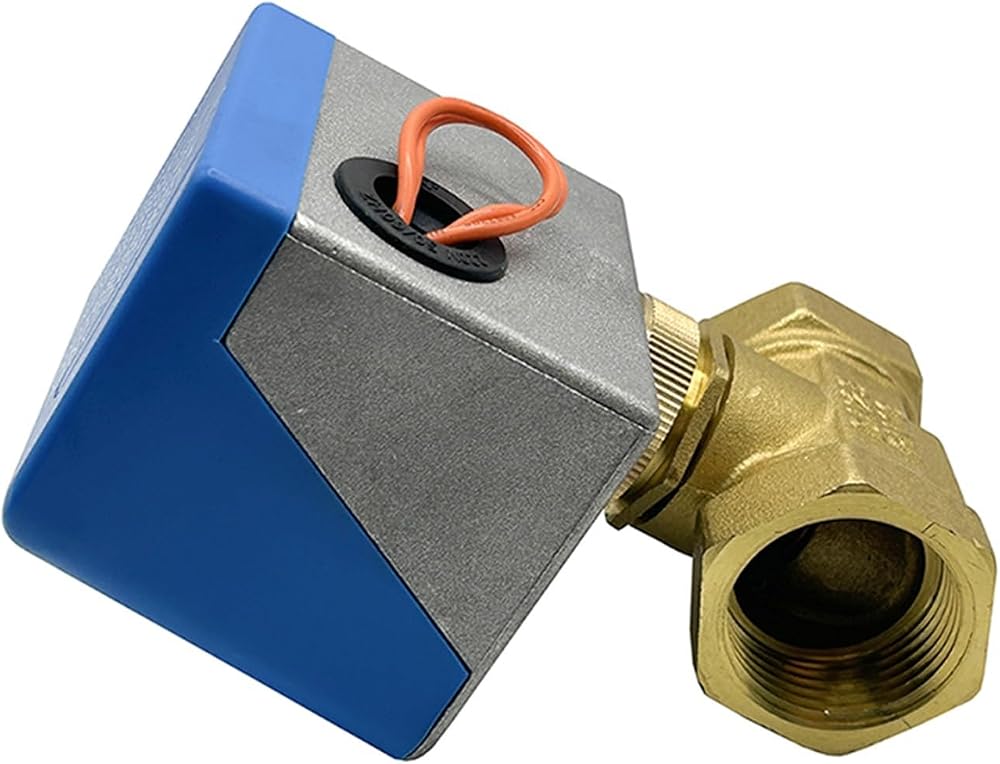

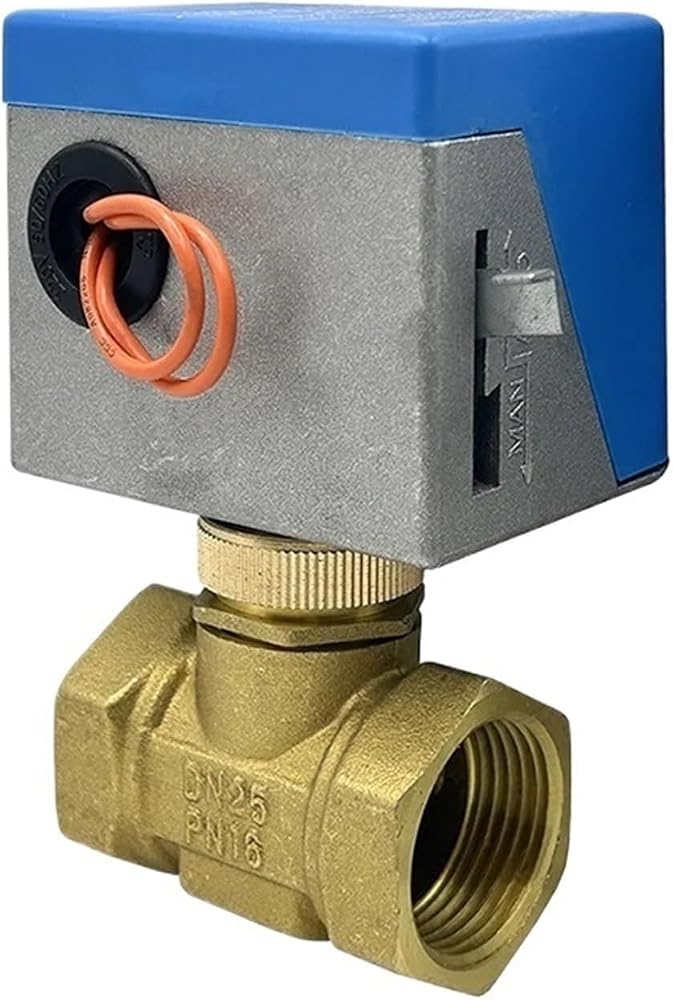

1'' 2 Way Electric Shut-off Valve 220V Brass Motorized Valves 2 Wire Fan Coil Gas Conditioning Water Switch
VA-7010 series department of fan-coil electric valve suitable for wind machine pipe flow on-off control .The valve body is brass forging, Drives using hysteresis step motor as power. Open valve,after the power off , spring is reset,(After the failure of valve automatically closes )with manual valve operating mechanism is one of the most commonly used electric valve of central Gas conditioning system.
Body valve: Brass(forging)
Valve stem: stainless steel
Material of seal: silicone rubber
the drive chassis: die casting aluminum alloy
Drive cover : Flame retardant ABS engineering plastics
Driving motor :hysteresis synchronous motor
The drive :AC220V, 50HZ/60HZ
Power consumption:7.5 VA
The valve body pressure::1.6 mpa to allow pressure: s0.13 mpa
Media :cold water, hot water
Media temperature:2.95
Ambient temperature:0/60
Closing and opening time :opening time about 10 second, closing time about 5 second
The valve connect way: G internal pipe thread
Trip(nominal valve): 4.0mm
