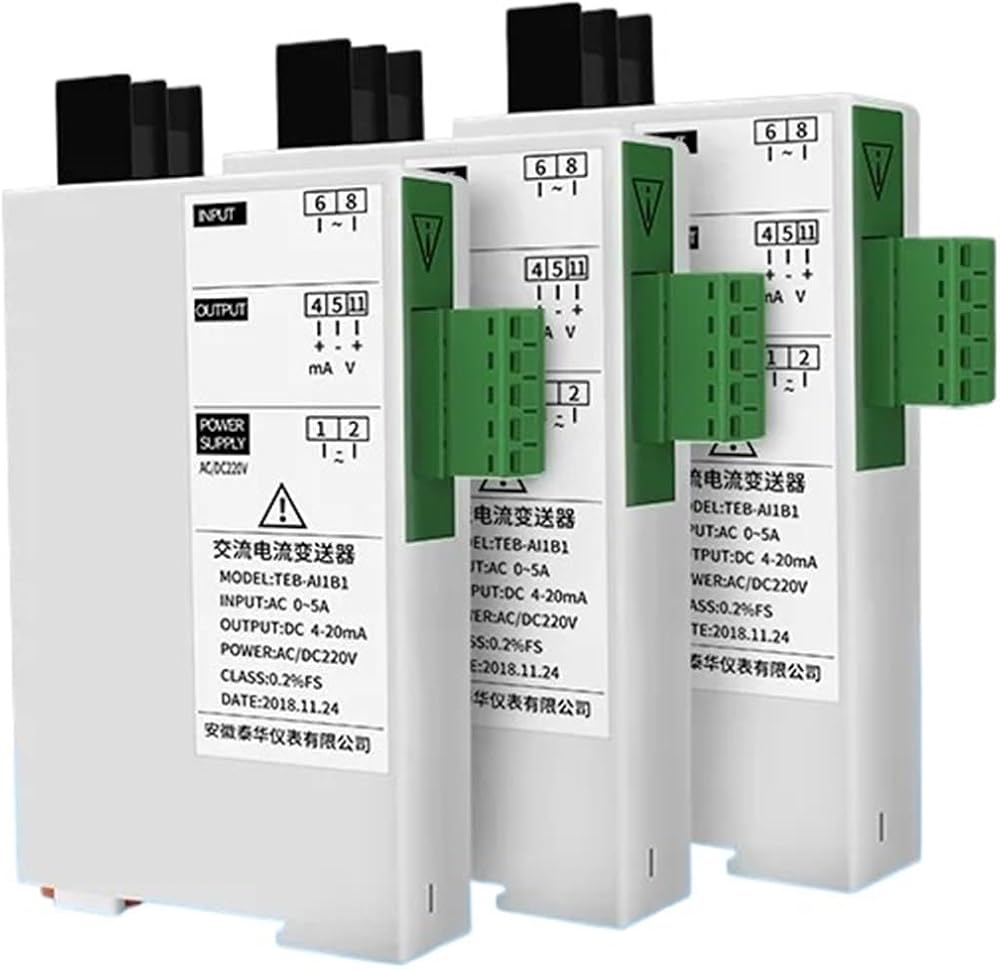

Anti Surge Isolator Output 4-20mA/1-5V Industrial AC Current Sensor 220V 2-Wire Transducer Current Transmitter Taihua

TEB series AC current transmitter converts AC signal from AC into standard process signal, which is used for DCS central monitoring of motor, pump or heating network, monitoring power supply line and its current.
Input, output and power supply three-port high reliable isolation.

INPUT
Input Current Range
AC 0-20A
Frequency Range
40HZ-60HZ
OUTPUT
Output signal
4-20mA;0-20mA;0-5V;0-10V
Output Load Resistance
RL500(Output is current signal)
RL10K(Output is voltage signal)
Basic Parameter
Power Supply
AC85-265V Or DC24V,±10%
Rated Power
1W(1 IN 1 OUT,DC24V Power Supply,when 20mA output)
1.5W(1 IN 1 OUT,AC220V Power Supply,when 20mA output)
Basic Precision
0.5%F.S
Temperature Drift
0.02%F.S/(-20~+55)
Response Time
400mS(0-90%)(TYP)
Insulation Strength
2000V AC/1min(Among input,Output and Power)
Insulation Resistance
100M
Working Temperature Range
-20~+55
