AC Current Transducer Transmitter SZT15-10V Mutual Inductor Sensor Module Input AC 0-50A Output DC 0-10V Self Powered

KWD 12
Brand
lvifloae
Weight
107 g
– 1 +

Special Features

  • SELF POWERED TRANSDUCER: This current transmitter operates using mutual inductance and requires no external power supply. It is designed to provide safe isolation between input and output without needing DC connection during measurement.
  • MEASUREMENT RANGE: The module measures alternating current with selectable input ranges of AC 0-10A, 20A, or 50A. It converts this input to a corresponding direct current output signal of DC 0-10V with an accuracy level of plus minus 1%.
  • STRAIGHT THROUGH DESIGN: Featuring a 20mm diameter pass-through hole, the sensor allows for straight-through wiring from 0.35mm to 20mm. The outer casing is constructed from self-extinguishing ABS material for structural stability.
  • ELECTRICAL SPECIFICATIONS: The mutual inductor handles a maximum overload of 200 percent of the straight-through current. It provides an isolation withstand voltage capacity of up to 2000VAC and operates with a power consumption under 1W.
  • : Operating within a temperature range of -20 to 60 degrees Celsius, this module has a hysteresis of less than 1 percent. It can be used under strong magnetic conditions for AC motor overload protection applications.

Description

Specification:
Model: SZT15--10V
Supply power: Not required
Output type: 0-10V DC
Input straight-through current: AC 0-10A/20A/50A
Switch on minimum: 0.5±0.2A
Maximum overload of straight-through current: 200%
Accuracy: ±1%
Power consumption: 1W
Leakage current: 1mA
Hysteresis: 1%
Linearity: 10%-100%
Straight-through wire diameter: 0.35-20mm
Response time: 200ms
Withstand voltage: 2000VAC 50/60Hz 1min
Working environment: -20~60℃, 5-95%RH

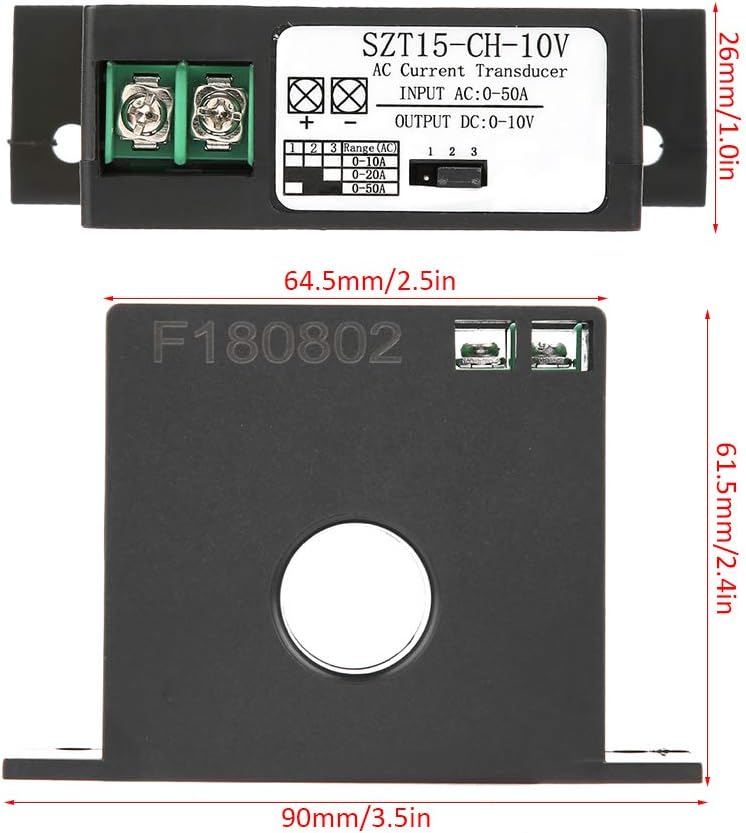

Dimensions: 61.5*90*26mm / 2.4*3.5*1.0in
Hole diameter: 20mm / 0.8in
Package weight: Approx. 107g/3.8oz

Package list:
1 * AC Current Transmitter

Note:
1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
2. Please allow slight error due to manual measurement. Thanks for your understanding.

Package List：
1 * AC Current Transmitter
