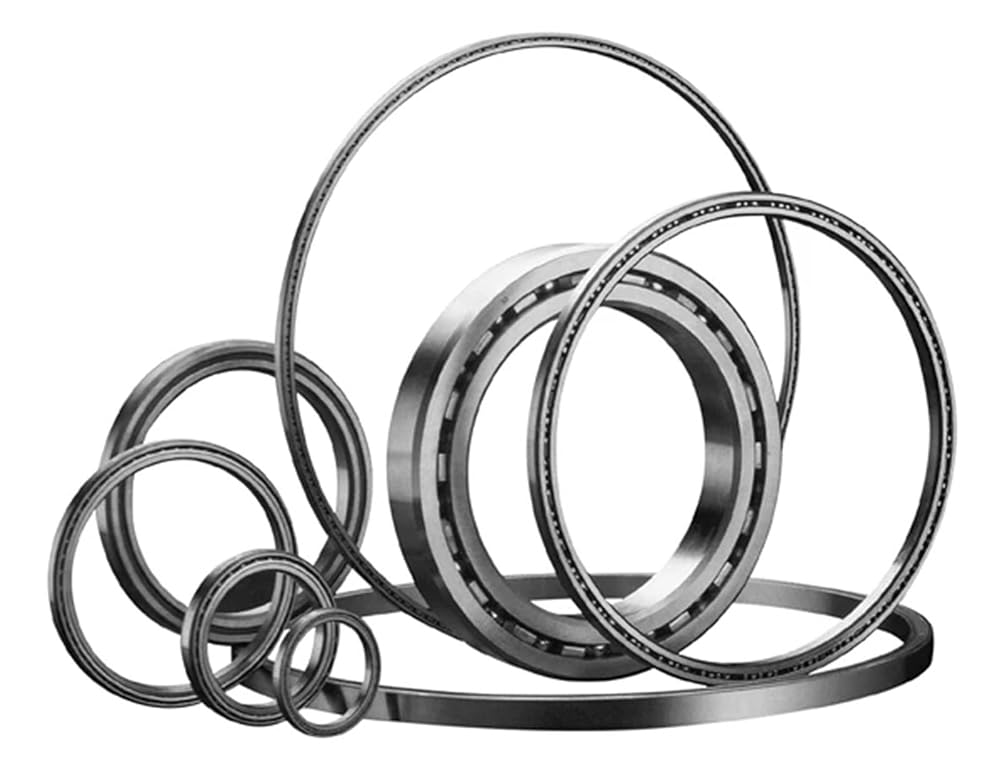

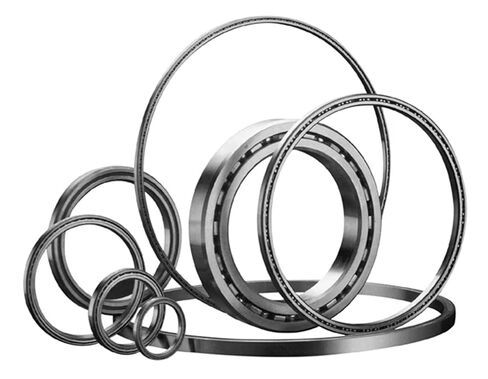

JA030XP0 3"x3.5"x0.25" Thin Section Bearings
JA030XP0 3"x3.5"x0.25"

Product Number JA030XP0
System of Measurement Inch
Bearing Type Ball
For Load Direction Four Point Contact
Construction Single Row
Seal Type Sealed
Series JA 1/4" x 1/4"
Bore Dia 3"
Bore Dia Tolerance -0.0006" 0"
Outer Dia 3.5"
Outer Dia Tolerance -0.0006" 0"
Width 0.25"
Width Tolerance +.000 .005"
Land dia.L1 3.148"
Land dia.L2 3.356"
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome Steel
Cage Material Brass
Dynamic Radial Load 643 lbs
Dynamic Thrust 1010 lbs
Dynamic Moment 785 lbs
Static Radial Load 990 lbs
Static Thrust 2470 lbs
Static Moment 1600 lbs
Max Speed (X1000 rpm) 0
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30°C to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 0.0005"
==========
Material : Bearing Steel
Model Number : JA030XP0
