Features:
1) The structure of the self-locking, safe, easy to install, portable
2) Wide inner window, allowing clamping of big cables or bus-bars
3) Wide range of sizes to accommodate all the existing installations
4) Isolated plastic case recognized
5) Wires plugs, plugs, Power plugs and so on five kinds of plugs
6) Meet the standard IEC60044-1 and ANSI C12.20
7) High accuracy class ,wide linearity
8) Superitor stability ,separate the external magneitc field interference
9) Measure the current directly
10) It is with the diode to save people's life
1m wire
Accuracy: class 1
Application: Electricity Measuring
Operating Temperature: -40°C~+70°C
Ratio:100/5A 150/5A,200/5A,250/5A,300/5A,400/5A

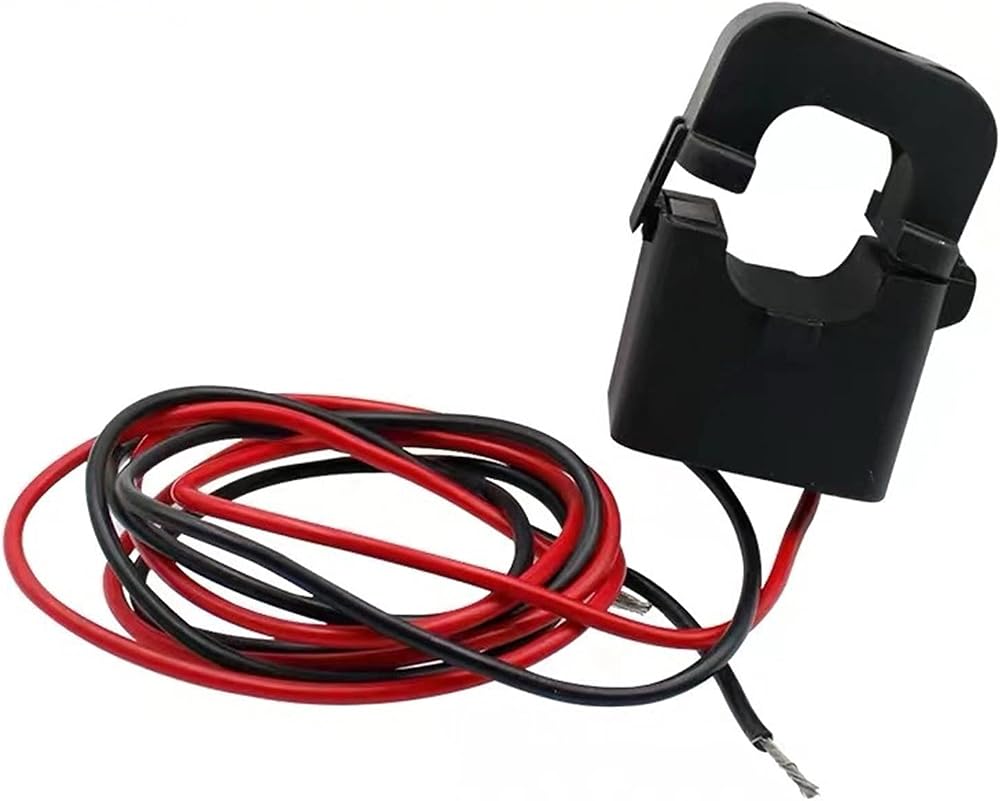

Split Core
Window Hole size:24MM
Applications:
1:Current measurement, monitoring and protection for electrical wiring and equipment.
2:Current and power measurement for electric motors, lighting, air compressor,heating and ventilation system, air-condition equipment and automation – control system.
3:Current, power and energy monitoring device.
4:Relay protection device.
