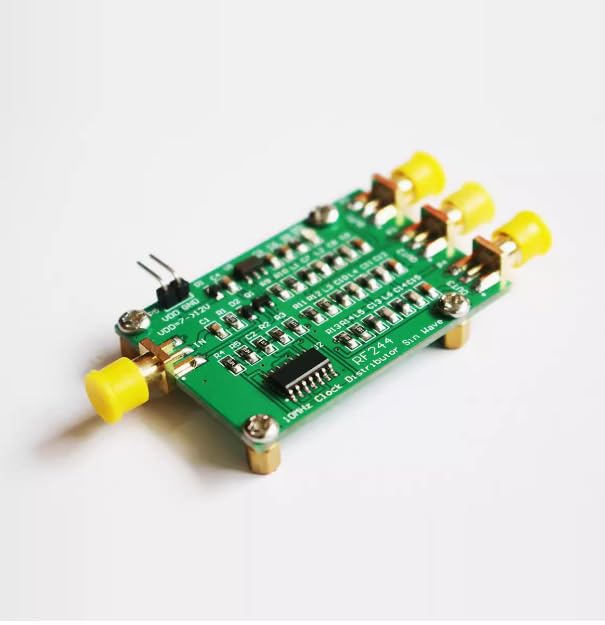

RF244 10MHz pulse input to sine wave output signal frequency divider amplifier One 10MHz input pulse signal is converted into three independent 10MHz sine wave outputs
1.0 Module Parameters
Parameter unit
1. Input voltage amplitude 0.5~5 V
2. Output frequency range 10 MHz
3. Maximum output amplitude 2-3 V
4. Working voltage 7-12 V
5. Working current 6. Size 50 * 35 mm
9. Weight 20 g

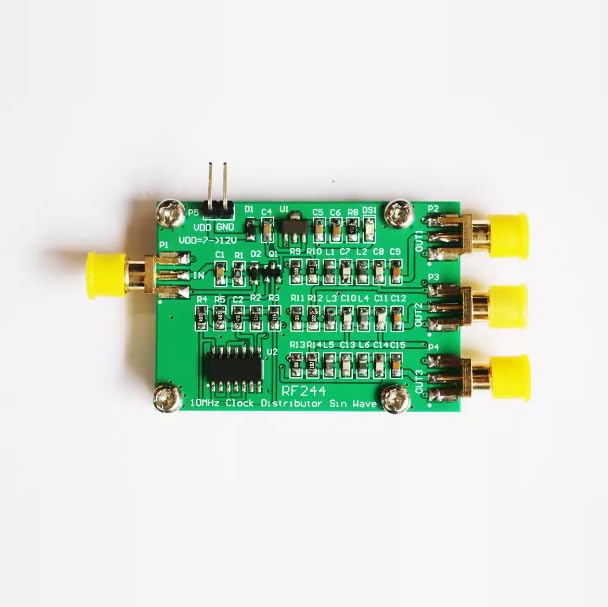

2.0 P1 interface: Input 10MHz pulse signal; (RP SMA KE KHD outer screw inner needle inner hole)
P2 interface: Output the first 10MHz sine wave signal; (RP SMA KE KHD outer screw inner needle inner hole)
P3 interface: Output the second channel of 10MHz sine wave signal; (RP SMA KE KHD outer screw inner needle inner hole)
P4 interface: Output a 10MHz sine wave signal from the third channel; (RP SMA KE KHD outer screw inner needle inner hole)
P5 interface (power supply):
VDD: Positive pole of power supply (5-12 V)
GND: Negative pole of power supply
