Model
Electrical spec
Output circuit
Open-collector output
Voltage output
Push-pull complementary outputs
driver
Supply voltage
5~30V
5~30V
5±0.25 5~30V
5±0.25 5~30V
Current consumption
80mA
80mA
80mA
150mA
Load current
40mA
40mA
40mA
60mA
Output high
Min Vcc*70%
Min Vcc-2.5V
Min Vcc-1.5V
Min 3.4V
Output low
MAX 0.4V
MAX 0.4V
MAX 0.8V
MAX 0.4V
Rise time Tr
MAX 1us
MAX 1us
MAX 1us
MAX 200ns
Fall time Tf
MAX 1us
MAX 1us
MAX 1us
MAX 200ns
Highest frequency response
300kHz
300kHz
300kHz
300kHz
Mechanical spec
Max speed r/min
Starting
Axis maximum load
Impact
Anti-vibration
6000
Radial 25 N Axial 15N
50G/11ms
10G 10-2000Hz
Moment inertia
Work Temperature
Storage Temperature
Protection Degree
Weight
4 x 10.-8kgm2;
-40~85ºC
-40~85ºC
IP50
650g
Dimensions
Connections
Signal
A B Z A-
B-
Z-
Vcc
GND
Color
Green
White
Yellow
Brown
Grey
Orange
Red
Black
Without inverted signal
Green
White
Yellow
- - - Red
Black
==========

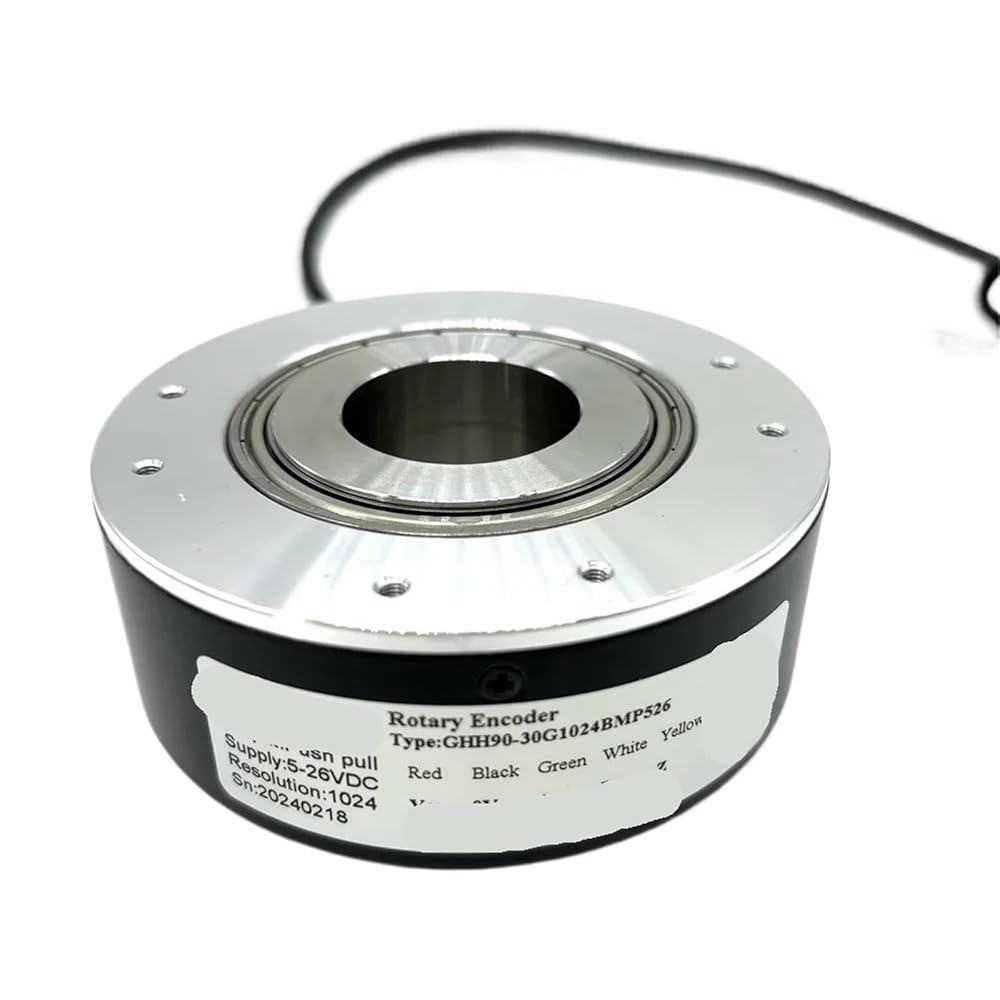

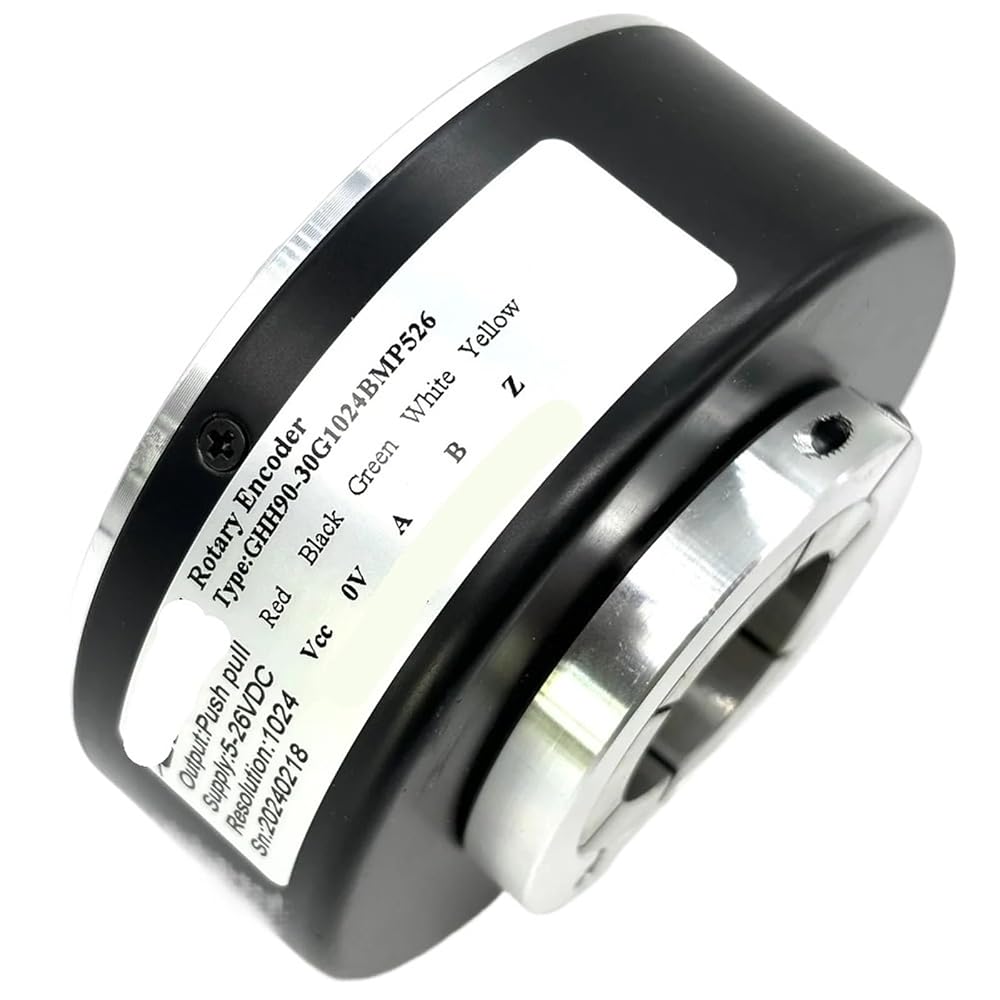

Model Number : GHH90-30
Output : push pull
Resolution : 200 500,1000,1024,2000,2048, 2500, 5000 ppr
shaft : 30mm hollow shaft
