Typical value of linearity deviation Less than 05 factory value typical value of linearity deviation Less than 007 typical value selfcalibration typical value of linearity deviation Less than 002 typical selfcalibration

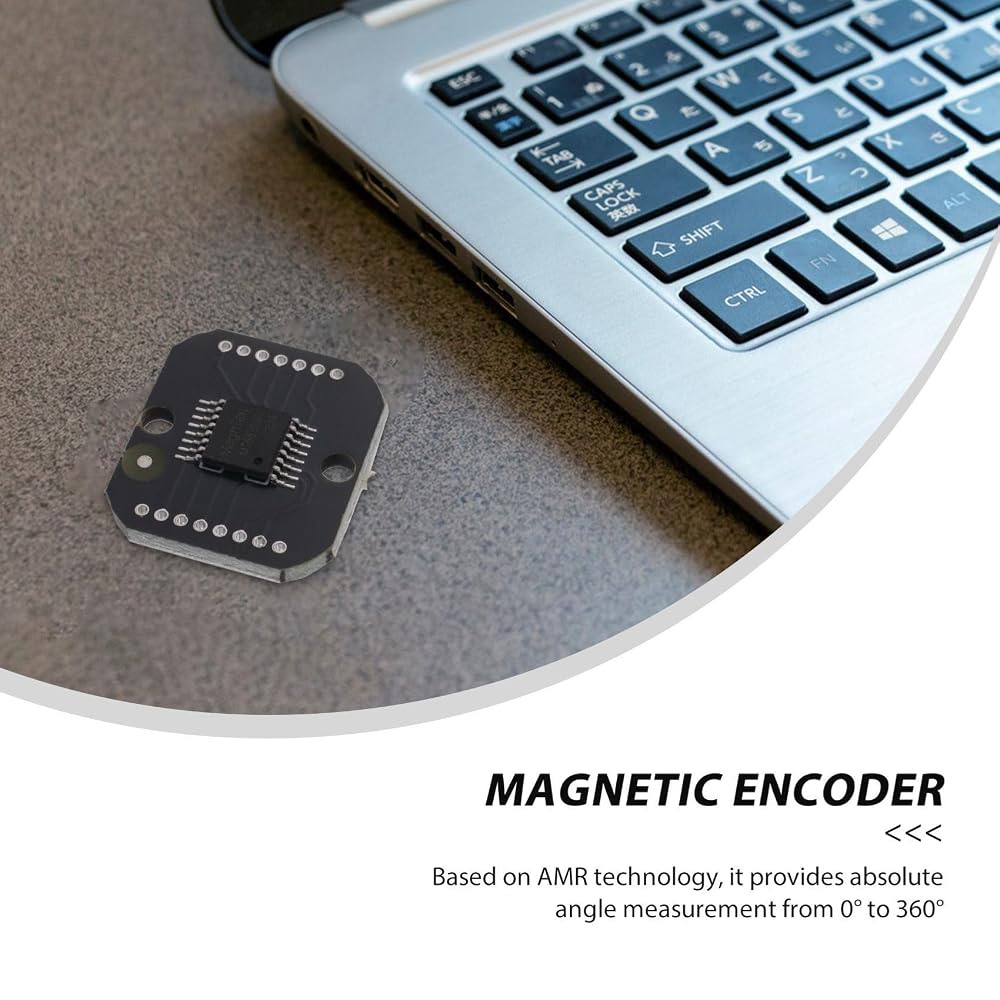

Based on technology it provides absolute angle measurement from 0 to 360

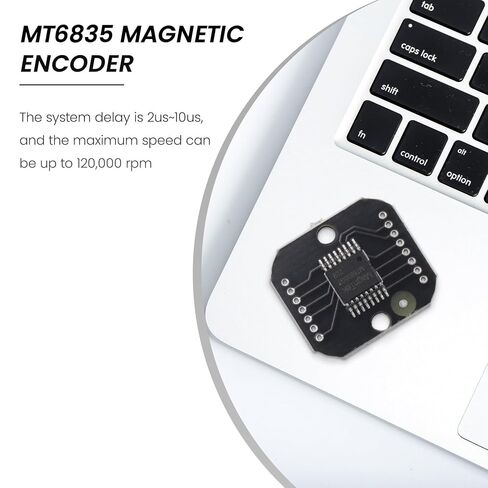

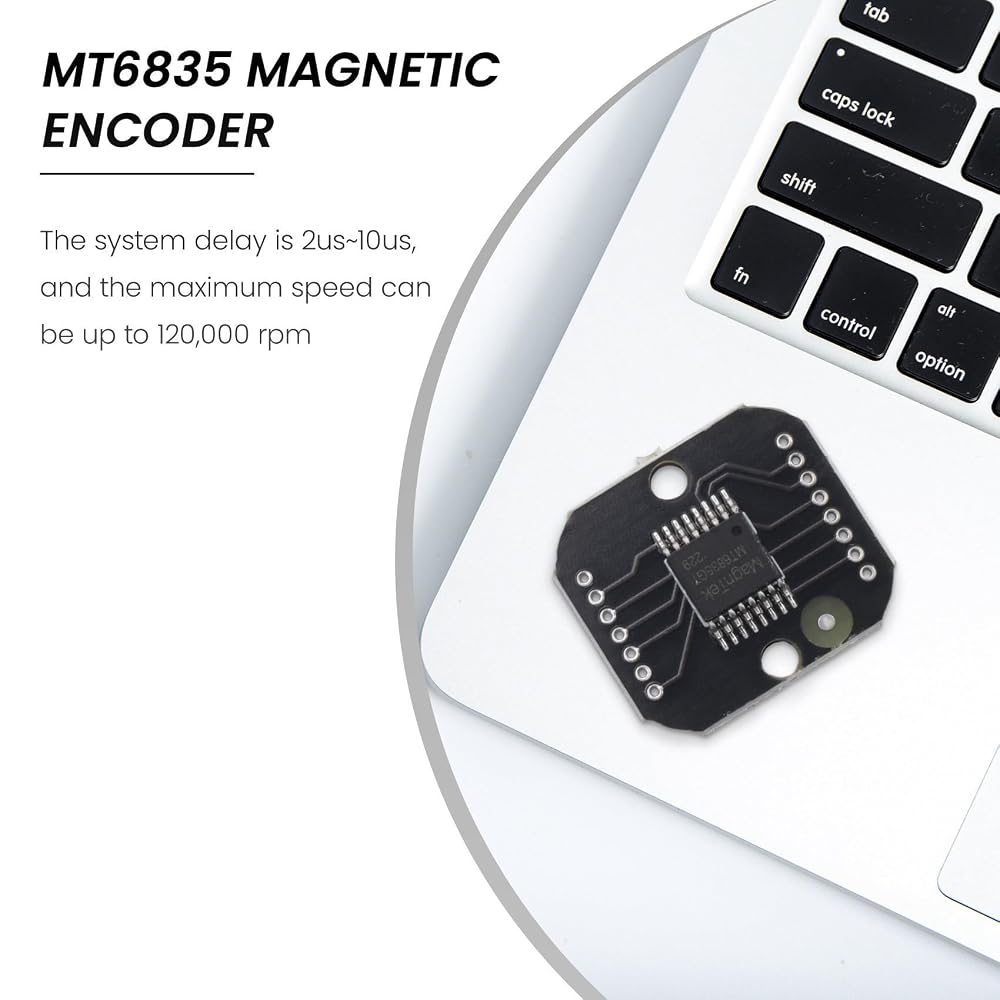

The system delay is 2us10us and the maximum speed can be up to 120000 rpm

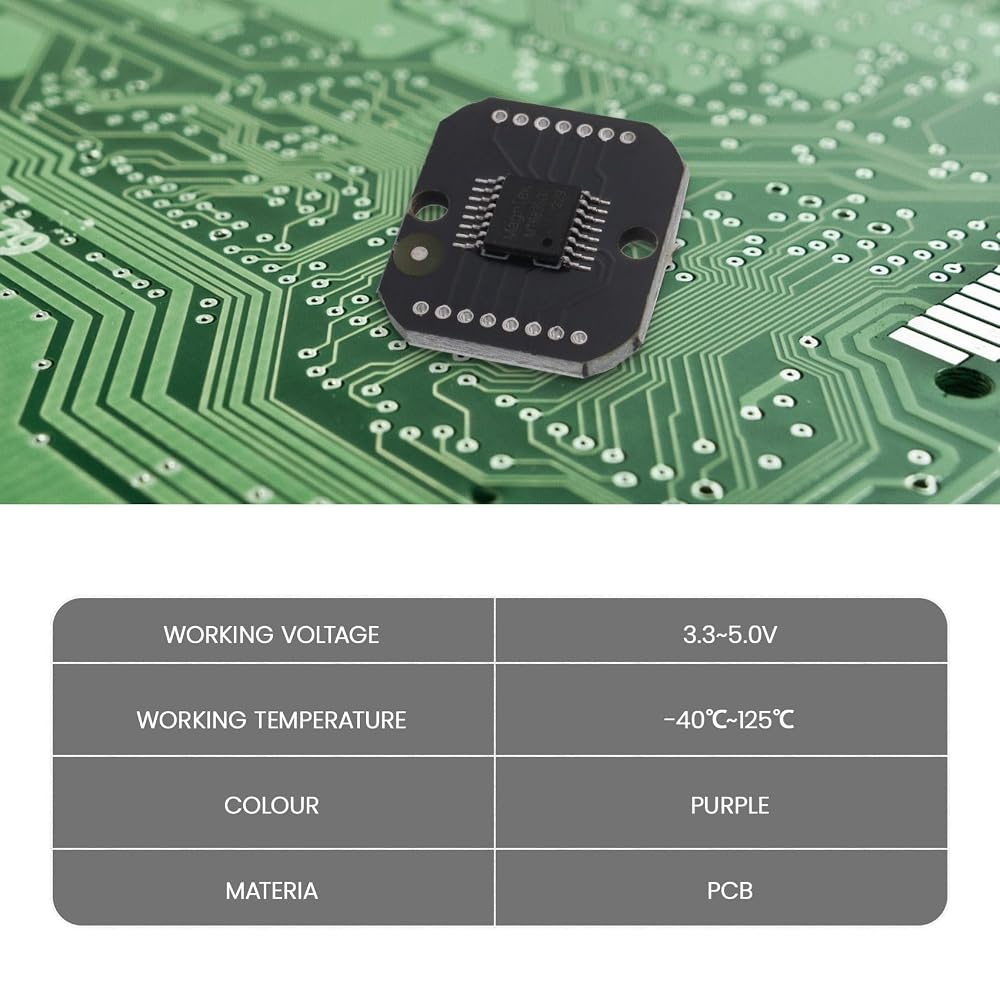

Working voltage 3350V Welcome to inquire
وصف
Provide standard 4-wire SPI interface (maximum clock 16MHz) to read 21-bit angle data inside the chip
Incremental output ABZ supports any resolution from 1 to 16384 lines
Incremental output UVW supports 1~16 arbitrary pole pairs
Support up to 5 times online zero programming
The output is SPI
Colour:
Material:PCB
Package Contents:

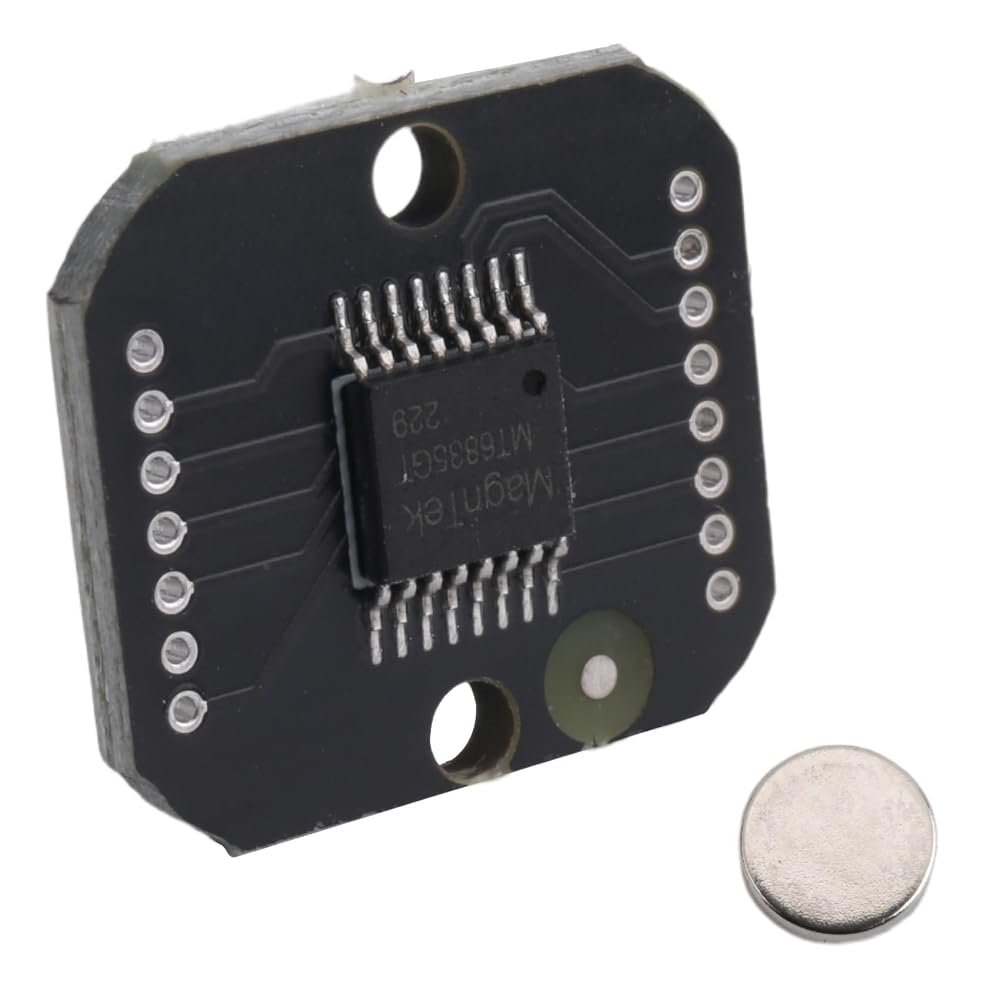

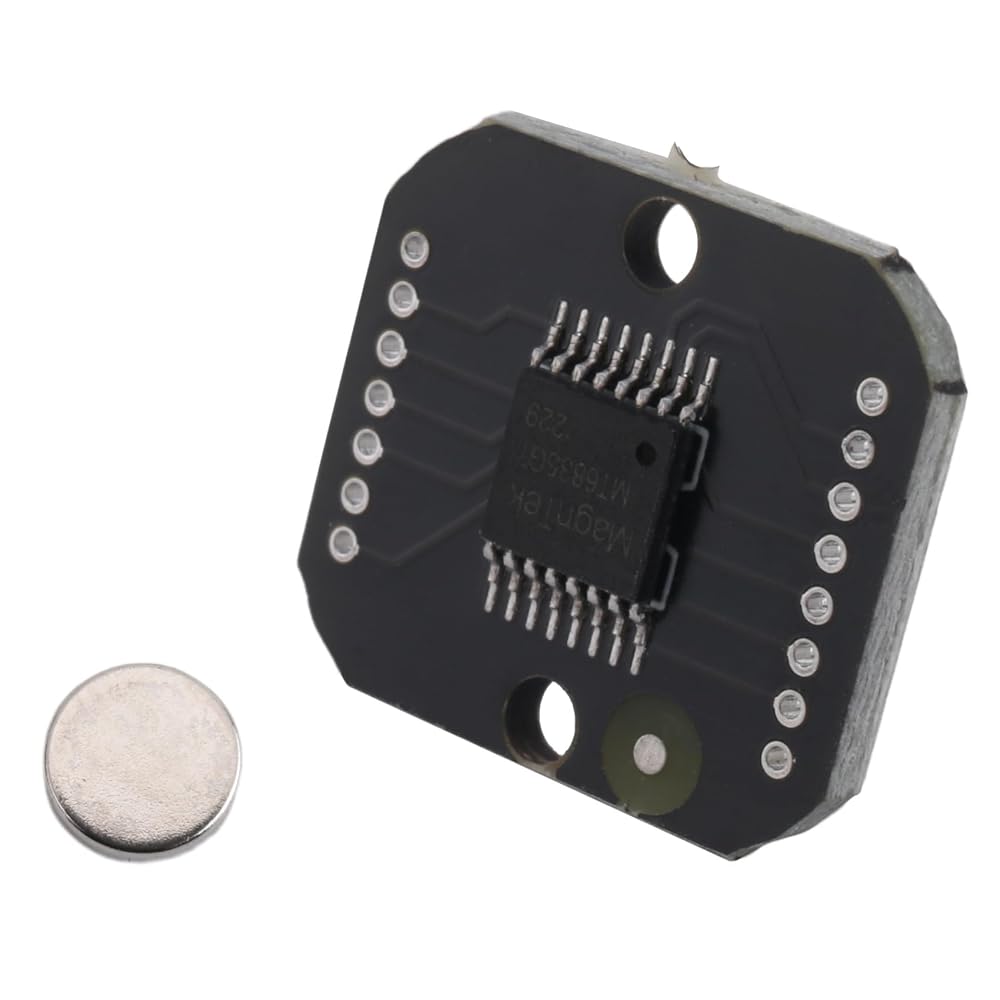

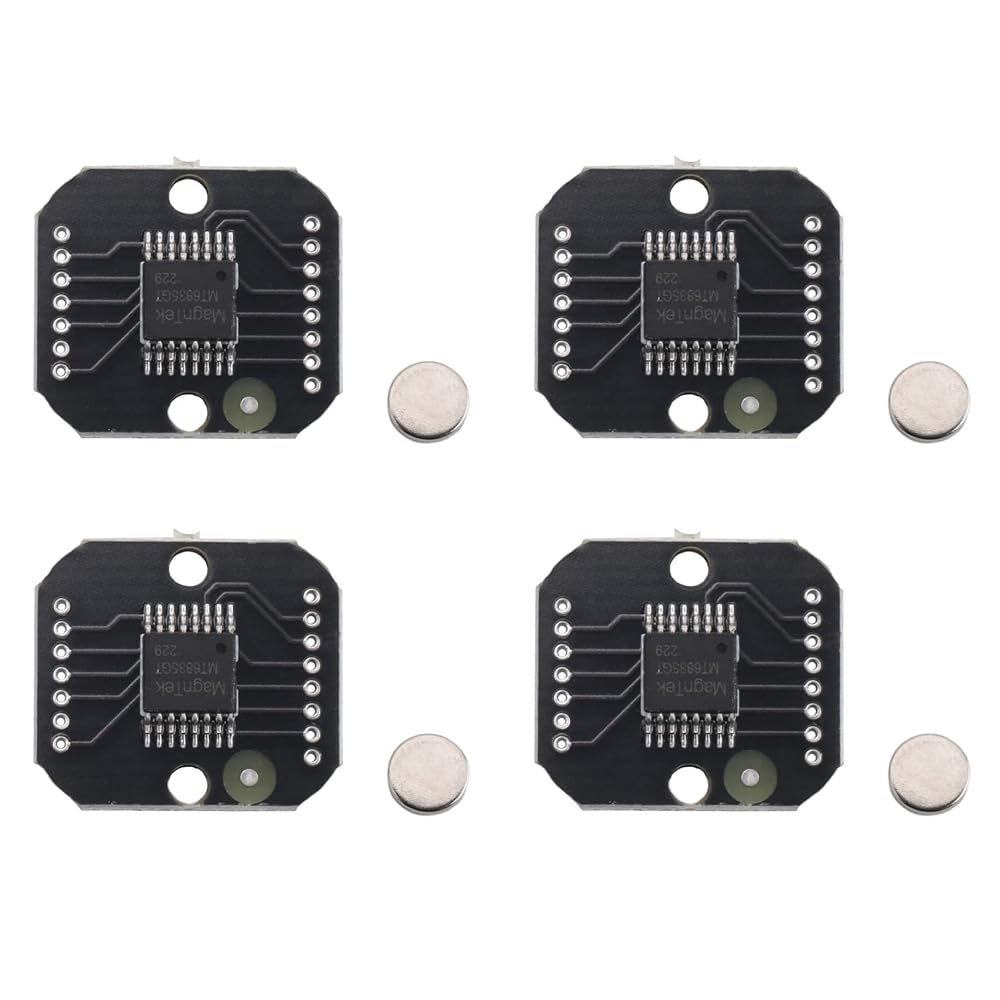

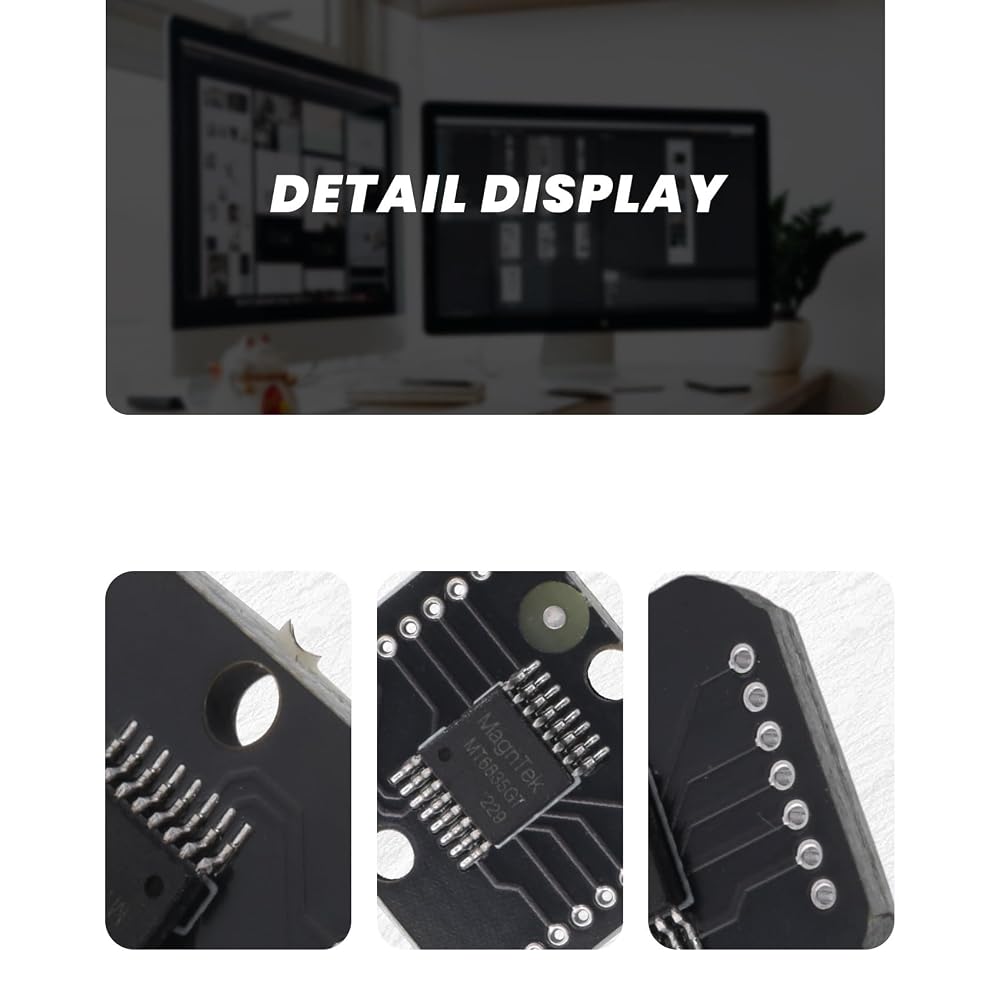

4 x Magnetic encoder
4 x Magnet
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
