Power Entry Modules
Specification
Model
Power (W)
Maximum output current (mA)
Output voltage (KV)
Dimensions (mm)
northwest
Kilogram
YL-U I
80-90
twenty four
45
270*180*80
3.5
YL-U II
110-150
32
50
320*207*80
5
Technical parameters:
Input voltage
AC220V or AC110V (please specify when ordering)
AC input frequency
47~440Hz
Overcurrent protection
Yes
Open circuit protection
Yes (short )
Cooling method
Fan cooling
Operating temperature
relative humidity
-30~65
20~85%RH (no condensation)
earthquake resistance
Amplitude: 1mm, frequency 30Hz, two hours
Aging time
Continuous>4 hours Pulse>half hour (frequency 60Hz)

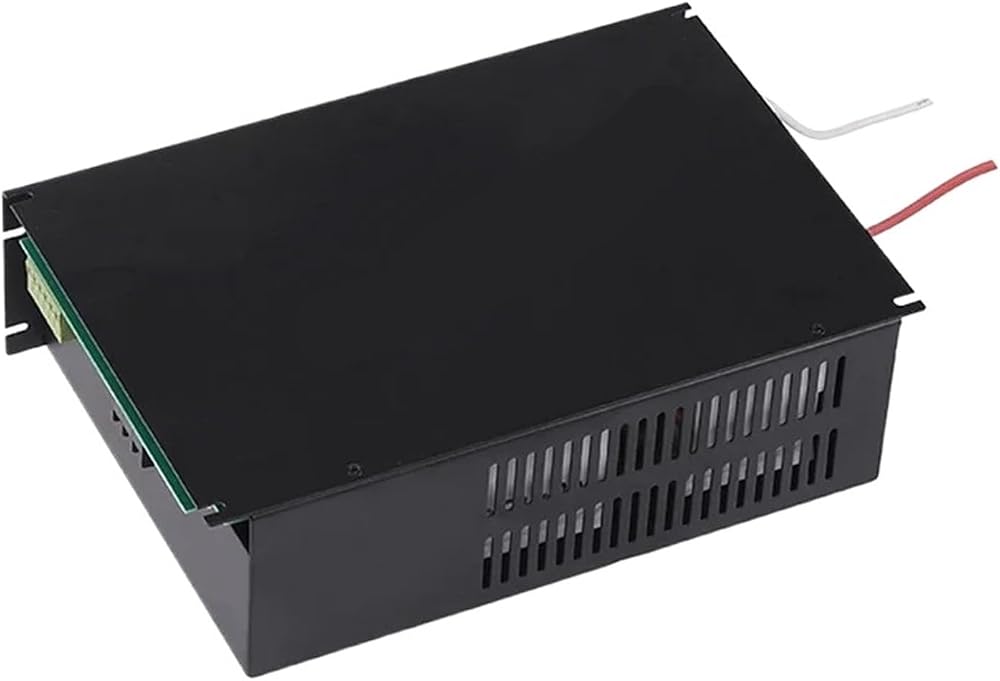

Model: CR-U100

Power: 100W
Input voltage: AC220V/AC110V
Mean time between failures: more than 30,000 hours
Certificate: CE&ISO9001
AC frequency: 47-440HZ
Maximum input voltage: DC 45KV
Maximum output current: DC 28mA
Weight: 3.5 kg
Applicable machine: Suitable for 80-100w CO2 machine
Color: Black
