Operate the unit through intuitive button controls. Long press SET for 5 seconds to access the menu system starting at P0. Use +/- buttons to navigate parameters and adjust values. The digital display shows real-time temperature readings with 0.1°C resolution between -9.9°C to 99.9°C. The integrated relay provides 10A output capacity for connected equipment
Specification:

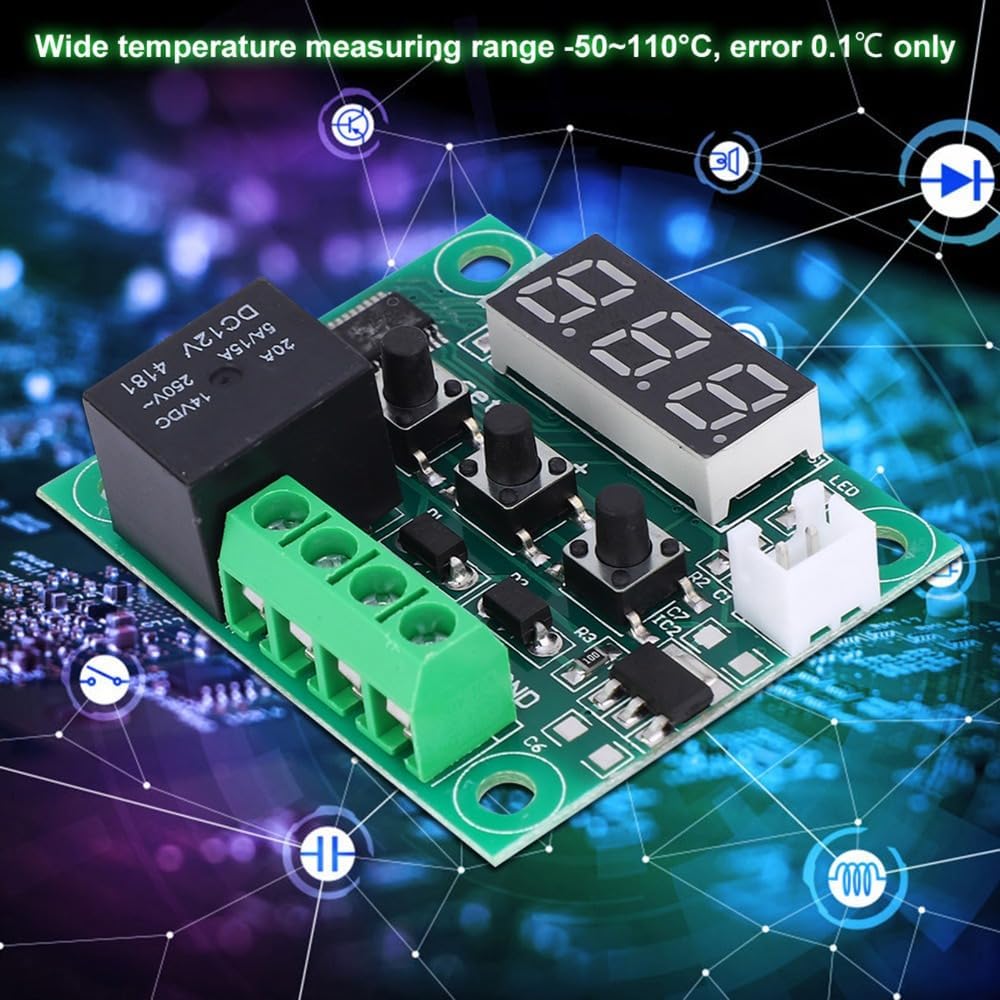

Item Type: Digital Thermostat
Temperature Control Range: -50 - 110°C
Input Power Supply: DC12V
Temperature Measurement Precision: 0.1°C
Output Range: One - way 10A Relay
Temperature Control Precision: 0.1°C
Environmental Requirements: -10 - 60°C, Humidity 20% - 85%
Hysteresis Precision: 0.1°C

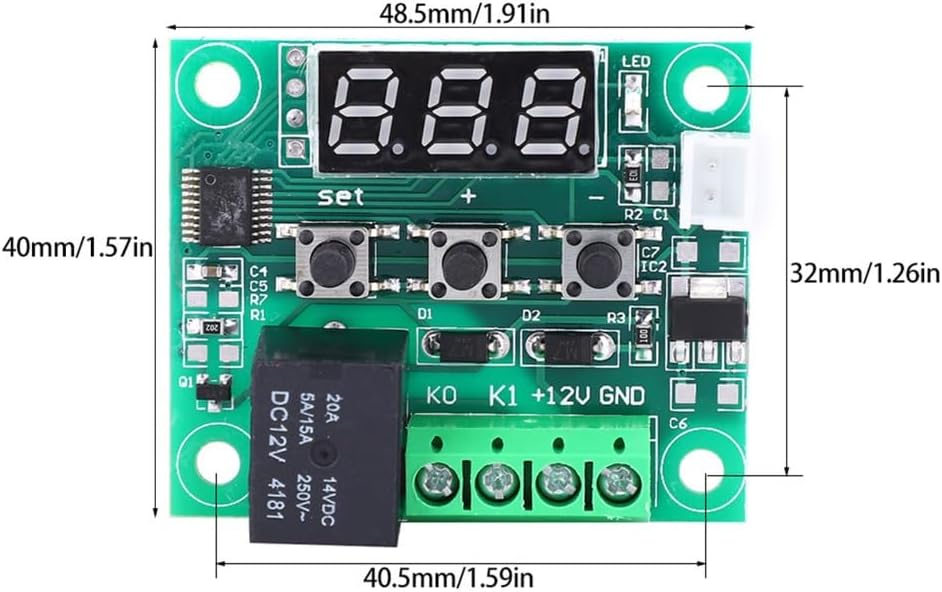

Size: 48.5*40MM(1.91*1.57in)
Update Frequency: 0.5S
High - temperature Protection: 0 - 110°C
Display Type: 0.28 - inch Three - digit Numeric Tube
Resolution: 0.1°C at -9.9 - 99.9°C, 1°C at Other Temperature Ranges
Measurement Input: 10K 0.5% Water Proof Sensor
Overall Power Consumption: Static Current ≤35mA, Pull - in Current: ≤65mA
Color: green
Instructions:
Long press SET for 5s to get menu, starts at P0, press +/- to get next P-parameter, press set to determine the P-parameter, press +/- to set the desired value for the selected parameter, press SET to accept it, long press +/- reset to default

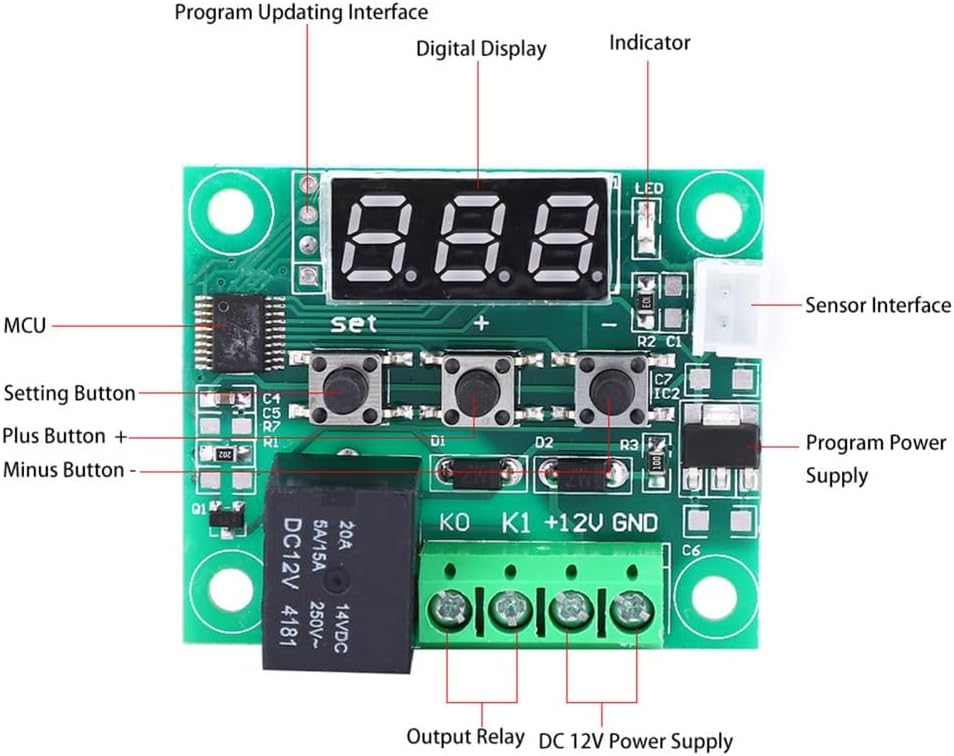

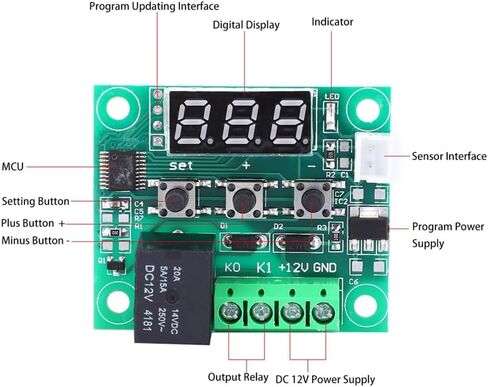

Indicator & Digital Tube Status Description:
Indicator: Off - The relay is disconnected, ON - The relay is closed
Digital Tube: Display LL - Sensor open circuit; Display HH - Exceed the measuring range, the temperature controller will force the relay to disconnect; Display ----- - High temperature protection
Package List:

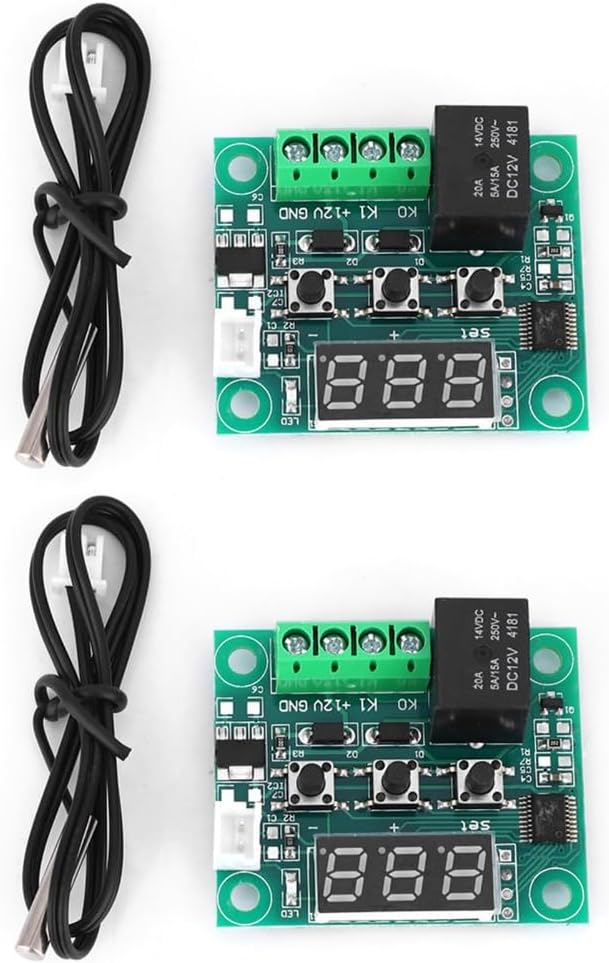

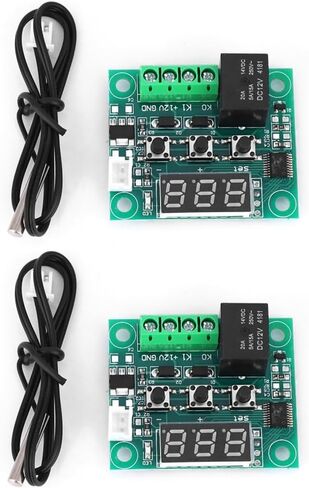

2 x Digital Thermostat
