40 HP Right Angle Bevel Gearbox with 2 Keyed Shafts CW/CW 1:1, Cast Iron housing, Part No.#19455-SR-KW-KW-GR Lamerto

KWD 49.500
Brand
Lamerto
Weight
10.8 kg
– 1 +

Special Features

  • 🔧【Item Type】: Bevel Gearbox
  • 🔧【Part Number】: 19455-SR-KW-KW-GR
  • 🔧【Specifications】: ①Dimensions: 5-7/8" X 6-1/4" X 4-1/8"; 12 ②Bolt Pattern: 4-1/4" Square with 3/8" Tapped Holes ③Input Shaft: 1" X 2-1/4" with 1/4" Keyway ④Output Shaft: 1" X 2-1/4" with 1/4" Keyway ⑤Input Power: 40 HP ⑥Input Speed: 1,800 Max RPM ⑦Shaft Rotation: CW to CW with 1:1 Ratio
  • 🔧【Premium Quality】: The product is made of High quality premium material with sturdy and exquisite workmanship that will mostly improve its Durability in use.
  • 🔧【After-Sales Service】: We will provide long-term after-sales services for our products. Welcome your mail, we will give a solution as soon as possible, please rest assured to buy.

Description

Ⅰ. Description

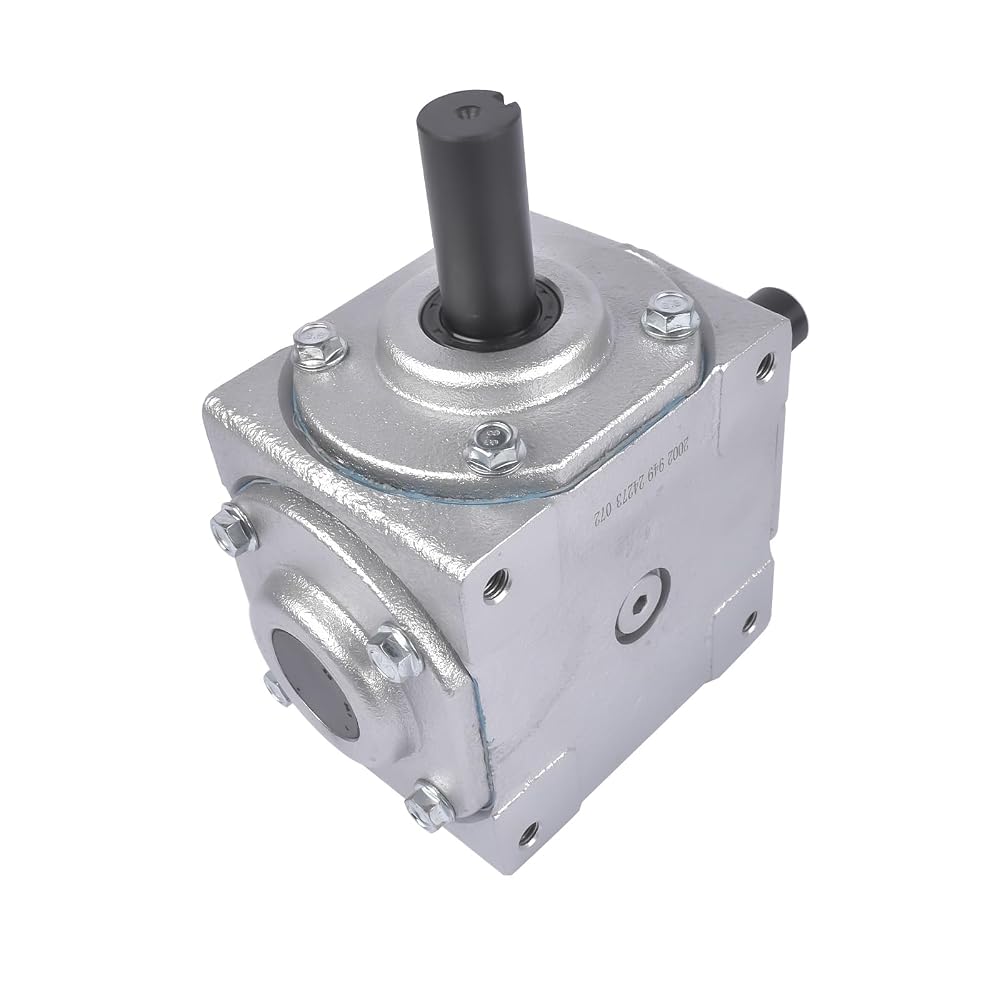

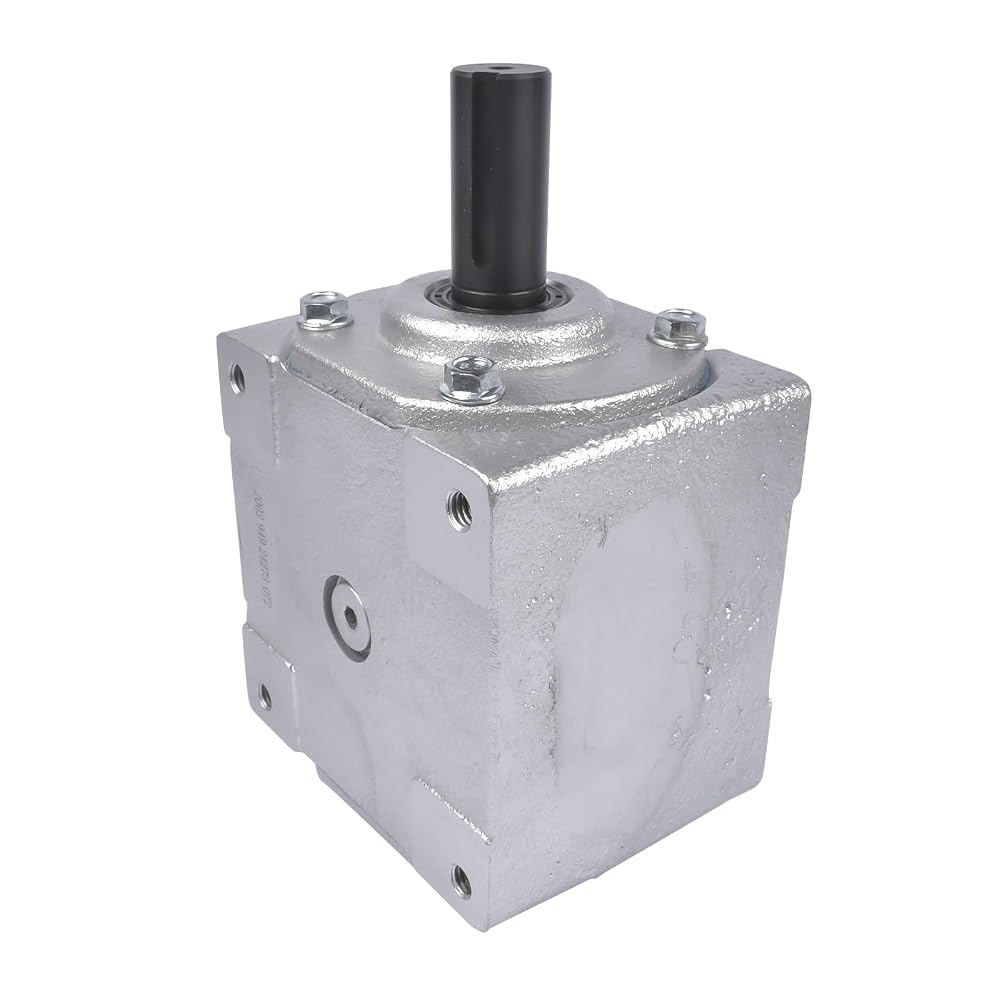

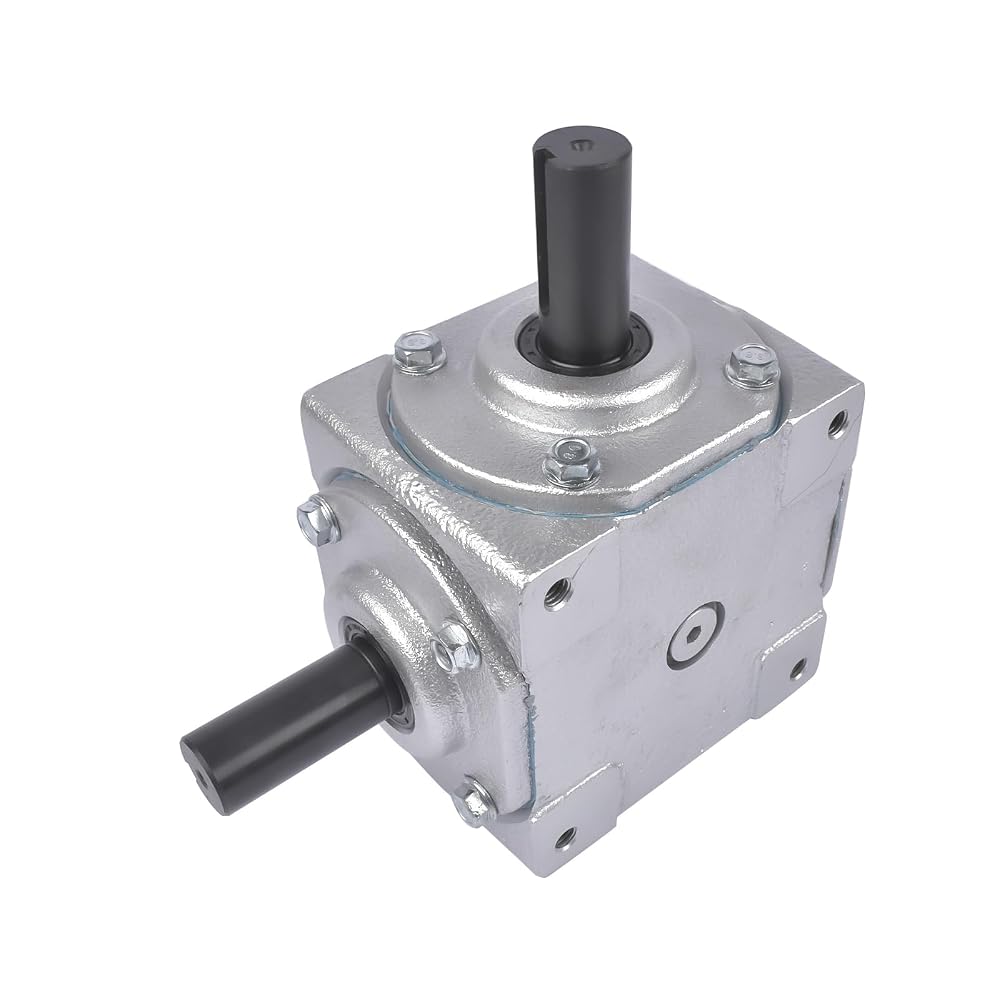

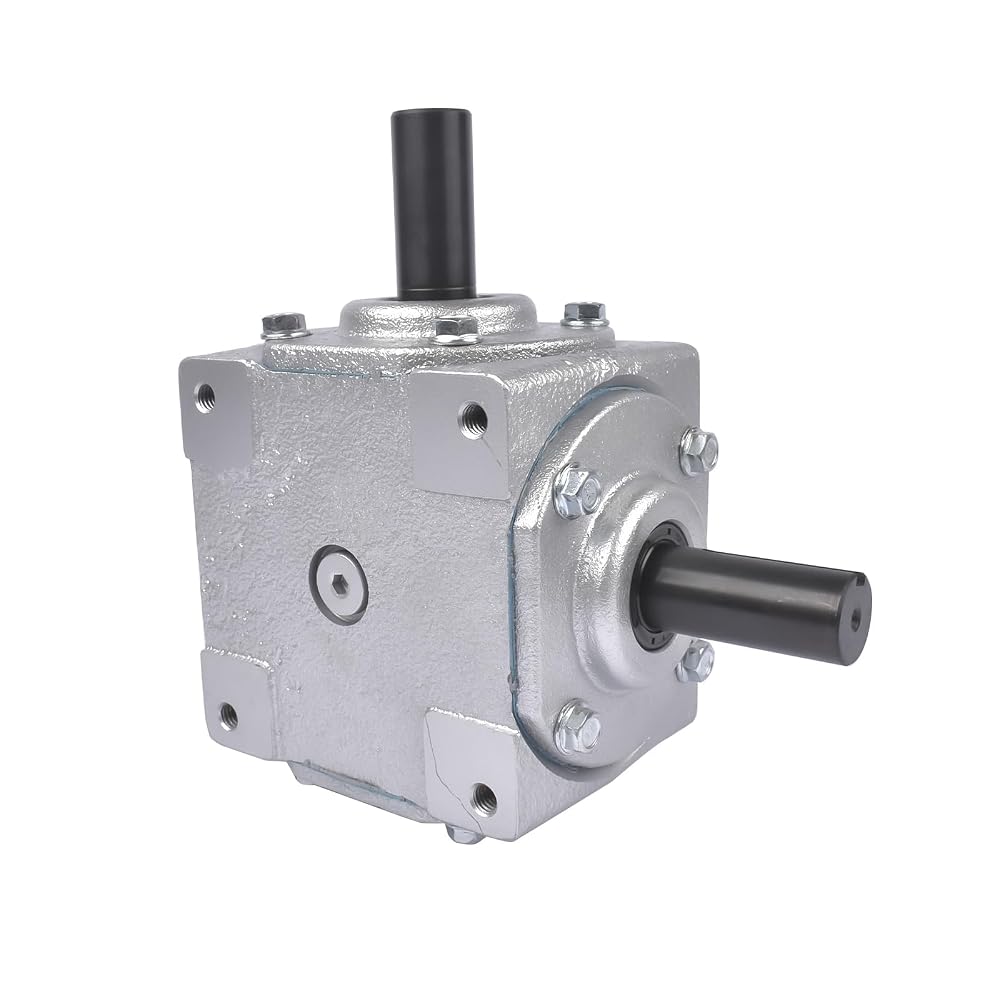

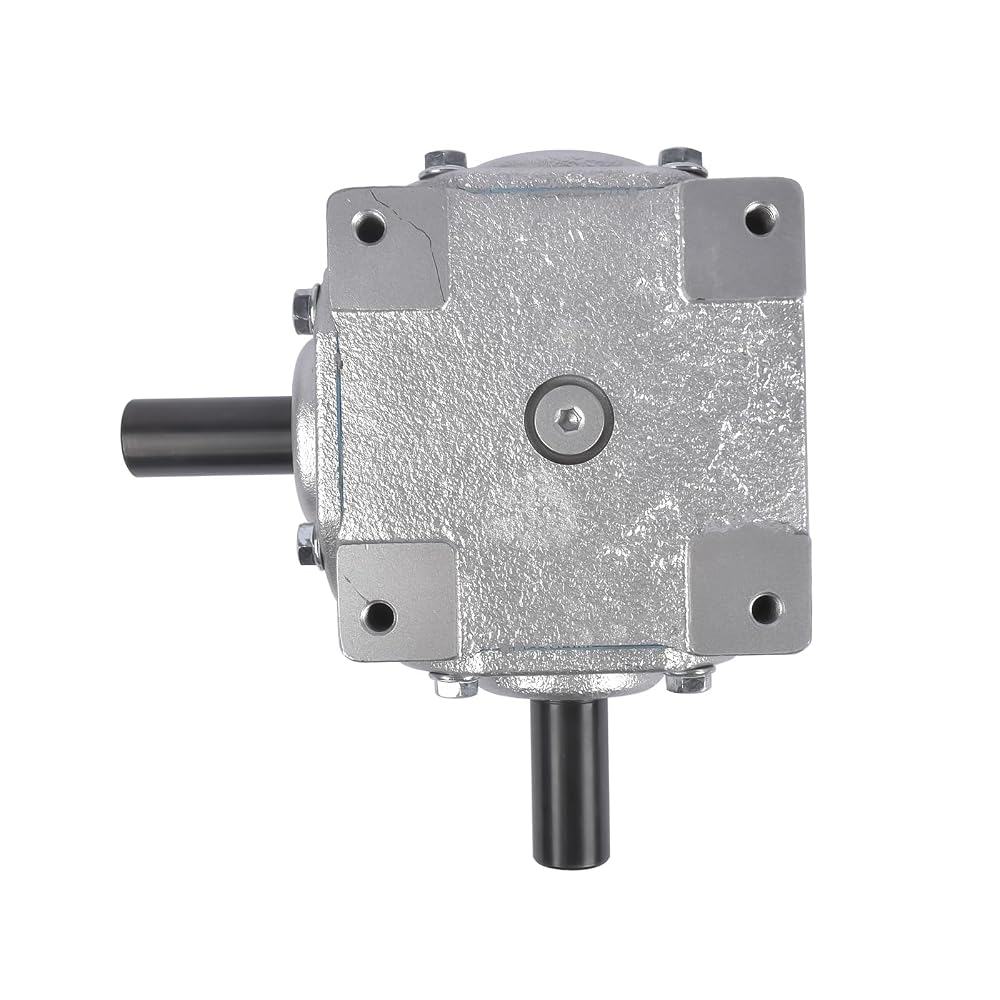

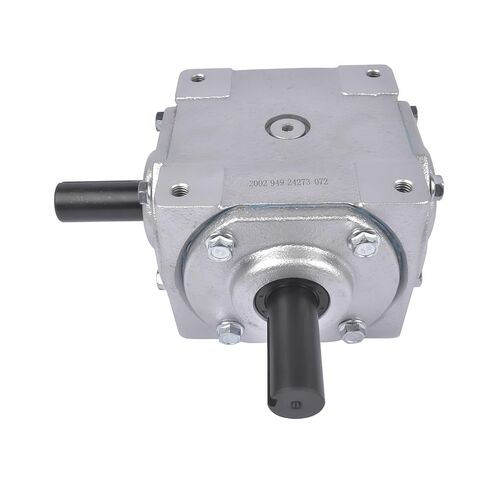

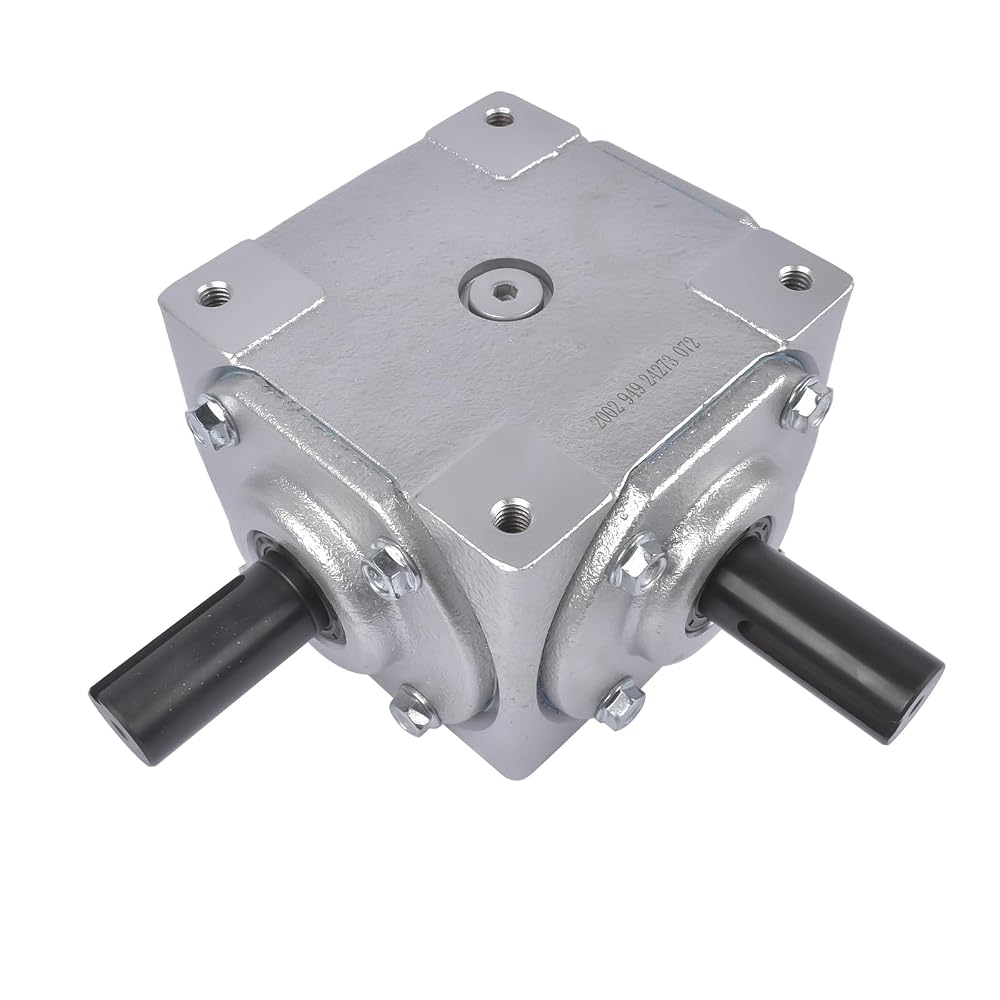

Right angle gearbox with 1" keyed shafts. Cast iron housing is sealed to protect the gears and taper roller bearings. The body is drilled and tapped 4-1/4" square with 3/8" holes. Ships without oil (1/3 qt of 80-90 W)

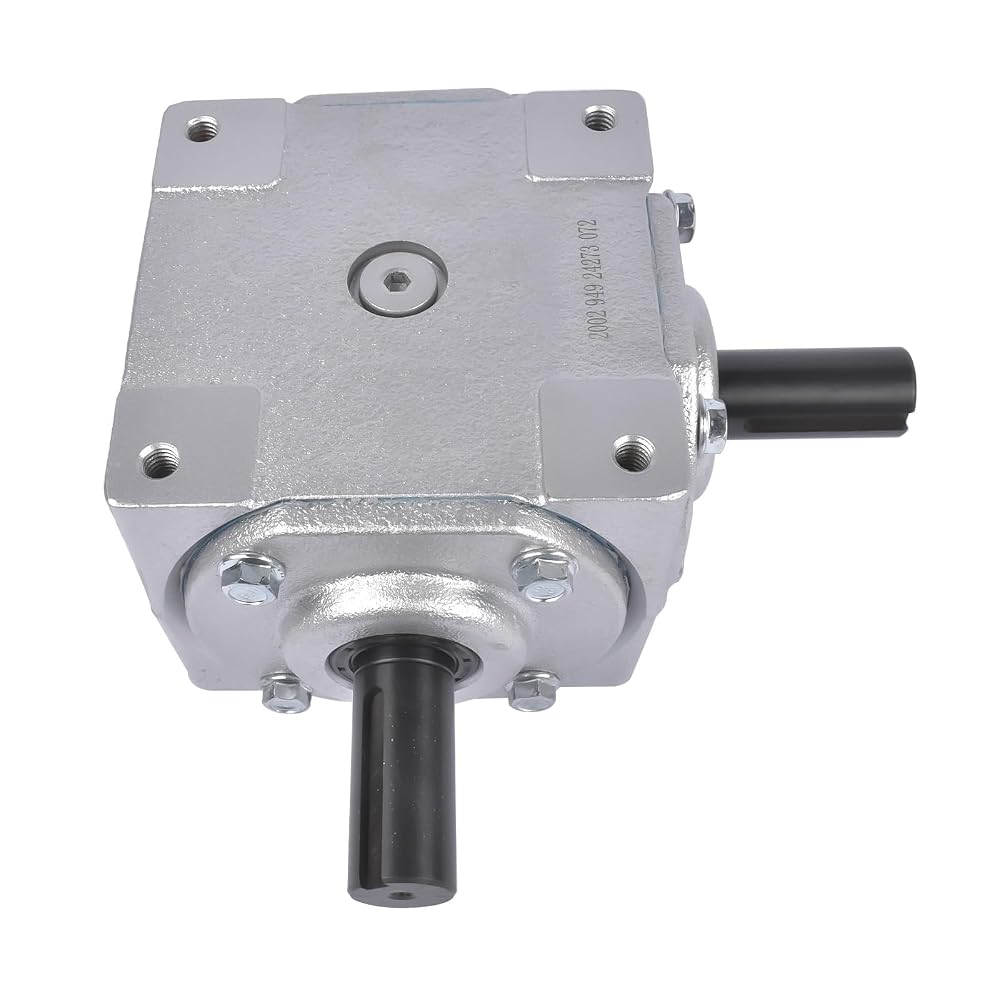

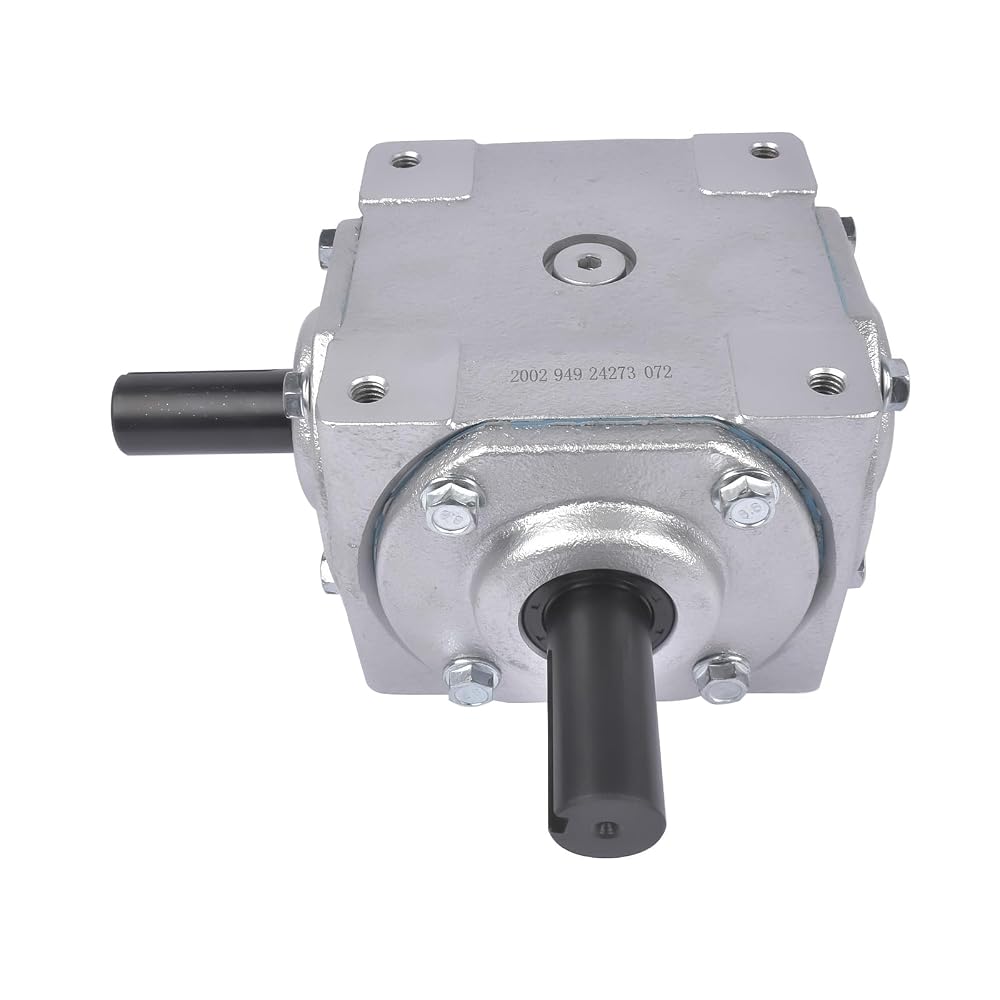

Gearbox is drilled and tapped with the same bolt pattern on both sides of the gearbox. This allows you to mount and arrange the shafts the way you need them. SHAFTS TURN IN THE SAME DIRECTIONS (CW/CW).

Ⅱ. Specifications

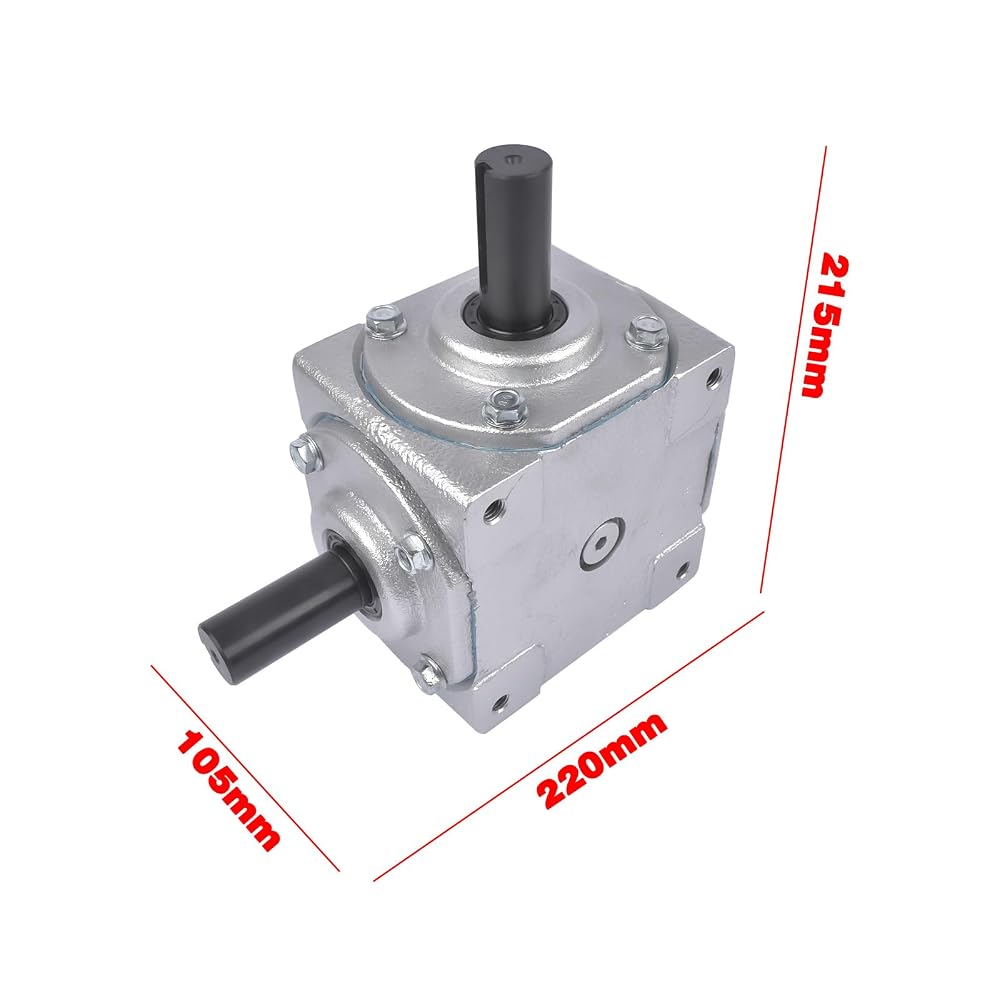

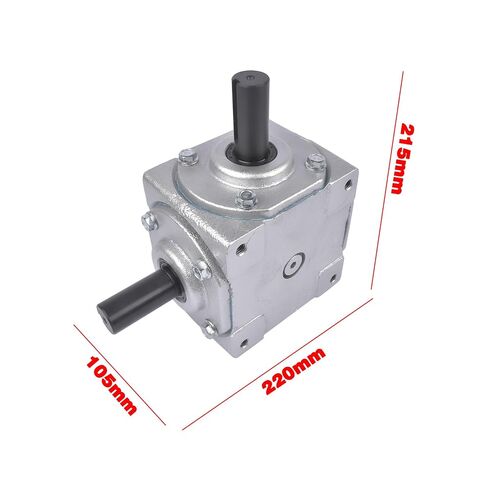

Dimensions: 5-7/8" X 6-1/4" X 4-1/8"
Bolt Pattern: 4-1/4" Square with 3/8" Tapped Holes
Input Shaft: 1" X 2-1/4" with 1/4" Keyway
Output Shaft: 1" X 2-1/4" with 1/4" Keyway
Input Power: 40 HP
Input Speed: 1,800 Max RPM
Shaft Rotation: CW to CW with 1:1 Ratio

Ⅲ. Package includes

1× Bevel Gearbox (As Pics Shown)
