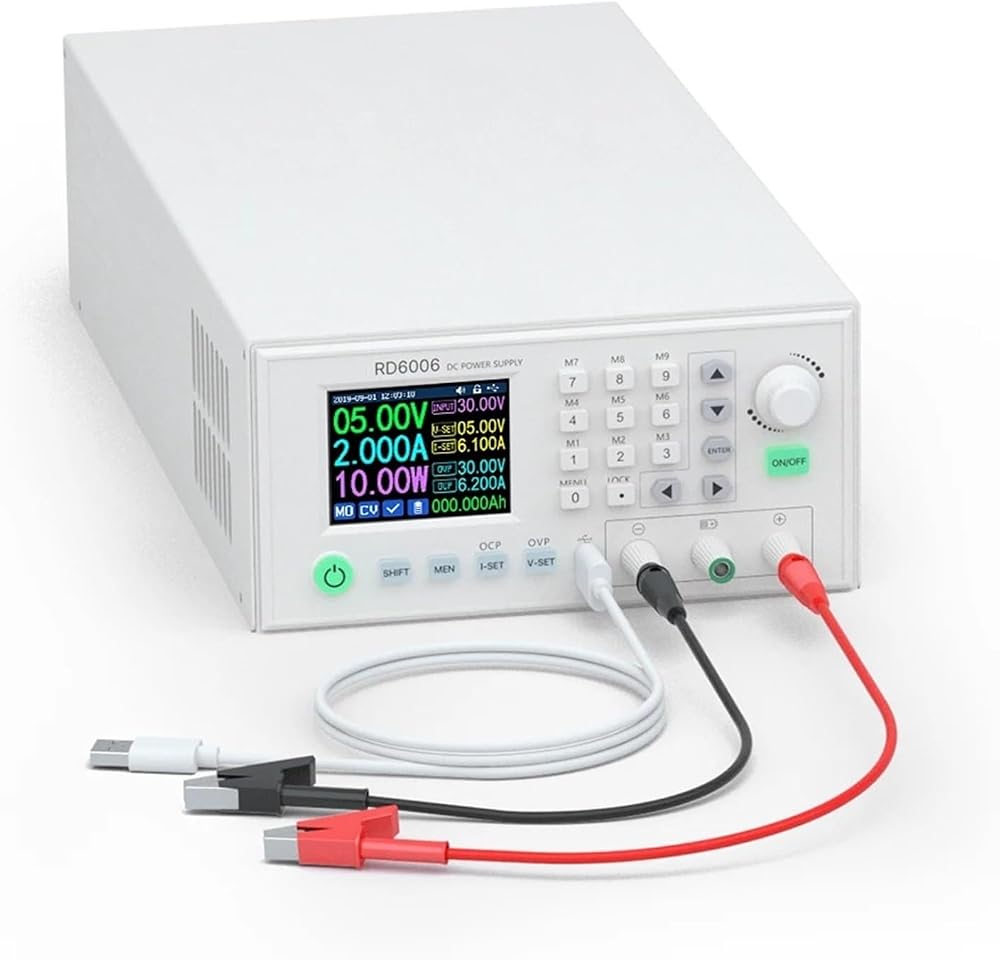

Model: RD6006 full set assembled

Output voltage range: 0-60.00V

Output current range: 0-6.000A

Output power range: 0-360W

Input voltage measurement resolution: 0.01V

Output voltagesetting measurement resolution: 0.01V

Output current setting measurement resolution: 0.001A

Battery voltage measurement resolution: 0.01V

Input voltage measurement accuracy: ±(1%+5 digits)

Output voltage accuracy between setting and measurement: ±(0.3%+3 digits)

Output currentaccuracybetween setting and measurement:±(0.5%+5 digits)

Battery voltage measurement accuracy: ±(0.5%+3 digits)

Automatic cut off current valuewhen charging:10mA

Output ripple typical:100mV VPP

Working temperature range: -10℃~40℃

External sensor Temperature detection range:-10℃~100℃/0℉~200℉

External sensor Temperature detection accuracy:±3℃/±6℉

Constant voltage moderesponse time: 2ms（0.1A-5A Load）

Constant voltage mode load regulation: ±(0.1%+2 digits)

Constant current mode load regulation: ±(0.1%+3 digits)

Capacity measurement range: 0-9999.99Ah

Energy measurement range: 0-9999.99Wh

Capacity and energy statistical error: ±2％

Buck working mode: Voltage drop >1V and >10%

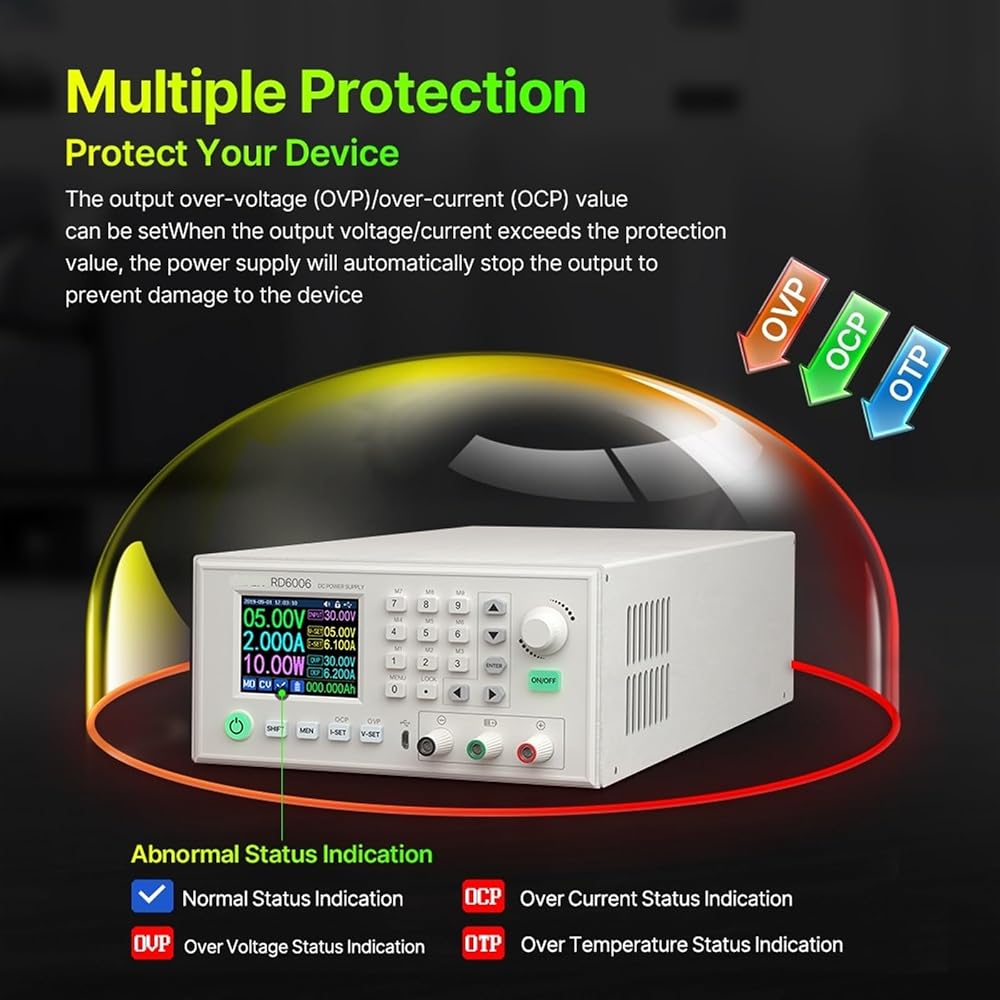

Over temperature protection: System temperature>80℃

Screen brightness setting: 0-5(6 level in total)

Screen: 2.4inch color HD display

Cooling fan start condition：Output voltage>40V or Output current>4A or System temperature>45℃

Product dimension: 173*92*336mm
