Linear Motion Guide Actuators
Linear Actuator technical data

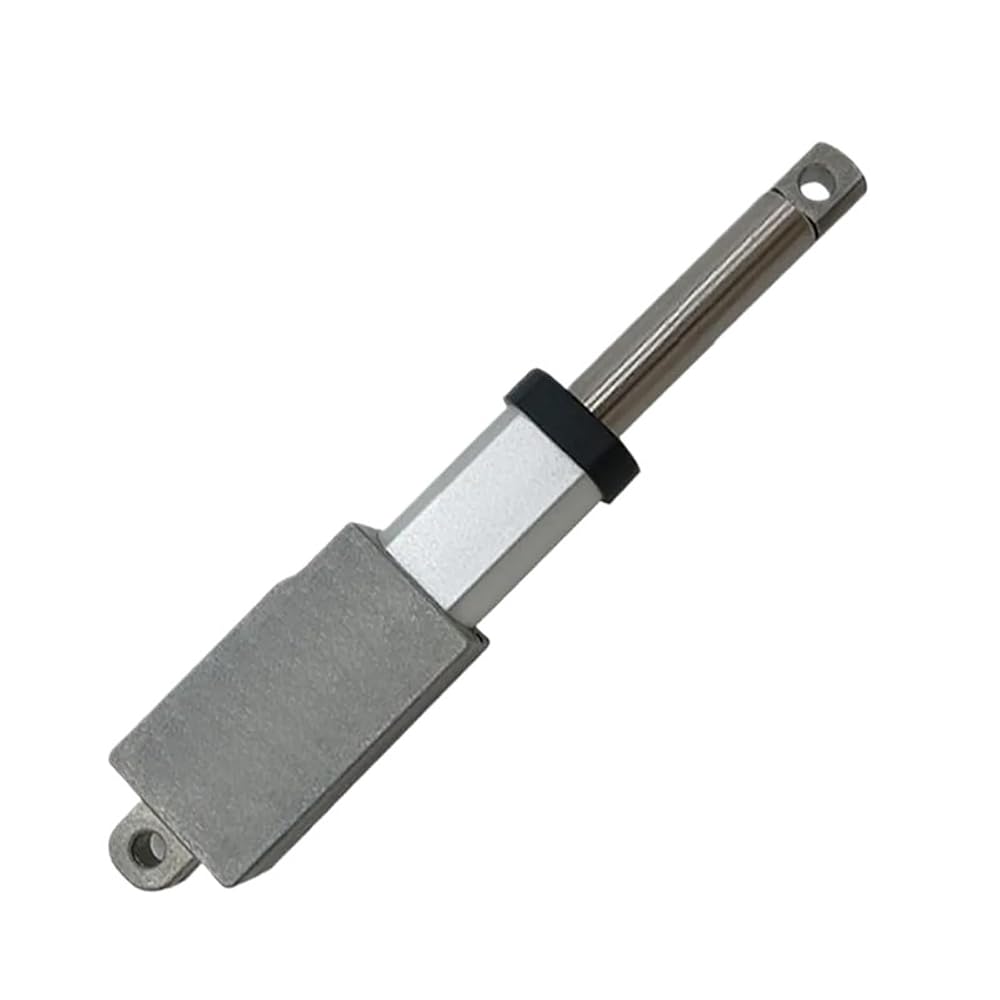

1Type M5S microlinear actuator
2Input 6V 12V 24V DC
3 Max Load 188N=18KG=44LBS
4 Max Speed 150mm per second
5 Limited switch With
6Duty cycle 25%
7Inner tube material Aluminum alloy
8Stroke length Max 150mm
9 Retract length L1=54.5mm+stroke length
10 Color Black
11Operation temperature -26 ~ +65 degree
Linear Actuator technical drawing
1 L1= fully retract length
L1 means the length when linear actuator fully retracts, meanwhile,it will touch the rear limited switch and stop itself.
2Stroke means the movement length of linear actuator.
3 L2= fully extend length
L2 means the length when linear actuator fully extend, meanwhile,it will touch the front limited switch and stop itself.
Stroke 10MM L1=64.5MM, L2=74.5MM
Stroke 17.5MM L1=72MM, L2=89.5MM
Stroke 21MM L1=75.5MM, L2=96.5MM
Stroke 25MM L1=79.5MM, L2=104.5MM
Stroke 30MM L1=84.5MM, L2=114.5MM
Stroke 50MM L1=104.5MM,L2=154.5MM
Stroke 75MM L1=129.5MM,L2=204.5MM
Stroke 100MM L1=154.5MM,L2=254.5MM
Stroke 150MM L1=204.5MM,L2=354.5MM
==========
High-concerned chemical :
Torque : 188
Model Number : M5S
Continuous Current(A) : 0.3
Construction : Magnet
Type : Motor
Protect Feature : Totally Enclosed
Commutation :
Efficiency : IE 4
Output Power : 4
Input : 6V 12V 24VDC
Load : Max 188N/18.8KG/41LBS
Speed : max 150mm/s or options
Stroke : max 150mm
