Introduction

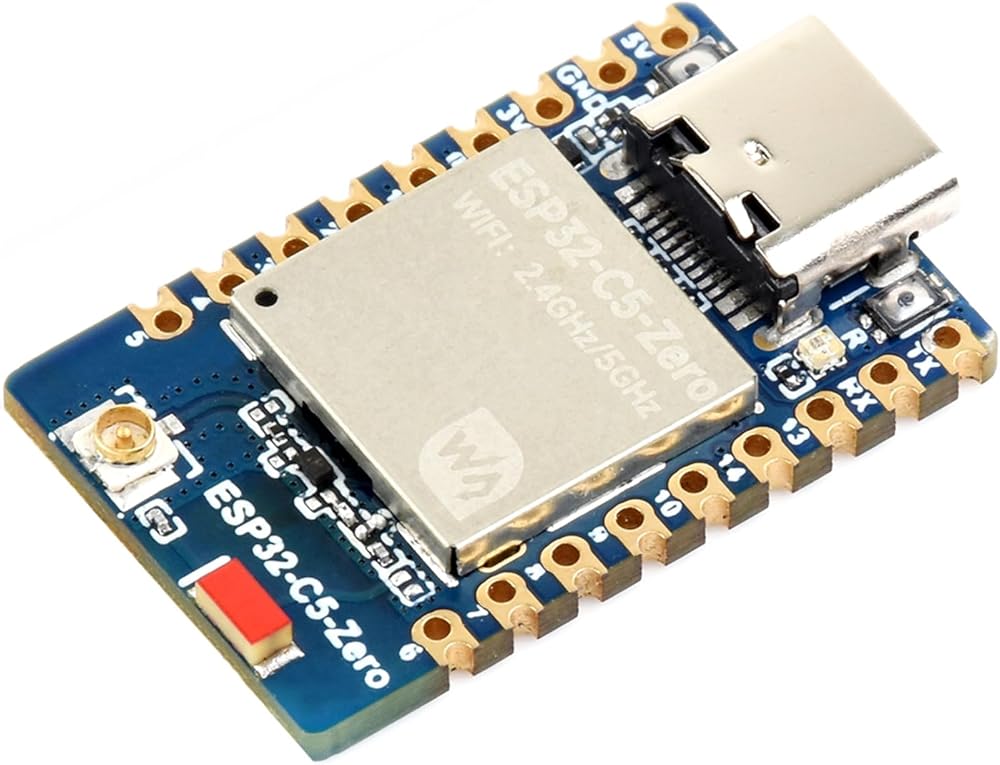

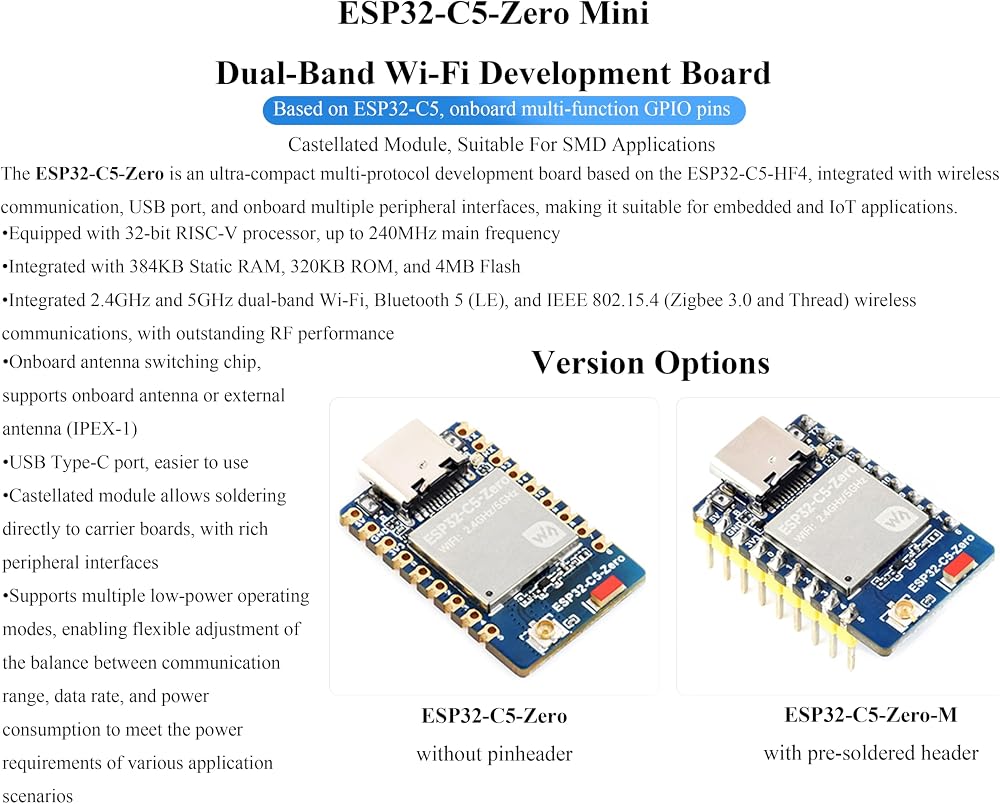

The ESP32-C5-Zero is an ultra-compact multi-protocol development board based on the ESP32-C5-HF4, integrated with wireless communication, USB port, and onboard multiple peripheral interfaces, USB Type-C port, making it suitable for embedded and IoT applications.

Equipped with 32-bit RISC-V processor, up to 240MHz main frequency.
Integrated with 384KB Static RAM, 320KB ROM, and 4MB Flash.

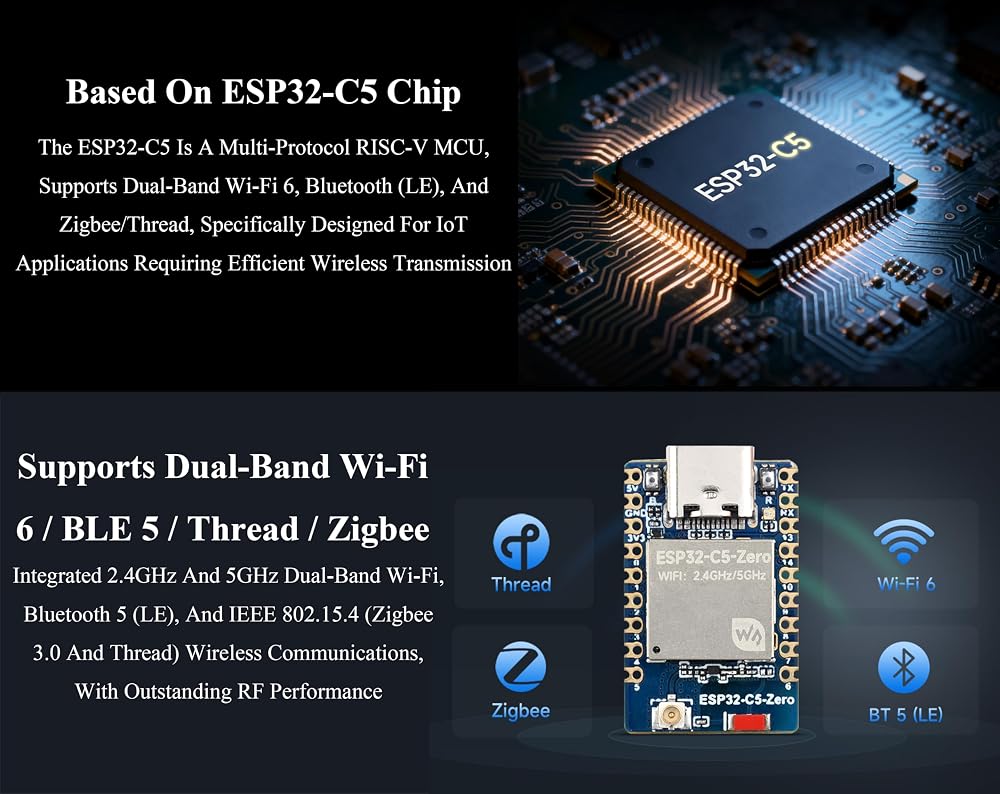

Integrated 2.4GHz and 5GHz dual-band Wi-Fi, Bluetooth 5 (LE), and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communications, with outstanding RF performance.

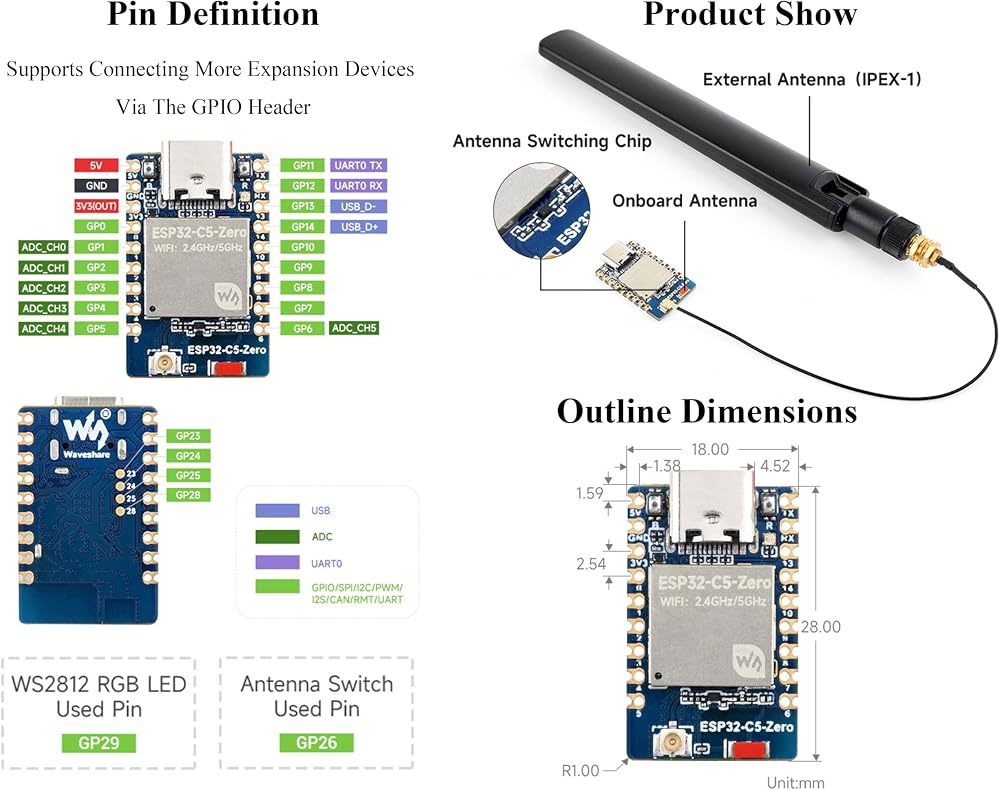

Onboard antenna switching chip, supports onboard antenna or external antenna (IPEX-1).
Castellated module allows soldering directly to carrier boards, with rich peripheral interfaces.
Supports multiple low-power operating modes, enabling flexible adjustment of the balance between communication range, data rate, and power consumption to meet the power requirements of various application scenarios.

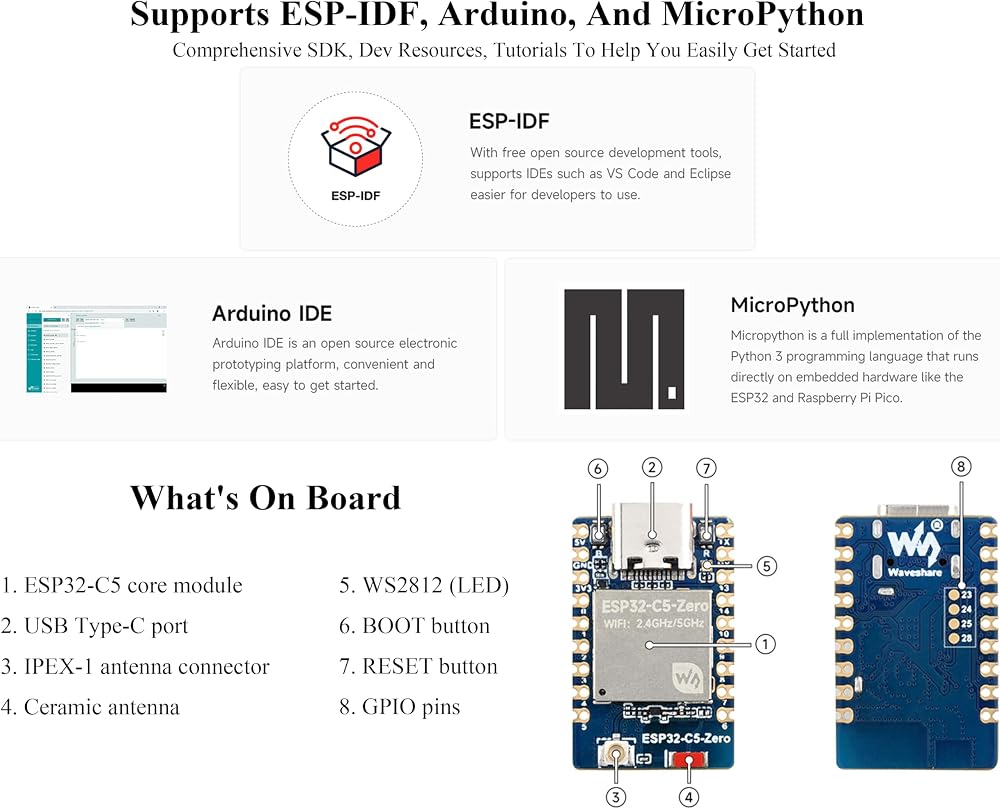

Supports ESP-IDF, Arduino, and MicroPython. Comes with Online Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started: //n9.cl/f7bq3

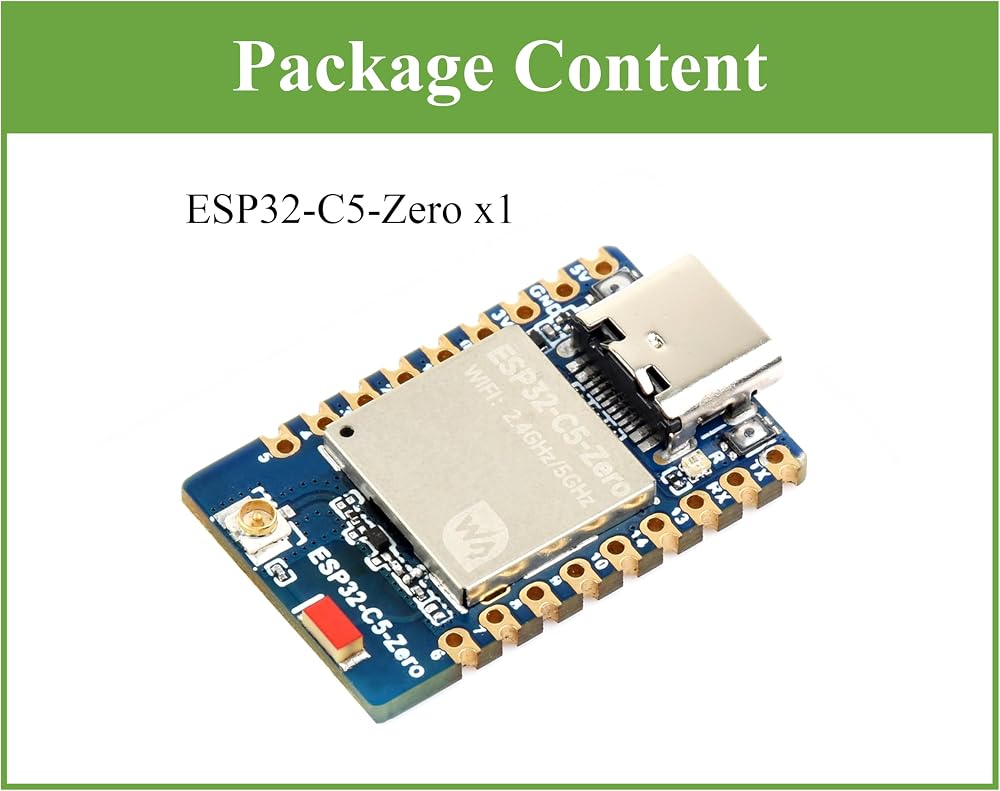

Package Content
ESP32-C5-Zero x1
