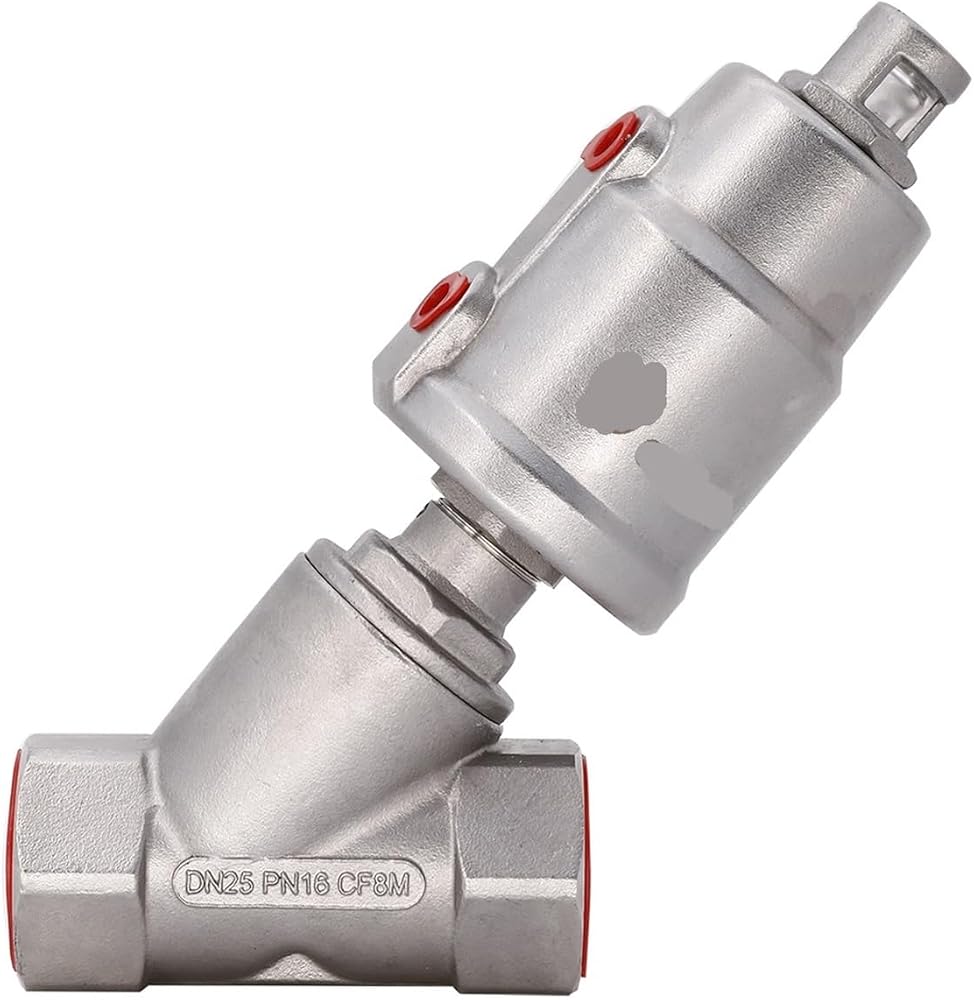

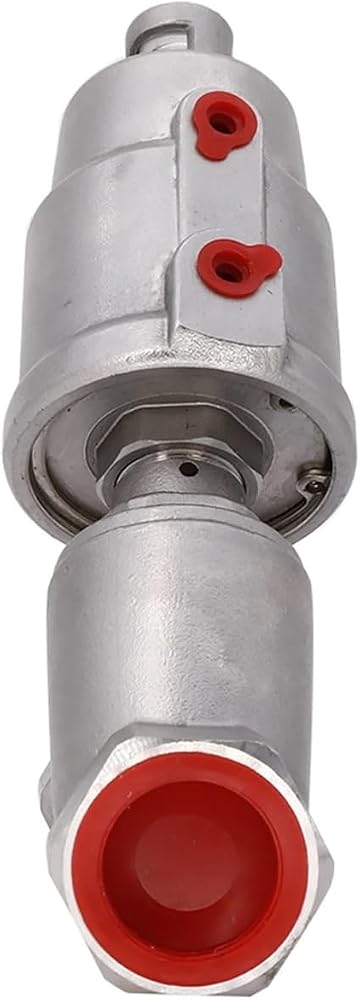

Globe Valves
ValveSpecifications:
Valve Type:2 Way Normally Closed
Service Media:Air, Gas, Liquid, Water, Steam, Oil, Vacuum
Operation Model:Air Actuated Single Acting (Spring Return)
Actuator Operating Pressure:100 PSI
Actuator Operating Pressure Range:65 - 120 PSI
Body Material:316 Stainless Steel / CF8M
Actuator Material:CF8
Seal Material:Teflon (PTFE)
Seat Material:Teflon (PTFE)
Controlling Medium:Inert Air, Air
Operating Pressure:Vacuum to 240 PSI
Maximum Viscosity:600 mm2/s (600 Centistokes)
Media Temperature:-20 to 180 °C (-5 to 350 °F)
Ambient Temperature:-20 to 60 °C (-5 to 140 °F)
Installation Orientation:Any Position
Port Size:1/2" NPT Female Port Standard
Installation Hardware:1 Piece Tube OD 1/4" X Thread 1/8" Male Straight Connector Fittings
Type : Valves
Model Number : DN25(1")
Origin : Mainland China
Material : Stainless steel
