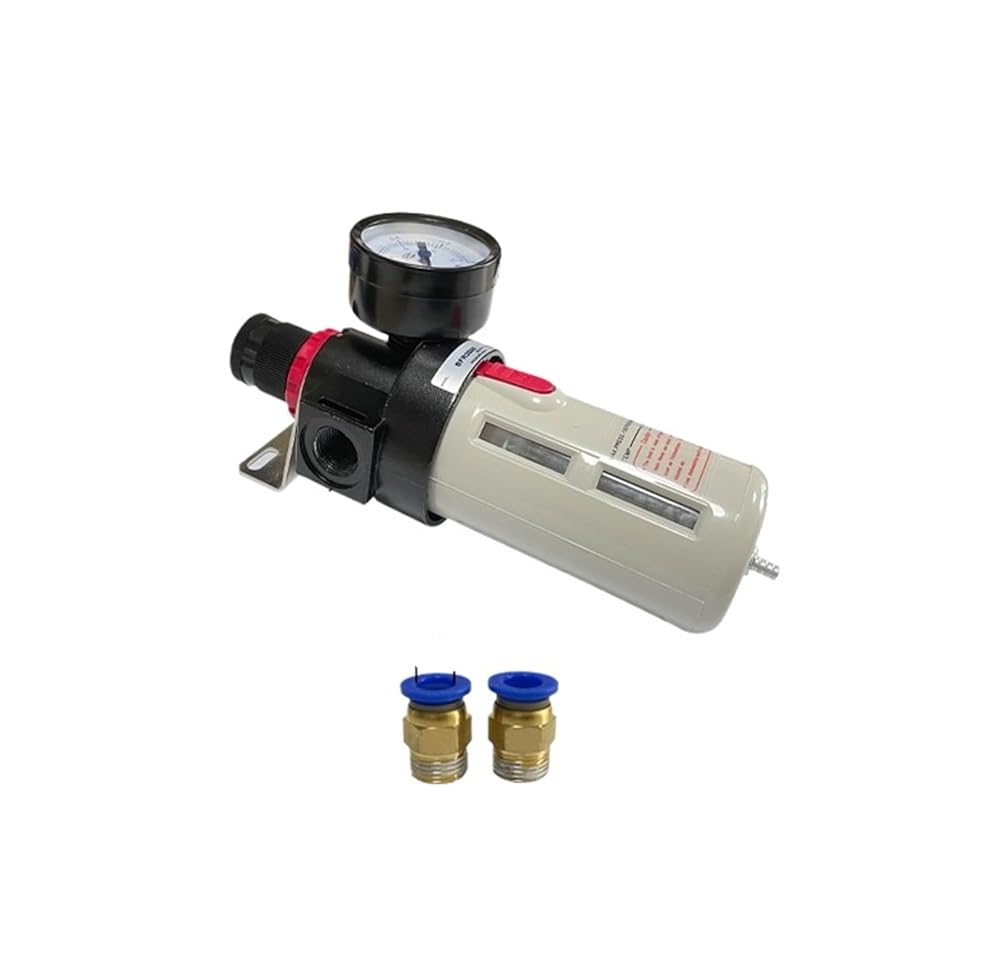

Filter, Regulator & Lubricator Combos
Product Features
1. The structure is exquisite and compact, easy to install and use.
2. Press-in self-locking mechanism can prevent abnormal movement of set pressure caused by external interference.
3. Low pressure loss and high water separation efficiency;
4. In addition to the standard type, a low-pressure type is also available (the maximum adjustable pressure is 0.4MPa).
Installation and Usage
1 Before installation, please check whether the parts are damaged during transportation.
2 Pay attention to whether the air flow direction (note the "direction") and thread type are correct.
3. Please pay attention to whether the installation conditions meet the technical requirements (such as "working pressure" and "operating temperature range").
4. Pay attention to the medium used or the installation environment, and avoid contact with chlorine, carbon compounds, aromatic compounds, and oxidizing acids and alkalis to avoid damage to the bearings and oil cups.
5. Clean or replace the filter element regularly. Lubricators and regulators should be arranged in order from large to small.
6. Pay attention to dust prevention. When disassembling or storing the equipment, dust covers should be installed at the air inlet and outlet.
==========
Type: Source Processing Unit
Model: BFR2000/3000/4000
Origin: Mainland China
