The SA6 Portable Spectrum Analyzer & Signal Generator is a multifunctional RF testing tool designed for engineers, technicians, and wireless hobbyists. With a wide 35–6200MHz display frequency range and high-speed scanning capability (up to 500 points per sweep), it provides precise and efficient measurement of RF signals.
The built-in signal generator with tracking functionality allows the SA6 to test filters, amplifiers, and other RF components. When used with an external directional coupler, it supports SWR and return-loss measurements, making it suitable for antenna tuning and RF system optimization.

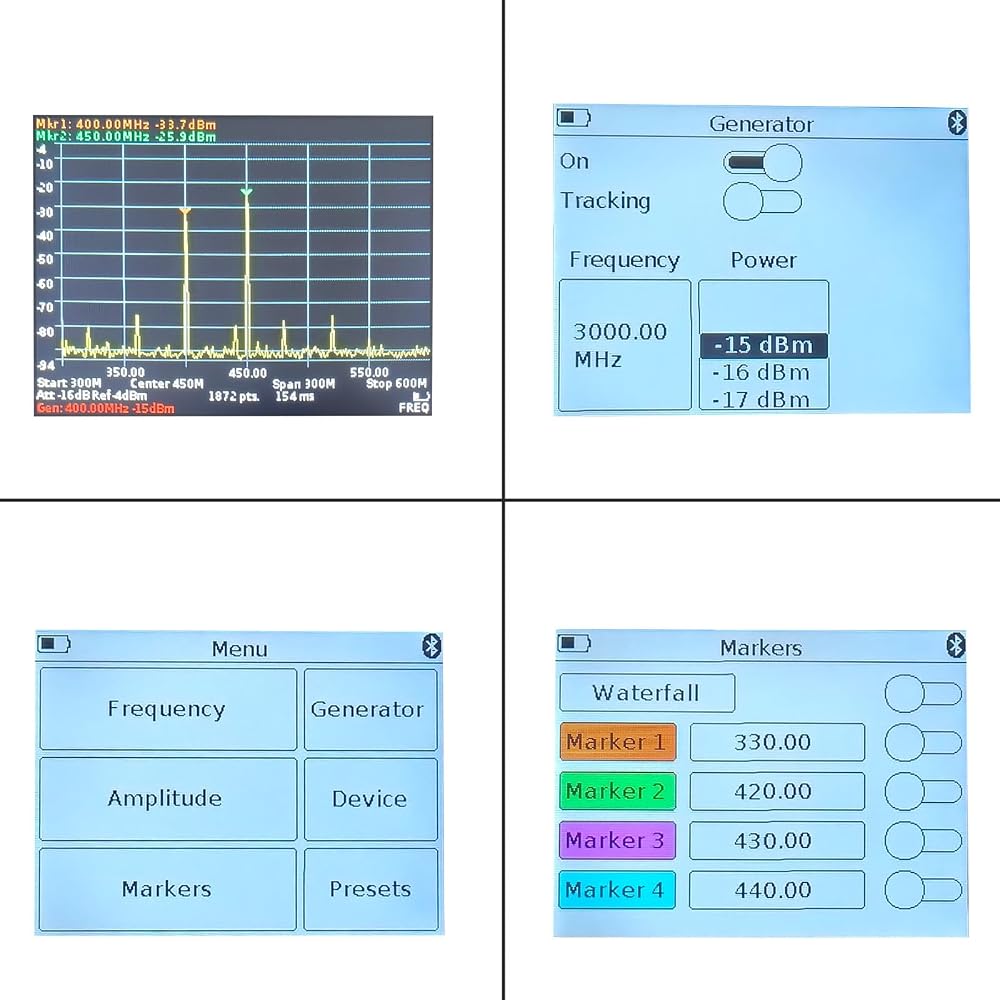

Featuring a 3.2-inch color resistive touchscreen, the SA6 offers clear visualization of frequency, amplitude, and waveform data. It supports both button and touchscreen operation, ensuring flexibility in various environments. Through its USB Type-C interface, users can transfer data to a computer for real-time analysis, logging, and remote control.
The compact 380g design and durable casing make the SA6 ideal for field commissioning, telecom equipment maintenance, RF diagnostics, and amateur radio applications. Compatible with Wi-Fi, 2G/3G/4G, LTE, GSM, CDMA, DCS, GPRS, GLONASS, and other communication standards, it is a reliable and versatile RF testing companion.
Key Specifications
Display Frequency Range: 35–6200 MHz
Measurement Frequency Range: 35–4500 MHz
Dynamic Range: 70–75 dB
Accuracy: ±2 dB
Tracking Generator Output: –15 to –25 dBm
Screen: 3.2" Resistive Touchscreen
Input Impedance: 50 Ω
Battery Capacity: 2500–5000 mAh (varies by batch)
Battery Life: ~3–4 hours
Charging Time: ~5 hours
Weight: ~380 g

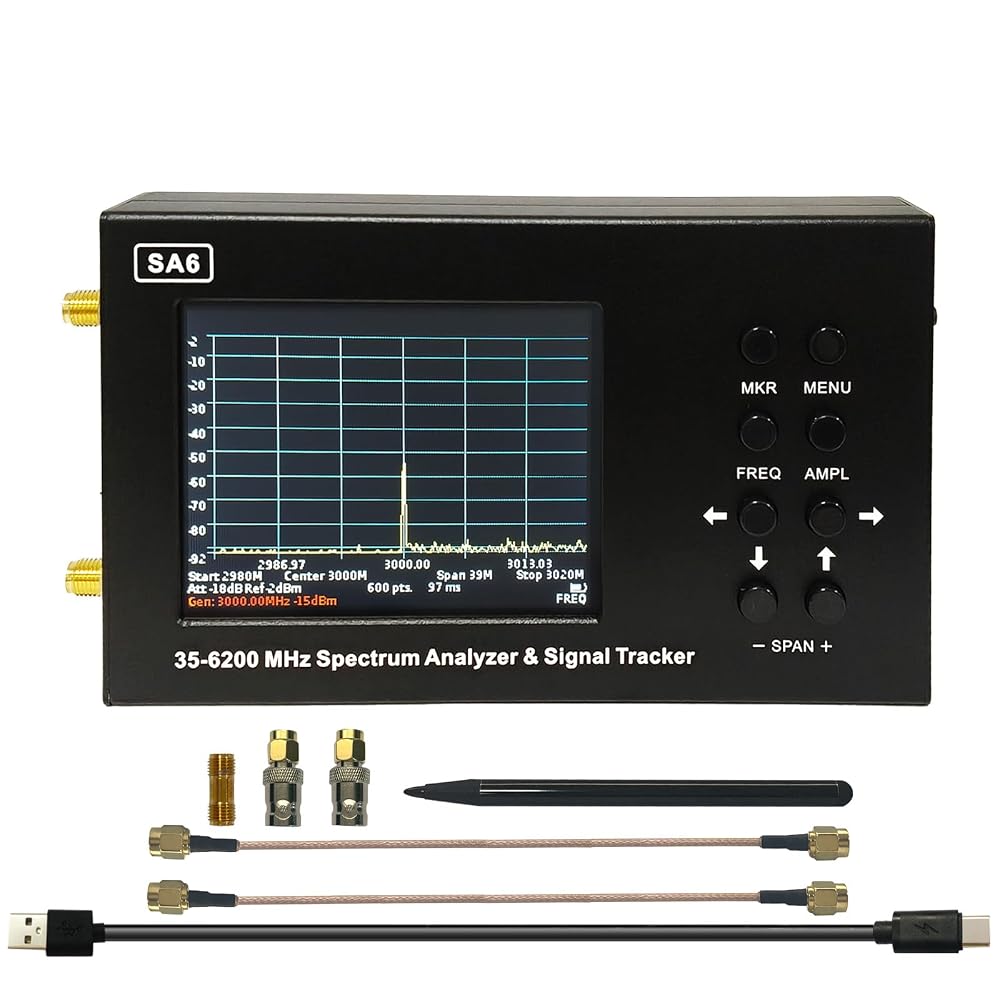

Package Includes
1 × SA6-V2 Spectrum Analyzer
2 × 30cm SMA RG316 Cables
1 × USB Type-C Cable
1 × Stylus
1 × SMA KK Connector
1 × User Manual
2 × BNC Adapters
