Linear Motion Guide Actuators
For Linear Actuator

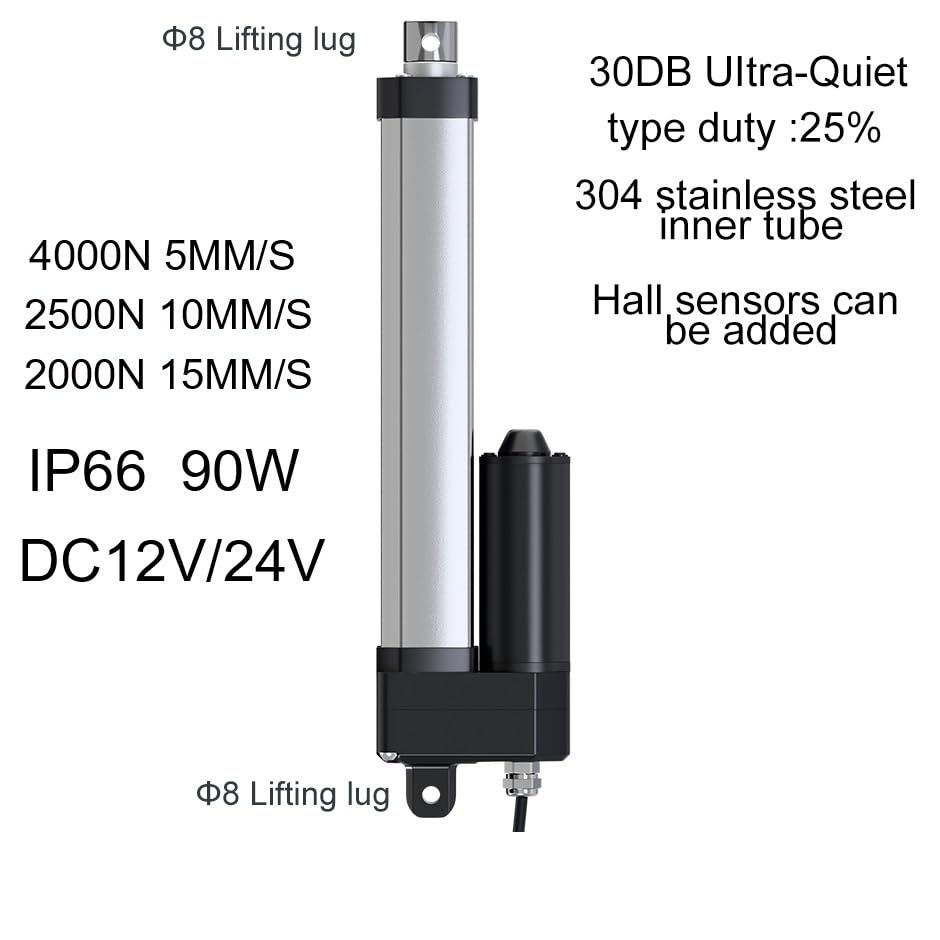

4000n speed is 5mm/s
2500n speed is 10mm/s
2000n speed is 15mm/s
Rated power: 90w

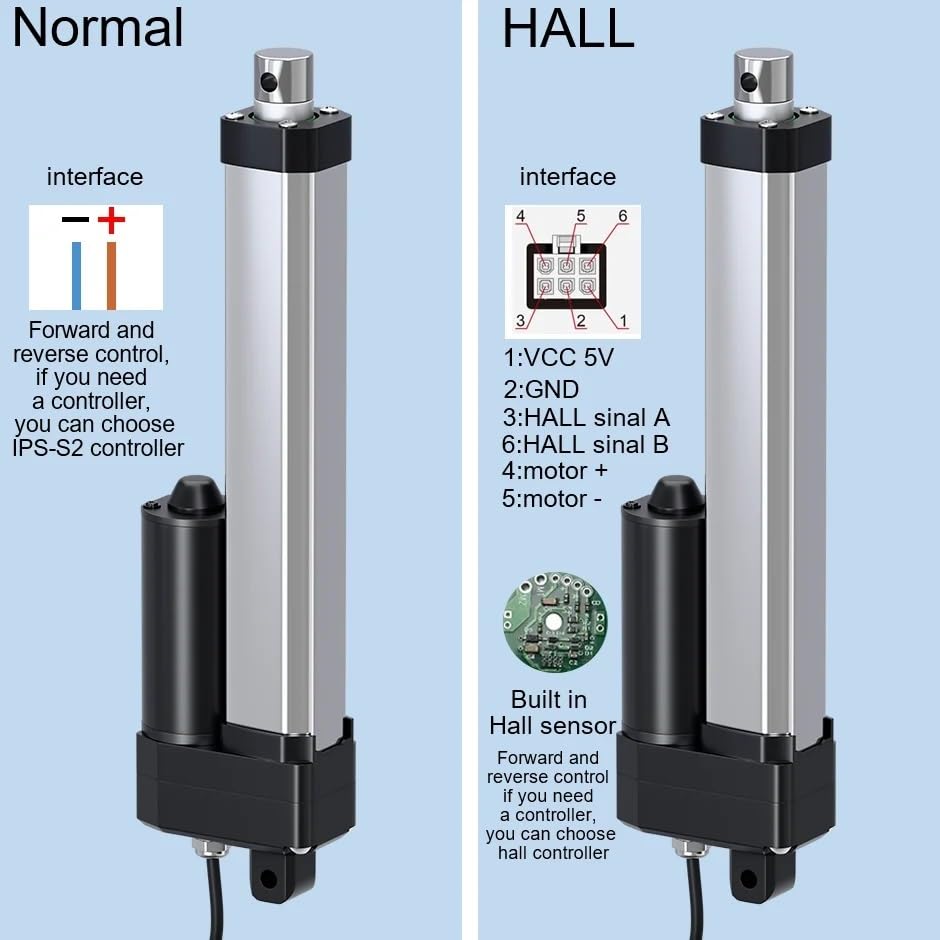

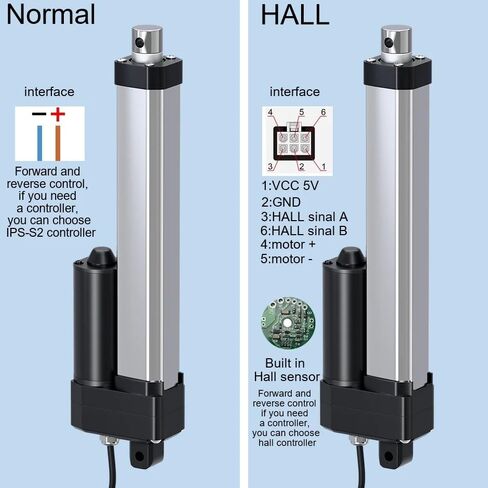

Motor: magnet DC Motor drive;
Voltage: 24V/12V

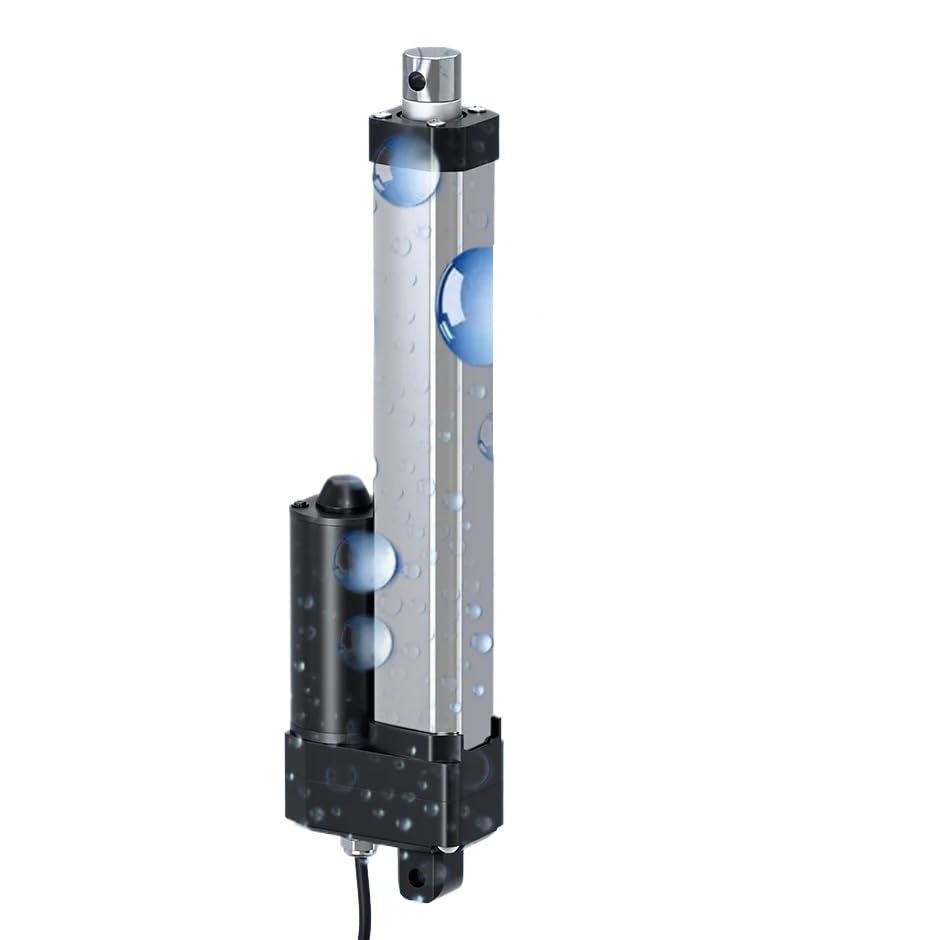

Standard protection grade: IP66
Voltage
DC24V-
Speed(MM/S)
5 10
15
Load Pull Capacity(N)
2000
1250
1000
Load Push Capacity(N)
4000
2500
2000
Self-locking Capacity(N)
2000(200kg load)
1250 (125kg)
1000(100kg)
Voltage
DC12V
Speed(mm/s)
4 9 15
Pull(N)
8000
3000
2000
Push(N)
8000
3000
2000
Self-locking Capacity(N)
6000
2000
1500
Motor Power
75W
55W
55W

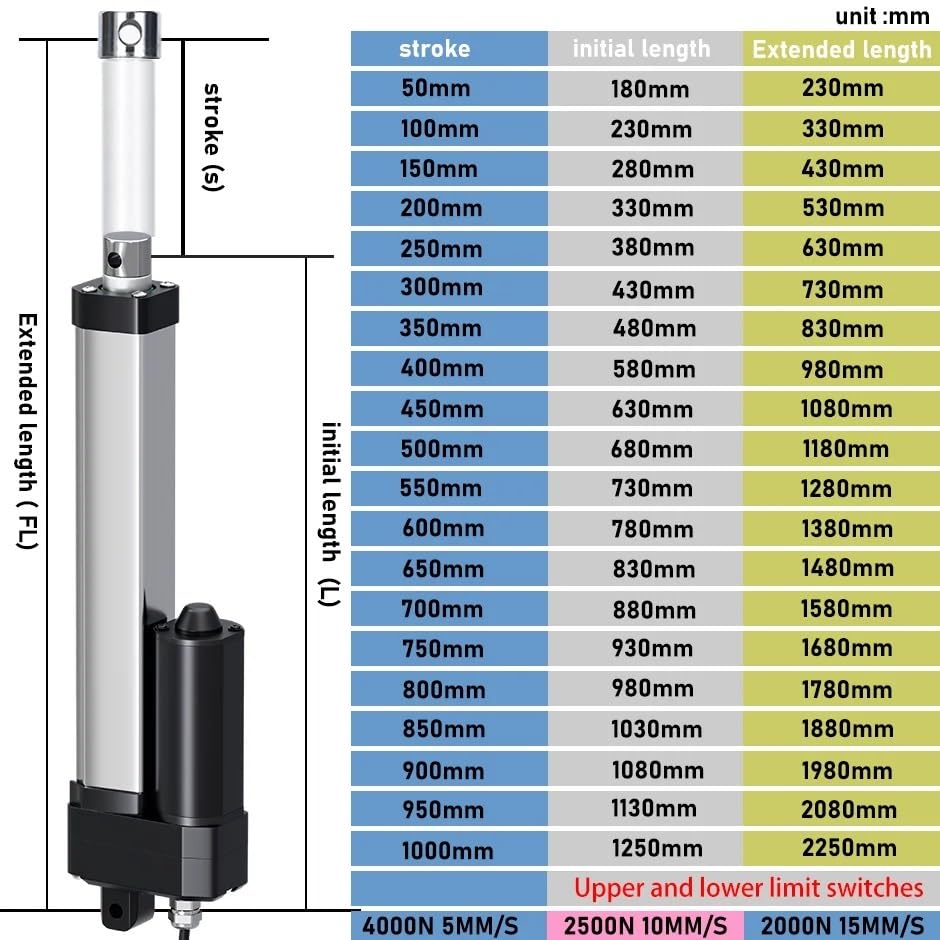

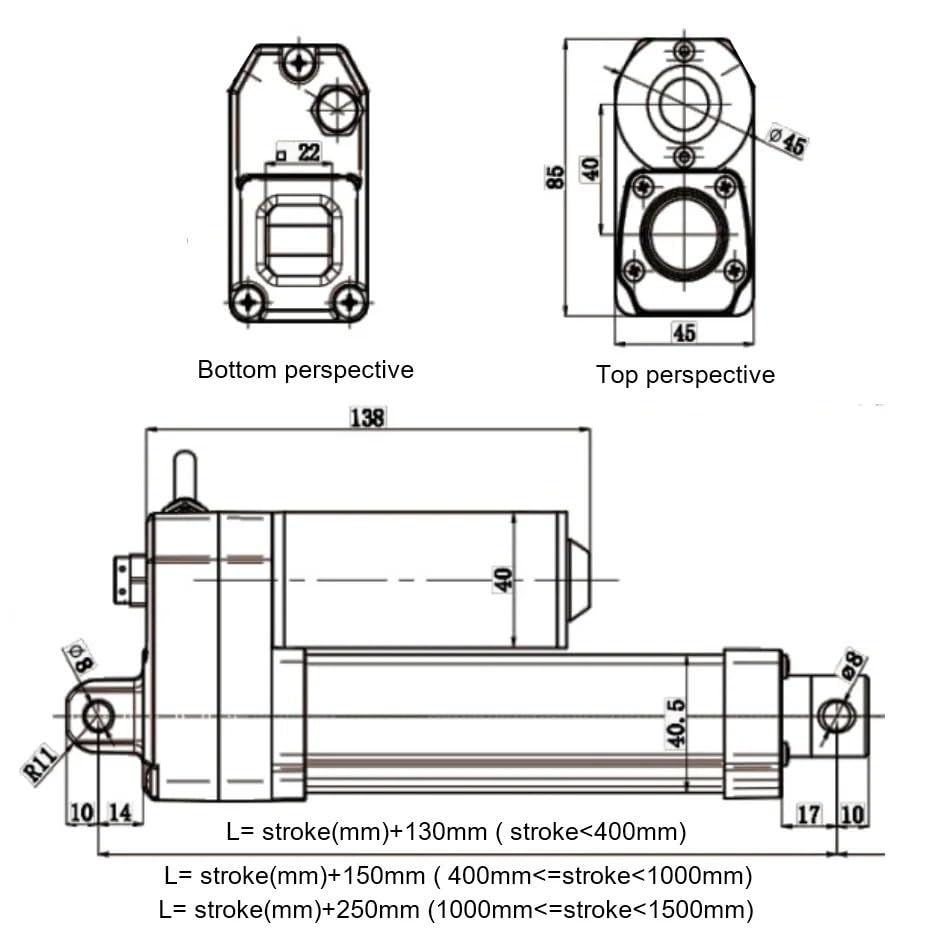

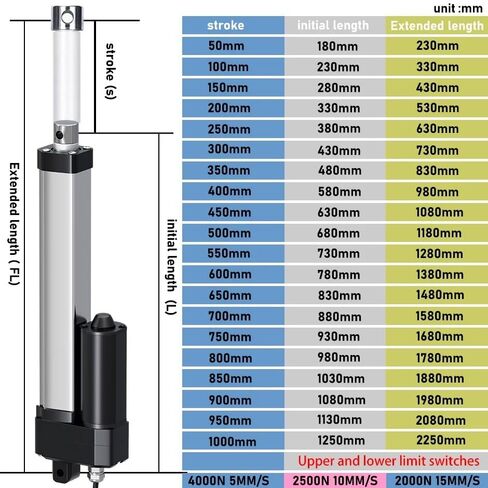

Stroke Length(mm)
50mm~1500mm (can be )
Operating Temperature
-10 ~ +50
Operating Frequency
25% ,max 2min. continuous use

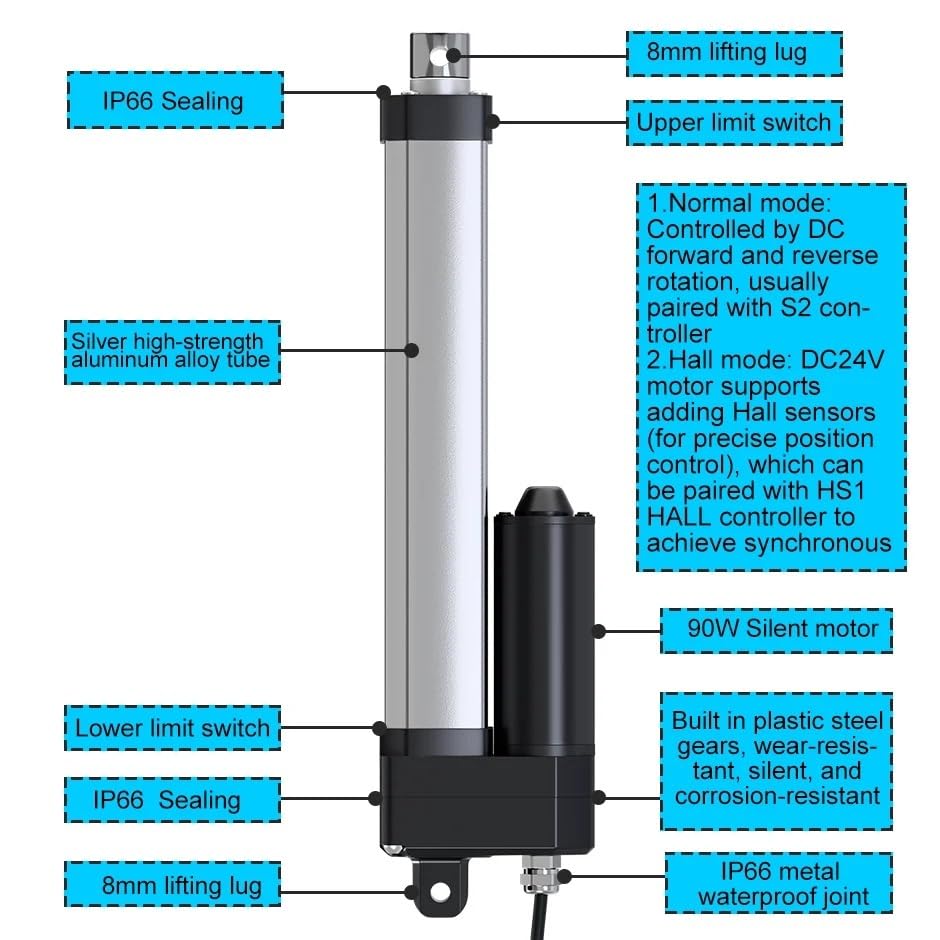

Limit Switch
Built-in
Protection Class
IP66
DC24V Electric Linear Actuator Comparison
Features
Link
Max Load: 1500N
Max Speed: 90MM/S
Max Stroke: 800MM
Temperature: 0 ~ +40
Noise: 45dB~65dB
Motor Power: 20W
Optional Function: Upper And Lower Limit Signal Feedback
Quality:
Click To Buy
Max Load: 1500N
Max Speed: 66MM/S
Max Stroke: 1000MM
Temperature: -10 ~ +40
Noise: 25dB~45dB
Motor Power: 30W
Optional Function: IP54 | Hall Sensor | Built-in Magnet
Optional Function: Upper And Lower Limit Signal Feedback
Quality:
Click To Buy
Max Load: 3000N
Max Speed: 88MM/S
Max Stroke: 1600MM
Temperature: -30 ~ +60
Noise: 25dB
Motor Power: 60W
Optional Function: IP66 | Hall Sensor | Built-in Magnet | IP67
Optional Function: Upper And Lower Limit Signal Feedback
Inner Tube: High Hardness Aluminum | 27 Items Oxidation Treatments
Quality:
Click To Buy
Max Load: 4000N
Max Speed: 26MM/S
Max Stroke: 1000MM
Temperature: 0 ~ +40
Protection Level: IP43
Noise: 30dB
Motor Power: 60W
Optional Function: Upper And Lower Limit Signal Feedback
Quality:
Click To Buy
Max Load: 6000N
Max Speed: 40MM/S
Max Stroke: 1400MM
Temperature: 0 ~ +40
Protection Level: IP43
Noise: 30dB
Motor Power: 55W
Optional Function: Hall Sensor | Built-in Magnet
Optional Function: Upper And Lower Limit Signal Feedback
Quality:
Click To Buy
Max Load: 8000N
Max Speed: 40MM/S
Max Stroke: 1000MM
Temperature: 0 ~ +40
Protection Level: IP43
Noise: 30dB
Motor Power: 75W
Optional Function: Manual Control + Electric Control
Optional Function: Hall Sensor | Built-in Magnet | 304 Stainless Steel Pipe
Optional Function: Upper And Lower Limit Signal Feedback
Quality:
Click To Buy
Max Load: 8000N
Max Speed: 36MM/S
Max Stroke: 1000MM
Temperature: -25 ~ +65
Protection Level: IP54
Noise: 30dB
Motor Power: 60W
Inner Tube: 304 Stainless Steel Pipe
Optional Function: Upper And Lower Limit Signal Feedback
Quality:
Click To Buy
Max Load: 10000N
Max Speed: 160MM/S
Max Stroke: 1000MM
Temperature: -30 ~ +65
Protection Level: IP65
Noise: 55dB
Motor Power: 260W
Inner Tube: 304 Stainless Steel Pipe
Optional Function: Hall Sensor
Optional Function: Upper And Lower Limit Signal Feedback
Quality:
Click To Buy
Max Load: 12000N
Max Speed: 60MM/S
Max Stroke: 1000MM
Temperature: -20 ~ +65
Protection Level: IP66
Noise: 45dB
Motor Power: 250W
Inner Tube: 304 Stainless Steel Pipe
Optional Function: Hall Sensor
Optional Function: Upper And Lower Limit Signal Feedback
Quality:
Click To Buy
==========
High-concerned chemical :
Color : Silver
Torque : Max 8000N
Model Number : DHLA3000
Continuous Current(A) : 2.5A
Construction : Series Wound
Type : Motor
Protect Feature : Totally Enclosed
Commutation :
Efficiency : IE 1
current : DC24V
