Specification:

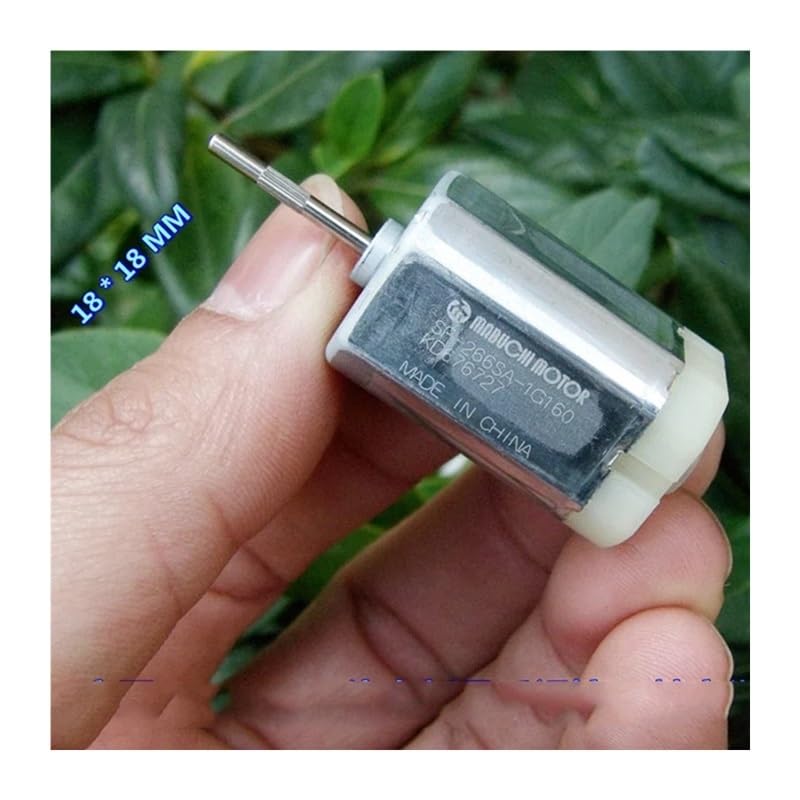

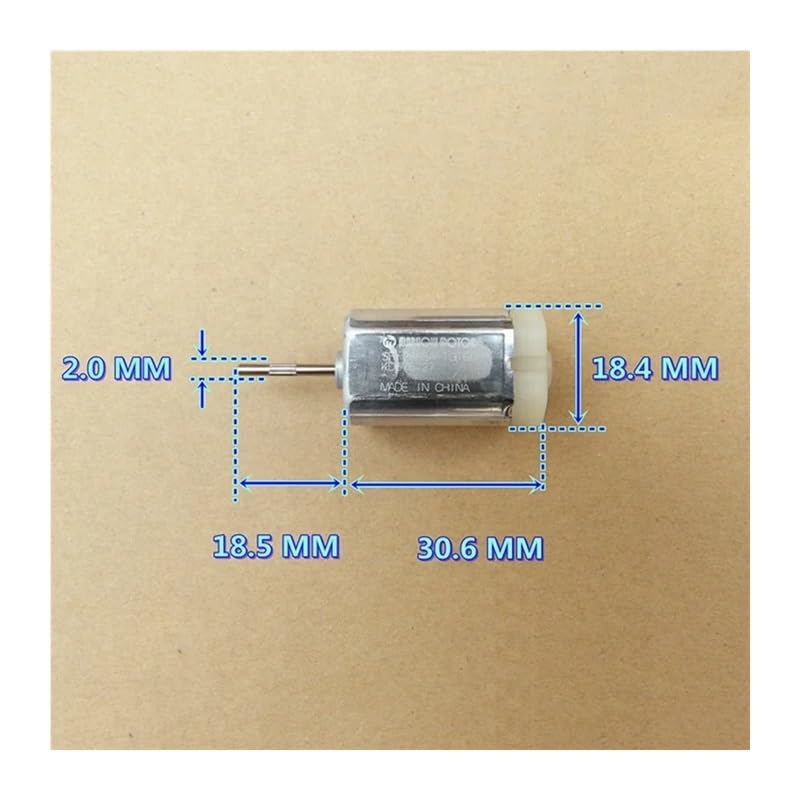

electronic starter specifications: 18.2 * 18.2 MM (square)
electronic starter length: 25 MM (excluding output bearings)
Output shaft diameter: 2.0 MM
Output shaft length: 18.5 MM
electronic starter weight: 33 g
The rated voltage of this electronic starter is 13.5V, the use voltage is 12V-18V, and it can also be pressurized to 24V. However, it is not suitable for long-term use at 24V, the current is too large, and it is relatively easy to generate heat. .
Voltage: 12 V
Current: 0.04 A (stall rotor 1.17A)
Speed: 7200 RPM
Voltage: 13.5 V (rated voltage)
Current: 0.04 A (1.2A stalled)
Speed: 7900 RPM
Voltage: 15 V
Current: 0.05 A (1.6 A stalled)
Speed: 9000 RPM
Voltage: 18 V
Current: 0.07 A (stall rotor 1.86 A)
Speed: 1100 RPM
Voltage: 24 V (not suitable for long-term work)
Current: 0.016 A (2.3 A stalled)
Speed: 14500 RPM
