Mechanical Planimeter Level And Survey Equipment Civil Instrument
The BEXCO Mechanical Planimeter is a high-precision surveying and engineering instrument designed to measure the area of irregular plane figures on maps, blueprints, and technical drawings. This essential tool is widely used by civil engineers, architects, and surveyors for accurate area calculation by tracing the perimeter of a shape.
✨ Key Features & Benefits:
Precision Measurement: Designed for professional accuracy in calculating areas of any shape, regardless of complexity or irregularity.
Metric System Compatibility: Includes a detailed "Table of Standard Setting in Metric Systems" for easy reference across multiple scales.
Versatile Proportions: Supports various proportions including 1:500, 1:1000, 1:2000, 1:2500, 1:4000, and 1:5000 to match standard engineering maps.
Durable Construction: Built with high-quality metal components and a graduated tracing arm for long-lasting performance and reliability in the field or office.

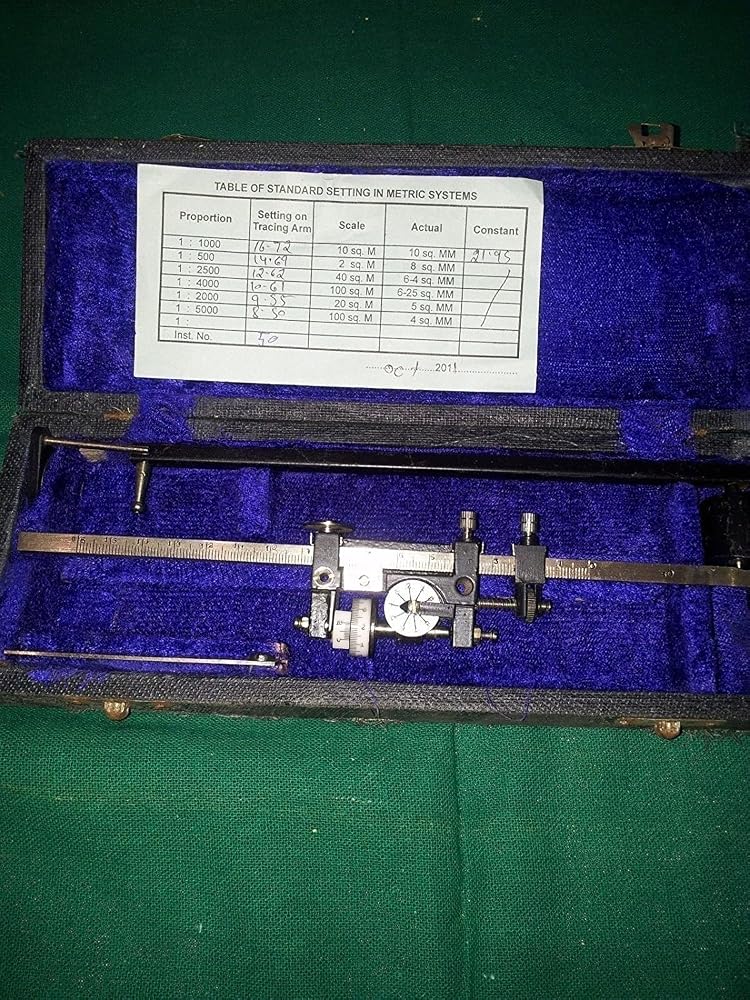

Protective Storage: Comes in a robust, professional carrying case with a plush protective lining to keep the delicate mechanical parts safe and calibrated during transport.
📏 Product Specifications:
Instrument Type: Mechanical Planimeter.
Scale System: Metric.

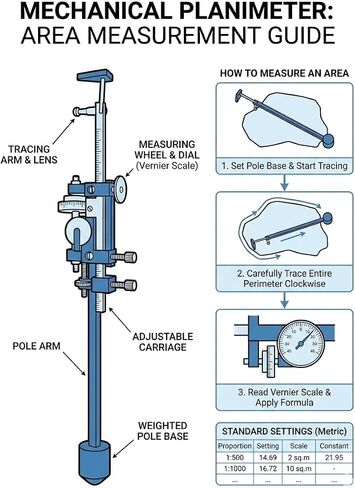

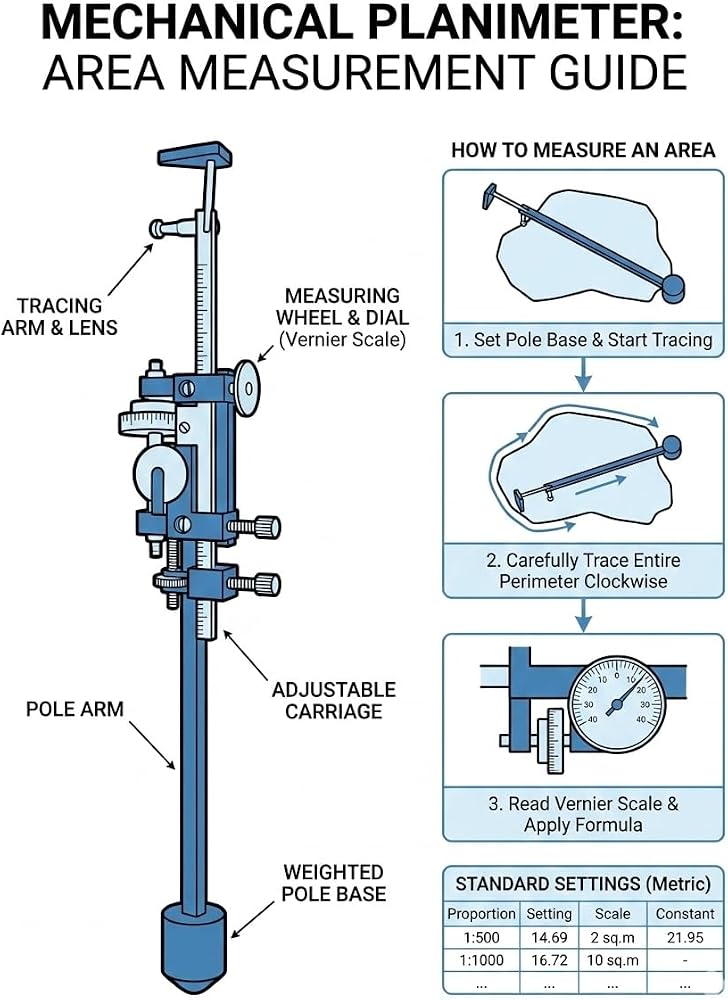

Components: Graduated tracing arm, measuring wheel with dial, and pole arm.
Included Accessories: Protective storage case and standard settings reference table.
Application: Surveying, Civil Engineering, Mapping, and Architectural Design.
✅ Professional Grade: This mechanical planimeter provides a reliable, non-electronic method for precise area calculations, making it an indispensable addition to any civil engineering or surveying toolkit.
