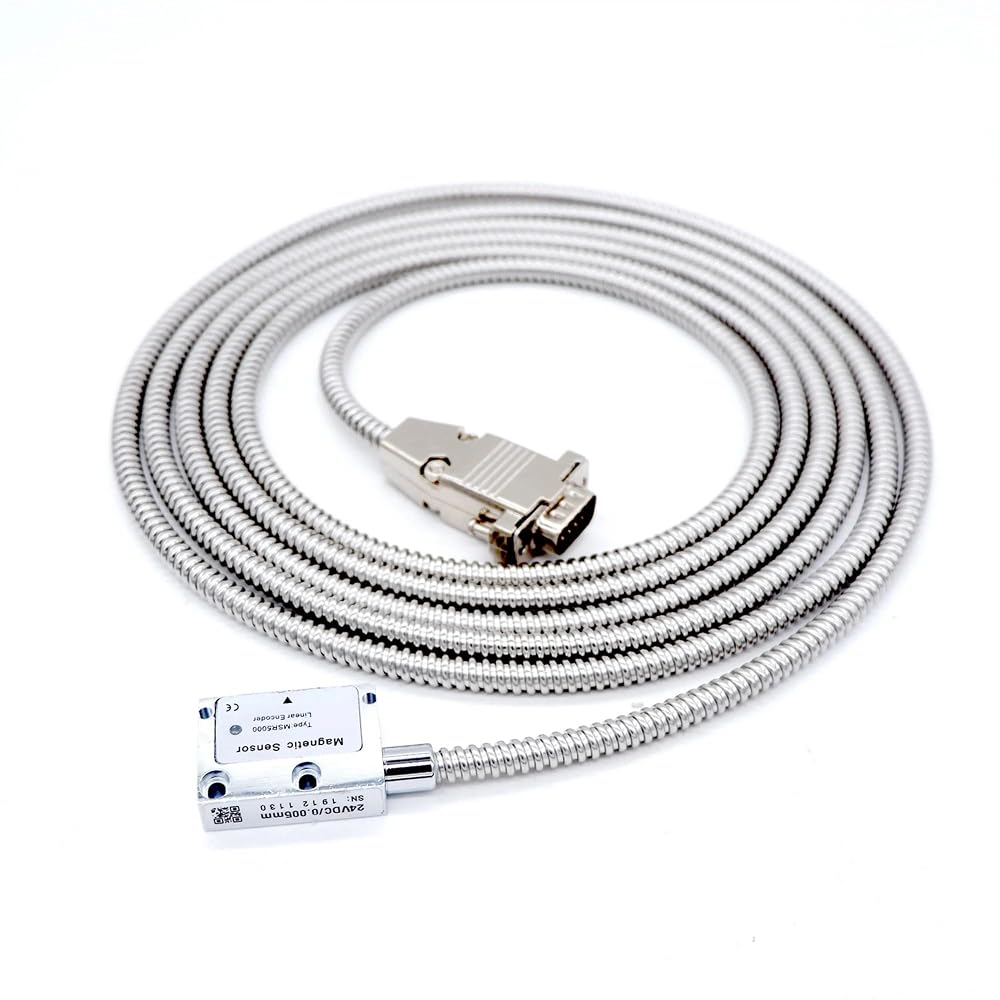

Mlling Machine DRO Digital Readout Magnetic Grid 5VDC 0.005mm Magnetic Linear Scale / Ruler / Sensor / Encoder Displacement
Order includes:
1 pieces magnetic reader
magnetic tape (length as selected length)
magnetic tape holder (length as selected length)
1 set mounting parts
Description
magnetic sensor, self-contained. Programmable resolutions up to 5 microns (Pr) via the serial line.
1 zero pulses in positions on request.
2 Body magnetic sensor in metal casting.
3 Possibility of mounting the magnetic sensor using the threaded holes M4 screws through.
4 Wide mounting tolerances.
5 Protected against reverse polarity and short circuit of outputs
6 Measuring length:1000mm
The encoders bring reliable solutions to tough, hard-working applications including woodworking, stone-cutting, sawing, metalworking, textiles, packaging, plastics processing, automation and assembly systems, laser/flame/water-jet cutting, electronic assembly equipment etc.
Pole pitch5+5mm
Magnetic Scales LengthMax32M
Available resolutions5 m
Accuracy± 30 m
Sensor - magnetic band gap0.1 - 0.5
Reference signalat constant pitch of 1 mm (C)
Repeatability± 1 increment
OutputTTL
Power supply5 Vdc ± 5%
Max. frequency300 kHz
Max. speed2m/s
Protection classIP 67
Electrical protectionsinversion of polarity and short circuit
Magnetic Scale Product Merits:
Non-contact measurement, without backlash problem, simple installment, and installment permits a bigger error.
Magnetic scales mainly are suitable for the facilities: metal processing facilities, stone material machinery, wood working machine.
Magnetic Scale's Merits:
(1)It has strong ability of anti-severe environment, it won't be dirtied or damaged owing to cooling water,
cooling liquid, metal powder or dust, anti-protection ability is very strong.
==========
Battery Included : No
High-concerned chemical : None
Model Number : magnetic scale
HYMSEANN Model : MSR5000
Certification :
Origin : Mainland
Power : +5V DC (+/-5%) / 24V()
Current consumption : 150mA (typical)
Output signal : TTL
IP protection class : IP67
Operating temperature : 0 - 50 degree
Travel(measuring) length : 0-3 meters or more
Accuacy : +/-30um
Cable length : 3 Meter
