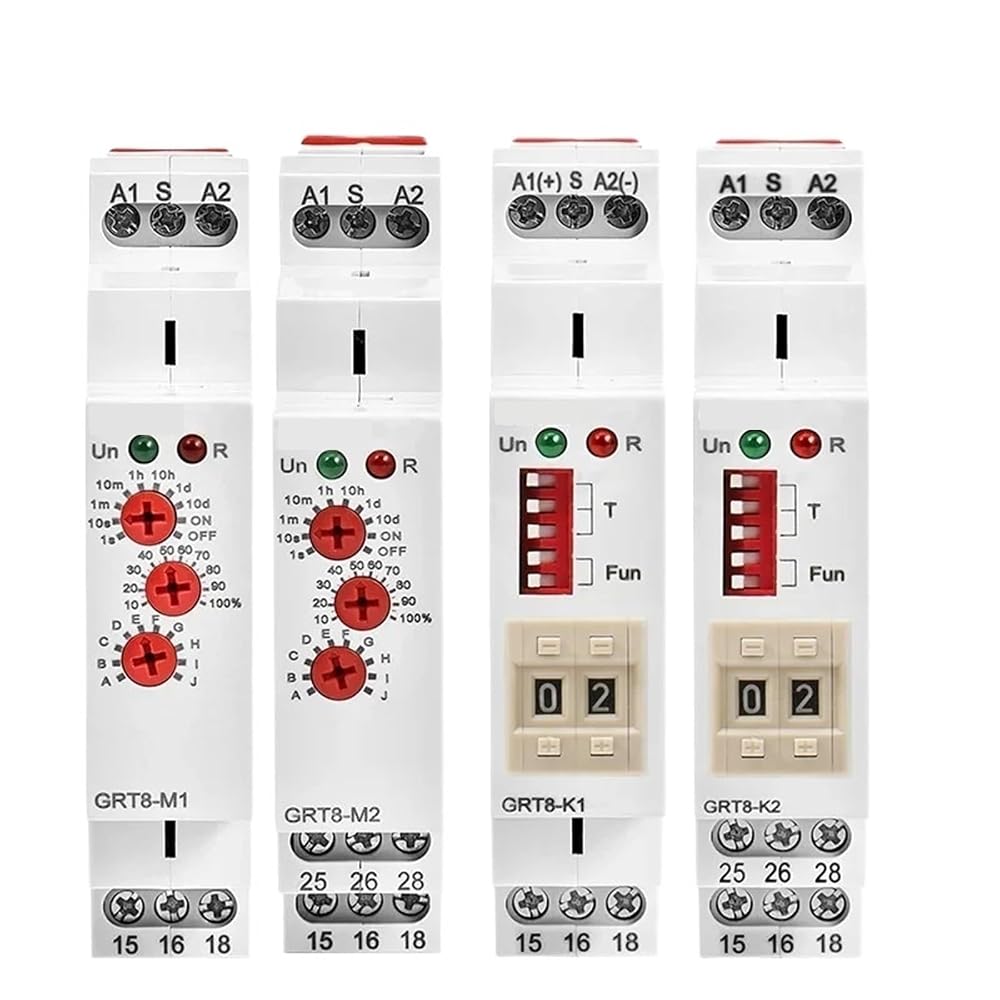

Multifunction Timer Relay Electronic Adjustable or Digital Setting Timer Switch 12V 24V 48V 110V 220V GRT8-M GRT8-K
TIPS: This page is for Multi Function Time Relay GRT8-M/GRT8-K
General
Multifunction time relay can be used for electrical appliances, control of lights, heating, motors, pumps and fans
-GRT8-M Multifunction Time Relay (10 functions, 10 time ranges, multi-voltage)
- Voltage Range: AC230V or AC/DC12-240V
- Output: 16A 1SPDT or 16A 2SPDT
-10 Functions:
5 time functions controlled by supply voltage ( A B C D J )
4 time functions controlled by control input ( E F G H )
1 function of latching relay ( I )
-Time scale 0.1 s - 10 days divided into 10 ranges, setting by Potentionmeter.
0.1-1s, 1-10s, 6-60s, 1-10min, 6-60min, 1-10hr, 0.1-1day, 1-10day, only on, only off
- 1-MODULE 18mm, DIN rail mounting, convenient install.
-GRT8-KDigital SettingTime Relay(4 functions, 8time ranges, multi-voltage)
- Voltage Range: AC230V or AC/DC12-240V
- Output: 16A - 1SPDT or 8A - 2SPDT
- Four functional modes can be set.-delay on, delay off, interval, single shot- Through digital dialing settings, it is easy to operate and set more precisely.
- Extra wide delay range, 0.1 seconds - 99 hours can be set.
- With AC/DC 12V-240V ultra wide operating voltage specifications are optional.
- The working state of the relay is indicated by the LED indicator.
- Ultra small size, only 18mm width, 35mm rail installation.
GRT8-M
GRT8-K
