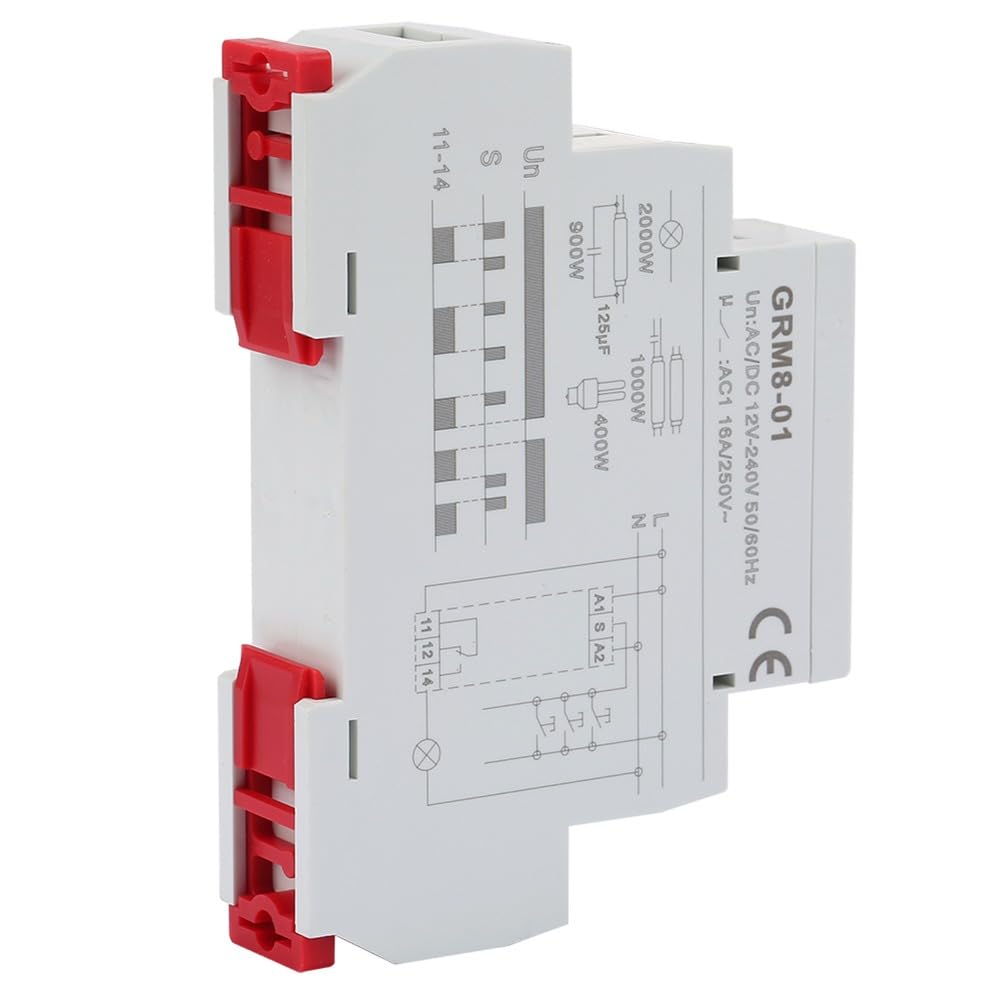

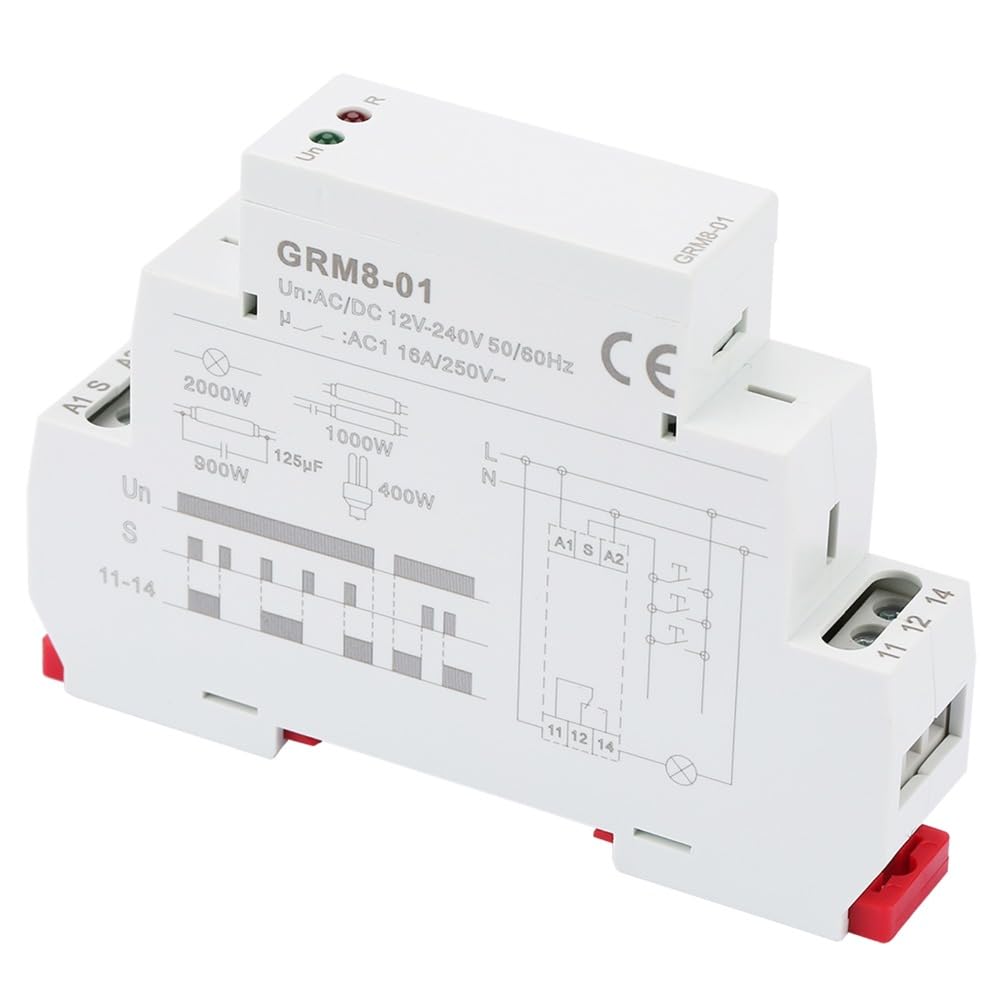

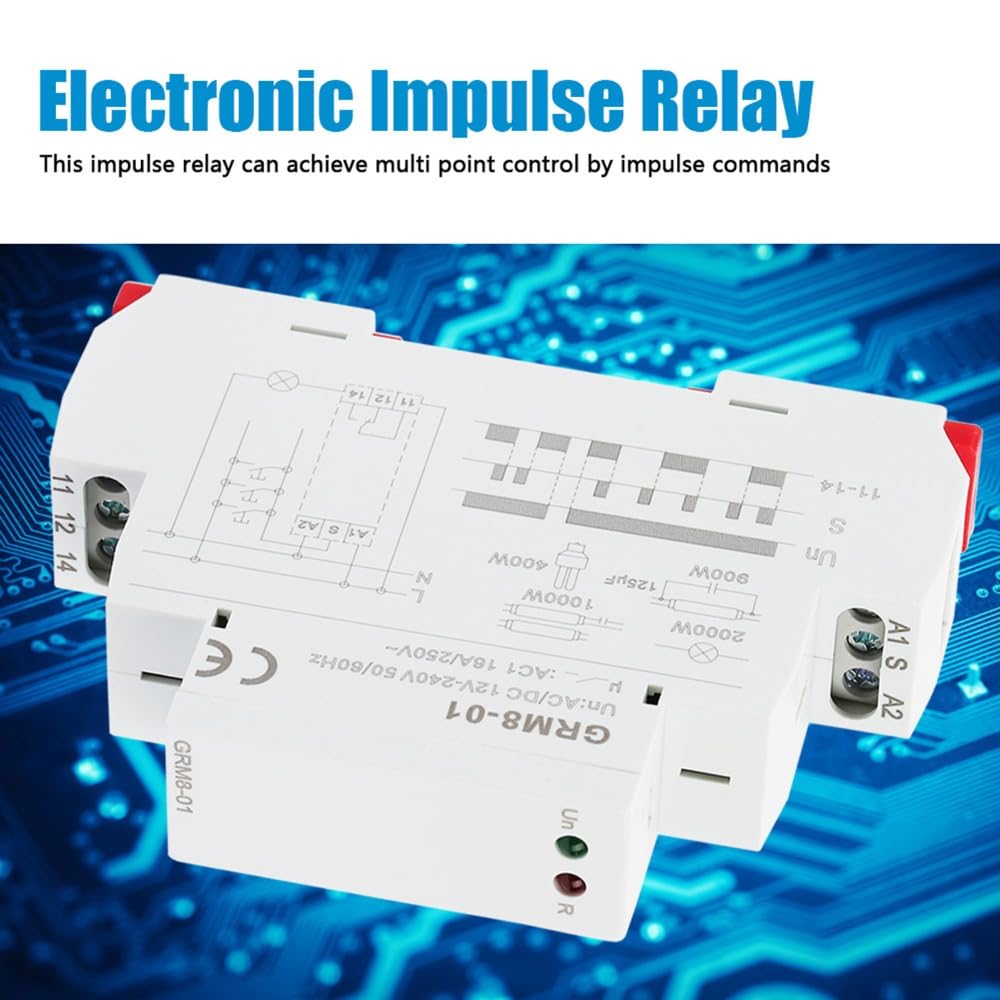

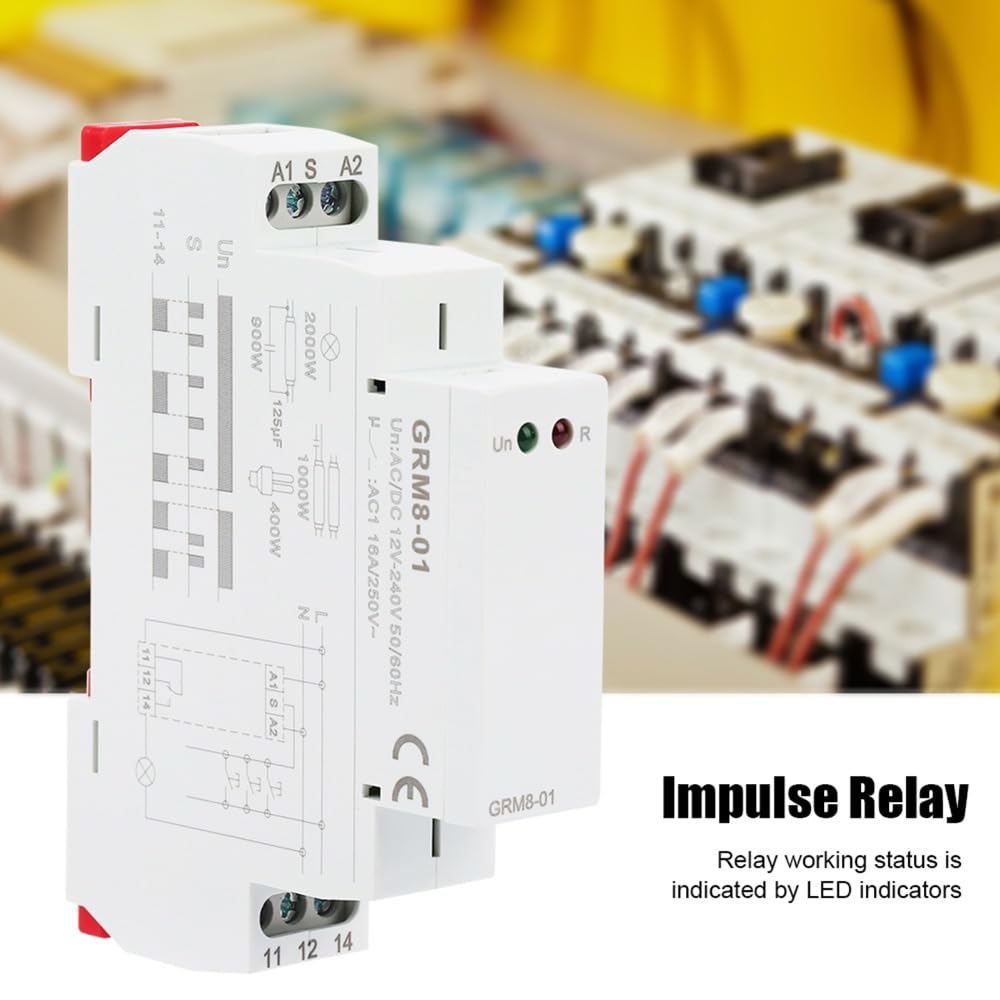

GRM8-01 electronic impulse relay enables multi-point control through pulse signals. Ideal for industrial automation and electrical systems requiring remote switching uses. LED indicators display real-time relay status for operational clarity

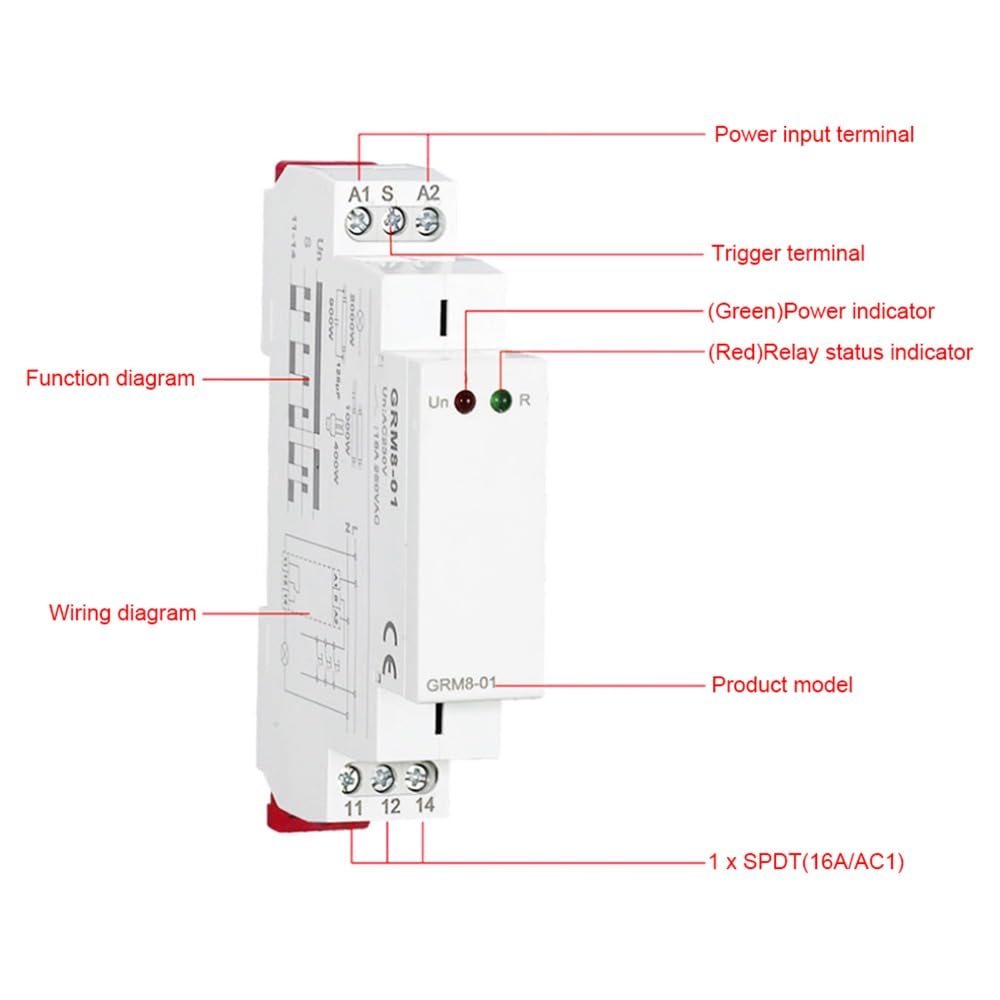

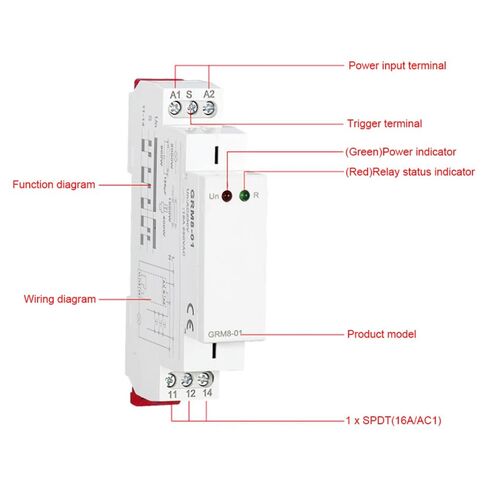

Installation requires connecting power terminals A1-A2 and control terminal A1-S. Pulse width must exceed 25ms for reliable triggering. DIN rail mounting simplifies integration into standard electrical enclosures. Suitable for controlling lighting systems, motor circuits, and automated equipment
Specification:
Model: GRM8-01
Power terminal: A1-A2
Power consumption: AC0.09-3VA/DC0.05-1.2W
Power indicator: Green LED
Control terminal: A1-S
Control signal width: Min. 25mm
Output Touch: 1 x SPDT, 16A/AC1, 250VAC/24VDC
Minimum switching power: 500mW
Output indication: Red LED
Mechanical life: 1x107
Electrical life(resistive load): 1x106
Reset time: Maximum 200ms
Working temperature: -20℃~55℃

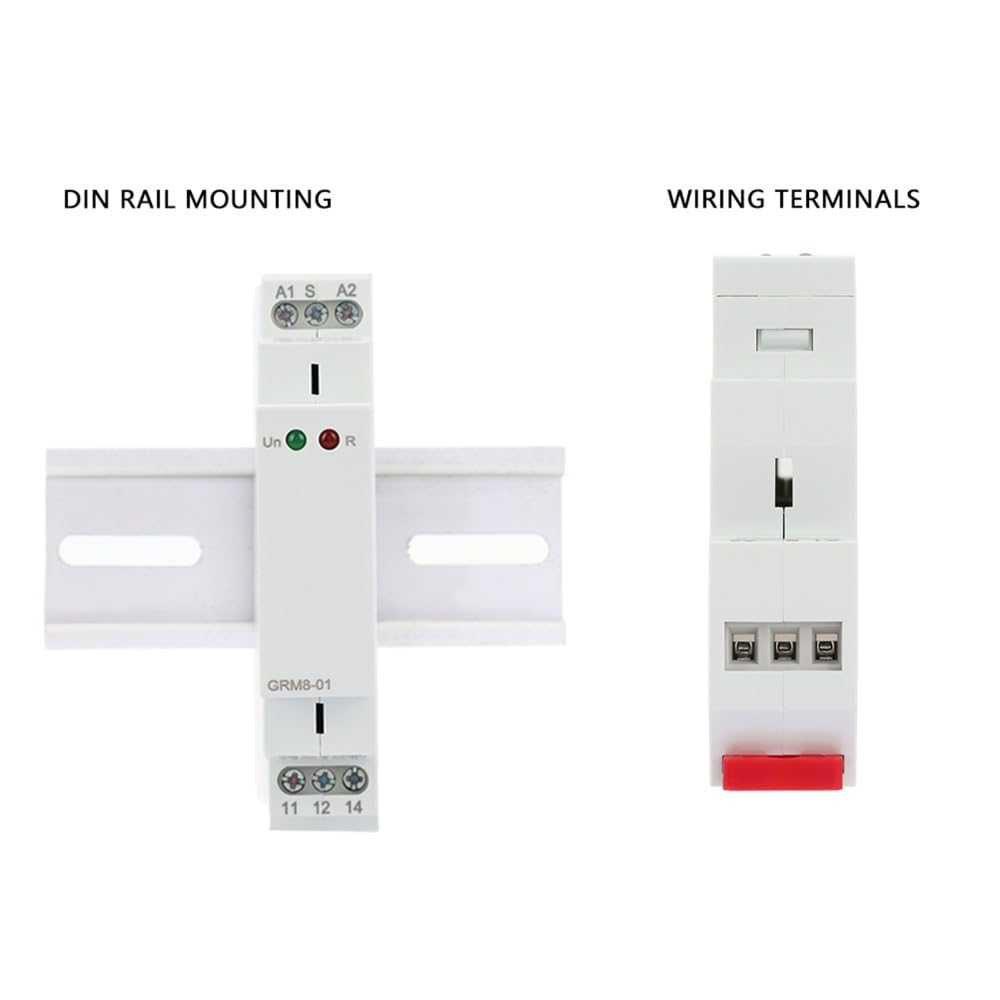

Mounting method: 35mm DIN rail
Mounting altitude: ≤2000m
Wiring capability: 1x2.5mm2or 2x1.5mm2

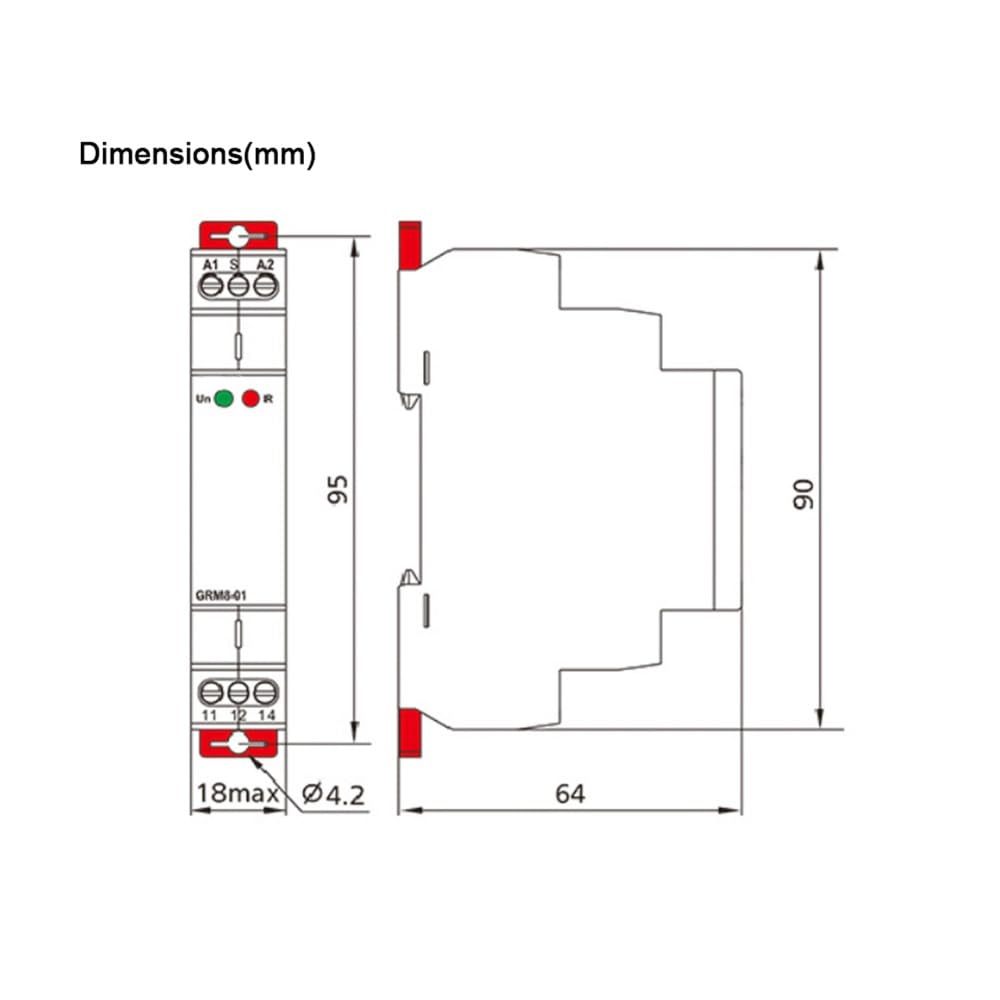

Dimensions: 90*18*64mm / 3.54*0.71*2.52in
Color: White
Weight: Approx. 73g/2.6oz
PackageList:
1 x Electronic Impulse Relay
