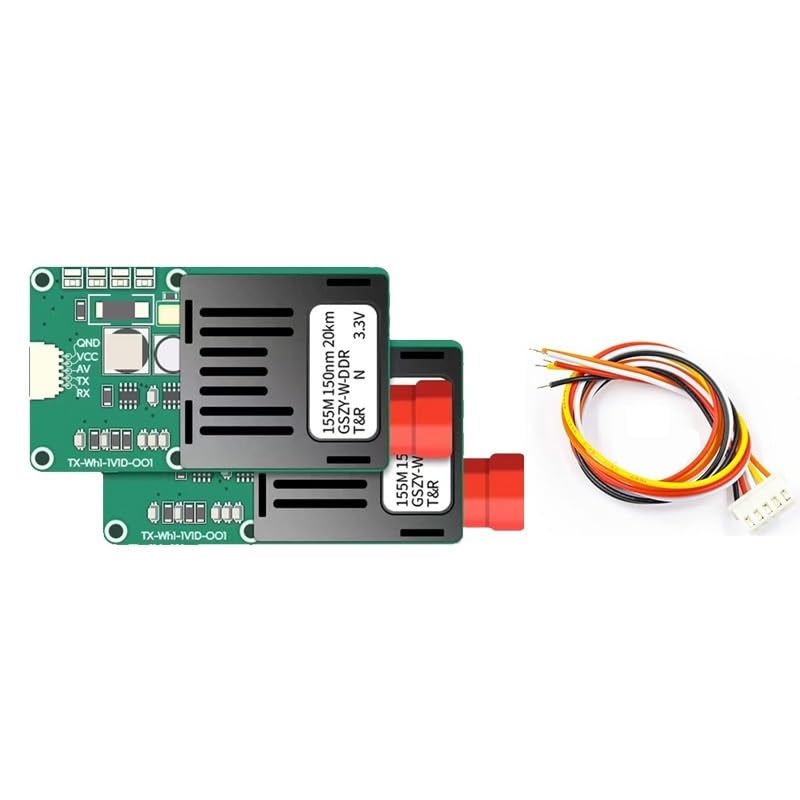

محول ألياف أحادي الوضع FC/UPC TX/RX 1 قناة فيديو + UART & TTL & SBUS إلى وحدة التحكم البصرية 0-20 كم، 5.5V-26V(Rx 1550nm) in Kuwait

تي إكس 1310 نانومتر × 1550 نانومتر

KWD 50.500
اللونتي إكس 1310 نانومتر × 1550 نانومتر
– 1 +

مميزات خاصة

  • Optical
  • Extended Transmission Range:Supports 0-20km transmission via Single Mode fiber, ideal for long-distance connectivity.
  • Compact and Portable Design:At 54mm*29mm*14mm and lightweight, this fiber converter is easy to handle and deploy.
  • Fiber Optic Converter|Wide Compatibility:Seamlessly integrates with various brands, ensuring versatility across diverse networking environments.
  • Customizable Serial Port:Offers UART, TTL, SBUS, and customizable serial port options to meet specific communication needs.
  • Multiple Video Inputs:Accommodates PAL, NTSC, SECAM formats with dual AV1/AV2 inputs, catering to diverse video sources.

وصف

Optical
Definition of Product Connection Interface:
GND: Grounding wire
VCC: Power Supply
Compatible with PAL, NTSC, SECAM video formats,
Video voltage 1VP-P
Video signal-to-noise ratio70dB
Applicable cameras: analog cameras and CVBS cameras
Serial port
Can be customized according to requirements, UART, TTL SUBS and other serial port signals
Baud rate: 115.2Kbps(Baud rate can be customized upon request)
Optical fiber interface: FC/UPC
Optical fiber wavelength: 1310nm/1550nm
Transmission distance: 0-20km
Size:54mm*29mm*14mm
Weight: Sky end -12g, Ground end -12g
Power supply: 5.5v-26v: (2S-6S battery)
Power consumption: less than or equal to 5W
Communication interface: MX-SH1.0mm-5P: CRSF interface/CVBS video port
Fiber optic interface: FC: Communication distance: Maximum 20km
Power Source : Non-Powered
Fiber Type : Single Mode
Model Number : XC-1V1D-155DS/1315/F20TRH
Origin : Mainland China
