Signal Filters / Radio Frequency Filters / Band Pass

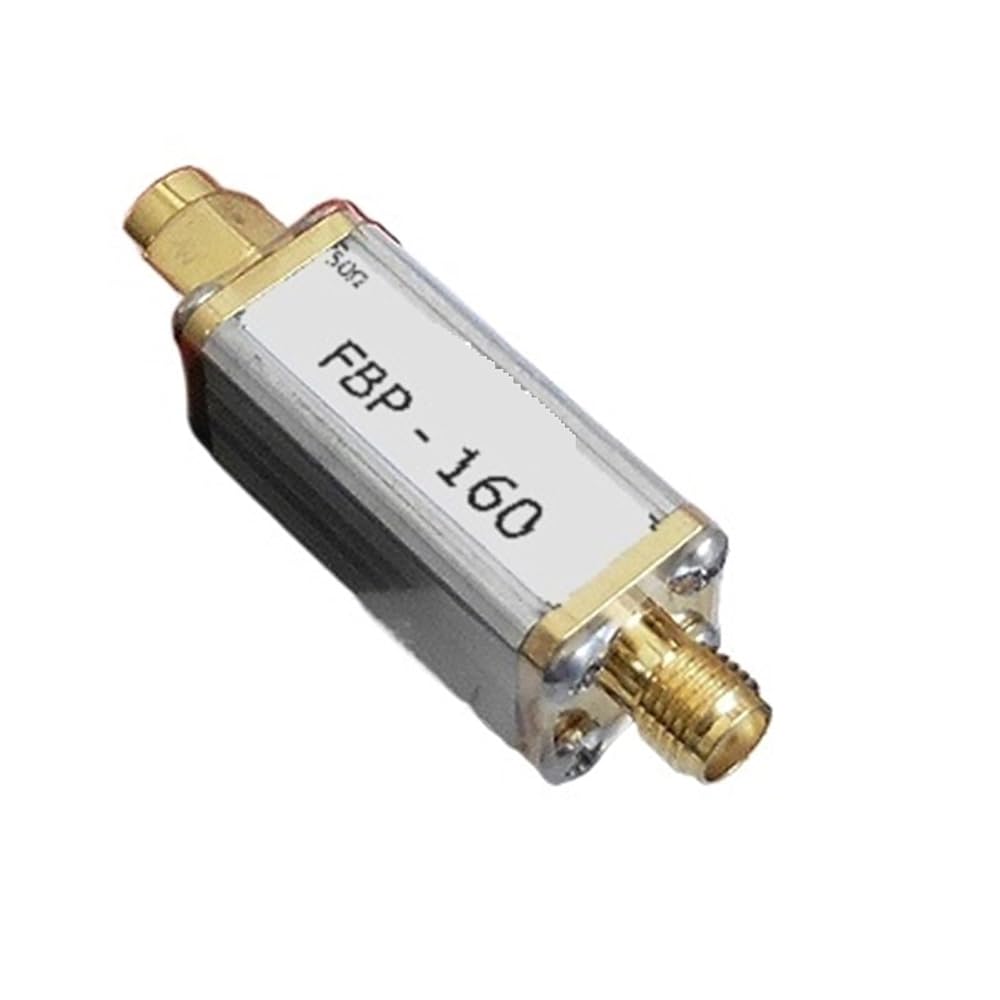

Model: FBP-160
Impedance: 50 Ohms
Center frequency / 1 dB bandwidth: 160 MHz / 20 MHz
3dB passband: 145 ~ 175 MHz
Maximum Carrying Power: 500 mW (27 dBm)
Interface: SMA-M, SMA-F
Frequency response diagram (scanning range: 40-400MHz, the blue line is the transmission loss, the vertical scale is 10dB per division. The yellow line is the reflection loss, and the vertical scale is 5dB per division):
(Scanning range: 40-1000MHz, the blue line is the transmission loss, the vertical scale is 10dB per division)
