This motor is for use in fans, blowers, whole-house fans, air circulators, and air coolers where a quiet running motor is required.

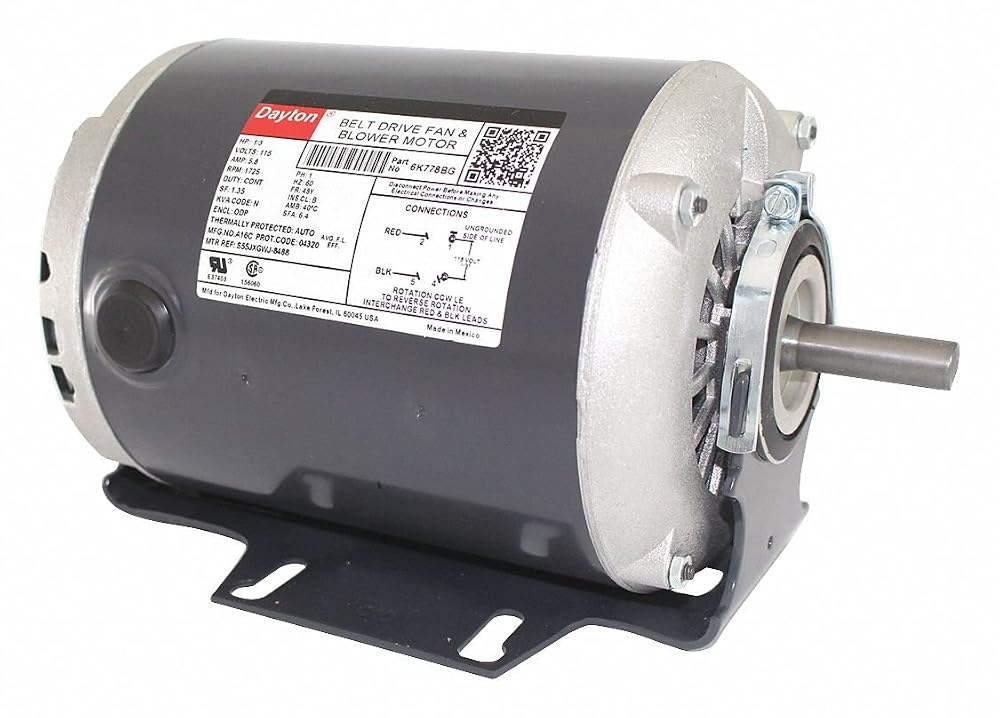

Item: Belt Drive Motor
Motor Application: HVAC/R
Motor Sub Application: Belt Drive Fan/Blower
Motor Design: Split-Phase
HP: 1/3
No. of Speeds: 1
Nameplate RPM: 1725
Voltage: 115
Frame: 48
Motor Enclosure Design: Open Dripproof
Motor Mounting Type: Cradle Base
Motor Mounting Position: All Angle
Hz: 60
Full Load Amps: 5.8
Motor Thermal Protection: Auto
Ins. Class: B
Motor Service Factor: 1.35
Motor Bearings: Ball
Motor Frame Material: Steel
Max. Ambient Temp.: 40 Degrees C
Motor Shaft Rotation: CW/CCW
Motor Shaft Design: Flat
Shaft Dia.: 1/2"
Shaft Length: 1-1/2"
Length Less Shaft: 8-3/8"
Overall Length: 9-15/16"
Body Dia.: 5-5/8"
Resilient Ring Dia.: 2-1/2"
Ring to Ring Center: 7-5/8"
Duty: Continuous
RPM Range: 1701-1800
Phase: 1
Standards: UL Component Recognition (E37403) & CSA Certification (258501)
