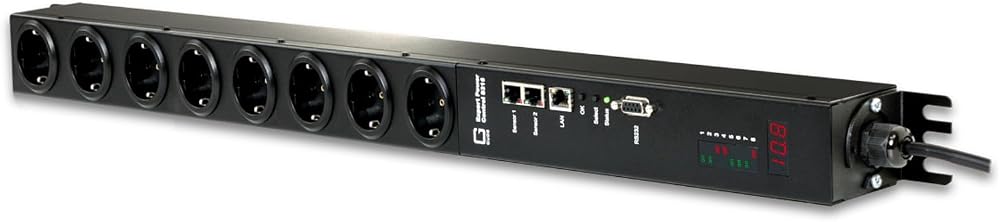

GUDE Expert Power Control 8314 8-way switched PDU with integrated measurement / evaluation options for TCP/IP networks

The Expert Power Control 8314 series allows switching and measuring current of electrical equipment over a TCP/IP network or serial connection. On the front of the device there are 8 load outputs, with earthing contact sockets. These 8 power ports can be switched separately via a web interface, via the serial port, via SNMP or the button on the device. Furthermore, the connected consumers can be switched by the IP watchdog if preset sensor or current thresholds are exceeded. The Power Distribution Unit has SNMPv3, SSL and IPv6 capability and supports Telnet, Radius and Modbus TCP.

For total current measurement, the Expert Power Control 8314 has two energy meters (outlet-metered). Thanks to sensor connections, ambient temperature and humidity can be monitored.
Features
• 8 power ports can be switched individually on the device, via HTTPS, via SNMP, via command line tool and via serial interface
• 2 energy meters per phase, one meter permanent, one counter resettable
• Measurement of current, voltage, phase angle, power factor, frequency, active, apparent and reactive power.
• Current peaks during simultaneous switching processes prevented by an automatic latency time of 1 second
• Switching state and switch-on delay (0...9999 seconds) adjustable for each power port.
• Programmable on/off sequence (batch mode) to switch power ports and automatically return to their previous state after a set time span
• Avoid system-critical conditions: Consumers can be switched on or off if preset sensor or current limits are exceeded
• 8-channel watchdog, each power port can be assigned its own watchdog (ICMP/TCP).
• Easy-to-read LED display for displaying total current, IP address, sensor values and error messages
• Special high-inrush relays prevent welding of the relay contacts.
• 2 ports for optional sensors
