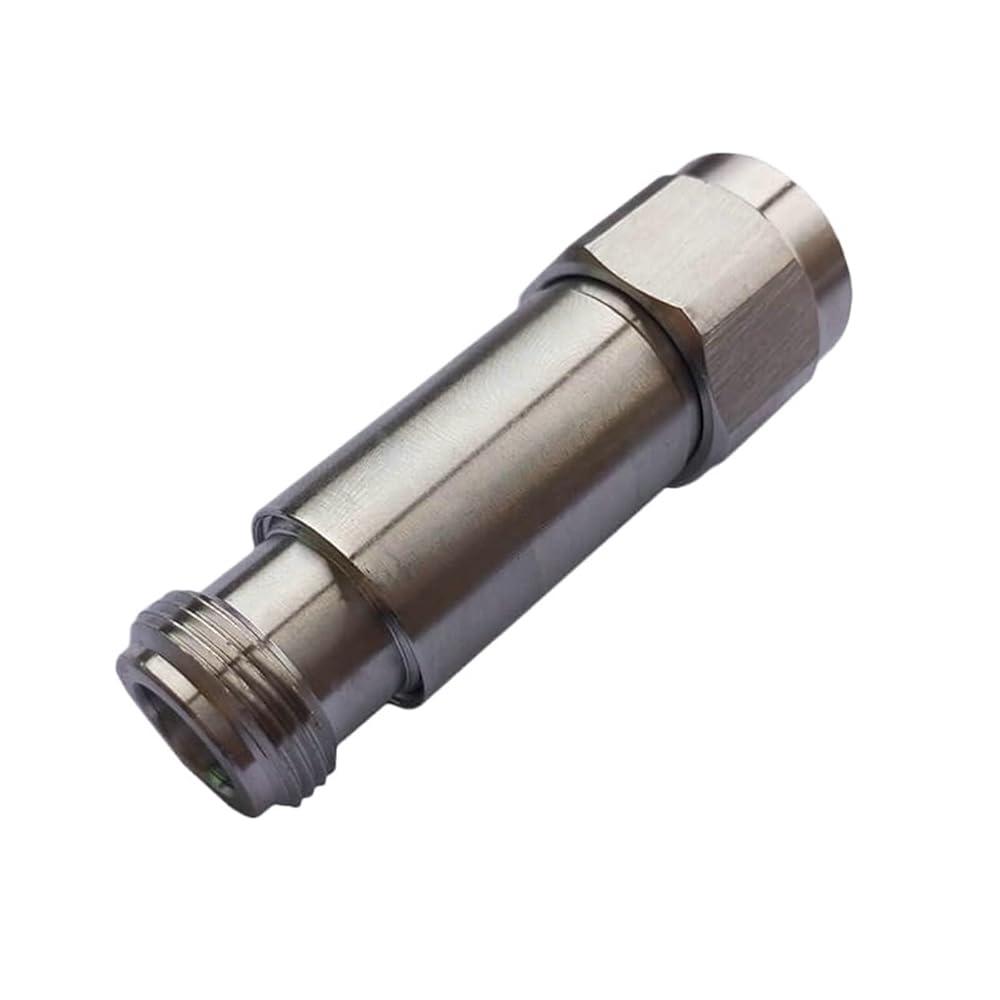

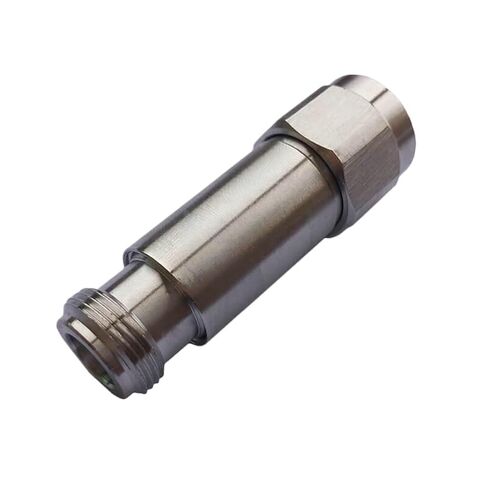

5W N-JK ذكر إلى أنثى ثابت RF المخفف المحوري DC-3 جيجا هرتز 1-40dB 50Ω لمعدات اختبار هوائي الاتصالات اللاسلكية (5W5DB) in Kuwait

5W6DB

KWD 14.500
ماركة
Generic
وزن
50 g
مقاس5W6DB
– 1 +

مميزات خاصة

  • 5W N-JK male to female fixed RF attenuator with 1-40dB optional attenuation, DC-3GHz frequency range and 50Ω impedance for stable RF signal control.
  • Features low VSWR, low insertion loss and great impedance matching, effectively reducing signal reflection and protecting transmitters and amplifiers.
  • Sturdy structure with good heat dissipation and anti-interference performance, reliable for long-term use in communication and test scenarios.
  • Standard N-JK connector design, plug and play, widely compatible with RF test instruments, base stations and signal testing devices.
  • Widely applied in signal attenuation, power adjustment, antenna testing, laboratory calibration, radar and wireless communication systems.

وصف

Kind: Radio Frequency Coaxial (RF)
Operating frequency: 0-3GHz
Interface Type: Thread
Insulator material: Stainless Steel
Number of stitches: 1
Application areas: Network Communication
Model: N-Type Fixed Attenuator
Power: 5W
Impedance: 50Ω
VSWR: ≤1.20 (unidirectional standing wave)
Frequency Range: DC to 3GHz
Operating Temperature: -55℃ to +125℃
Attenuation Value: 1,3,6,10,15,20,30dB; 1–10dB±0.5dB, 15–30dB±1dB, 40dB±1.5dB
Connector: N-Type Male to Female
