【High-Precision 6-Axis Sensor for Accurate Motion Tracking】 The MPU-6500 module features a high-precision 6-axis sensor with ±2g to ±16g acceleration range and ±250°/s to ±2000°/s gyroscope resolution, delivering reliable motion data for robotics, s, and VR applications. Its built-in DMP (Digital Motion Processor) provides real-time Euler angles (pitch, roll, yaw), reducing the processing load on your main MCU.
【Wide Voltage Compatibility & Low Power Consumption】 This MPU-6500 module supports a wide input voltage range of 3.3V–5.0V DC and operates at just 3.9mA in full function mode, with a standby current as low as 5µA. The internal LDO regulator ensures stable power delivery, making it Suitable for battery-powered devices and industrial systems requiring energy efficiency.
【Flexible I²C/SPI Interface for Easy Integration】 Equipped with both I²C (default address 0x68) and SPI dual-mode interfaces, this 6-axis sensor offers versatile connectivity options for various microcontroller platforms. With programmable interrupt outputs and configurable wake-up functions, it's Suitable for smart home devices, wearable tech, and automation systems.
【Reliable Durability & Wide Operating Temperature】 Designed for harsh s, the MPU-6500 module can withstand up to 10,000g impact and operate reliably between -40°C and +85°C. Its robust construction and advanced calibration features make it suitable for industrial vibration monitoring, autonomous robots, and outdoor IoT applications.
【Easy-to-Use with Built-In DMP & Automatic Calibration】 The MPU-6500 comes with an integrated DMP firmware library that simplifies attitude angle calculation. It also supports automatic zero-offset calibration and temperature compensation, ensuring accurate performance even in high-temperature conditions. Suitable for developers looking for a plug-and-play motion sensing solution.
وصف
Product parameter

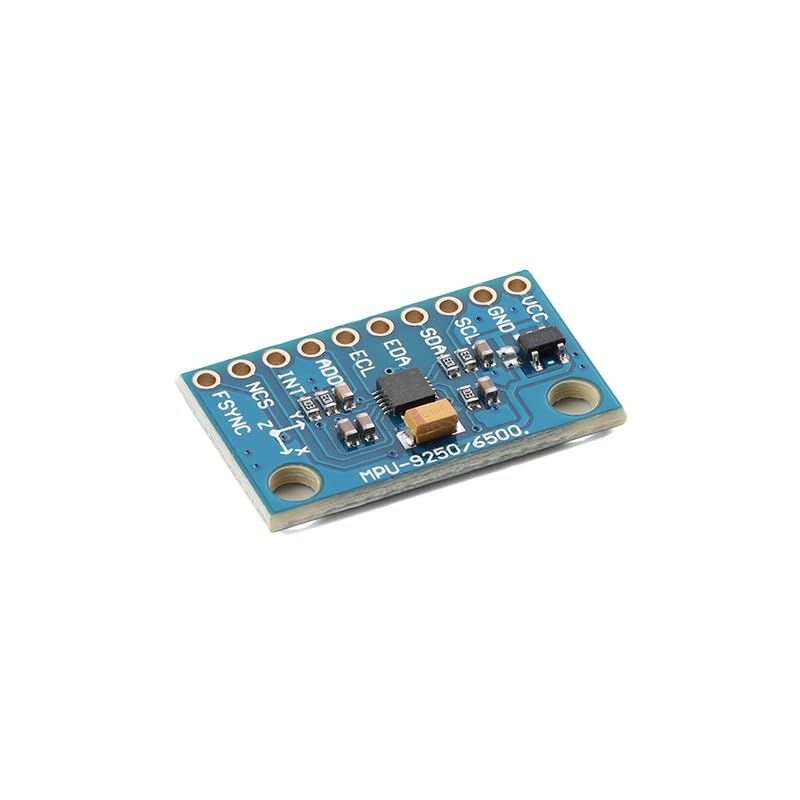

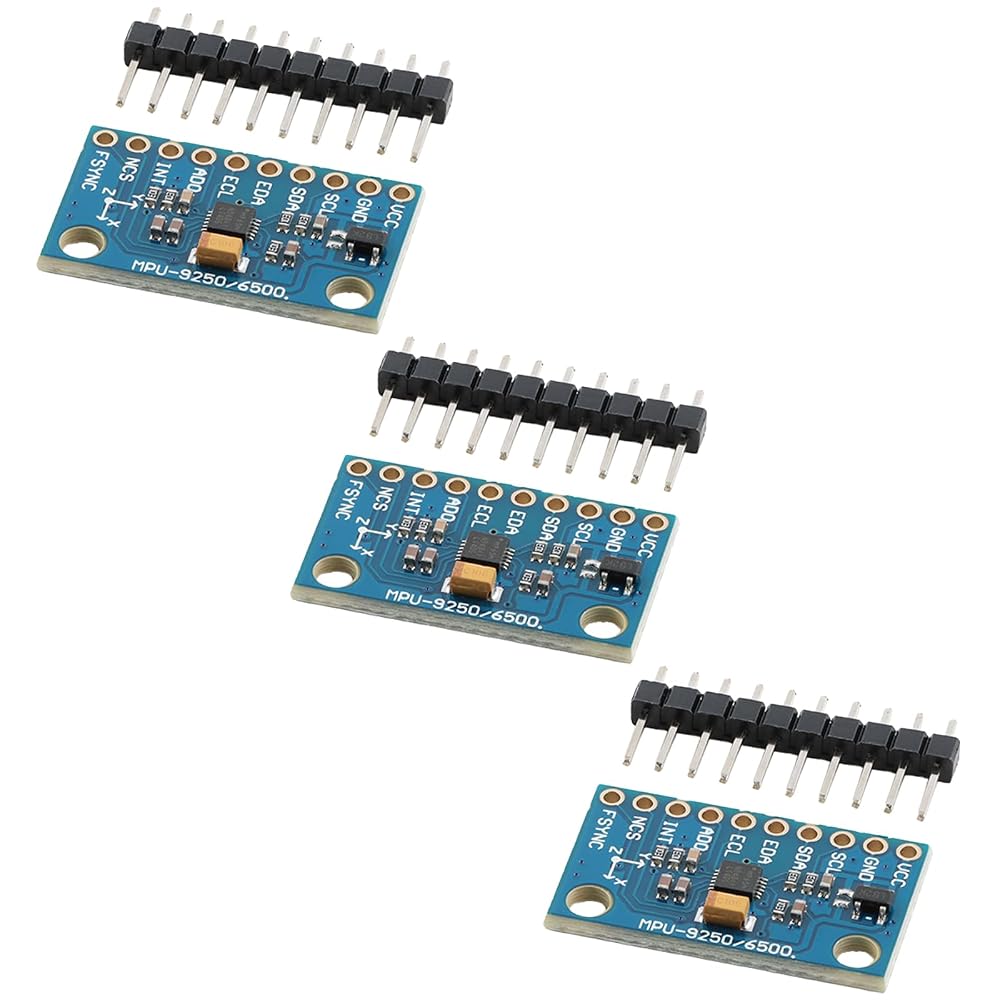

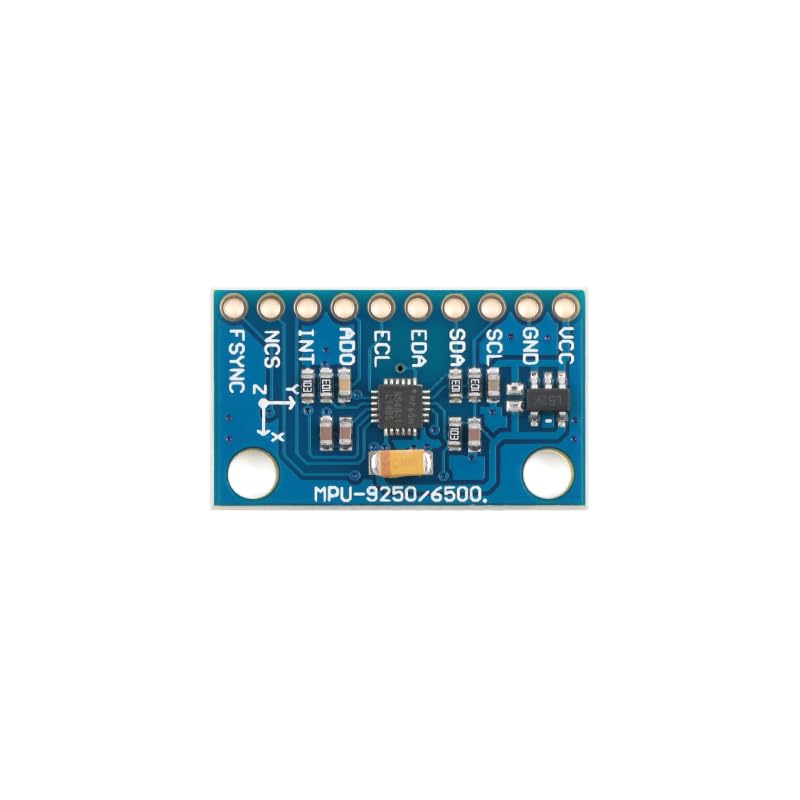

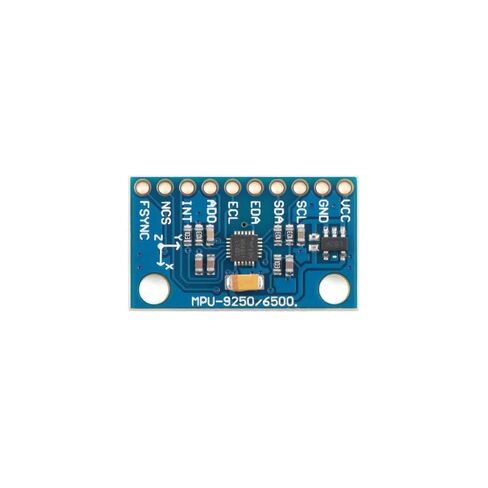

core chip : MPU-6500 (scattered new original chip, QFN-24 package)
of working voltage of:
module input (VIN): 3.3V-5.0V DC
Chip power supply (VDD) : 3.4V-3.6V DC
sensing axis number of: 6-axis
measurement range and accuracy of:
accelerometer : ± 2g/± 4g/± 8g/± 16g, 0.061mg/LSB
gyroscope: ± 250 °/s to ± 2000 °/s, resolution 7.63mdps/LSB
of interface type: I²C (default address 0x 68)/ SPI dual mode
of data output of: raw acceleration/angular velocity value + built-in DMP attitude angle (pitch/roll/yaw)
refresh rate of: up to 8kHz (gyroscope),4kHz (accelerometer)
power consumption :
Operating current: 3.9mA (full function mode)
Standby current: 5μA
Impact resistance of : 10,000g Mechanical protection
working temperature: -40°C to +85°C (Industrial)

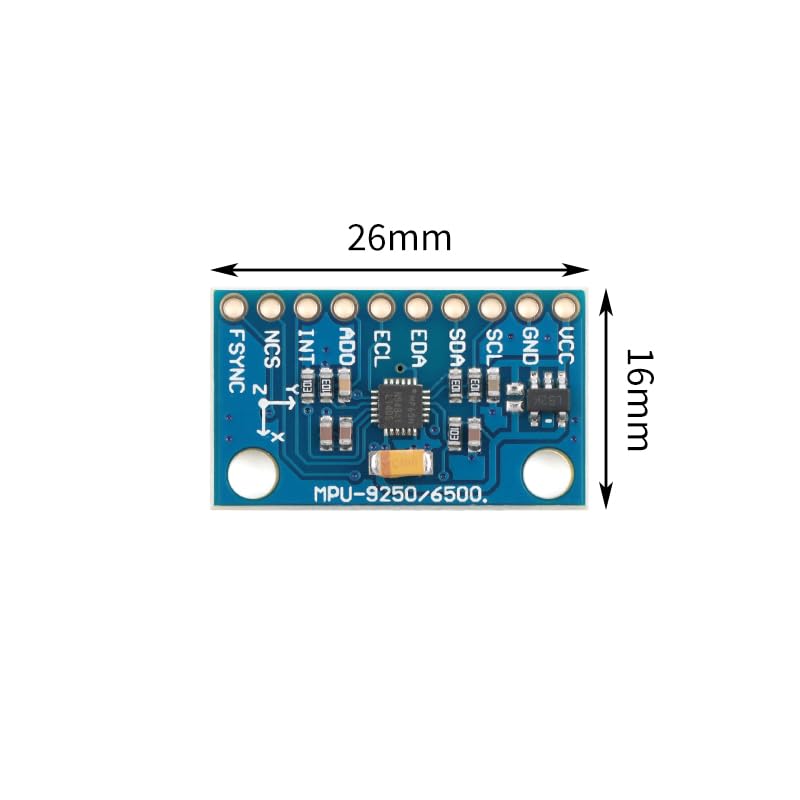

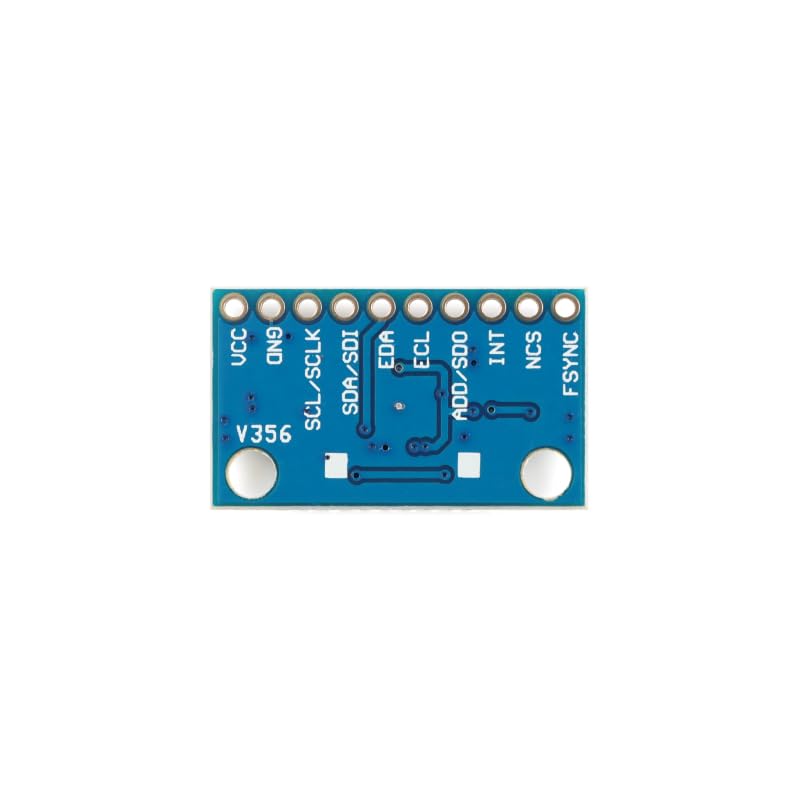

product main pin function
VIN: DC input positive pole (3.3V-5.0V DC), external 10μF electrolytic capacitor + 100nF ceramic capacitor filter required
GND: power supply ground, which must be shared with the main control single point
SCL/SCLK : I²C clock line (or SPI clock line), 4.7kΩ pull-up resistor needs to be externally connected to VIN
SDA/SDI : I²C data line (or SPI data input), external 4.7kΩ pull-up resistor is required
SDO/ADO : SPI data output (or I²C address selection, floating = 0x 68, connected to VIN = 0x 69)
CS: SPI Chip Select Pin (Active Low)
INT: interrupt output (configurable as data ready/action recognition)
FSYNC: Frame sync input (external sensor timestamp sync)
