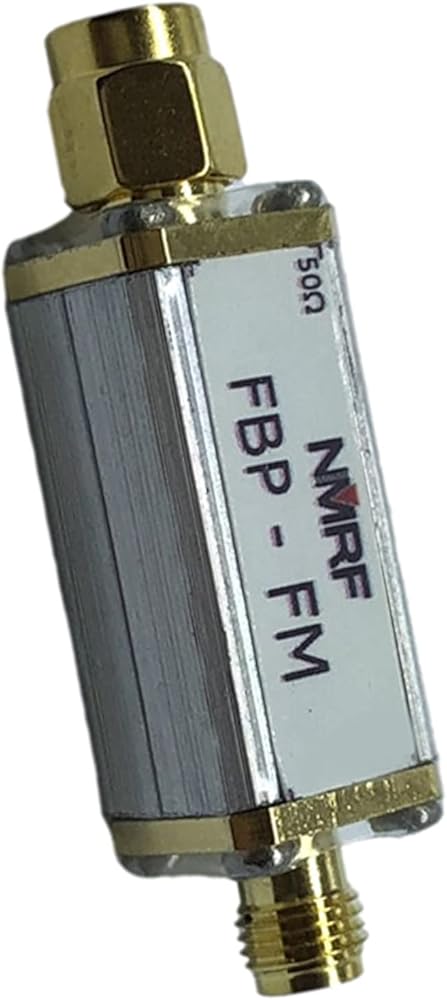

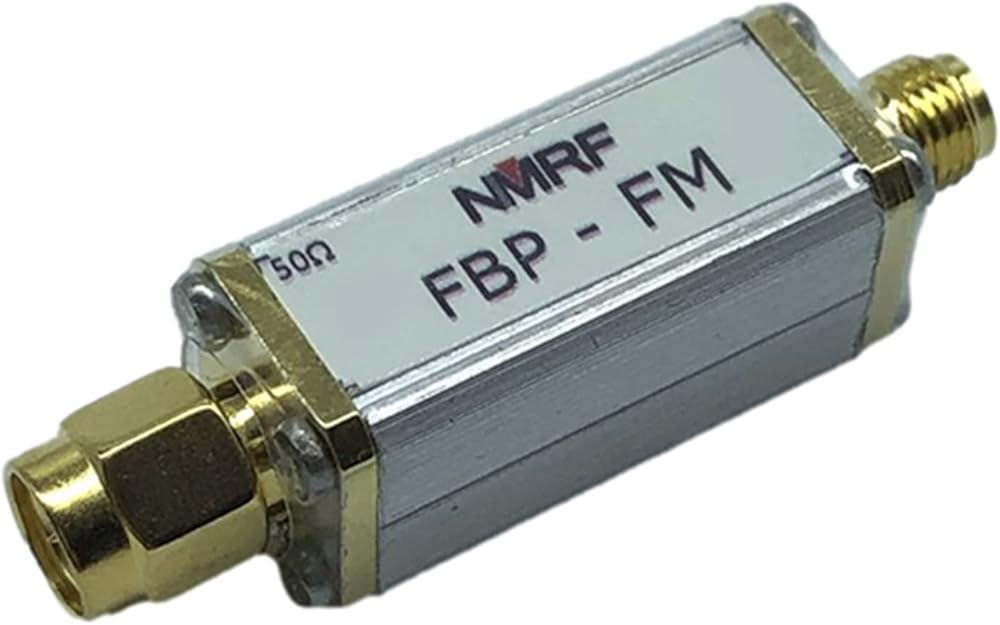

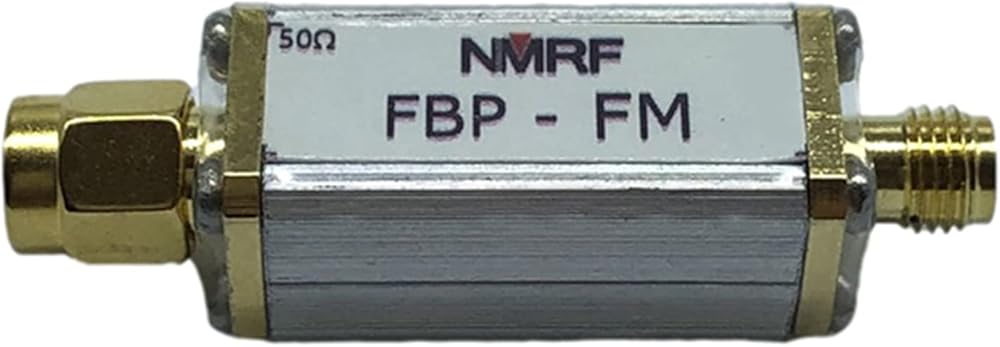

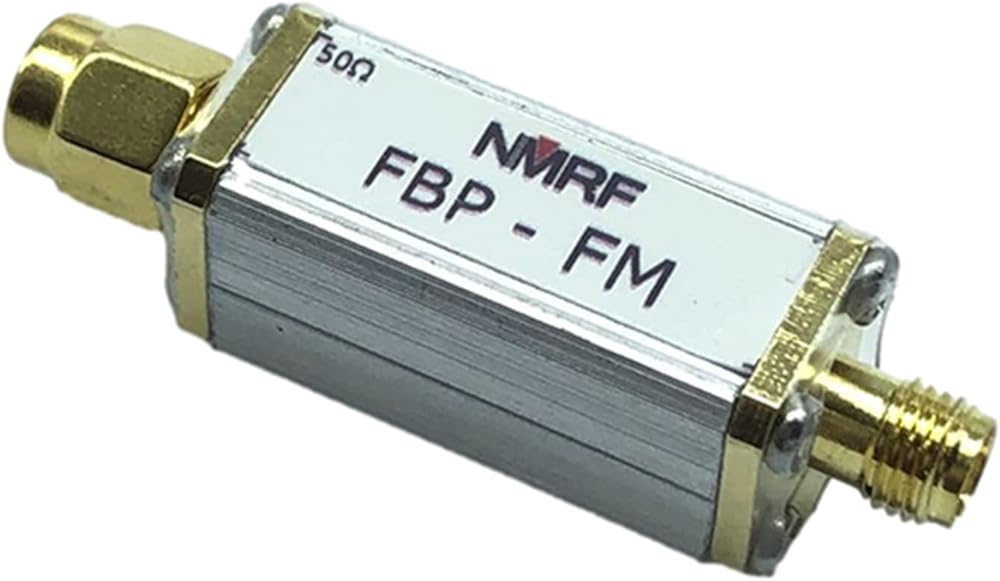

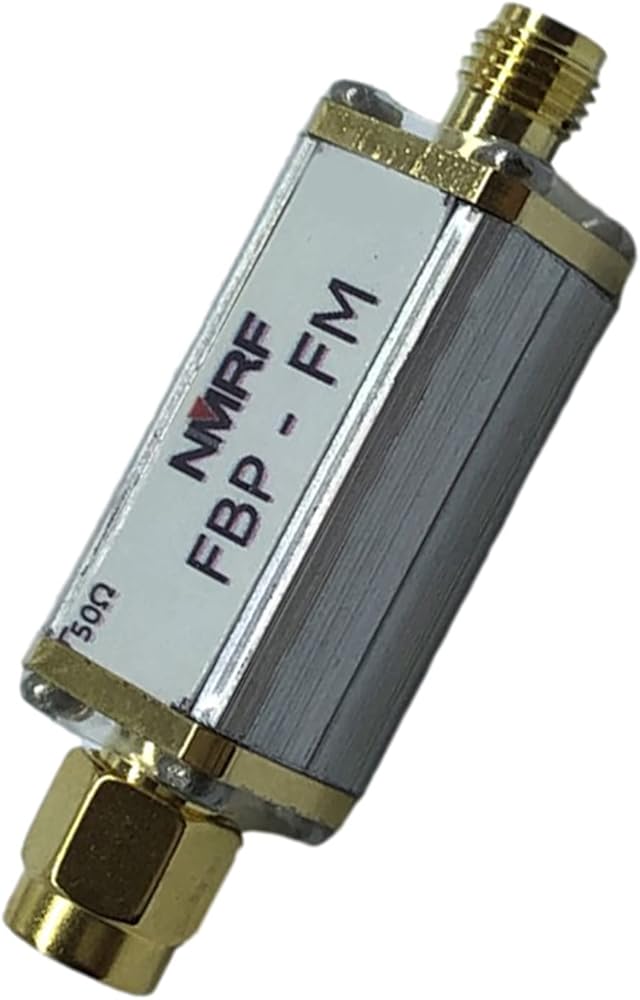

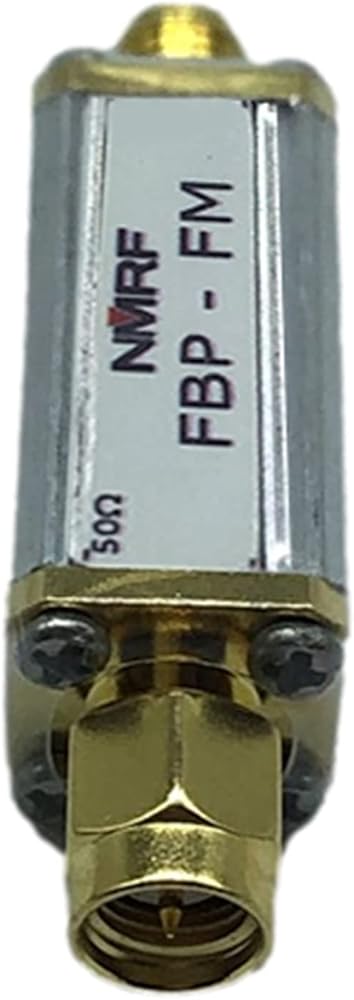

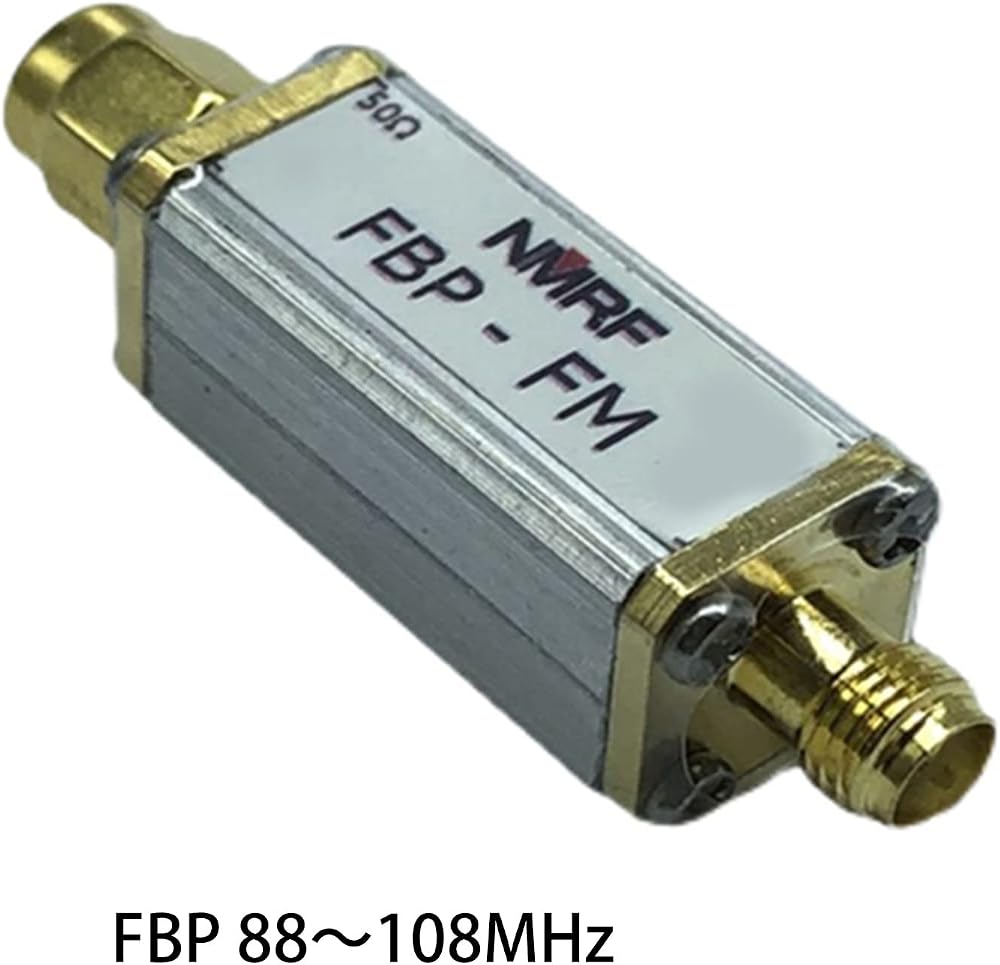

FBP-FM 98MHz Band Pass Filter FBP FM Broadcast Bandpass Filter Bandwidth 88-108MHz SMA Interface

Features:
and
Ultra-small size, excellent selectivity, high out-of-band rejection
Dedicated FM broadcast band, laboratory and other highly selected applications
It can effectively filter out-of-band signals, reduce noise, and increase dynamic range
Use aluminum alloy shielded for shell, anti-interference, no out-of-band spurious response
\Compact and sturdy, easy to use

Specifications:
Model: FBP-FM
Impedance: 50 Ohms
Center frequency: 98 MHz
Center frequency insertion loss: 2.0 ~ 2.5 @ 98 MHz
3 bandwidth: to 111 MHz
30 bandwidth: 72 to 150 MHz
Greater than 50 Stop Bands: for to 55 MHz & 250 to 2500 MHz
Carrying Power: 3 for W ( 35 dBm)

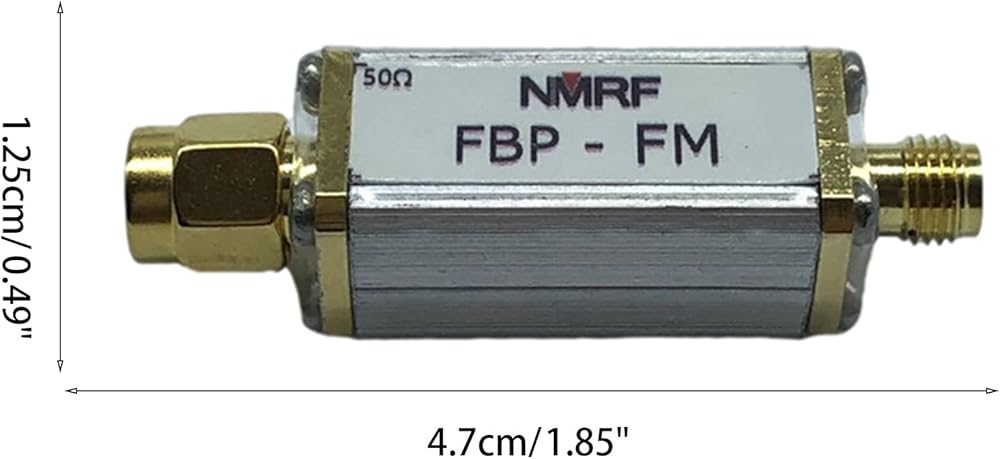

Size: approx 47x12.5mm / 1.85x0.49in
Interface: SMA-M, SMA-F

Package Includes:
1 x Bandpass Filter

Note:
Only the package content, other products are not included
Note:
Light and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is 0-2cm
